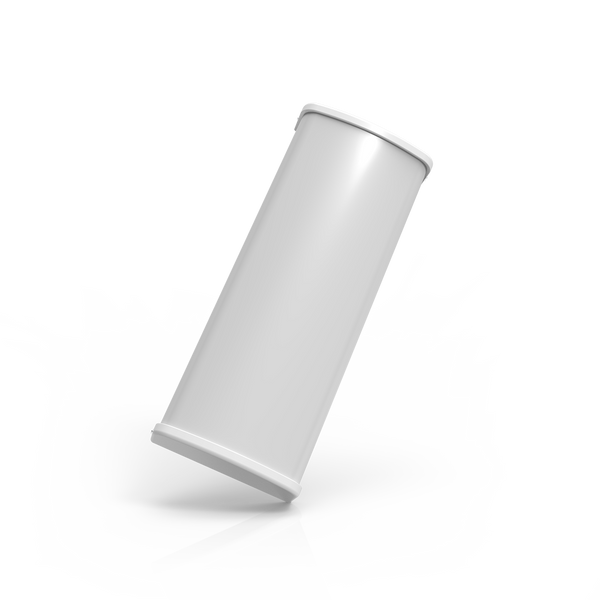

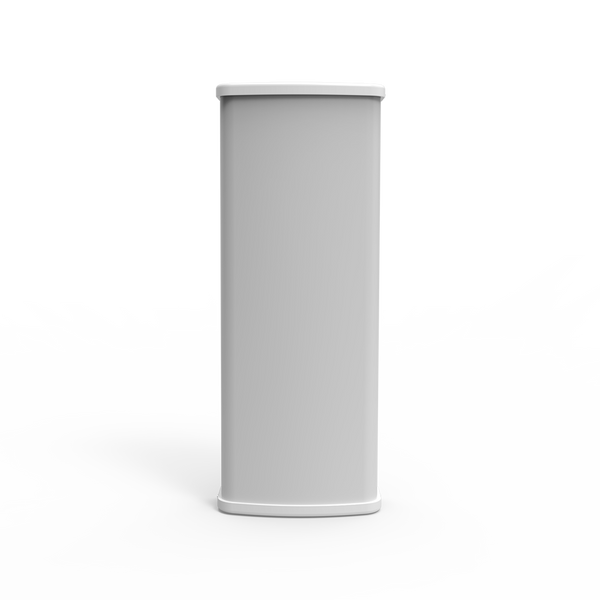

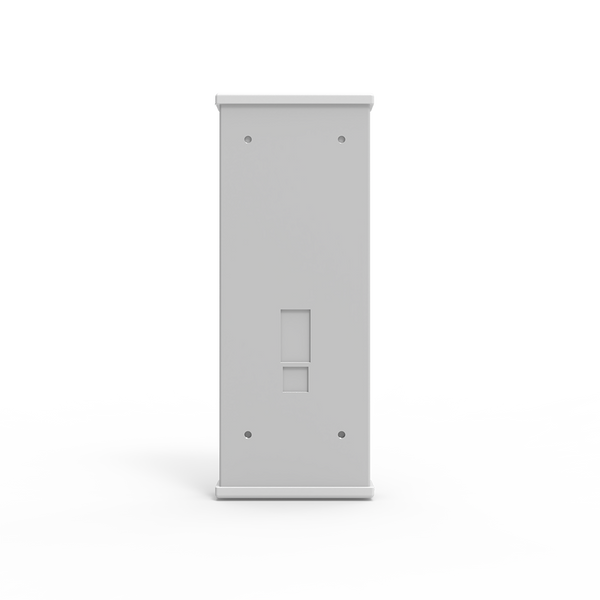

12dBi Directional Antenna
Supports 860-930Mhz
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description
This high-gain directional antenna is the latest in the RAKwireless LPWAN accessories portfolio. It is specifically useful in scenarios where directional signal reception is necessary, allowing for precise pointing to the field of your main signals, reducing the SNR. The high gain allows for a better reception from high-distance devices. Easy to mount with the included mounting kit.
Note: The cable is not included in the package. You must select the correct cable for your setup from the Check to Include option.
Product Features
- Frequency: 860 ~ 930 MHz
- Gain: 12 dBi
- VSWR: ≤1.5
- Horizontal beam width: 65º (± 10º)
- Vertical beam width: 35º (± 10º)
- Impedance: 50 Ω
- Polarization: Vertical
- Type: Directional
- Radome body: UPVC
- Connector: N-type female
- Bracket inclusion: 2 pcs brackets
- Dimensions: 750×280×125 mm
- Operating temperature: -40 ~ +55 ºC
-

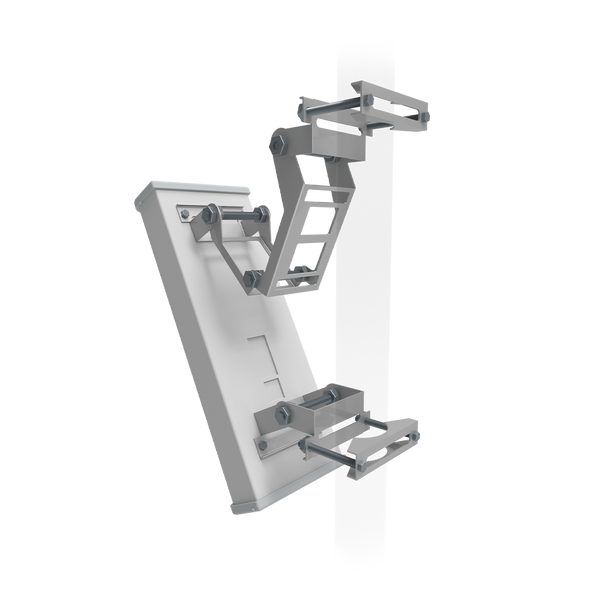

Mounting pole diameter: ∅ 30 ~ 75 mm
Package Inclusion
- 1pc 12dBi Directional Antenna
- 1pc Mounting Kit
Documentation
860-930MHz 12dBi Directional Antenna
