PCB Antenna for LoRa® MHF-4
Compatible with RAK11720/ RAK11160/ RAK3112/ RAK11162 /RAK3312 Modules
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Note: MHF connectors are generally interoperable with IPEX-style connectors in most practical deployments, allowing cross-use in numerous designs.

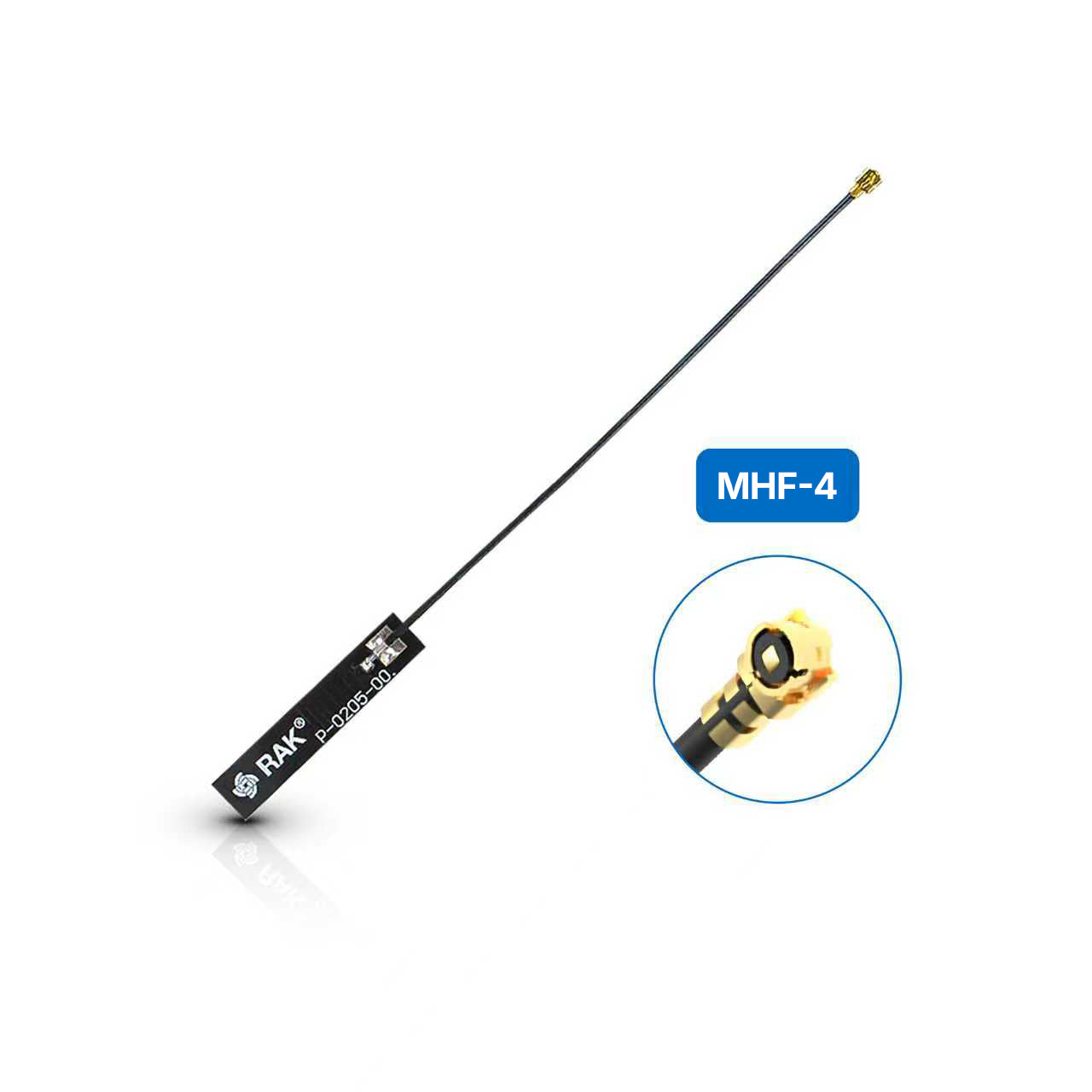

RAK PCB antenna is a small antenna, compatible with all LoRa® and LoRaWAN® end devices. It comes with an MHF connector for easy attachment.
This antenna with MHF-4 connector is compatible with WisDuo modules RAK11160, RAK11720, RAK3112, and WisBlock Core modules RAK11162 and RAK3312.
For other modules, use the PCB Antenna for LoRa MHF-1.
Please select the variant for your WisBlock or WisDuo module according to this table:
|
Variant |
LoRaWAN region |
Modules |
|
MHF4 antenna 902-928 MHz |
US915, AU915, KR920, AS923-1/2/3/4 |
RAK11720,RAK11160, RAK3112,RAK3312, RAK11162 |
|
MHF4 antenna 863-870 MHz |
EU868, RU864, IN865 |
RAK11720,RAK11160, RAK3112,RAK3312, RAK11162 |
Key Features
|
Frequency range |
863-870MHz antenna |
902-928MHz antenna |
|
Peak gain |
0.7dBi |
0.8dBi |
|
VSWR |
≤ 2 |
≤ 2 |
|
Efficiency |
41.60% |
41.90% |
- Impedance: 50 Ohm
- Polarization: linear
- Connector type MHF
- Dimensions (mm): 35 x 7.0 x 0.5（863-870MHz/902-928MHz)
- Indoor use/In enclosure for outdoor use
- Cable length 100mm
Package Inclusion
-
1pc PCB antenna
