RGB LED Module NCP5623B

Product Description

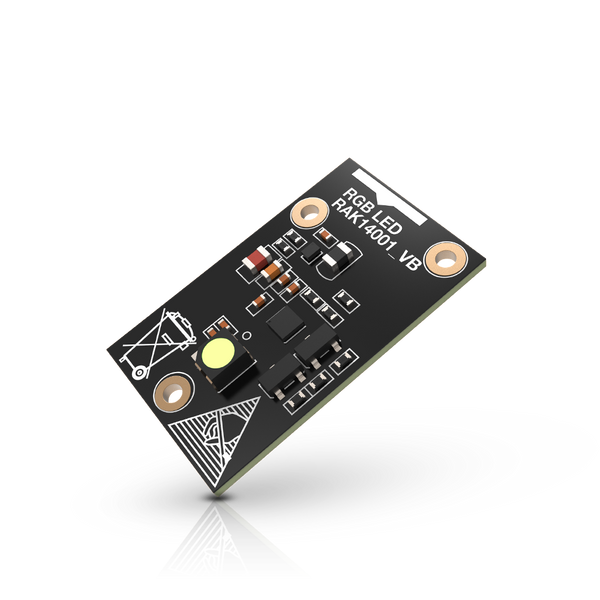

RAK14001 is a WisBlock RGB LED module based on NCP5623B. Each of the 3 colors can be controlled independent in brightness.

Product Features

• 3.3V input voltage
• RGB Function Fully Supported
• Programmable Integrated Gradual Dimming
• Support I2C Protocol
• Support enable power supply
• Module size: 25X35mm
