Barometric Pressure Sensor STMicroelectronics LPS22HB

Product Description

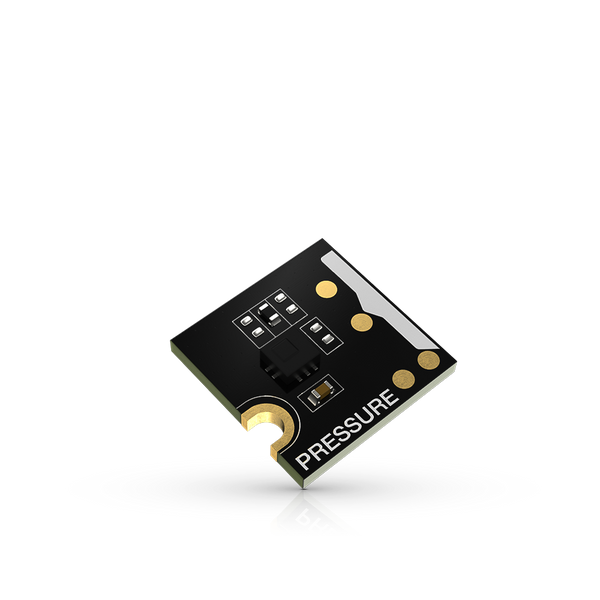

RAK1902 is a WisBlock Sensor based on the STMicroelectronics LPS22HB chip which extends the WisBlock system with barometric pressure sensing capabilities. A ready to use SW library and tutorial makes it easy to build up a barometric pressure data acquisition system.

RAK1902's pressure range from 260 to 1260 hPa makes it suitable for the use in weather prediction systems The relative accuracy of ±0.1 hPa is su­cient for most applications.

RAK1902 combined with the RAK4631 WisBlock Core is ready to go system to collect barometric pressure data. The acquired data can be send using LoRaWan® communication, LoRa® point to point connections and BLE.

RAK1902 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.

RAK1902 barometric pressure sensor can be joined with other WisBlock sensors like a temperature and humidity sensor module to create a weather station.

Key Features

• Using the ST LPS22HB barometric pressure sensor
• Low power consumption

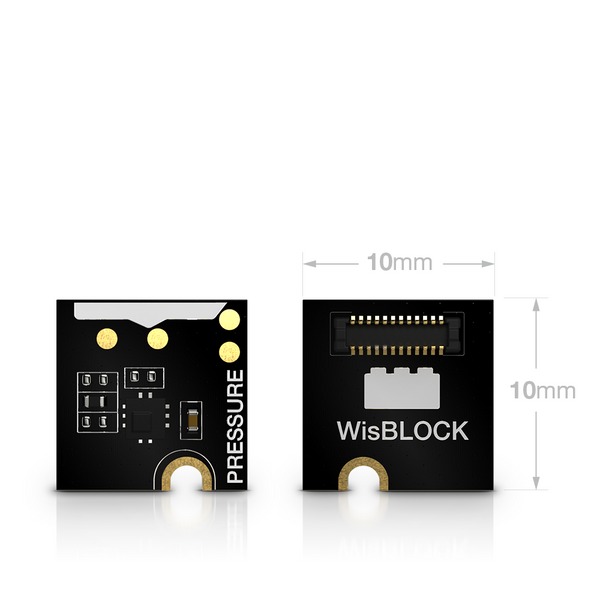

• Small form factor
• Pressure range 260-1260 hPa
• Low power consumption of 3uA

Package Inclusions

• 1pc RAK1902
