POE Power Board
Ag9905MT POE IoT Board

PoE Module Silvertel Ag9905MT for RAK13800

RAK19018

SKU:100095
Regular price $19.80 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

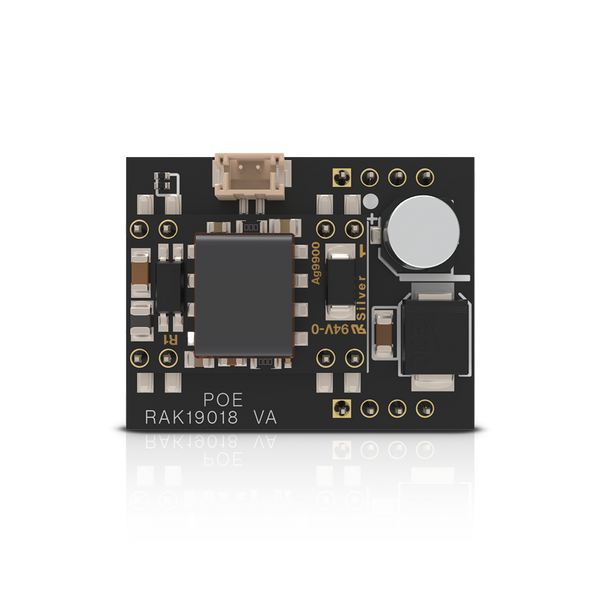

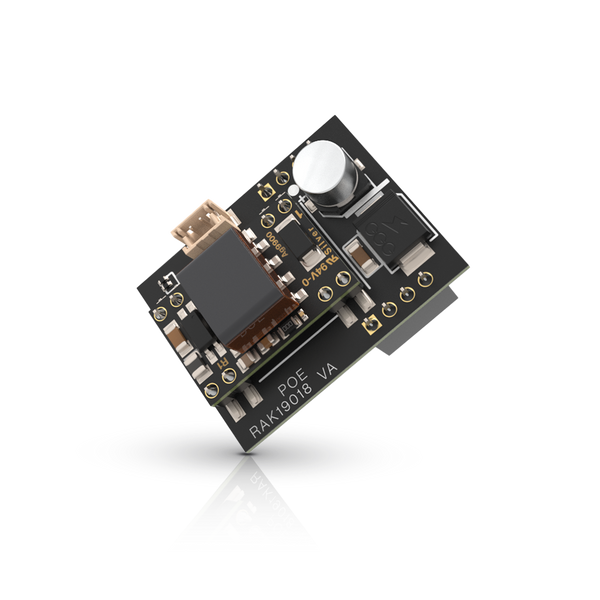

The RAK19018 is a Power-over-Ethernet module used together with the RAK13800 Ethernet Interface module to draw power from CAT5/CAT6 cables. This POE module is based on Silvertel Ag9905MT converter board and compatible the IEEE 802.3af PoE standard.

Features

  • Based on Silvertel Ag9905MT
  • Requires RAK13800 Ethernet Module to work
  • Power-over-Ethernet Module
  • IEEE802.3af compliant
  • Input voltage range : 36V to 57V
  • Output voltage : 5V
  • Output power: 9W
  • Short-circuit protection and Over temperature protection
  • Size: 32mm x 25mm
