WisNode Button
RAK612
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

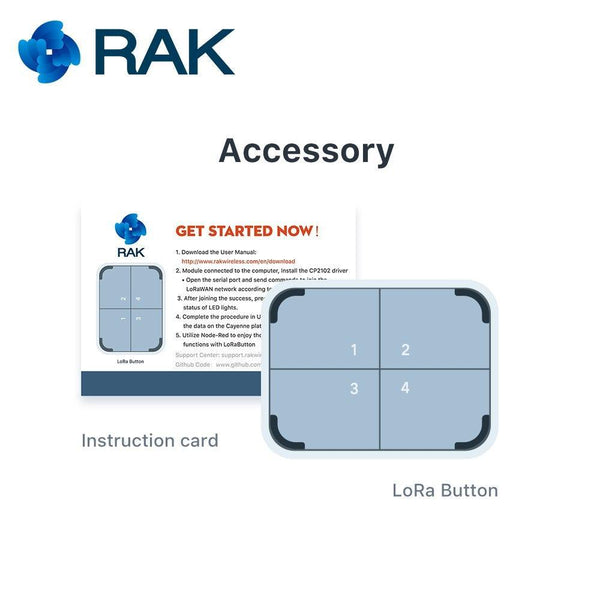

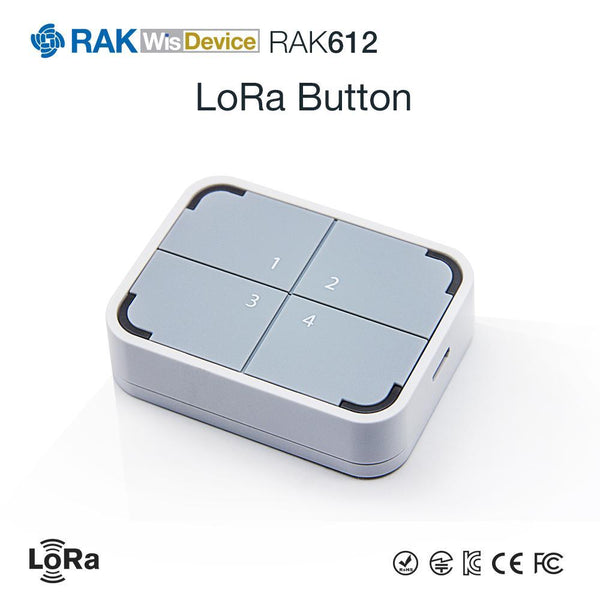

WisNode Button (RAK612 model) is a remote wireless trigger based on the LoRaWAN protocol. It supports user-defined functions for each key. It is easy to link to the Cloud as it is myDevices Cayenne certified.
Complete documentation of this product can be found on our website documentation page.
Key Features
- LoRaWAN® compatible

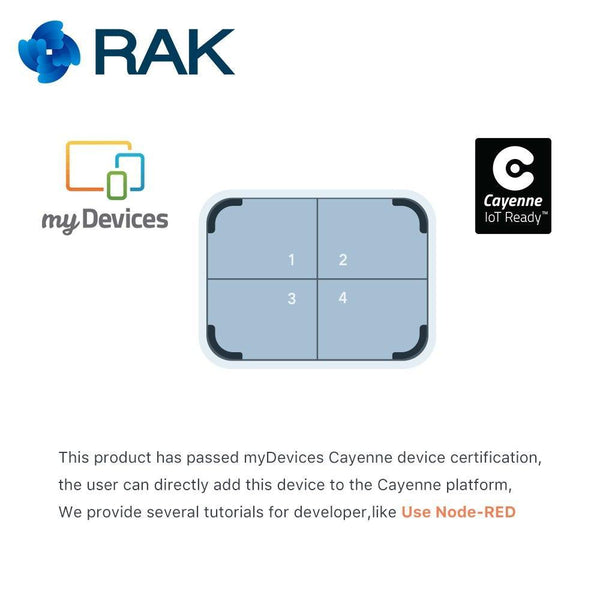

- myDevices Cayenne certified
- Battery: 300mAh
- Battery working time: 2 years (rechargeable)
- Power Consumption
- Transmit: 30mA
- Standby: 10uA
- Operating Temperature: -20ºC to 60ºC
- Working Environment: Indoor
- LPWAN Button For IoT Devices
View Use Case Here
Packaging
- Product Dimensions: 38mm x 52mm x 15.5mm
- Package Dimensions: 130mm x 130mm x 50mm
- Product Weight: 0.1kg
Become a RAK Affiliate and Earn Today!
Get paid to talk about RAK products! Join the RAK Affiliate program today.
Questions and Answers
-
Hi, can I know which IP certification degree corresponds to the product? Thanks.
There is no IP certification. It is meant for indoor use.
-
How the button is configured to get data propagated to Azure IOT HUB ?
We do not have such a tutorial as of now. However, seeing haw azure IoT hub is not a Lora network server or at least not to my knowledge it will be impossible to have one. You need to decide on what network and application server you are going to be using first.
-
It says LoraWAN in description, considering that also can connect to LoRa Gateway, can you confirm ?
LoRa is a physical Layer technology, that allows transmission of data via RF using a specific type of modulation. LoRaWAN is a networking protocol stack. Thus, there are very few LoRa Gateways, most of them are LoRaWAN. I would be very surprised if you have a LoRa Gateway, not a LoRaWAN Gateway. So in theory it is possible however the node adheres to LoRaWAN 1.0.2 specifications, thus you would need a Gateway and a Network server that use the same in order to negotiate and authenticate the note, etc.
-
How many of these buttons can be linked to a single gateway?
Hard to say, it depends on a lot of things however 100+ for sure.
