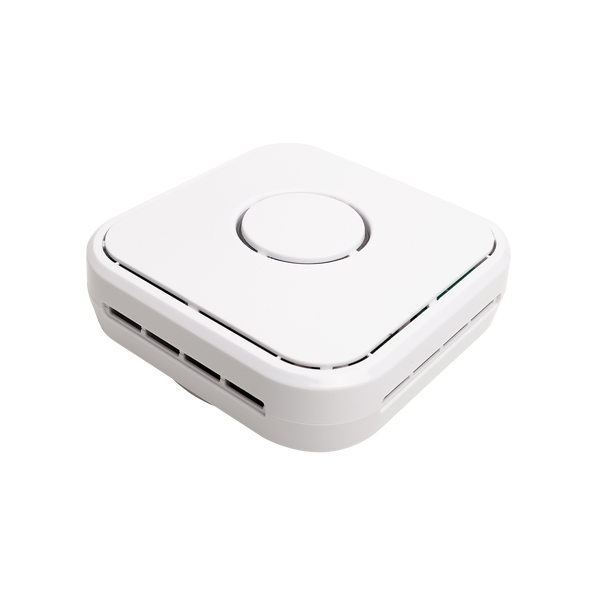

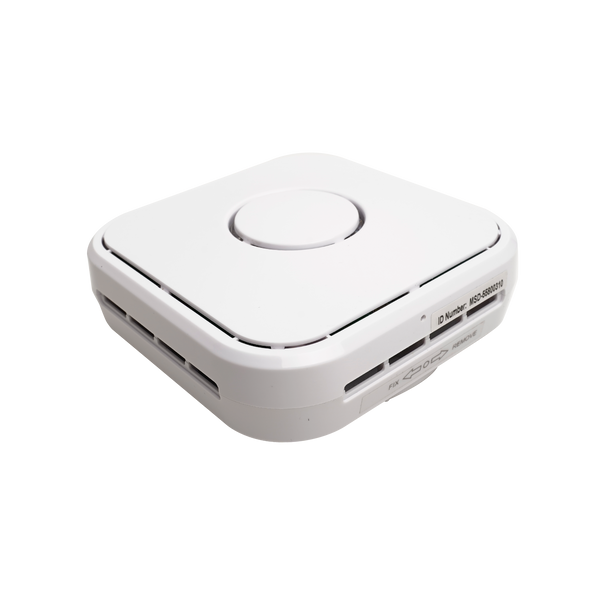

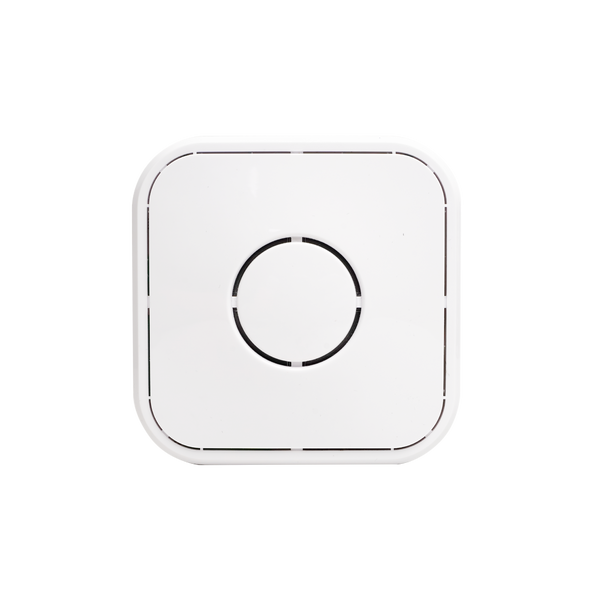

8-in-One IAQ Sensor with LoRaWAN

The First IAQ LoRaWAN Sensor with O3 and HCHO (WELL v2 and RESET Certified)

Mgr: Tongdy

SKU:B09007
Regular price $599.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



Why We Recommend this IAQ Sensor

Designed for indoor air quality monitoring in offices, shopping malls, and green buildings, this modular IAQ sensor stands out with its ability to measure multiple parameters, including temperature, humidity, CO2, TVOC, and PM2.5/PM10. It also allows customization by selecting two gases from CO, HCHO, O3, NO2, or SO2.

With patented technology and a temperature-humidity compensation algorithm, it ensures precise and stable data. Notably, its TVOC resolution is 1 µg/m³ and HCHO resolution is 1 ppb, meeting WELL v2 standards, which sets it apart from other sensors.

Key Features Highlights of the Odor IAQ Sensor:

  • 24-hour Real-Time Air Quality Monitoring: Provides real-time monitoring of PM2.5, PM10, CO2, TVOC, temperature, and humidity
    • (Optional) Othere sensor data:CO,HCHO,and O₃ and NO₂.
  • Advanced Sensor Technology: Utilizes proprietary patented technology, Integrated environmental temperature and humidity compensation ensure accurate and stable measurements
  • Intelligent Data Processing: Employs big data processing and curve fitting calibration for TVOC measurement; avoids measurement jumps or deviations caused by external factors
  • WELL v2 Compliance: Meets the stringent WELL v2 standard for indoor air quality

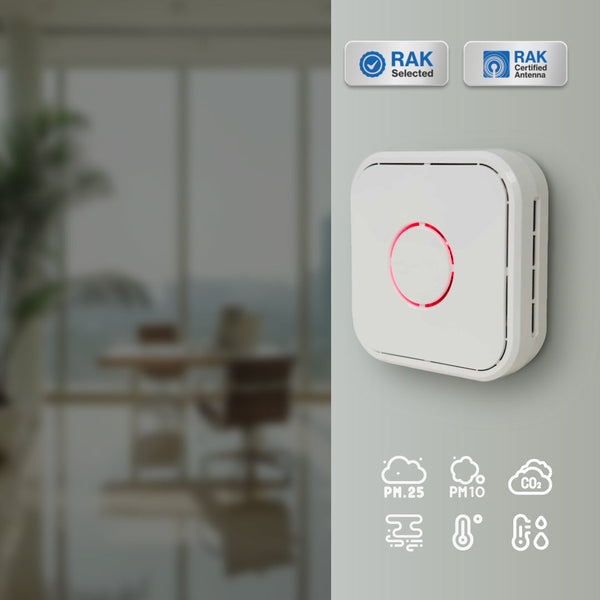

  • Easy Installation: Ceiling installation or wall installation, taking into account science and technology fashion and easy and simple, all kinds of decoration styles.

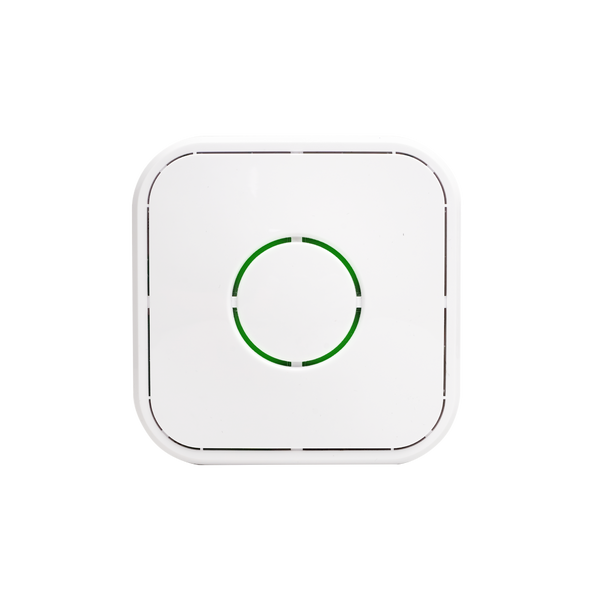

  • LED Indicator: Optional light ring with color-changing LED to visually indicate indoor air quality levels
  • IoT Connectivity: Enables integration with IoT systems for remote monitoring and data analysis, facilitating proactive management of air quality and maintenance scheduling.

Use Case 1: Smart Indoor Air Quality Management

Application: Smart Indoor Air Quality Management for Office Buildings Based on 6-in-1 IAQ Sensors

The smart indoor air quality management system based on 6-in-1 IAQ sensors utilizes LoRaWAN technology to continuously monitor key environmental indicators in the office area, including PM2.5, PM10, CO2, TVOC, temperature, and humidity, leveraging big data analytics to intelligently analyze the sensor data. Based on the monitoring, the system can automatically adjust ventilation, air conditioning, and other equipment to maintain optimal indoor conditions, while also providing real-time air quality reports to alert management. By deploying this system, the office building can consistently maintain good air quality, creating a healthier environment for employees, while also helping to reduce energy consumption and enhance overall building operation efficiency.

Use Case 2: WELL v2.2 Air Quality Compliance Monitoring for Green Buildings

Application: Building Certification Compliance - WELL v2.2 Standard

For green buildings seeking compliance with the WELL v2.2 building standard, the smart environmental monitoring system plays a crucial role in tracking and maintaining indoor air quality within acceptable ranges. Integrated into the building's air quality monitoring system, these sensors continuously track key air pollution indicators such as PM2.5, PM10, CO2, TVOC, temperature, and humidity, as specified by the WELL v2.2 guidelines.

By providing real-time data on these critical air quality parameters, facility managers can ensure that the indoor environment promotes health and well-being, aligning with the requirements of the WELL v2.2 standard. The system can automatically adjust the ventilation system (e.g., fans, air intake/exhaust) to maintain optimal air quality and comply with WELL v2.2 odor and air purity criteria. Through the deployment of this smart monitoring system, green buildings can demonstrate compliance with the stringent WELL v2.2 air quality standards, creating a healthier and more comfortable environment for occupants and helping the building achieve its sustainability and wellness objectives.

Introduction of Manufacture

With over 16 years of experience in providing air quality monitoring solutions for buildings, TongDy is a trusted long-term supplier for industry leaders such as Honeywell, Siemens, and Carrier.   This 8-in-One IAQ sensor marks TongDy’s first LoRaWAN-enabled product, combining their extensive expertise in building air quality with cutting-edge IoT technology.
By leveraging TongDy’s ecosystem and resources, including the GAMS platform, you can swiftly complete authoritative environmental assessments, helping you gain faster approval from your clients.   The sensor’s comprehensive functionality, including ozone and formaldehyde detection, positions it as a top choice for those needing WELL v2 and RESET certification for building projects.  Especially when it comes to particulate matter monitoring, make sure the air quality you need meets the highest requirements.

Documentation

Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Reviews




Range

Resolution

Precision

Typical Lifetime

PM2.5, PM10

0µg/m³~1000µg/m³

1µg/m³

±5µg/m³+ 20% at 1-100µg/m³

5 years (Typical Application)

CO2

400ppm-5,000ppm

±1ppm

±50ppm+ 5% at 400-2000ppm

>10 years (Typical Application)

TVOC

1 ~ 2000µg/m³

1µg/m³

±20µg/m³ + 15%

>3 years (Typical Application)

Temperature

 0°C ~ 60°C

0.01℃

±0.5℃ (10~40℃)

>10 years (Typical Application)

Humidity

0~99% RH

0.01% RH

±5.0% RH (10%~ 90% RH)

>10 years (Typical Application)

CO(optional)

0.1~100ppm

0.1ppm

±1ppm at 0-10ppm

>5 years (Typical Application)

HCHO(optional)

20-1000ppb

1ppb

±20 ppb at 0-100 ppb

>3 years (Typical Application)

O3(optional)

10-500ppb

1ppb

±10ppb at 0-200ppb

-

NO2(optional)

5-500ppb

1ppb

±20 ppb at 0-100 ppb

-

General specifications

  • DC power supply: 100~240VAC
  • Operating Temperature: 0~50°C
  • Operating Humidity: 0~90% RH (non-condensing)
  • Storage Temperature:-10~50°C
  • Storage Humidity: 0~70% RH (non-condensing)
  • Dimension: 130 mm (L) x 130 mm (W) x 45 mm (H)

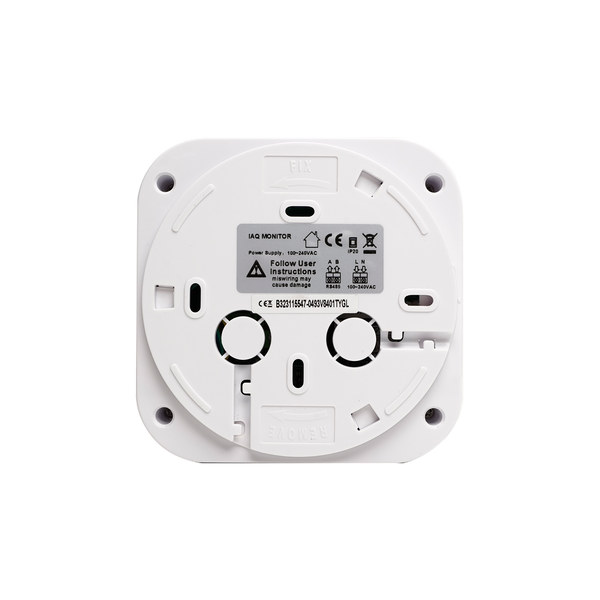

  • Installation: Wall Mounting Bracket
  • Antenna Type: Internal antenna
  • Enclosure Material: PC/ABS Flame Retardant
  • IP Rating: IP30
  • Certification: Complies with CE Standards

Wireless Transmission

  • Technology: LoRaWAN®
  • Frequency:  RU864, IN865, EU868, US915, AU915, KR920, KR923
  • Tx Power: 22dBm
  • Sensitivity: -140dBm
  • Mode: OTAA/ABP Class A
