Atmosphere Monitoring Sensor

Atmosphere Monitoring

Barometer Pressure Sensor

LoRaWAN®/NB-IoT/Cellular IoT

SKU:C15001
Regular price $99.00 $0.00
Variant prices start at $99.00 to $129.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



Description

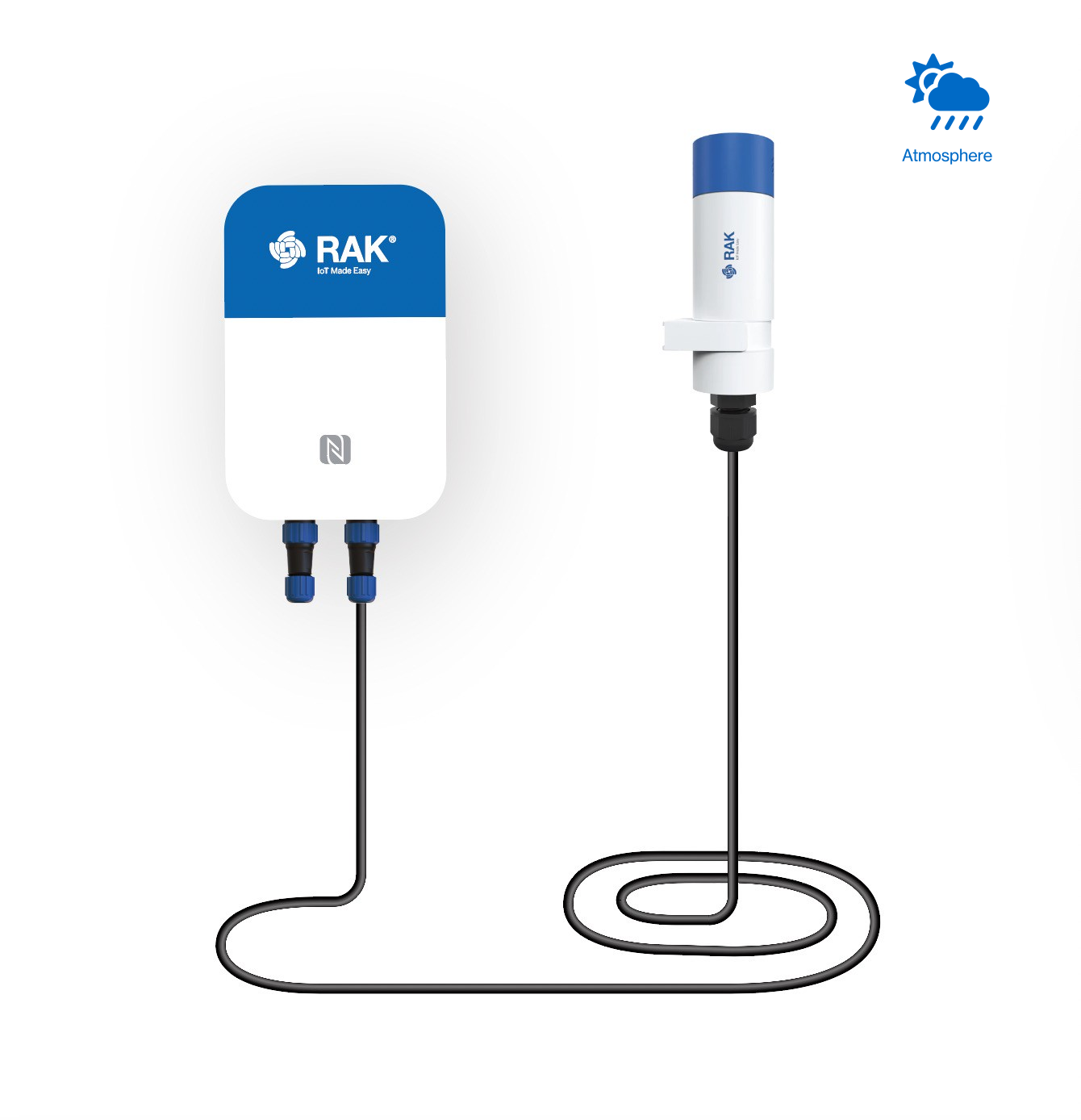

The Sensor Hub atmosphere monitoring solution includes the popular RAK1902 Barometer Pressure Sensor inside the Sensor Probe. Its low power consumption and accurate data-gathering abilities allow you to measure fluctuations in the pressure exerted by the atmosphere. The sensors require protection from condensing humidity, precipitation, and water ingress that the Sensor Probe provides.

The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the extension cable.

The product can be used in any use case where atmospheric pressure is important. Some use cases are weather measurement, altitude compensation, altimeters, weather forecasting, and much more.

Note: The Sensor Hub can be powered with 2 to 4 ER18505 non-rechargeable batteries. They are NOT INCLUDED. You need to supply them separately. Find more on where you can find compatible batteries here.

The Sensor Hub has two variants based on the communication type - LoRaWAN® only and LoRaWAN®+NB IoT. SensorHub's NB-IoT module supports two types of LTE (Long-Term Evolution) categories, namely CAT M1 and CAT NB2. CAT M1 offers higher data rates and lower latency, while CAT NB2 provides ultra-low power consumption and greater coverage, making it an ideal choice for devices that operate on batteries and require long-term connectivity.

Features

  • LoRaWAN®/NB-IoT communication
  • External DC power supply (optional)
  • Solar panel power source (optional)
  • Auto-identification of the sensor type
  • One-wire protocol
  • Waterproof (IP67-rated for the probe body)

Parameter

Value

Pressure range

260-1260 hPa

Pressure accuracy

±0.1 hPa

Temperature range

-40 °C to +85 °C

Temperature accuracy

±1.5 °C



Included in the Package:

  • 1x Sensor Hub
  • 1x Sensor Probe PR (Barometric Pressure)
  • 1 x Sensor Probe Mount Kit
  • 1 x SensorHub Wall Mount
  • 2 x Pole Mount φ65-89mm
  • 2 x Screw Kit

Documentation

Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Reviews


  • LoRaWAN®/NB-IoT communication
  • External DC power supply (optional)
  • Solar panel power source (optional)
  • Auto-identification of the sensor type
  • One-wire protocol
  • Waterproof (IP67-rated for the probe body)
  • LoRa 868-930 MHz support
  • Based on RAK4630 (opens new window)(MCU: nRF52840, Radio Chip: SX1262)
  • RUI3 (opens new window)- based code
  • Auto-detection of the power source
  • Auto-detection of the Sensor Probes
  • 2~4 pcs 3.6 V ER18505 4000 mAh Li-SOCl2 primary lithium batteries
  • 12 VDC over power supply or solar panel
  • NB-IoT interface module (RAK5860 (opens new window)) support (optional)
  • Embedded antenna
    • High efficiency (over 75%) LoRa Band 860~930 MHz
    • Support 700~960 MHz and 1700~2170 MHz.
  • NFC tag for power on and smart connect over BLE
  • Prevent theft via the hall effect sensor on the exclusive mounting bracket
  • IP66-rated waterproof enclosure
  • Sensor ports can host multiple Sensor Probes via Probe Splitters
  • Off-grid deployment with RAK9154 Solar Battery (opens new window)add-on

Parameter

Value

Pressure range

260-1260 hPa

Pressure accuracy

±0.1 hPa

Temperature range

-40 °C to +85 °C

Temperature accuracy

±1.5 °C
