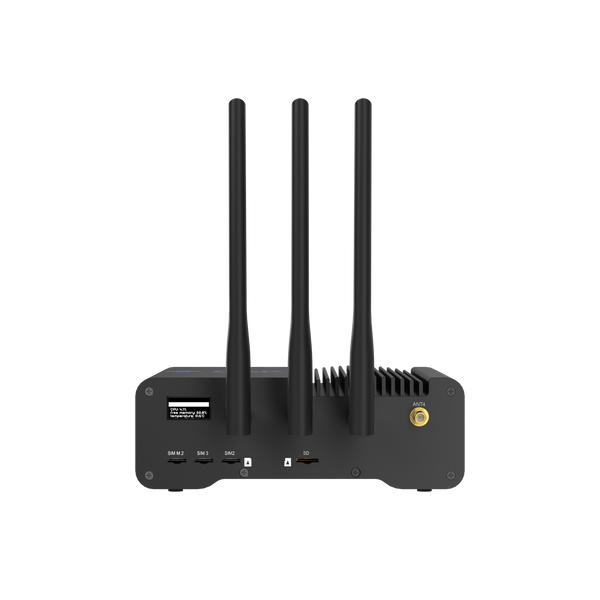

Enclosure for the WisGate Connect
Durable metal enclosure with antenna access and OLED display window
Prefer another courier for your delivery? Contact us for special shipping arrangements.
What Is Enclosure for the WisGate Connect
Enclosure for the WisGate Connect is a protective housing option for the WisGate Connect board. It keeps the board, ports, antennas, and OLED display accessible while supporting desktop, heat-conscious, and IP67 outdoor deployment needs. Depending on the selected version, it can support up to 6 SMA antennas, provide access to 2 WisBlock slots, and help organize cabling for cleaner installation.
|
Available Option |
Best For |
Key Value |
|

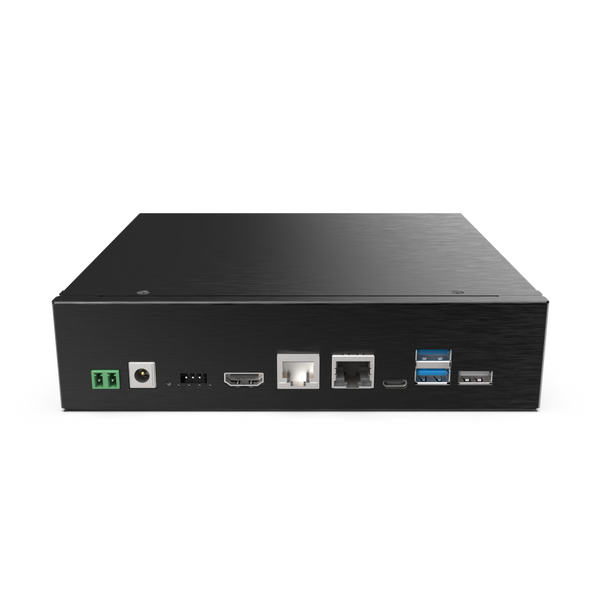

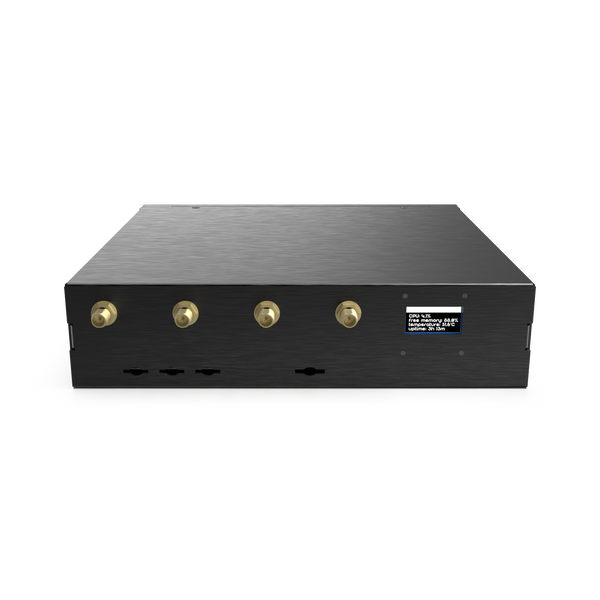

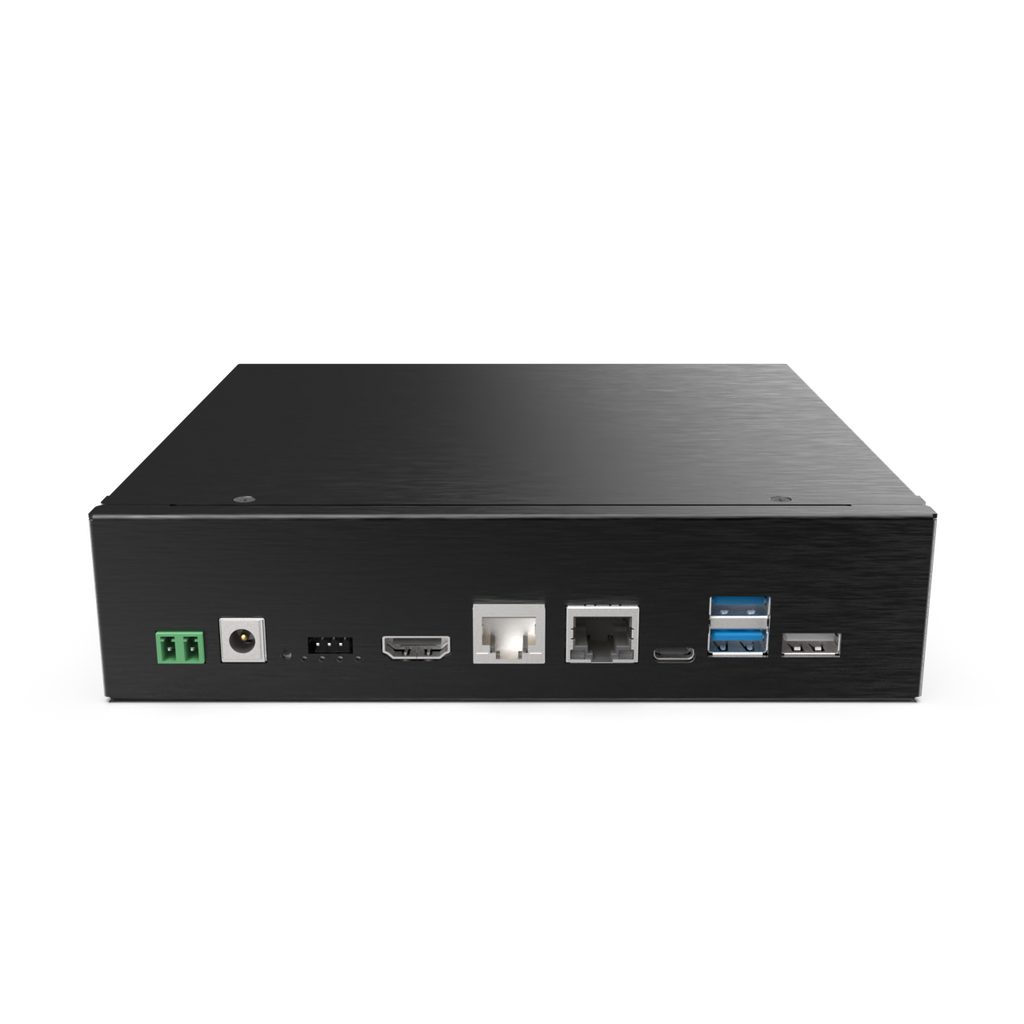

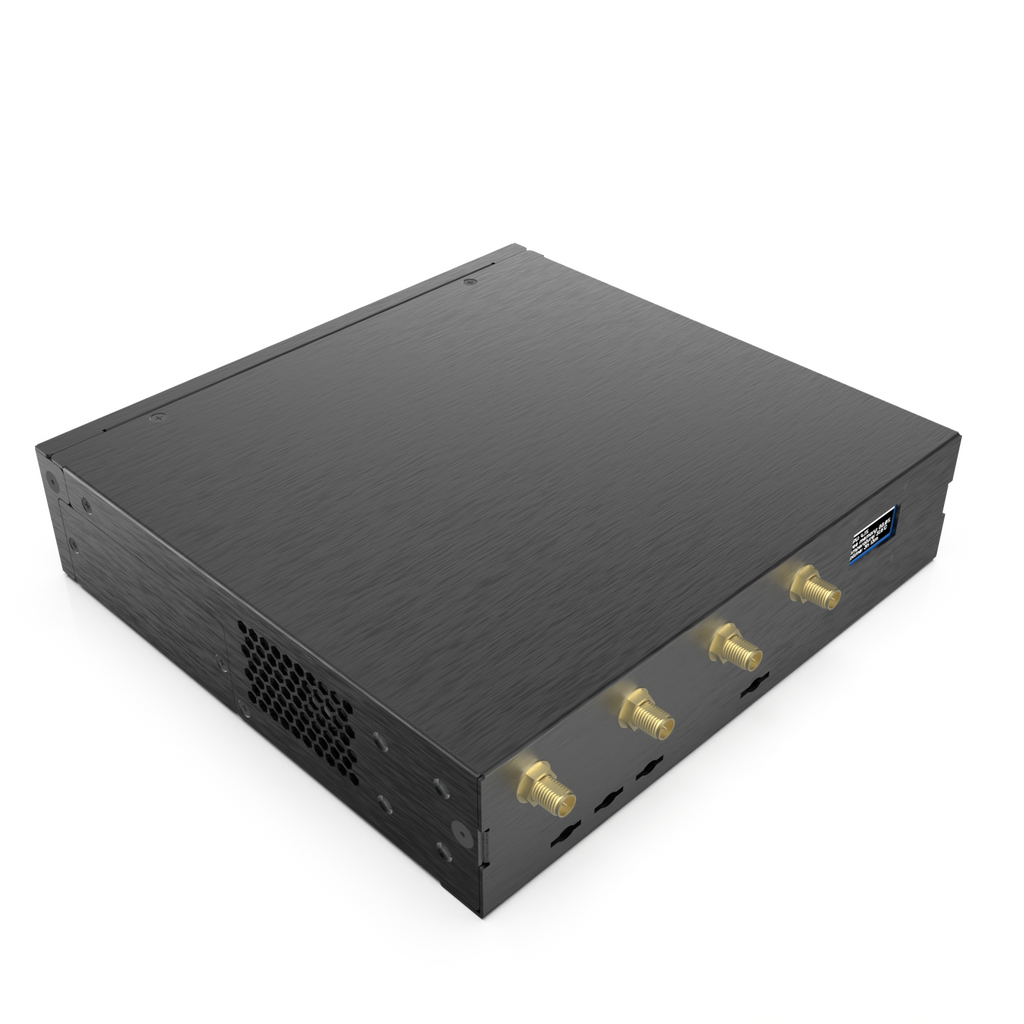

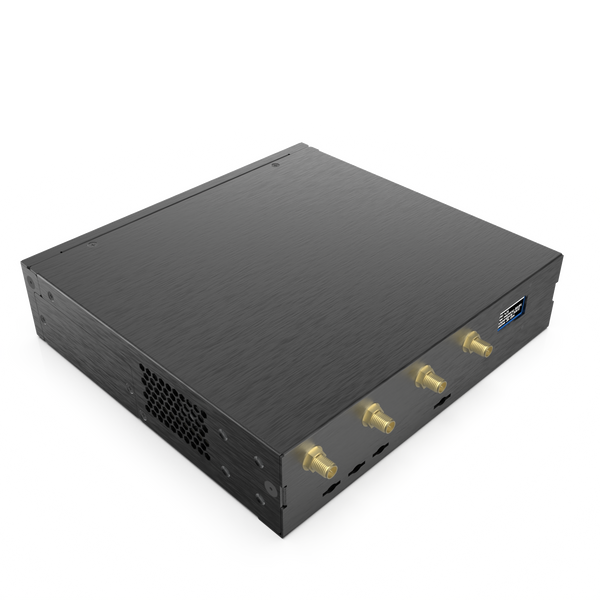

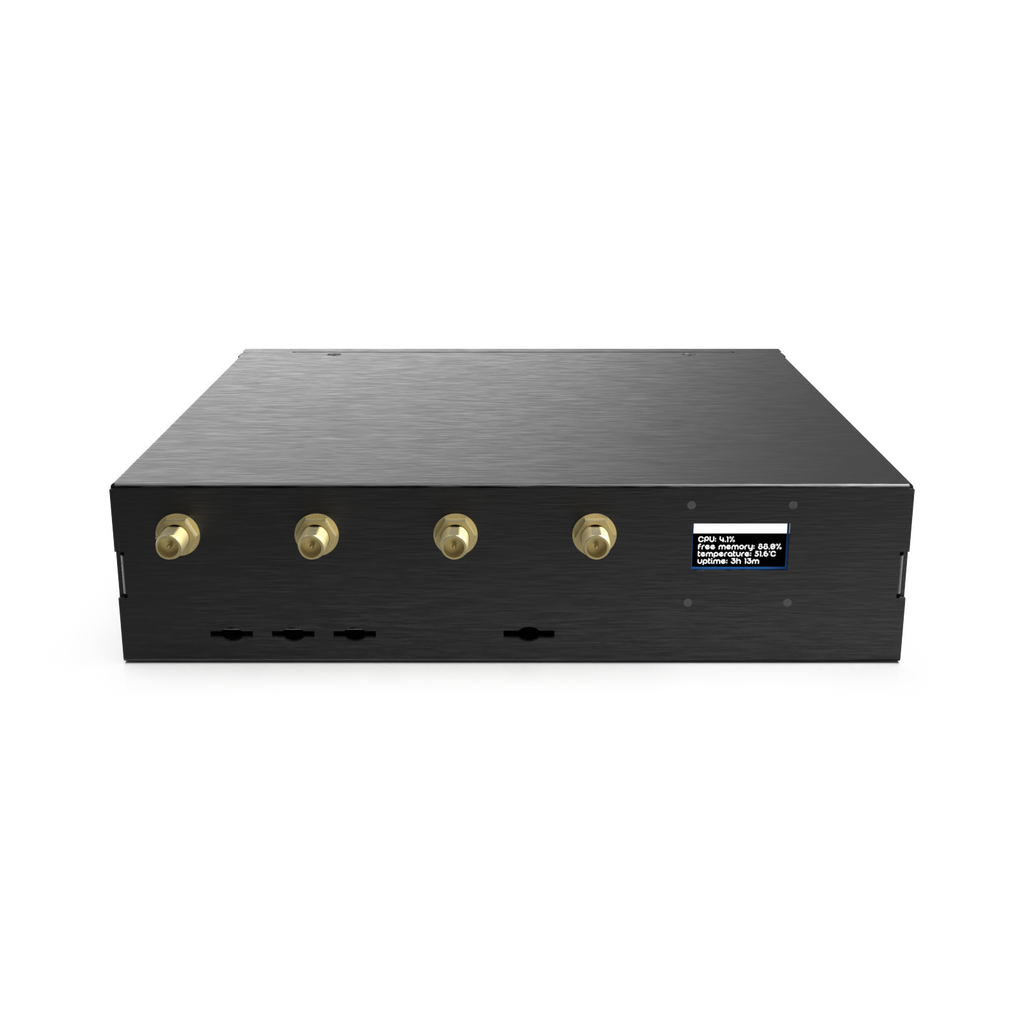

Sheet Metal Desktop Enclosure |
Indoor desktop or cabinet setups |
Provides a sturdy U-size enclosure with antenna access and OLED display visibility |
|

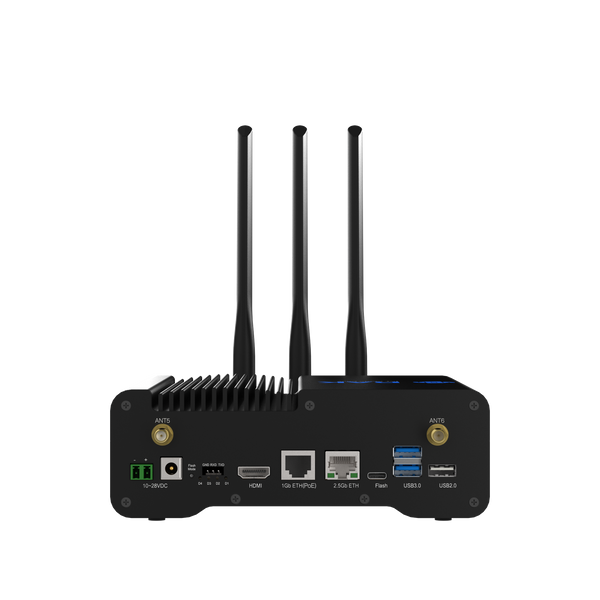

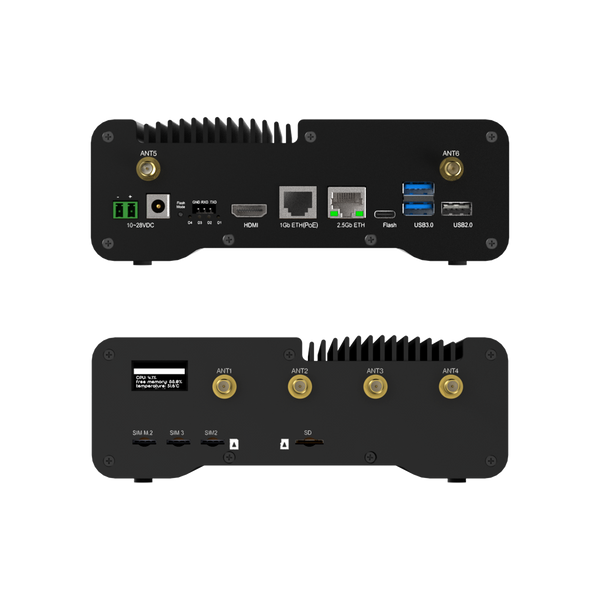

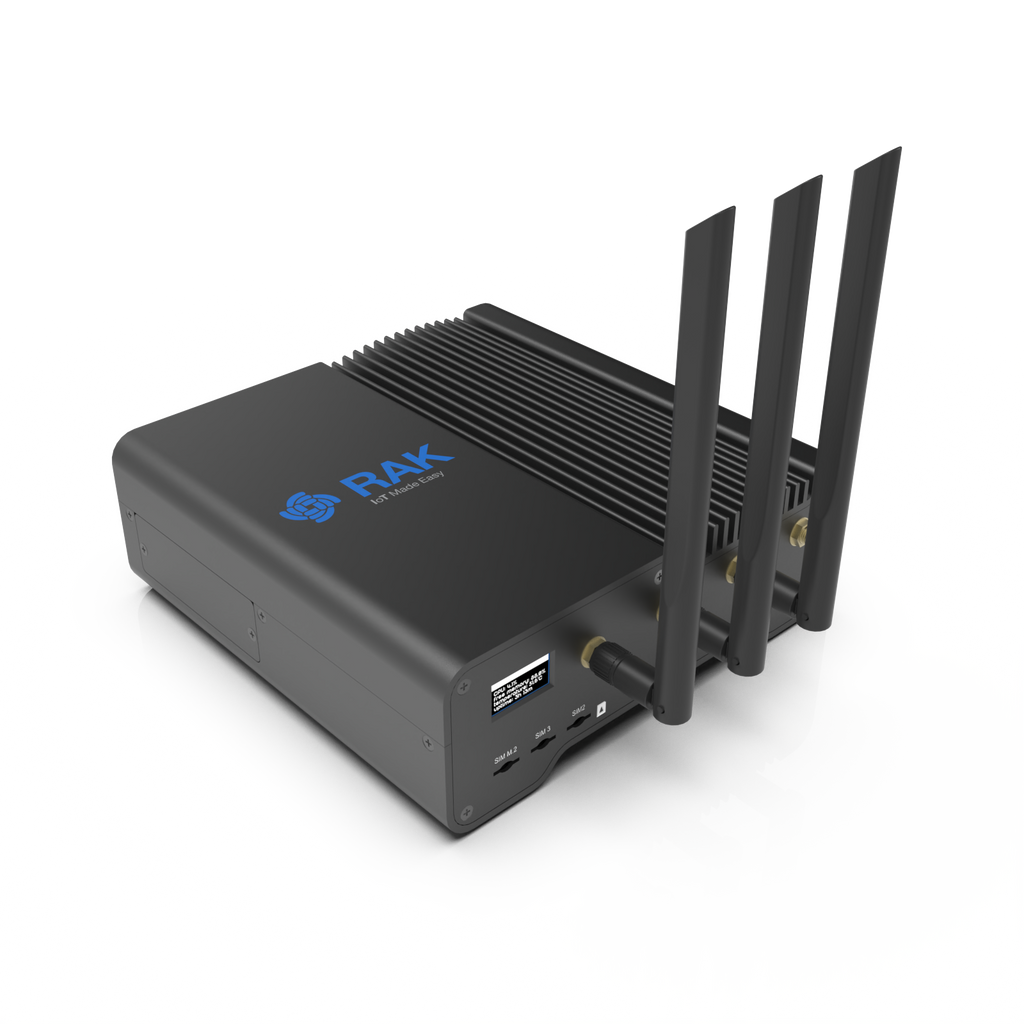

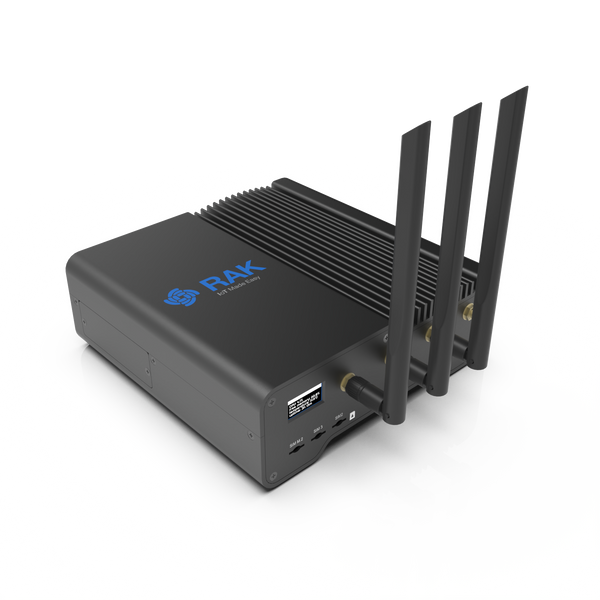

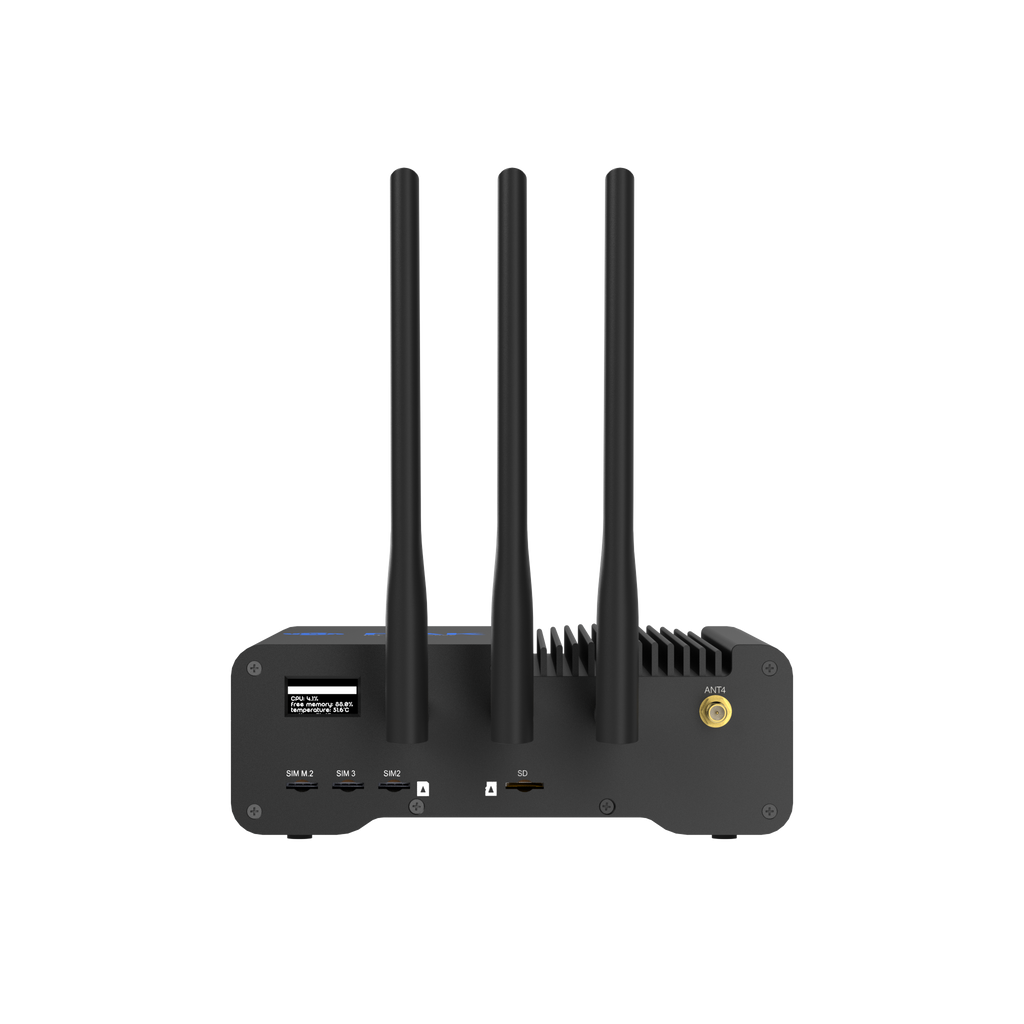

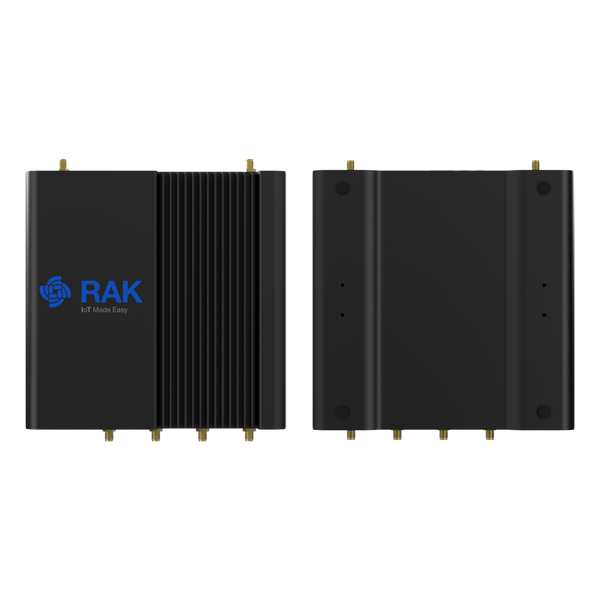

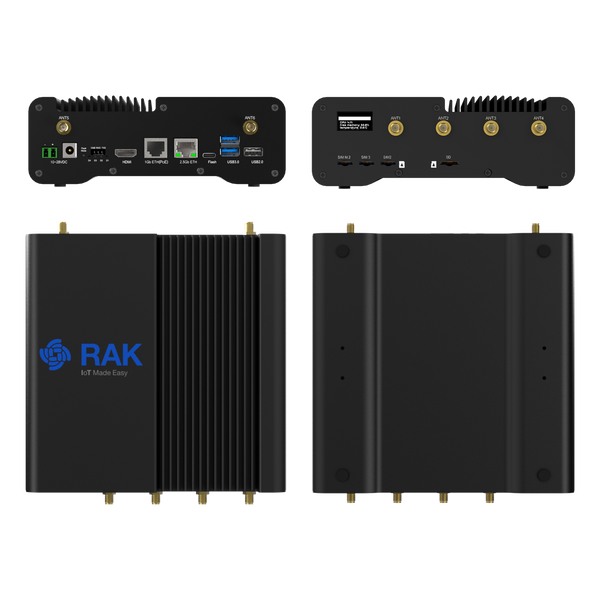

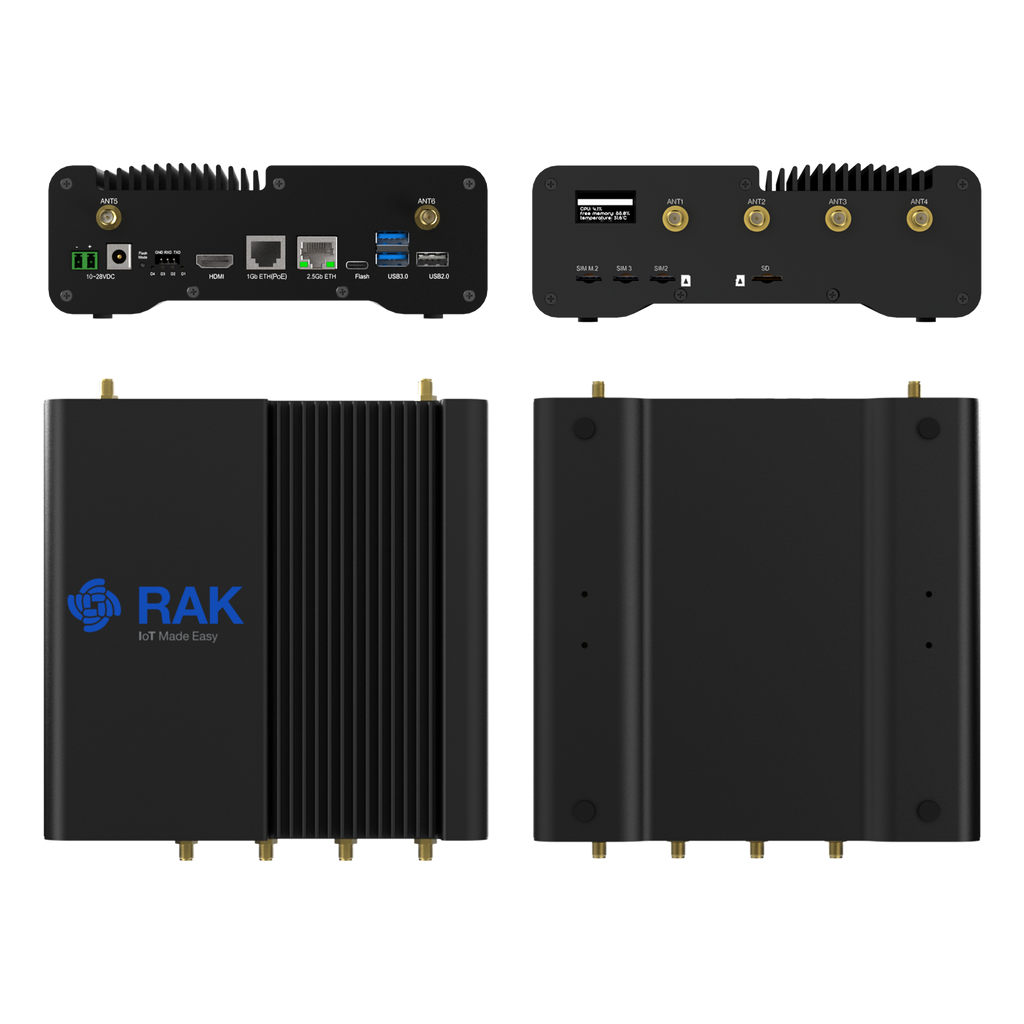

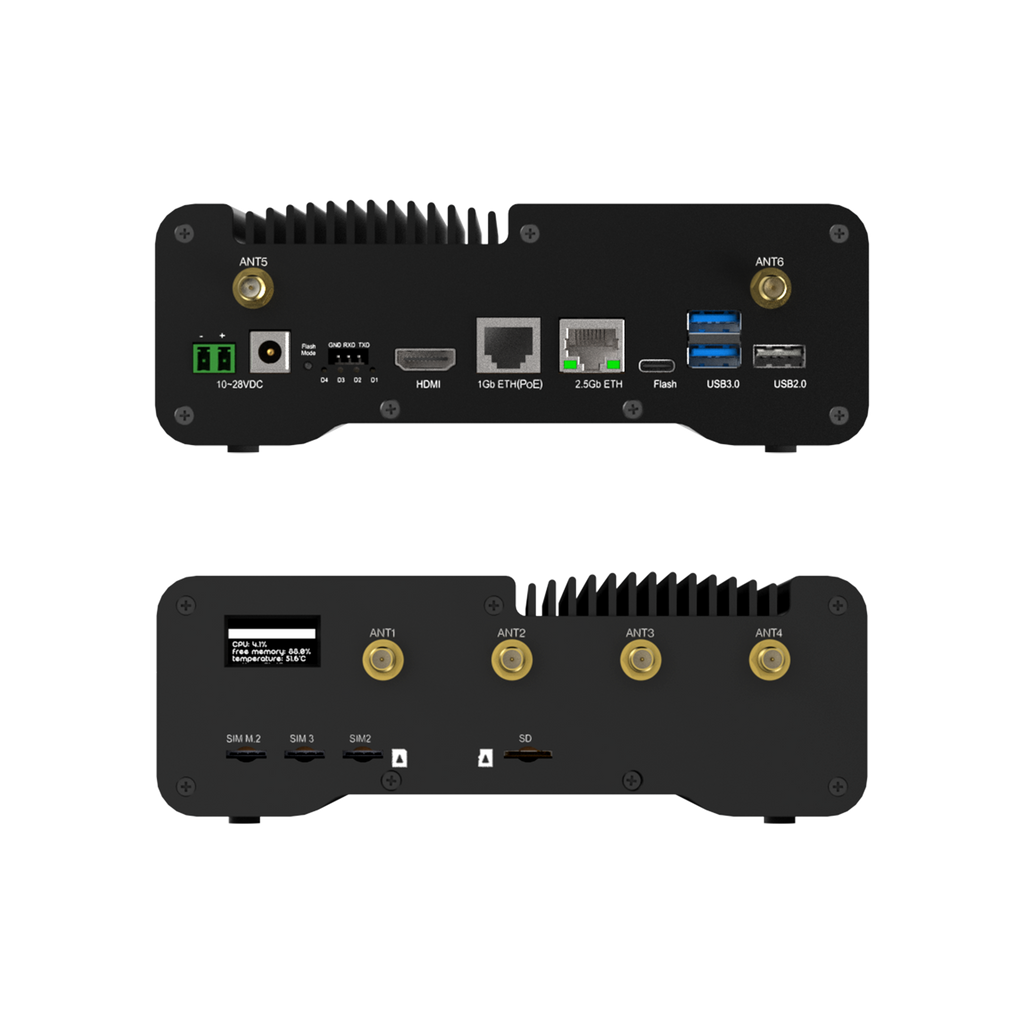

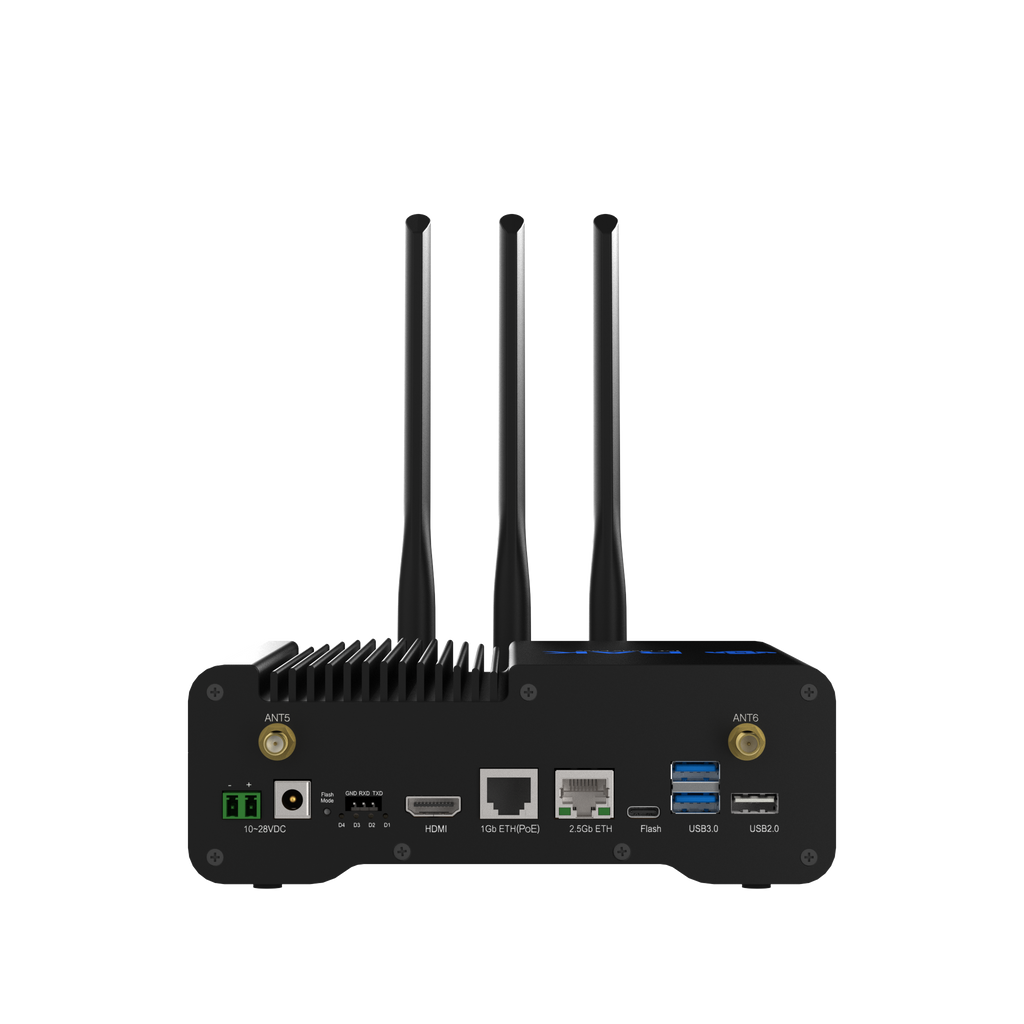

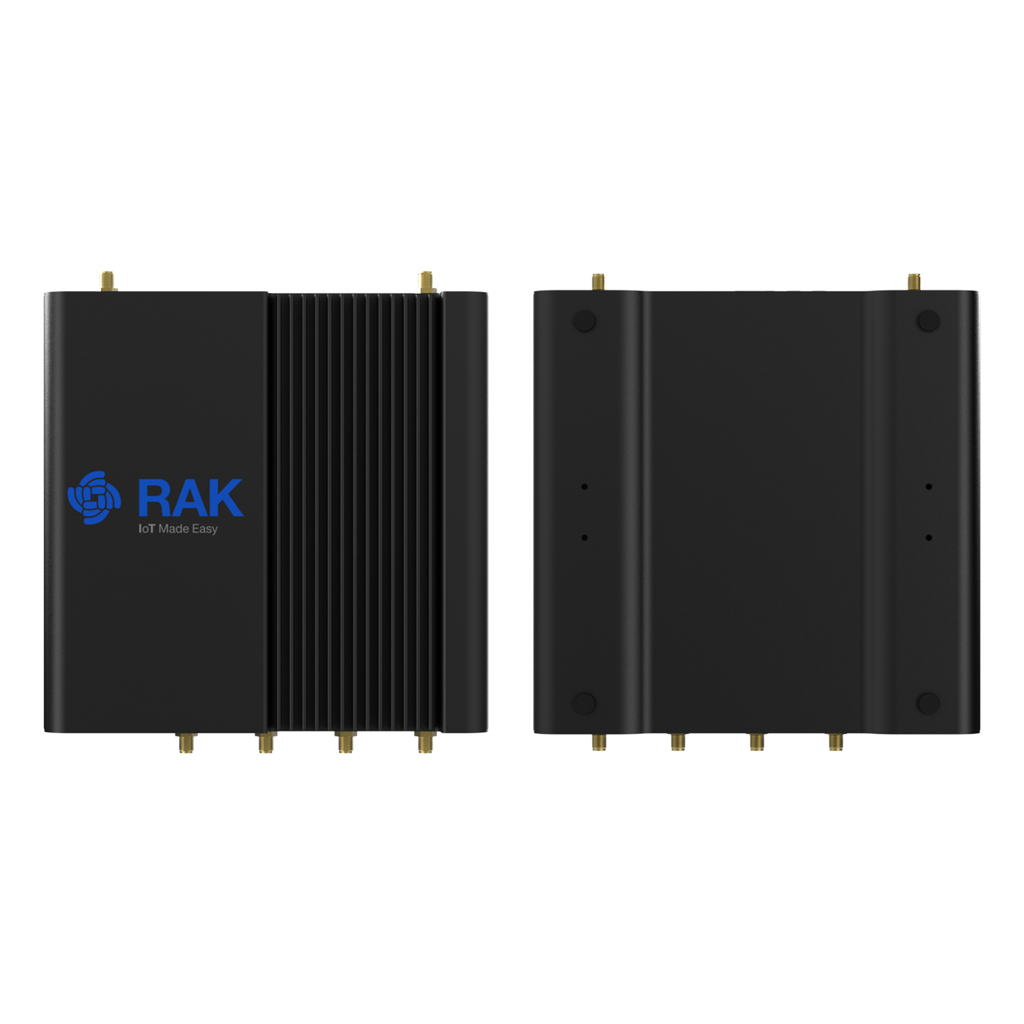

Aluminum Enclosure |
Higher-load deployments |
Improves heat dissipation and supports quieter, more stable operation under heavier use |
|

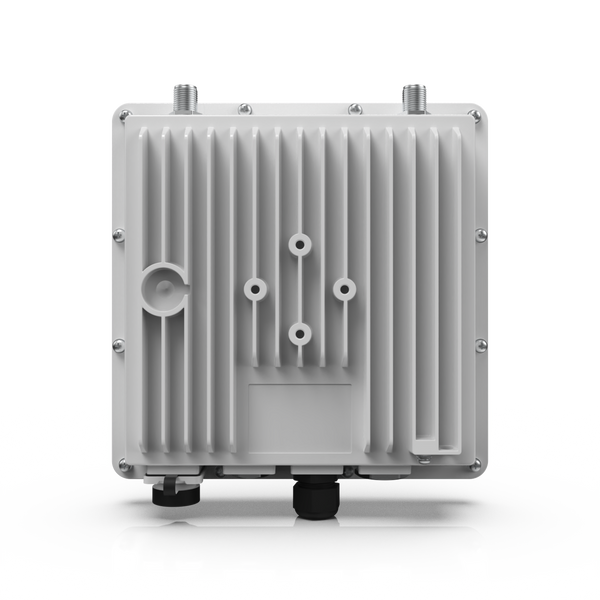

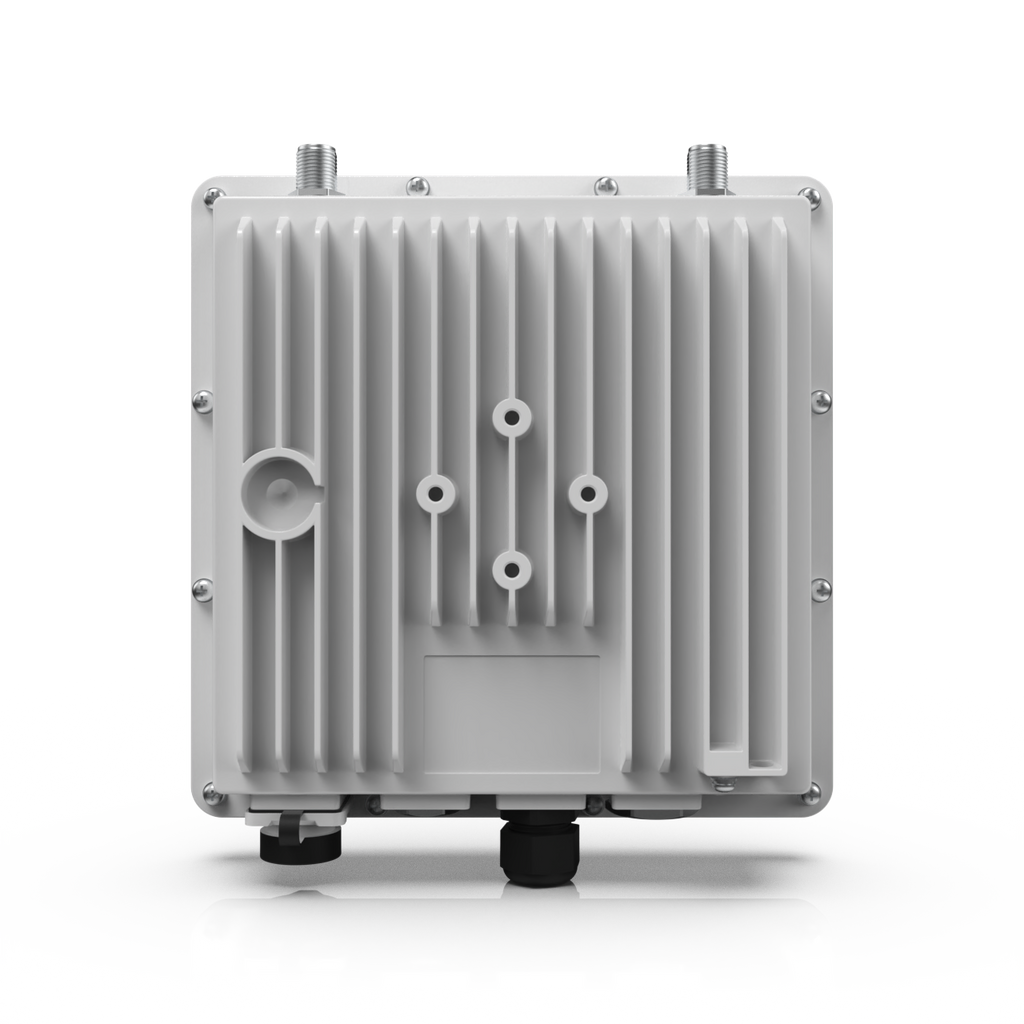

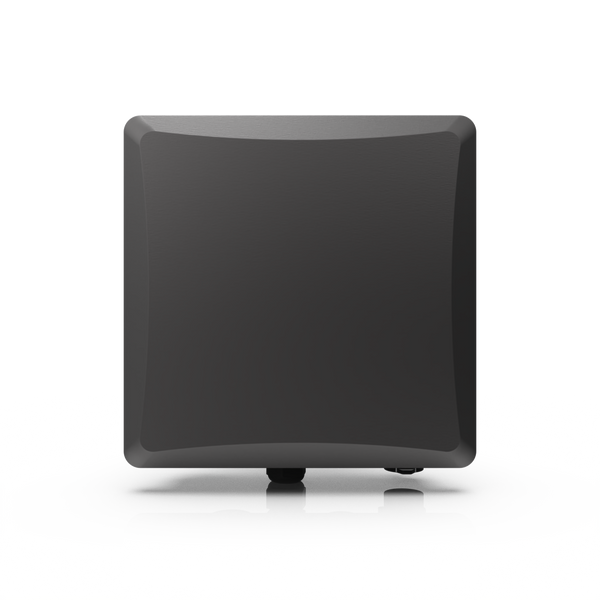

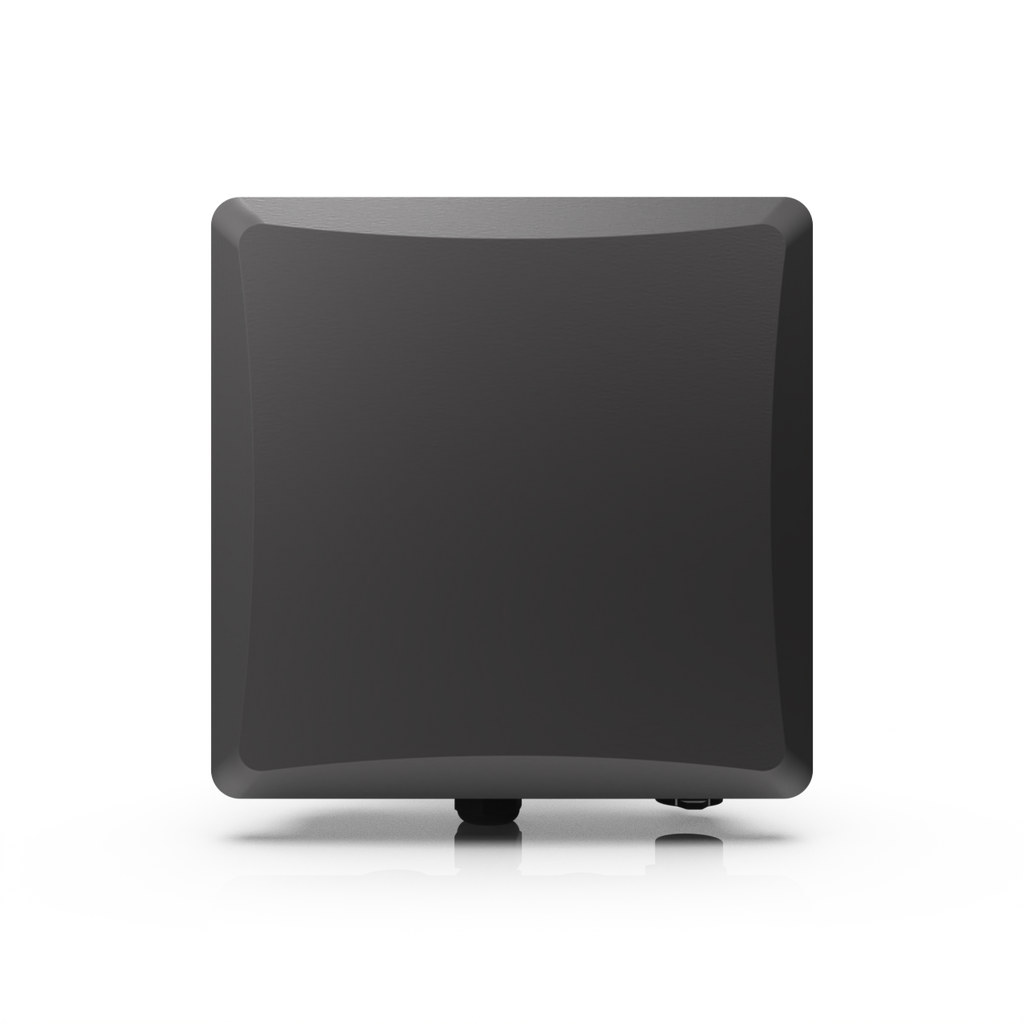

Outdoor Enclosure |
Field and exterior installations |
Adds IP67-rated protection for outdoor gateway deployment with mounting and cabling accessories |
Mounting & Installation
The device supports multiple installation methods, allowing flexible deployment across industrial and commercial environments.
Note：DIN rail mounting and wall mounting are only applicable to the Aluminum Enclosure.
Wall Mounting
WisGate Connect Smart Building supports direct wall mounting using the included mounting brackets. This enables flexible installation on walls or flat vertical surfaces, making it suitable for a wide range of indoor and semi-industrial deployments.
Wall mounting provides a reliable and straightforward installation method without requiring additional accessories.
|
Benefit |
Description |
|
Flexible Deployment |
Suitable for offices, utility rooms, industrial sites, and edge installations. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted on vertical surfaces for long-term operation. |
|
No Additional Accessories Required |
Wall mounting hardware is included for out-of-the-box installation. |
|
Versatile Positioning |
Allows installation in locations where DIN rail infrastructure is not available. |

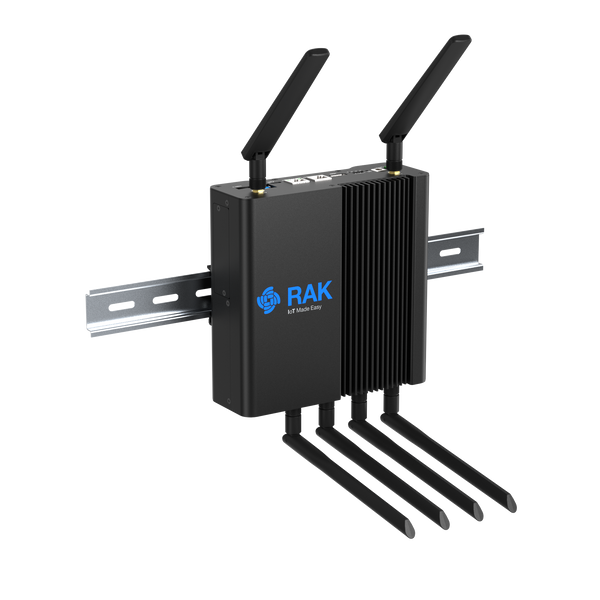

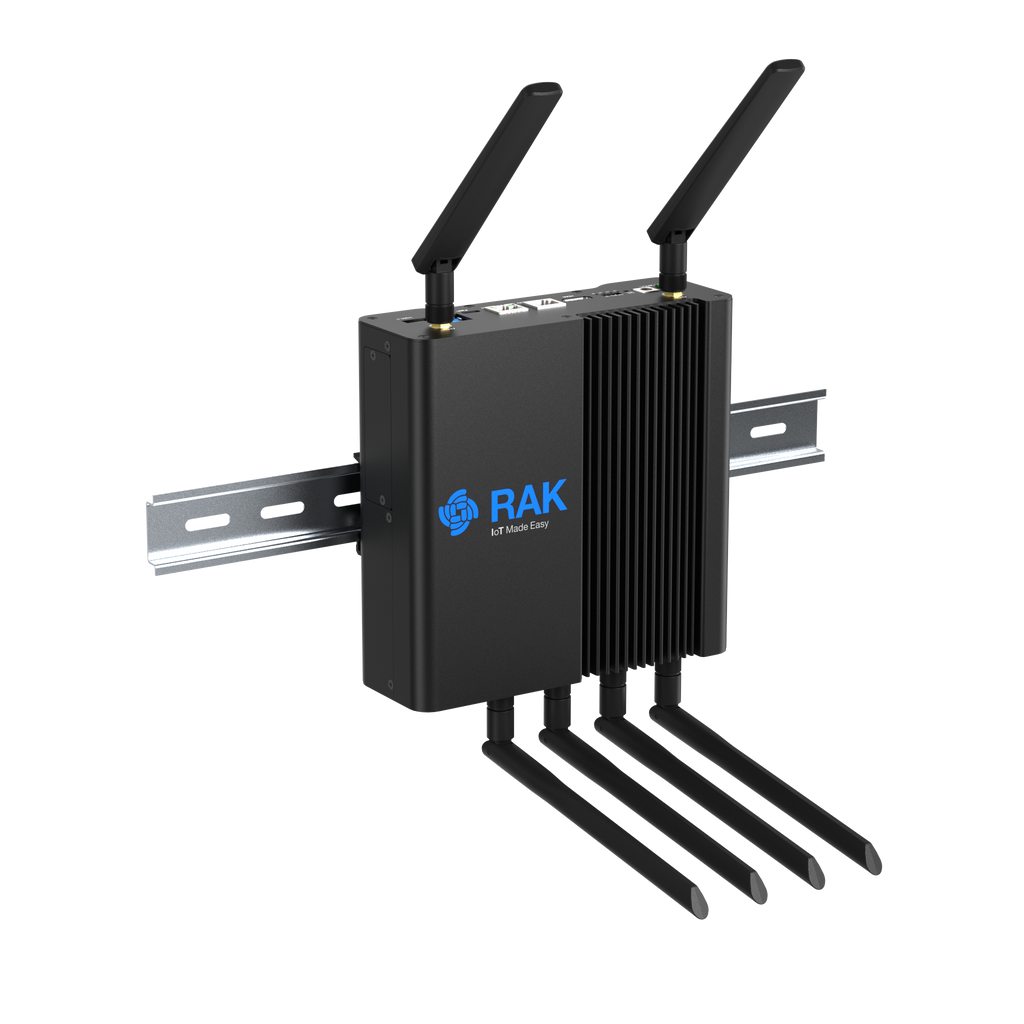

DIN Rail Mounting Support
WisGate Connect Smart Building supports installation on standard DIN rail systems (35mm DIN rail) using a DIN Rail Mounting Kit. This enables seamless integration into industrial control cabinets, electrical enclosures, and automation panels.
DIN rail mounting is widely used in industrial environments as it allows structured installation, efficient space utilization, and simplified maintenance.
|
Benefit |
Description |
|
Industrial-Ready Deployment |
Designed for integration into control cabinets and electrical panels. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted and protected in demanding environments. |
|
Optimized Space Utilization |
Supports clean and organized layouts within enclosures. |
|
Service-Friendly Design |
Allows easy installation, removal, and maintenance. |
Why You Need Enclosure for the WisGate Connect
It helps teams protect gateway hardware, simplify installation, and keep critical access points usable during setup, maintenance, or outdoor deployment without building a custom enclosure from scratch.
Why it's useful:
- Cleaner deployment: Keeps antennas, cables, and board access organized for faster setup.
- Better field protection: Helps shield gateway hardware from outdoor conditions and installation wear.
- Easier servicing: Maintains access to ports, display, and expansion slots during maintenance.
- Flexible installation: Supports desktop, heat-conscious, and outdoor gateway deployment needs.
Use Case Examples of Enclosure for the WisGate Connect
For gateway projects, the enclosure helps teams standardize installation, reduce handling issues, and protect hardware across indoor benches, cabinets, and outdoor sites.
Use Case #1: Outdoor Sensor Gateway Deployment
A facilities team had gateway dropouts after cable strain during rain checks. Baseline uptime was 91% over 7 days. They used the IP67 outdoor enclosure, tested with a 24-hour spray check, reached 99% uptime, repeated 18 builds with 17 first-pass installs.
Use Case #2: Desktop Lab Gateway Setup
During lab testing, engineers spent 14 minutes per unit realigning antennas and checking display access. After switching to the desktop metal enclosure, inspections averaged 6 minutes across 20 units. Fit was verified by port-access checks, yield reached 95%.
What’s in the Box
Sheet Metal Desktop Enclosure
- RAKU3 Enclosure kit
- OLED display and dupond cables to connect it
- Fasteners, screws
- SMA rubber caps
- Rubber feet
Aluminum Enclosure
- RAKU7 Enclosure kit
- OLED display and dupond cables to connect it
- Fasteners, screws
- SMA rubber caps
- Heat conduction pad
- Rubber feet
- Wall Mounting Kit
- 2 pc Wall Mount brackets
- 4 pc Wall anchors
- 4 pc Self-tapping screws
- DIN Mounting Kit
- 2 pc DIN Mount brackets
- 4 pc M3 fixing screws
Outdoor Enclosure
- RAKU3 Enclosure kit
- Internal Antenna plate with 2xLTE, 2xWiFi and GNSS antennas (optional)
- PoE injector, power cord for the PoE injector, and PoE module for the WisGate Connect
- Ethernet cable gland
- PCB mounting screws
- Vent valve
- Zip ties, fasteners, PVC and waterproof tapes
- Pole mounting kit
