Environmental Monitoring + Movement Detection
Temperature ,Humidity and Acceleration
LoRaWAN®/NB-IoT/Cellular IoT
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Description

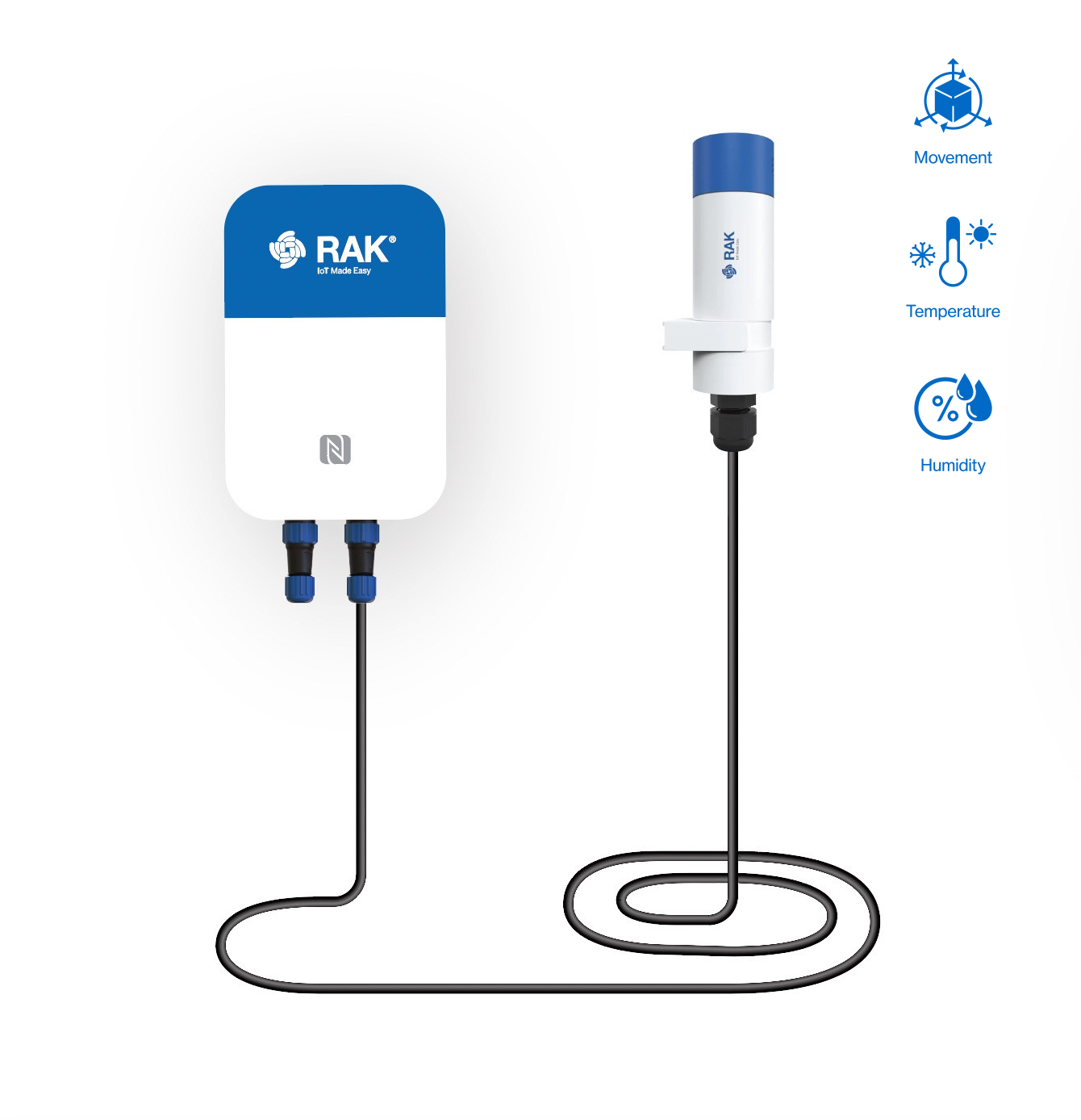

The Sensor Hub environmental monitoring and moving detection solution includes a combination of the popular RAK1901 Temperature and Humidity Sensor and the RAK1904 3-axis Acceleration Sensor inside the Sensor Probe. Their low power consumption and accurate data-gathering abilities allow you to catch even the slightest changes in your environment, including movement.
The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the Extension cable.
The product can be used in any use case where those parameters are of importance. An example of that can be found in the supply chain industry, Smart cities, and even industrial settings.
The 3-axis accelerometer can double as an anti-theft measure for your environmental monitoring solution as well.
Note: The Sensor Hub can be powered with 2 to 4 ER18505 non-rechargeable batteries. They are NOT INCLUDED. You need to supply them separately. Find more on where you can find compatible batteries here.
The Sensor Hub has two variants based on the communication type - LoRaWAN® only and LoRaWAN®+NB IoT. SensorHub's NB-IoT module supports two types of LTE (Long-Term Evolution) categories, namely CAT M1 and CAT NB2. CAT M1 offers higher data rates and lower latency, while CAT NB2 provides ultra-low power consumption and greater coverage, making it an ideal choice for devices that operate on batteries and require long-term connectivity.
Features
- LoRaWAN®/NB-IoT communication
- External DC power supply (optional)
- Solar panel power source (optional)
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP67-rated for the probe body)
|
Parameter |
Value |
|
Temperature accuracy |
±0.2 °C |
|
Temperature range |
-40 to +125 °C |
|
Humidity accuracy |
±2.0 % RH |
|
Humidity range |
0 to 100% |
|
User-selectable scales |
±2g/±4g/±8g/±16g |
|
Data acquisition rate |
1 Hz to 5.3 kHz |
Included in the Package:
- 1x Sensor Hub
- 1x Sensor Probe TH3X (Temperature, Humidity, and 3-axis Acceleration)
- 1 x Sensor Probe Mount Kit
- 1 x SensorHub Wall Mount
- 2 x Pole Mount φ65-89mm
-
2 x Screw Kit
Documentation
- Sensor Hub Datasheet
- Sensor Probe Datasheet
- Quick Start Guide
- Installation Guide
- WisBlock Temperature and Humidity Sensor
- WisBlock 3-axis Acceleration Sensor
Questions and Answers
Have a Question?
Be the first to ask a question about this.
Product Reviews
- LoRaWAN®/NB-IoT communication
- External DC power supply (optional)
- Solar panel power source (optional)
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP67-rated for the probe body)
- LoRa 868-930 MHz support
- Based on RAK4630 (opens new window)(MCU: nRF52840, Radio Chip: SX1262)
- RUI3 (opens new window)- based code
- Auto-detection of the power source
- Auto-detection of the Sensor Probes
- 2~4 pcs 3.6 V ER18505 4000 mAh Li-SOCl2 primary lithium batteries
- 12 VDC over power supply or solar panel
- NB-IoT interface module (RAK5860 (opens new window)) support (optional)
- Embedded antenna
- High efficiency (over 75%) LoRa Band 860~930 MHz
- Support 700~960 MHz and 1700~2170 MHz.
- NFC tag for power on and smart connect over BLE
- Prevent theft via the hall effect sensor on the exclusive mounting bracket
- IP66-rated waterproof enclosure
- Sensor ports can host multiple Sensor Probes via Probe Splitters
- Off-grid deployment with RAK9154 Solar Battery (opens new window)add-on
|
Parameter |
Value |
|
Temperature accuracy |
±0.2 °C |
|
Temperature range |
-40 to +125 °C |
|
Humidity accuracy |
±2.0 % RH |
|
Humidity range |
0 to 100% |
|
User-selectable scales |
±2g/±4g/±8g/±16g |
|
Data acquisition rate |
1 Hz to 5.3 kHz |
- Sensor Hub Datasheet
- Sensor Probe Datasheet
- Quick Start Guide
- Installation Guide
- WisBlock Temperature and Humidity Sensor
- WisBlock 3-axis Acceleration Sensor
