RAK3172 Evaluation Board
RAK3172 Evaluation Board
stm32 lora soc discovery kit
RAK3172 Evaluation Board
RAK3172 Evaluation Board
RAK3172 Evaluation Board

RAK3172 Evaluation Board

SKU:315050
Regular price $27.00 $27.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.

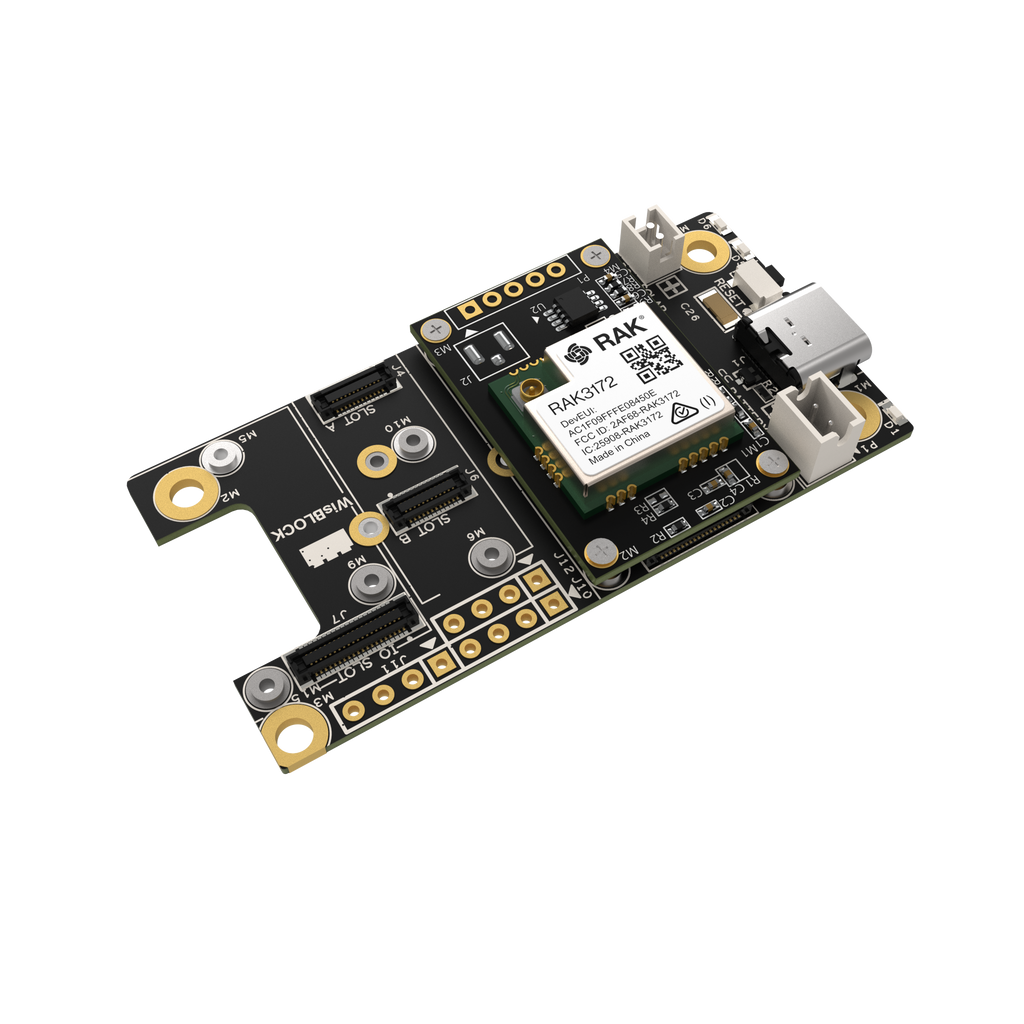

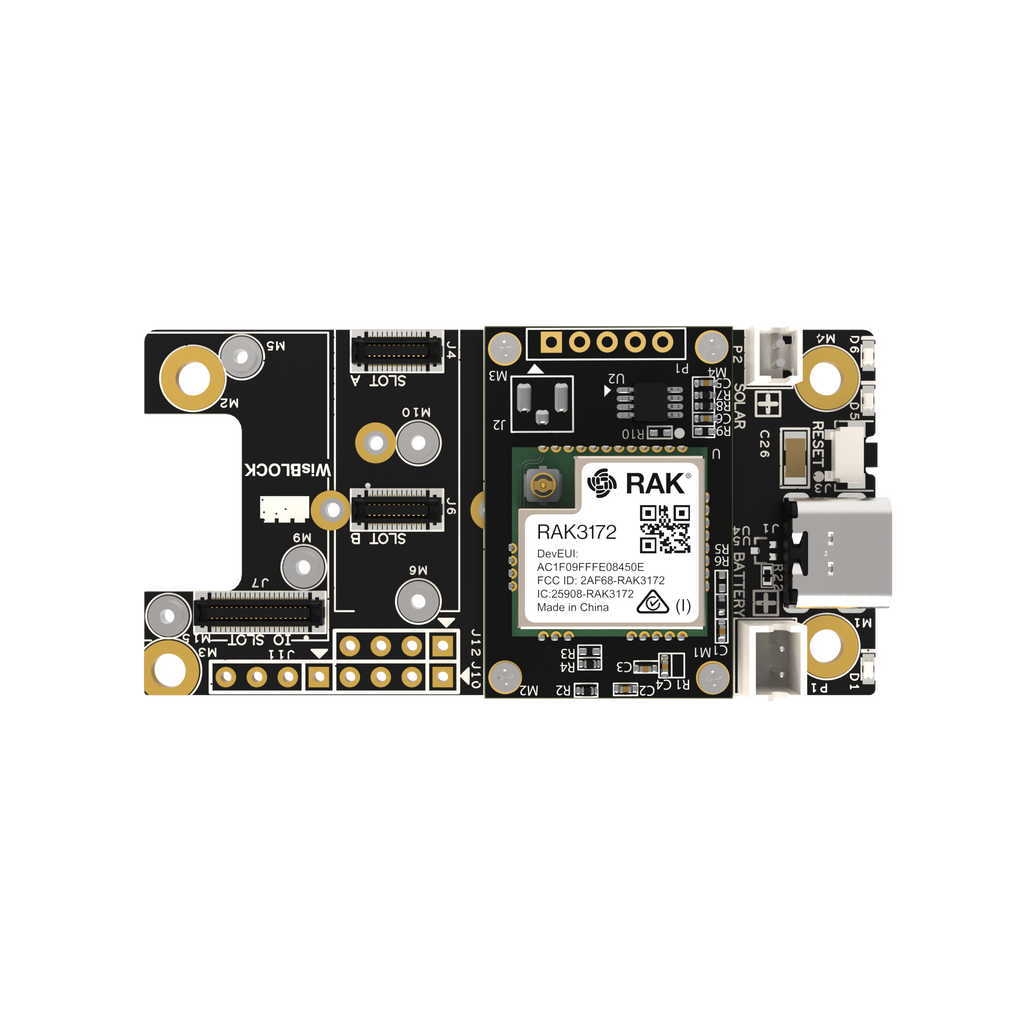

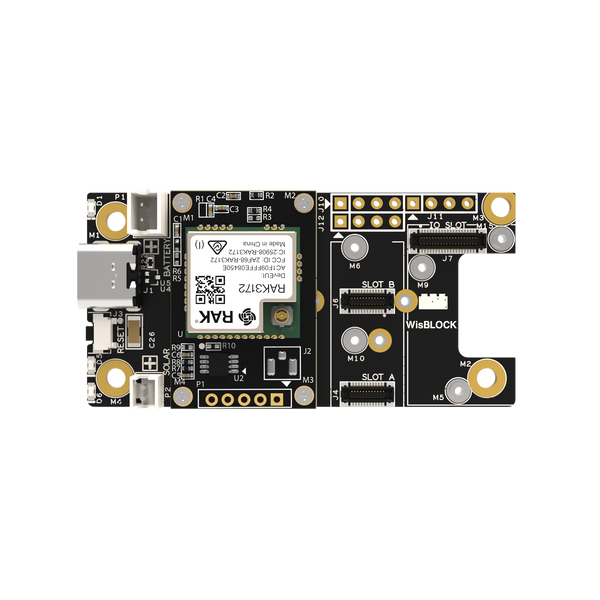

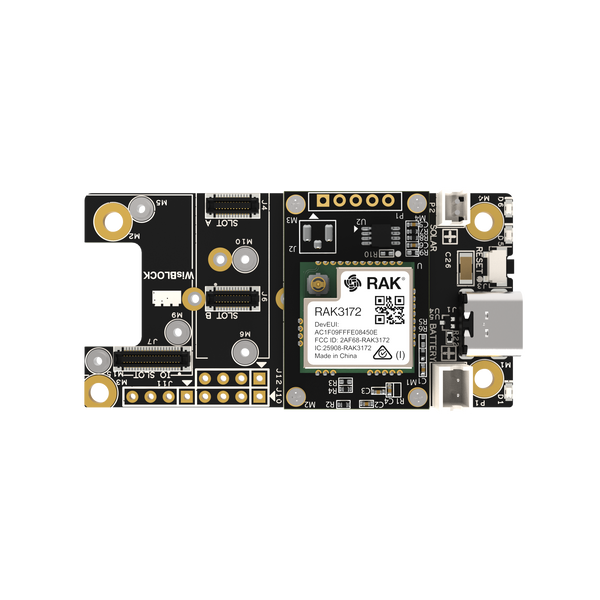

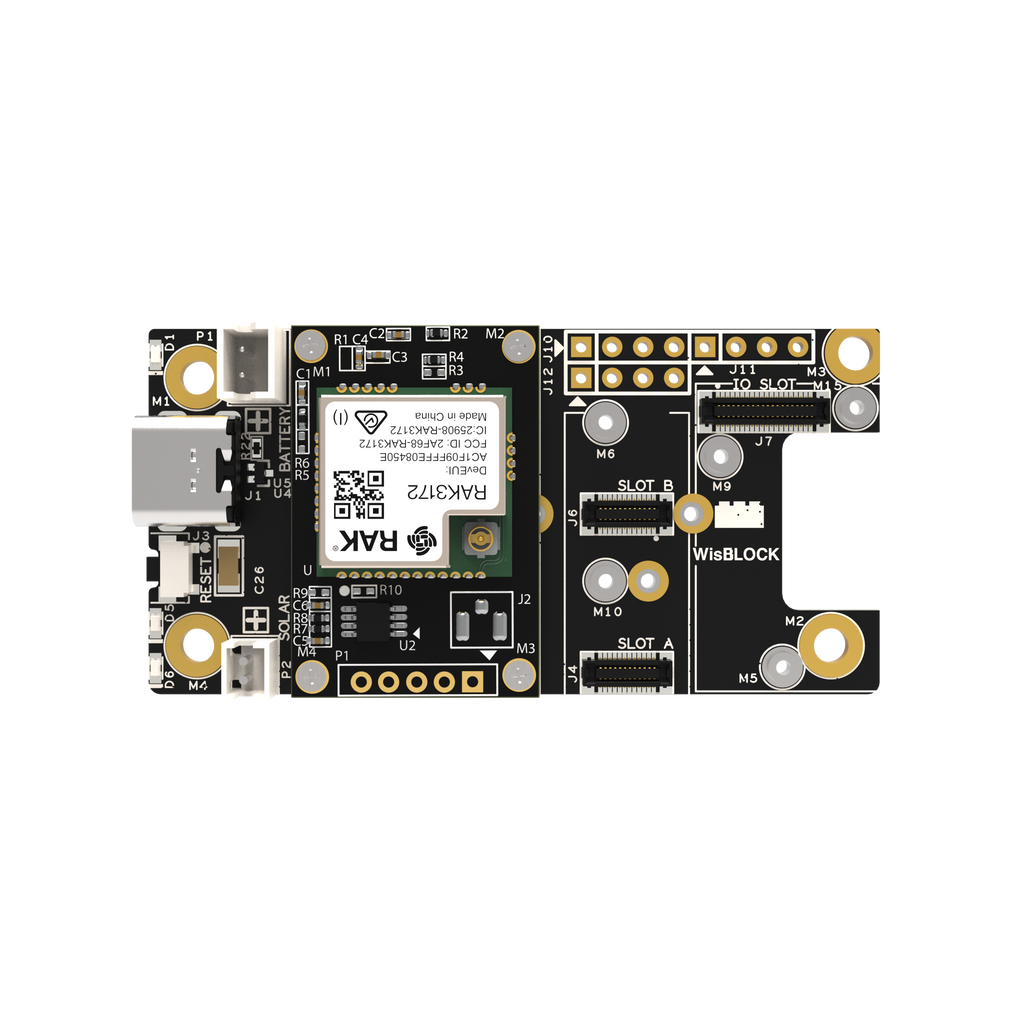

The RAK3172-E is a WisDuo Evaluation Board for RAK3172 Module that uses an STM32WLE5CC SoC chip. It is based on RAK3372 WisBlock Core PCB which is compatible to the RAK19007 base board. It provides an easy way to access the important pins of the RAK3172 module in order to simplify development and testing. It also allows you to connect other modules to the base board slots and build complete IoT project with the integrated connectors for battery and solar panel plus the on-board charging circuit. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs.

This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It also supports LoRa Point to Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.



SKU Frequency Description
315050 8XXMHz for EU868/IN865/RU864 RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC
316045 9XXMHz for US915/AU915/KR920/AS923 RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC
319048 AS923-1 for Japan RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC
312035 CN470 RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC
311028 EU433 RAK3172-E Evaluation Board for RAK3172 Module STM32WLE5CC

Product Inclusion

  • 1pcs RAK3372 + 1pcs RAK19007
  • 1pc USB C-type Cable
  • 1pc SubG Antenna (iPEX)
  • 2pcs 4-pin Header
  • 14pcs Dupont Lines

Documentation
