Sensor Extension Cable for WisBlock

What Is Sensor Extension Cable for WisBlock?

The Sensor Extension Cable for WisBlock allows compatible WisBlock sensor modules to be positioned away from the base board while still accessing all 24 sensor-slot signals. It enables developers and system integrators to position sensors for more accurate environmental measurements, rather than being limited by the main electronics' location.

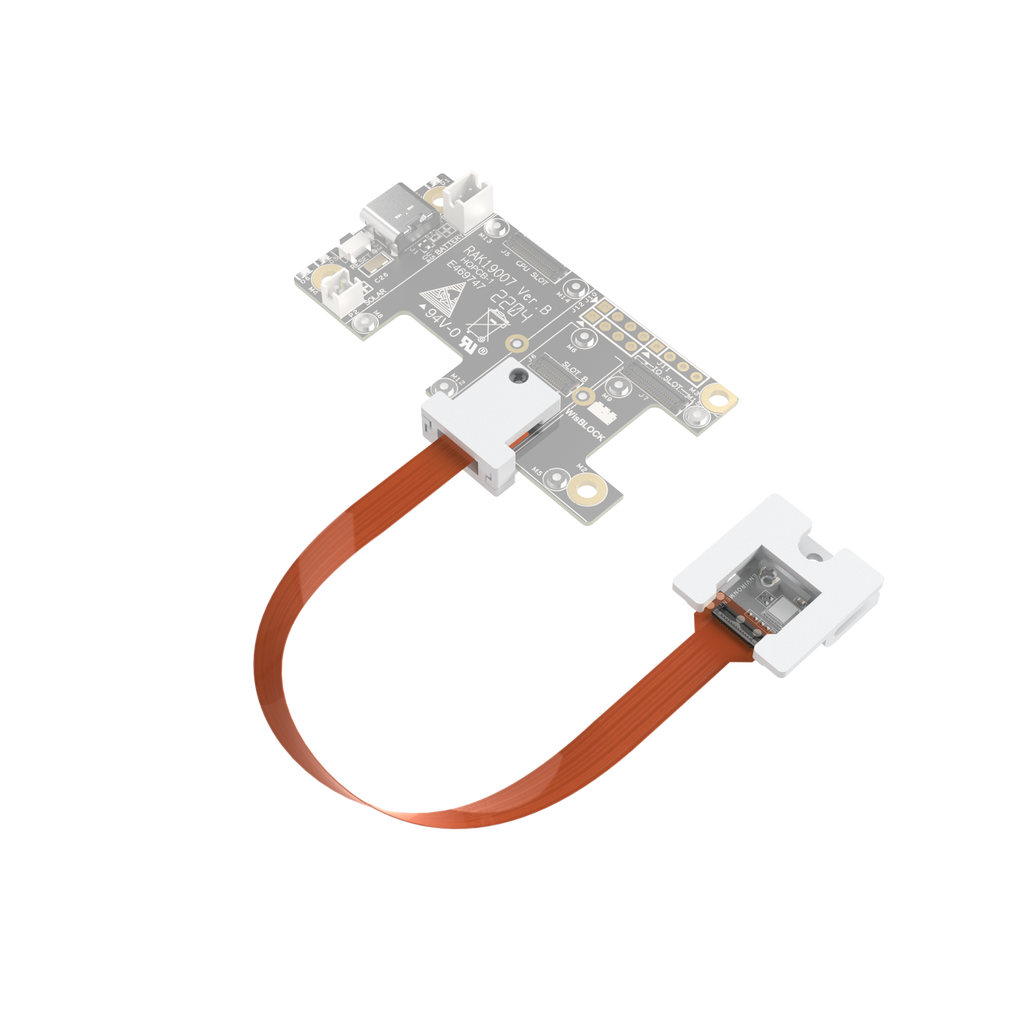

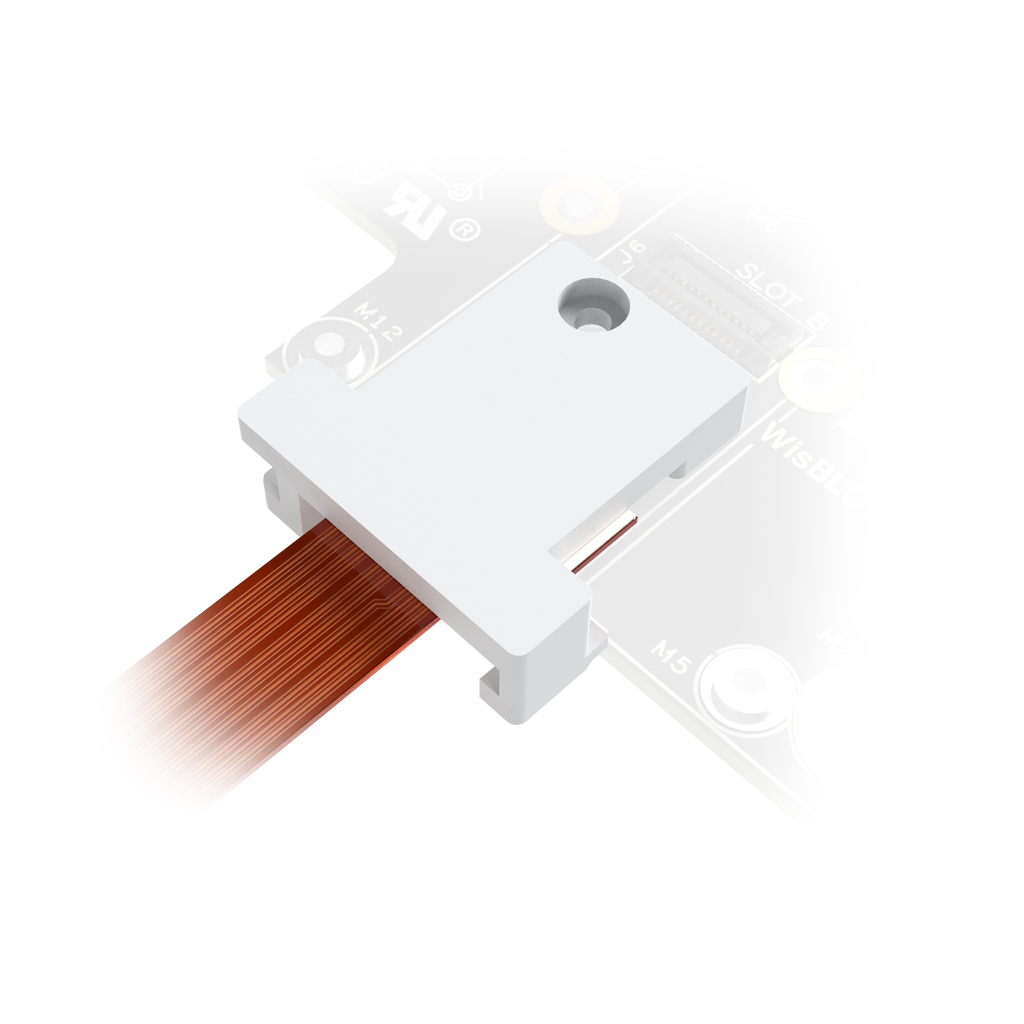

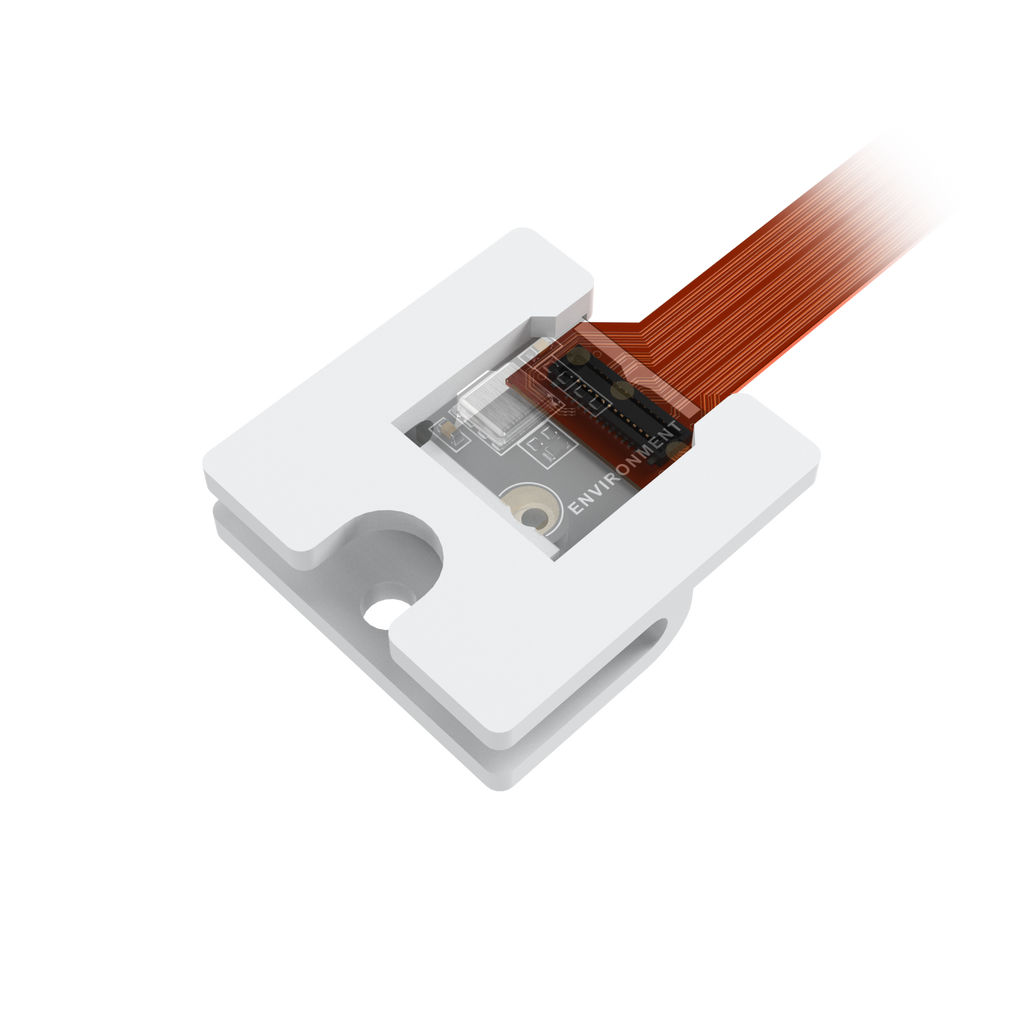

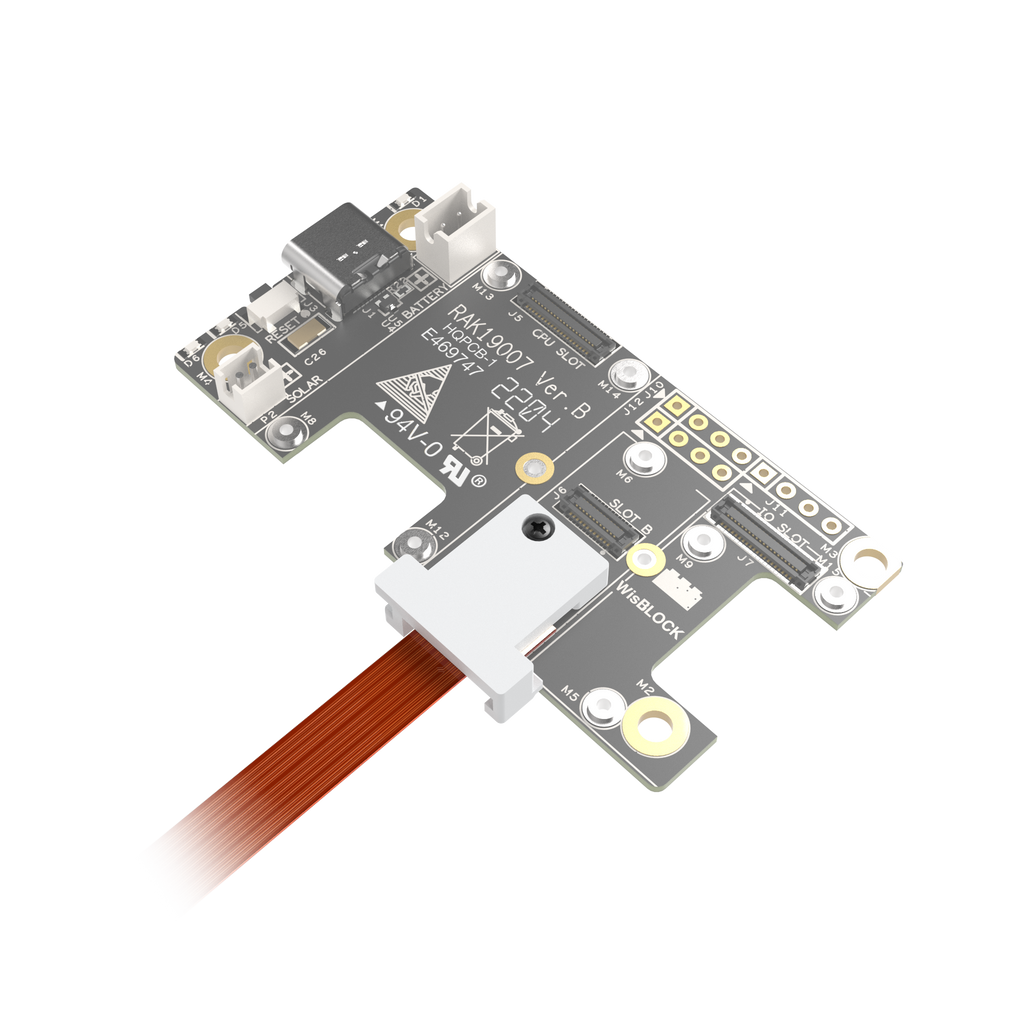

The sensor extension cable includes two dedicated mounting clips, making it a practical sensor mounting accessory for WisBlock deployments. One clip secures the extension cable to the WisBlock Base Board, while the second clip holds the sensor module using a single mounting screw. This simplifies enclosure integration and wall mounting while keeping the sensor securely positioned.

This sensor extension cable for IoT devices provides greater flexibility when designing environmental monitoring systems, LoRa sensor deployments, industrial sensing equipment, and custom IoT enclosures. The click-and-use installation approach also reduces assembly work during prototyping, testing, and repeatable deployment of compatible WisBlock systems.

Why You Need Sensor Extension Cable for WisBlock

This Wisblock sensor extension cable helps position sensors away from heat sources and crowded electronics. Extending compatible sensors away from the main board makes it easier to collect accurate data while simplifying the installation process.

Why it’s useful:

• Flexible Placement: Positions sensors where measurements are most accurate.
• Cleaner Enclosures: Simplifies sensor placement inside enclosure designs where space and airflow are limited.
• Faster Assembly: Reduces installation work during prototyping and deployment.
• Consistent Builds: Helps standardize sensor placement across multiple devices.

Why Choose Sensor Extension Cable for WisBlock?

Unlike generic extension cables, the Sensor Extension Cable for WisBlock combines signal continuity with a mounting system that simplifies enclosure integration and repeatable installation. It allows compatible WisBlock sensors to be positioned away from heat sources, crowded electronics, and restricted airflow, helping engineers build monitoring systems that are easier to deploy, maintain, and standardize across multiple installations.

Compatible WisBlock Base Boards

The mounting clips supplied are designed for specific WisBlock Base Boards and sensor-slot locations. Verifying compatibility before installation helps ensure proper mechanical fit and secure mounting.

The extension cable provides access to all 24 sensor-slot signals, but clip compatibility depends on the physical layout of the base board and sensor slot location.

Note:The mounting clips cannot be used with the RAK19003 and RAK19009.

When Should You Use a Sensor Extension Cable?

A sensor extension cable is useful whenever the ideal sensor location differs from the ideal electronics location. Many IoT devices place processors, batteries, radios, and sensors inside the same enclosure, but environmental conditions inside the enclosure may not accurately represent the conditions being monitored.

Consider using it when:

• Sensors need exposure to ambient airflow.
• Electronics generate heat near the sensing element.
• Sensors must be mounted closer to vents or openings.
• Sensors need to be positioned outside the main electronics enclosure.
• Internal space limits direct sensor installation.
• Multiple deployments require standardized sensor placement.
• Enclosure designs make direct sensor access difficult.

By enabling remote environmental sensor mounting, the extension cable helps create more flexible and repeatable IoT deployments.

How the Sensor Extension Cable Works

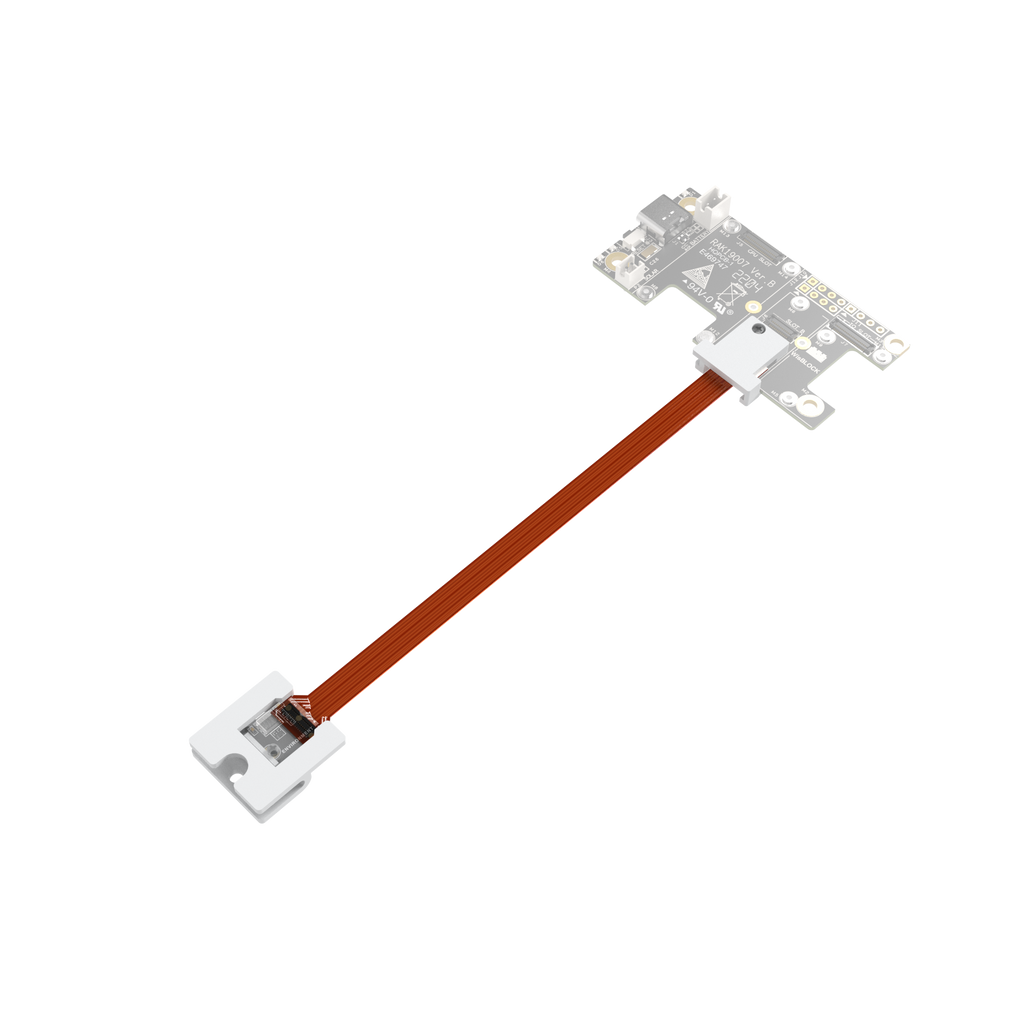

The sensor cable extends the connection between a compatible WisBlock Base Board and sensor module while maintaining access to all sensor-slot signals.

Typical Installation Workflow

WisBlock Base Board

↓

Sensor Extension Cable

↓

Compatible Sensor Module

↓

Sensor Mounting Clip

↓

Enclosure Wall / Mounting Surface

One mounting clip secures the cable connection at the base board, while the second clip secures the sensor module itself. This approach allows sensors to be positioned optimally while keeping the main electronics in the most practical location for power, communication, and maintenance.

Typical Deployment Scenarios

The Sensor Extension Cable for WisBlock can be used across a wide range of monitoring and sensing applications where flexible sensor placement improves installation quality and measurement consistency.

Key Features of Sensor Extension Cable for WisBlock

• 120mm length
• All signals of the 24-pin Sensor Slots are available.
• Easy click and use application.
• The mounting clips work only for the Base Boards and slots listed below:
• RAK19007/RAK19010 can only be used in Slot A/C
• RAK19001/RAK19011 can only be used in Slot A/C/E/F
• Cannot be used on RAK19003/RAK19009

Sensor Placement Best Practices

Proper sensor positioning can improve measurements in the monitored environment. While the extension cable does not alter sensor performance, it makes it easier to install sensors in more suitable locations. Following these practices can improve environmental sensor positioning and simplify long-term maintenance.

Comparison: Sensor Extension Cable for WisBlock vs Competitors

Use Case Examples for Sensor Extension Cable for WisBlock

The extension cable helps teams improve sensor placement, simplify enclosure integration, and maintain consistent installation practices across development and production deployments.

Use Case #1: Environmental Sensor Installation in a Utility Cabinet

An integrator observed 8% measurement variation because sensors were mounted close to heat-generating electronics. After adding it as a remote sensor mounting cable, testing across 20 units showed that the variation was reduced to 2%. Production yield reached 100% repeatability. Installation became much easier, and measurements were more consistent.

Use Case #2: Wall-Mounted Building Monitoring Device

During pilot deployment, a facilities team needed external sensor mounting for enclosure installations on the outside of a compact housing. Using the extension cable and sensor clip, they completed 15 installations with 30% less assembly time. Verification testing confirmed identical mounting positions across units. The mounting approach simplified field deployment and reduced rework.

What’s in the Box

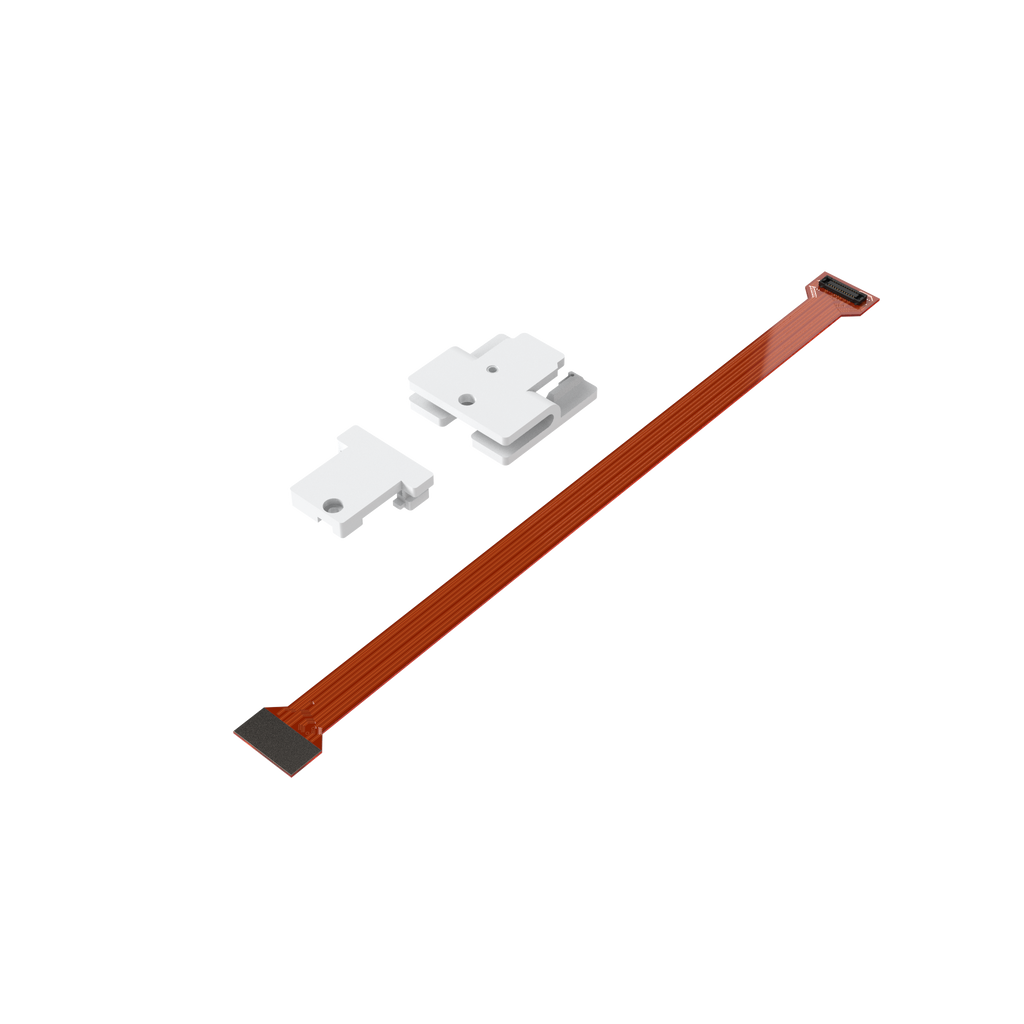

• 1 pc RAK19005 Sensor Extension Cable
• 1 pc Base Board clip
• 1 pc Sensor clip
• 1 set screw
