High-Power Outdoor Small Cell Baicells Nova 436H

Disclaimer:

• Helium 5G is currently only available in the US. This product will not work outside of the US.
• This product will only work when paired with a Helium 5G Gateway (e.g. FreedomFi Gateway).
• An external antenna set like the RAK kit is required for this device to work.

Description

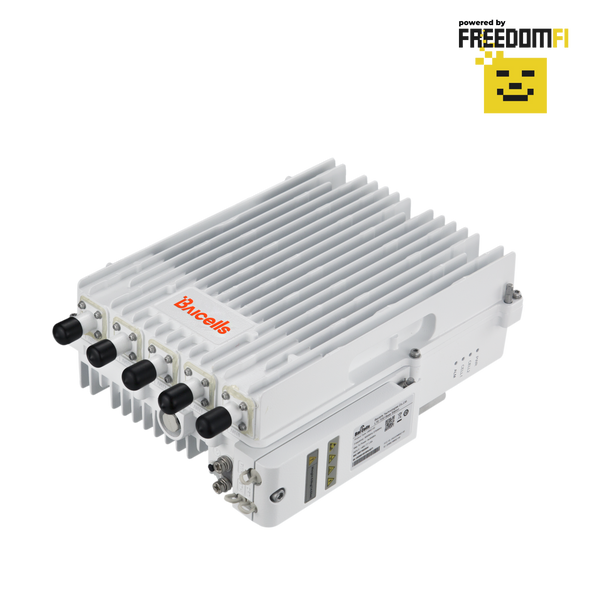

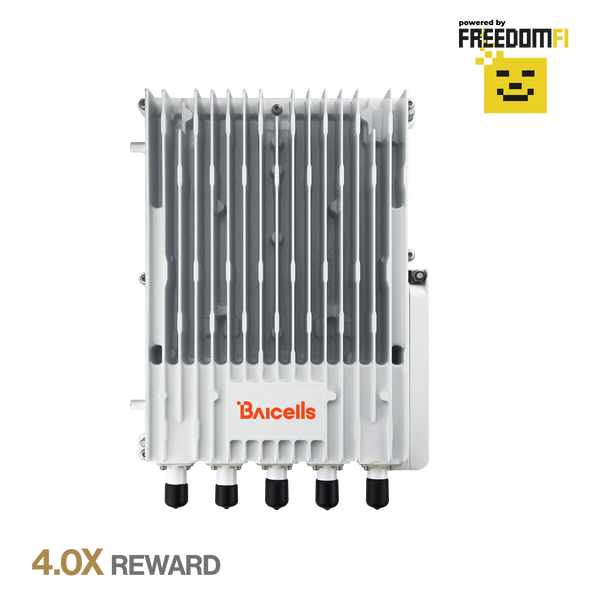

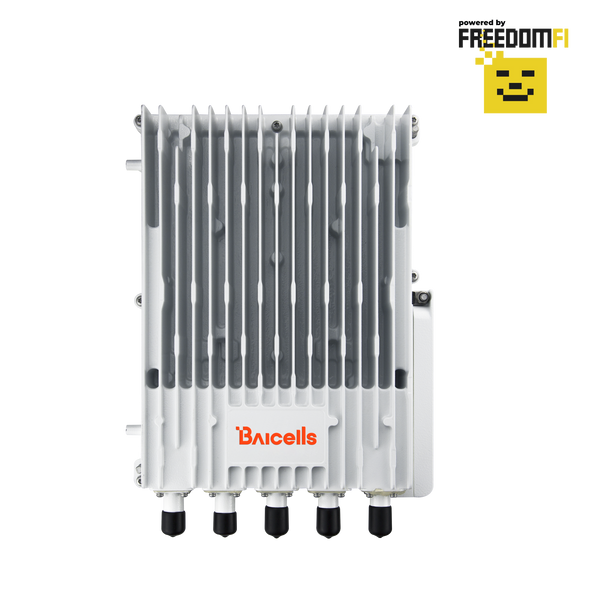

Baicells Nova 436H with pre-provisioned FreedomFi Firmware is the high-power outdoor Small Cell radio registered 5G hotspot of Helium and it will earn rewards for participating on the Network.

Only High-Power Outdoor Radio is the Baicells Nova436H, highest reward weight: 4.0x (You can check the small Cell radio Reward Scaling from Helium Website).

Features

• Plug-and-play with FreedomFi 5G Helium Hotspot US915
• Standard LTE TDD Band 48, and partial 42, 43
• GUI-based local and remote Web management
• Excellent Non-Line-of-Sight (NLOS) coverage
• Peak rate: Up to DL 220 Mbps and UL 56 Mbps with 2x20 MHz bandwidth to accommodate for 256 QAM and TDD6
• 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
• Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
• 96 RRC connected users per carrier (96+96 in DC mode), upgradeable to higher capacity in future releases
• Supports 4-port antenna or 2 antennas with 2 ports
• Integrated small cell form factor for quick and easy installation
• Configured out-of-the-box to work with Baicells CloudCore
• HaloB as embedded EPC solution
• Supports transparent Bridge Mode
• Supports Citizens Broadband Radio Service (CBRS)
• Plug-and-play with Self-Organizing Network (SON) capabilities
• Interoperable with standard LTE Evolved Packet Core (EPC)
• Supports TR-069 network management interface
• Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
• Dimensions: 12.2 x 9.4 x 4.1 inches / 310 x 239 x 105 millimeters
• Weight: 12.1 lbs (5.5 kg)

Inclusion

• Base station
• Power supply&cord
• Installation bracket
• Screw package
• Cold shrink tubes * 6
• GPS antenna&cable
• SFP transceiver * 2
• OT terminal * 2
