iPEX to RP-SMA / SMA Connector
iPEX to RP-SMA / SMA Connector
iPEX to RP-SMA / SMA Connector
iPEX to RP-SMA / SMA Connector
iPEX to RP-SMA / SMA Connector

iPEX to RP-SMA / SMA Connector

SKU:920461
Regular price $5.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Reliable Antenna Connection for Your LoRa Module

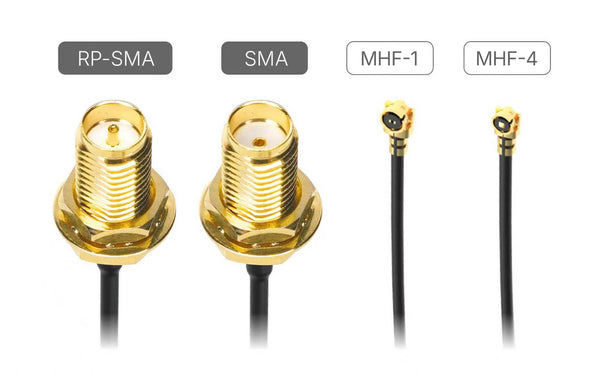

This RF coaxial cable connects your LoRa module to an external antenna. It features a compact iPEX connector (MHF-1 or MHF-4) on one end and a RP-SMA or SMA connector with a nut and washer on the other end, allowing for secure mounting on an enclosure.

Whether you're building with WisDuo or WisBlock modules, this cable helps ensure a stable and high-quality RF signal—especially important in outdoor or industrial environments.

Now Available in MHF-4 Version

Most earlier RAK modules used MHF-1 (iPEX1) connectors. We now support MHF-4 (iPEX4), a smaller and more compact version used in newer modules.

Choose the right version for your module from the list below.

Choose the Right Cable for Your Module

MHF-1 (iPEX1) Version – Compatible With:


Product Series

Module Name

WisDuo

RAK4630



RAK3172



RAK11300

WisBlock

RAK4631



RAK3372



RAK11722



RAK11310


MHF-4 (iPEX4) Version – Compatible With:


Product Series

Module Name

WisDuo

RAK11720



RAK11160



RAK3112

WisBlock

RAK11162



RAK3312


💡 Not sure which connector your module uses? Check the product datasheet or reach out to our support team.

Technical Specifications

  • Connector 1: iPEX MHF-1 or MHF-4
  • Connector 2: RP-SMA or SMA (with nut and washer)
  • Cable Type: RF Coaxial

Common Use Cases

  • Connecting compact LoRa modules to external antennas
  • Mounting antennas securely to an enclosure for better signal reception
  • Upgrading to external antennas in development or field deployments

FAQ

Q: What’s the difference between MHF-1 and MHF-4?
A: MHF-4 is smaller than MHF-1. It’s commonly used in newer RAK modules that require a more compact form factor.

Q: Can I use an MHF-1 cable on an MHF-4 module?
A: No. The connectors are physically different and not interchangeable.

Q: Is this cable compatible with other antenna types?
A: The cable ends in an RP-SMA or SMA connector, which fits most external LoRa antennas. Make sure your antenna matches the connector type.

Questions and Answers

Ask a Question
  • I'm planning to use this with RAK 2245 and 3dBi sub-g antenna. Can you confirm they are compatible?

    Yes, they are compatible.

  • Hi, Is this ipex connector compatible with the RAK5010 LTE antenna connector?

    yes, it is compatible.
