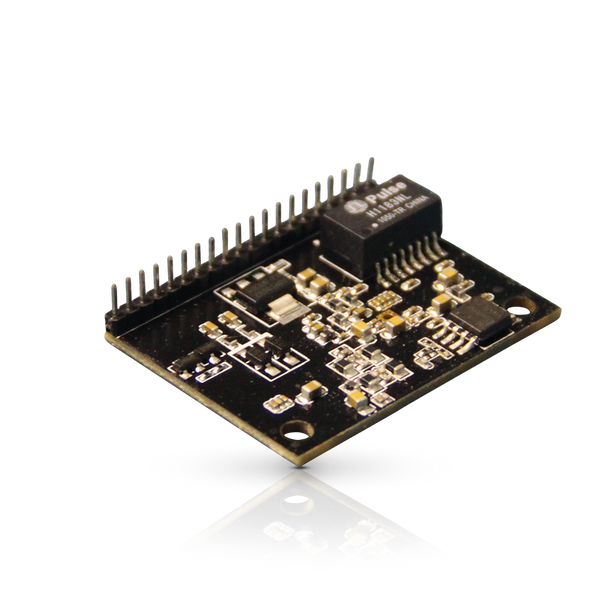

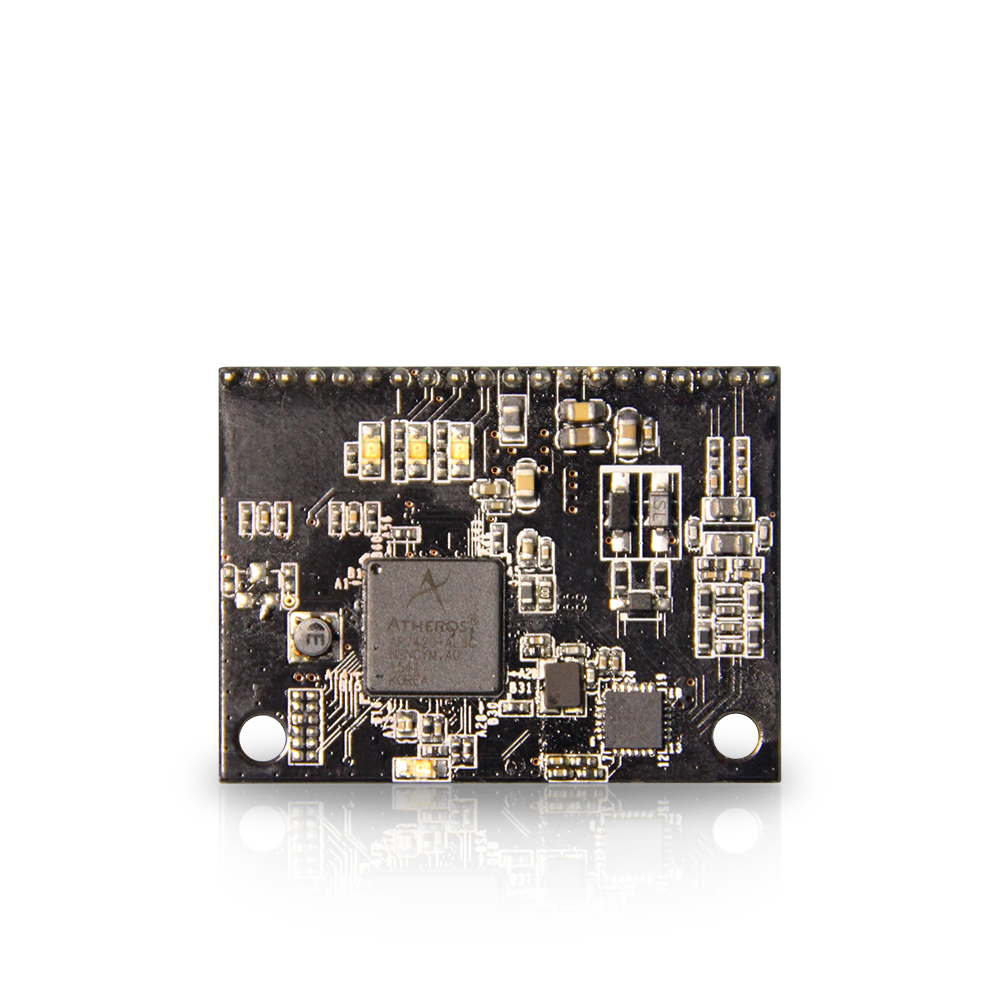

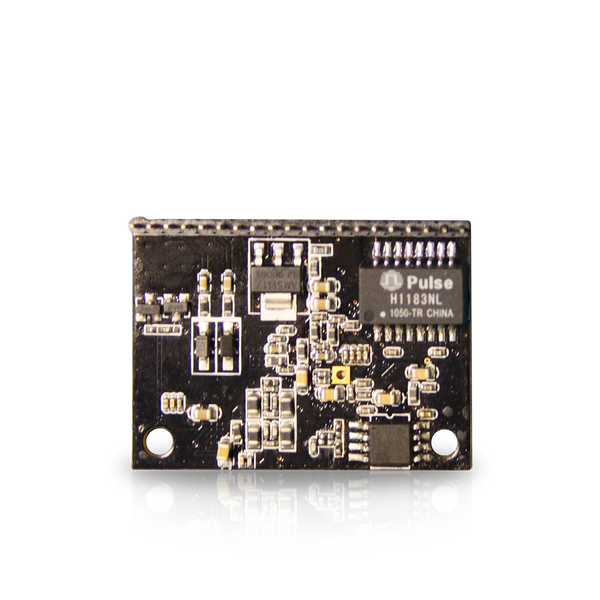

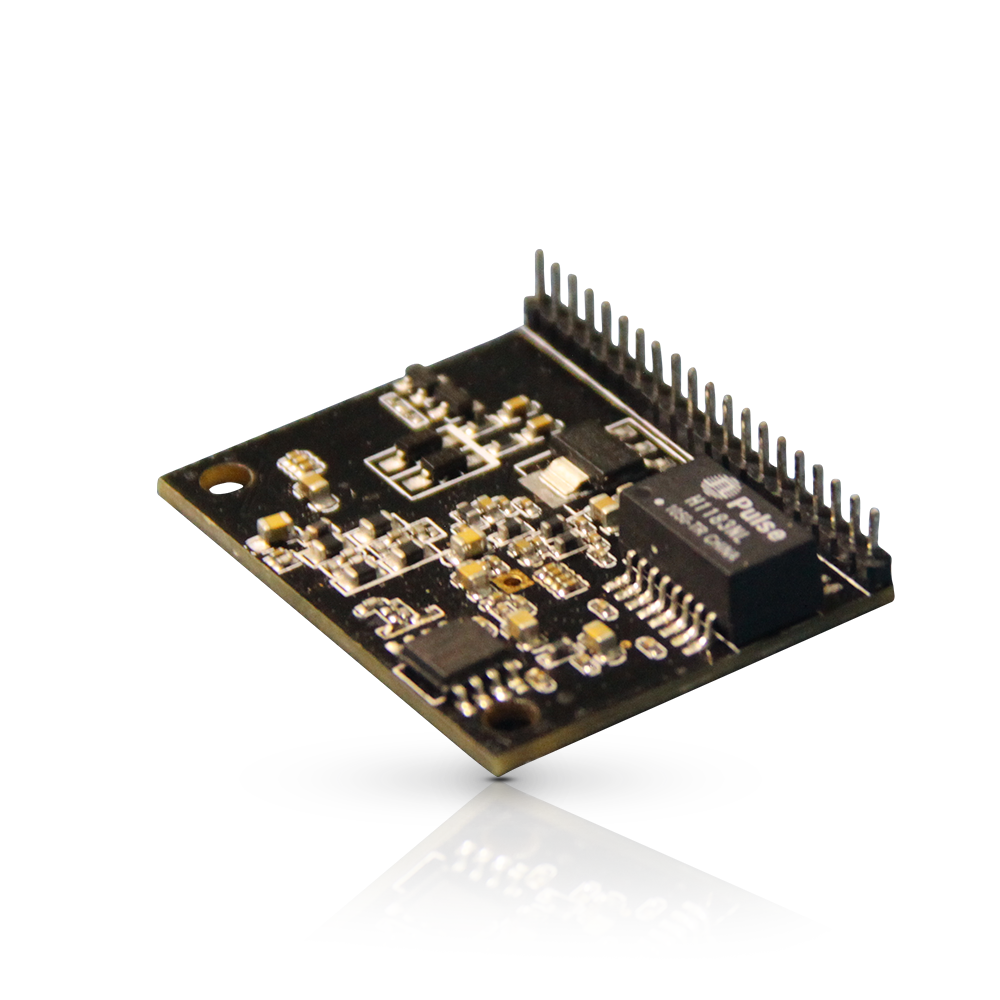

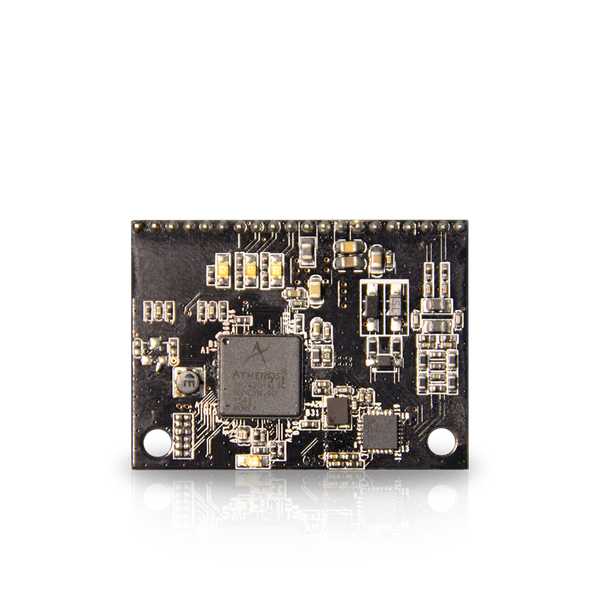

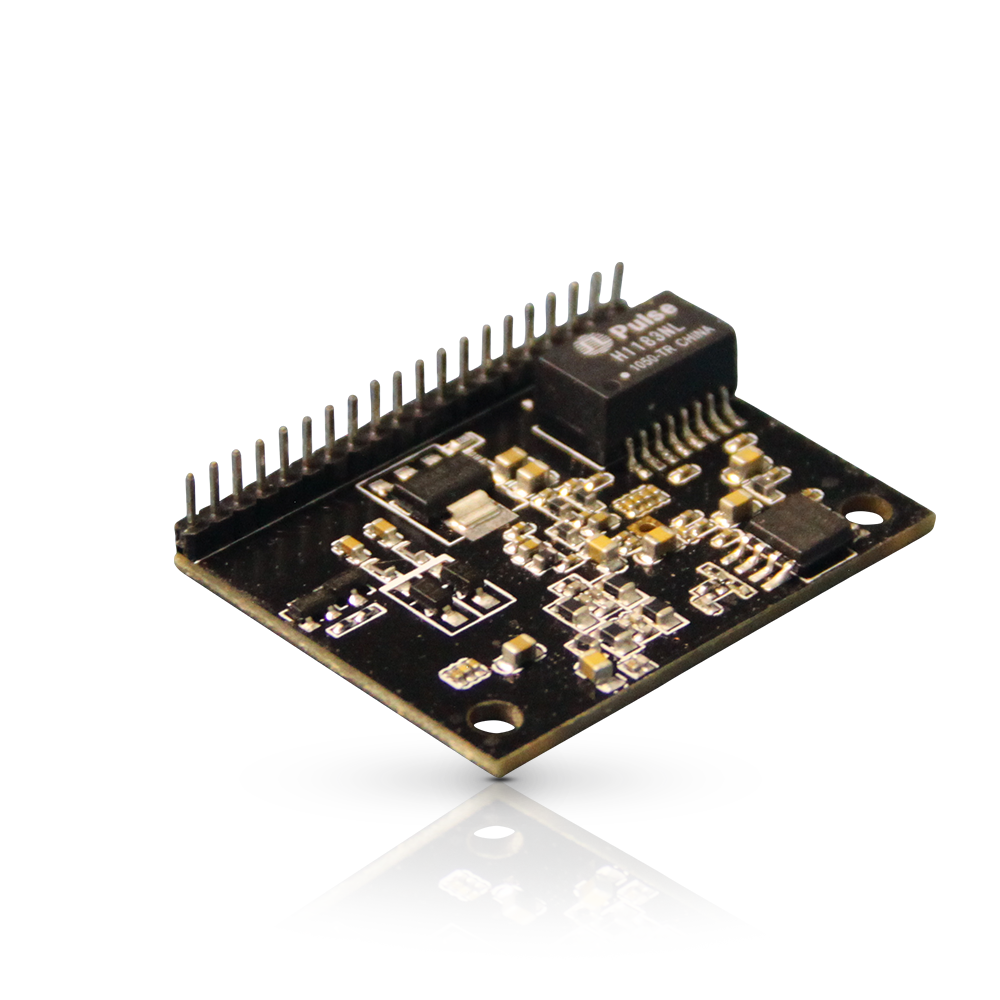

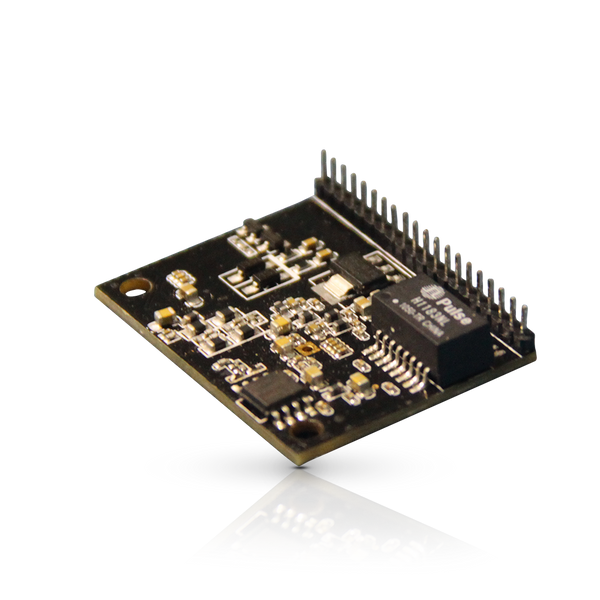

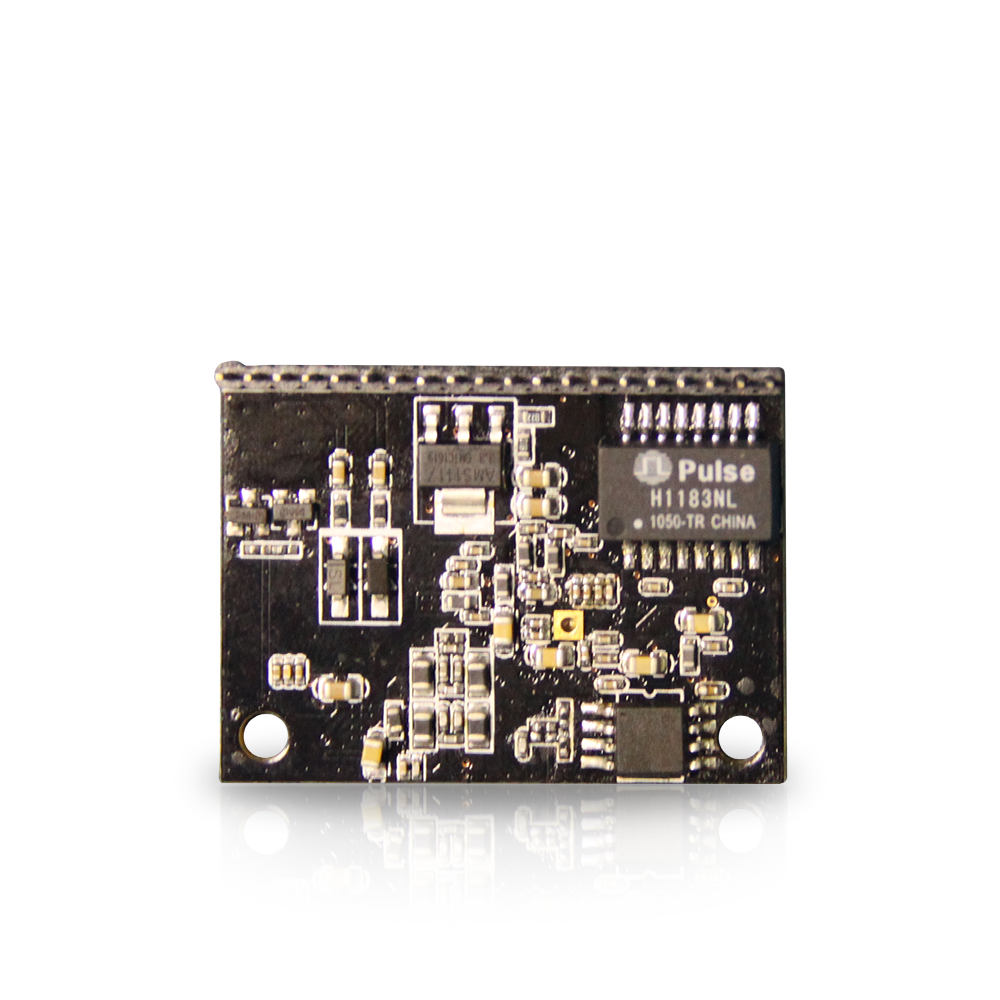

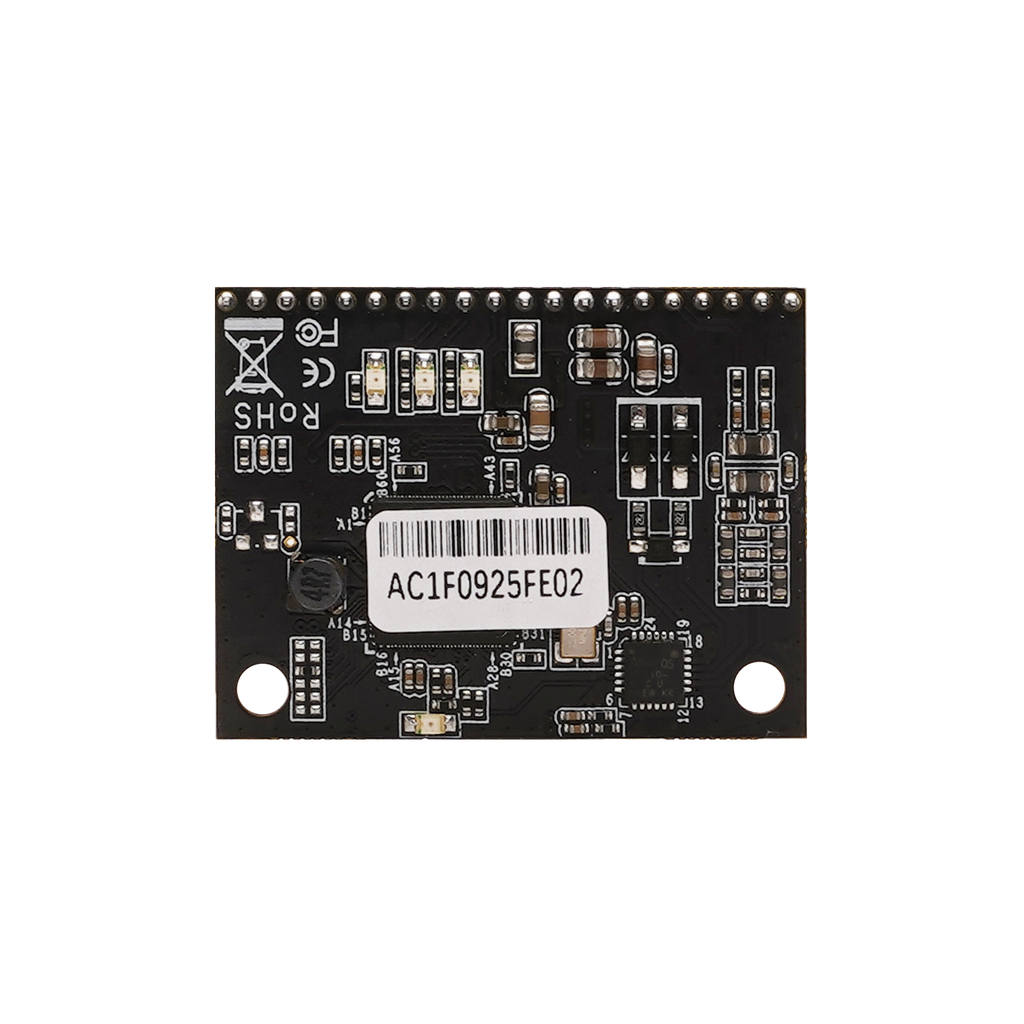

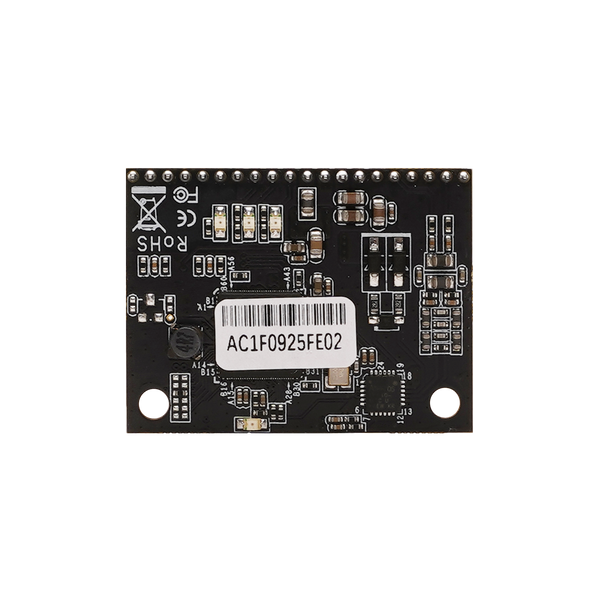

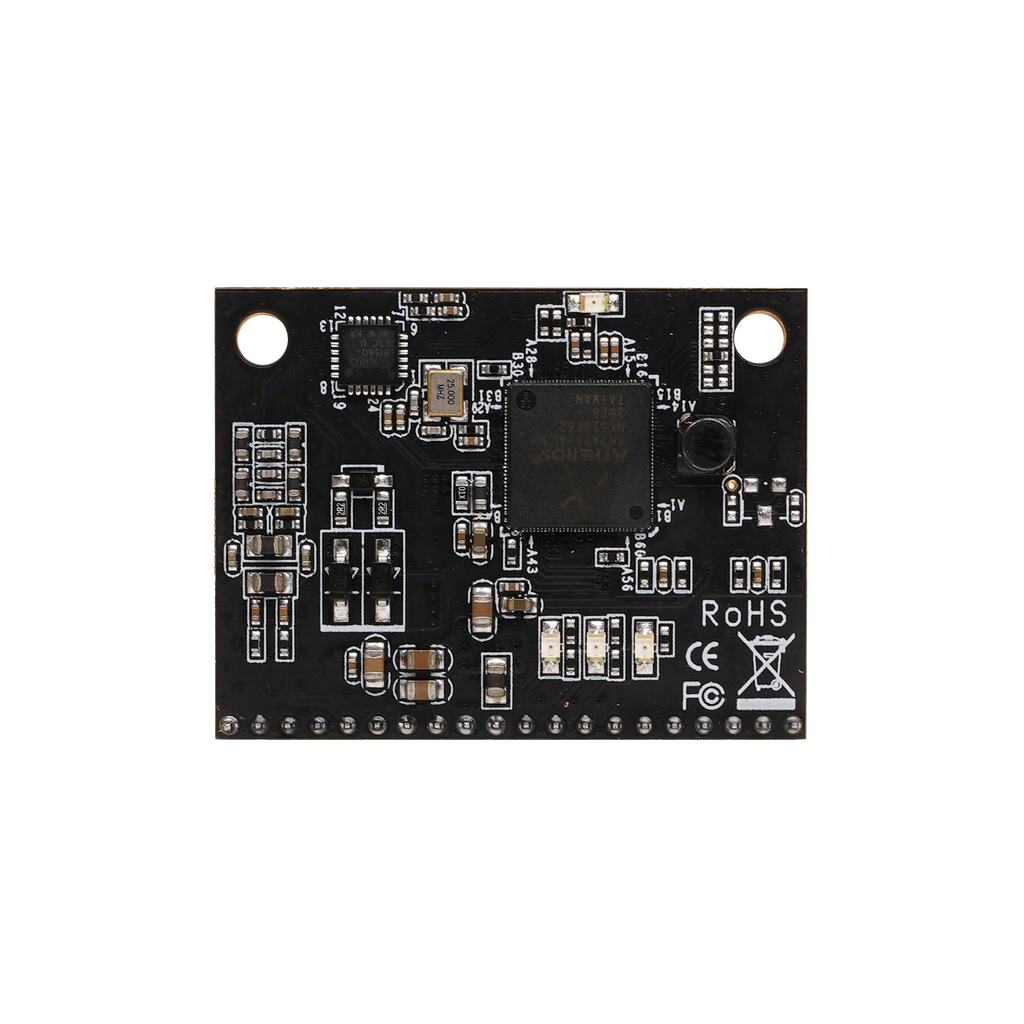

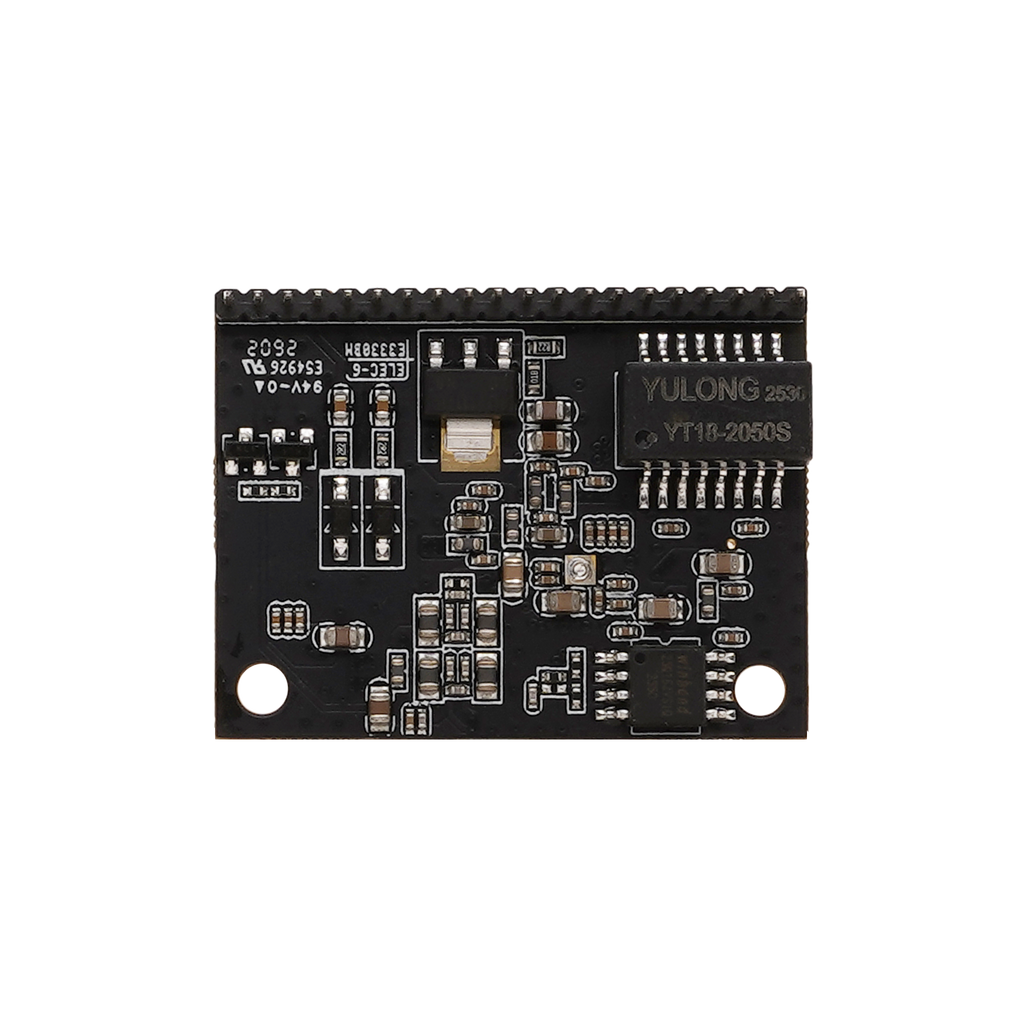

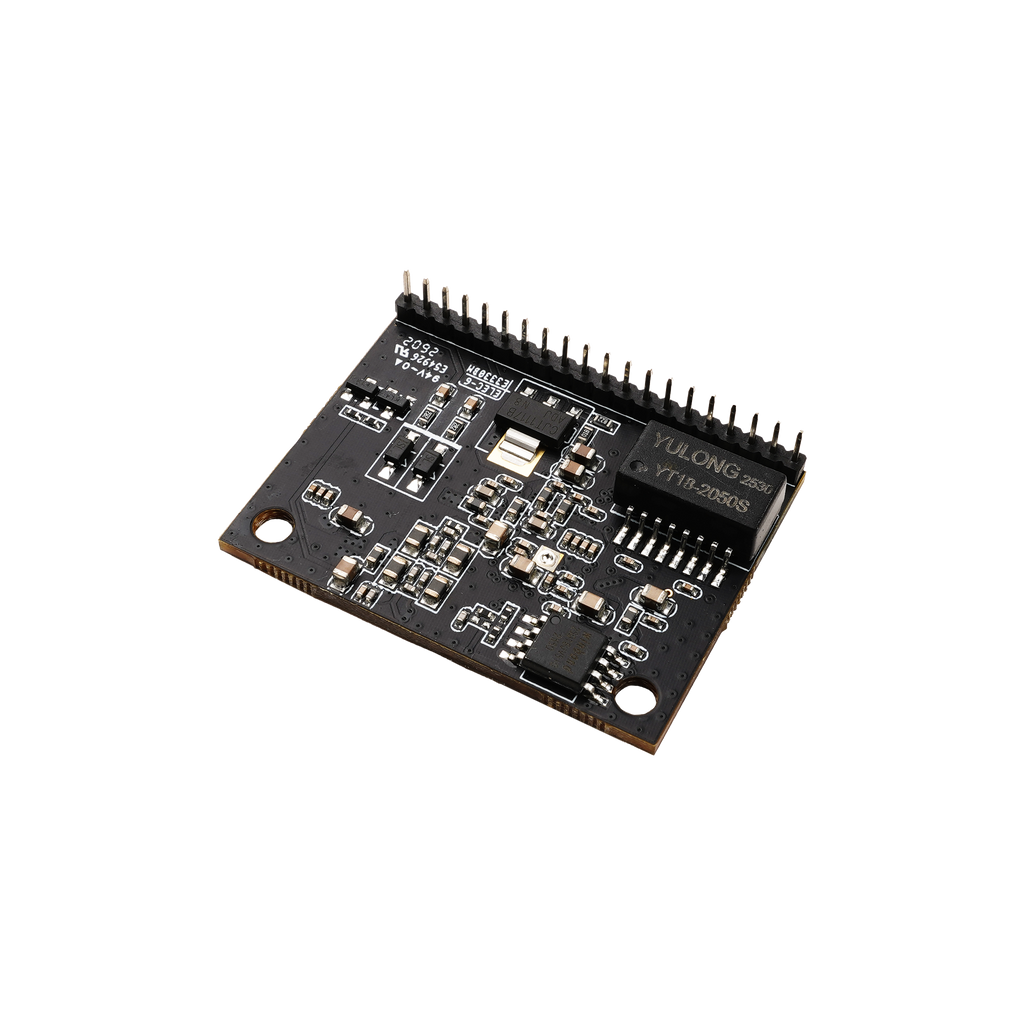

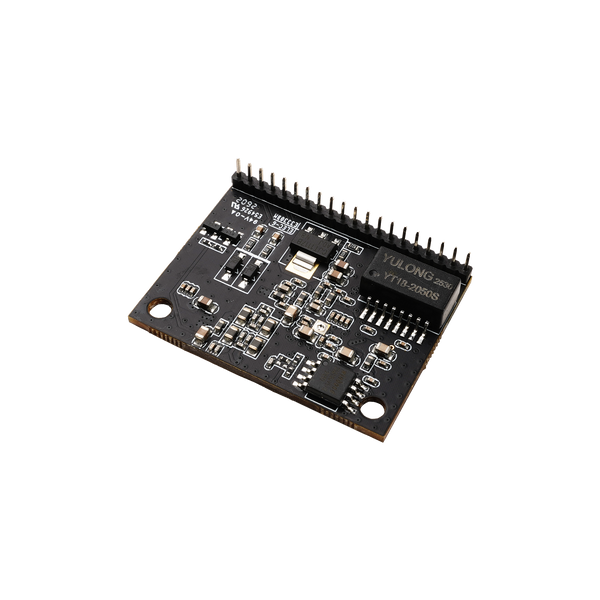

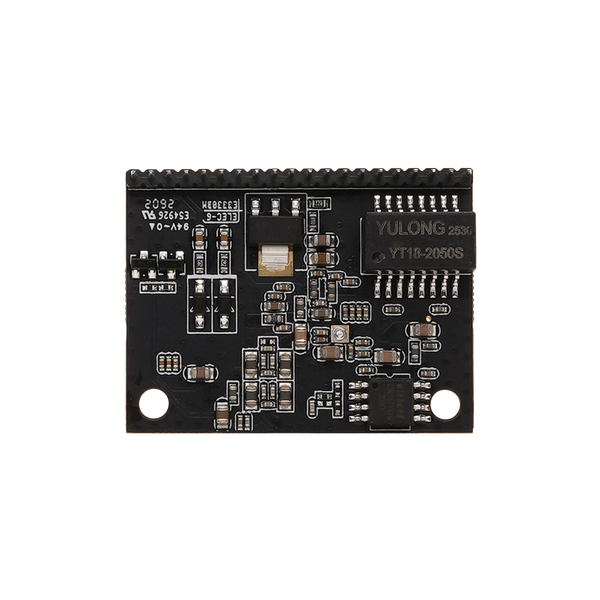

LX200V30 PLC Homeplug AV Module

Regular price $35.00 $0.00
Shipping calculated at checkout.

Product Description

LX200V30 PLC Homeplug AV Module is a new type of data transmission product based on OFDM (Orthogonal Frequency Division Multiplexing). The maximum transmission rate of power lines can reach 500Mbps. Standard ethernet ports, as well as the two interfaces of twisted pair and coaxial cable, are provided.

LX200V30 supports 128-bit AES encryption. It communicates via frequency band of 2~30MHz, so the existing CATV signal or wired broadcasting is not affected. It can be put into work after the wiring is completed without any user configuration. This will advance the product's time-to-market and increase the flexibility of product functionality.

Complete documentation of this product can be found on our website documentation page.

Key Features

  • Max Data Rate: 500Mbps
  • Max Range:
    • 300m Power Lines
    • 600m Telephone Lines
    • 2000m Cable Lines
  • IEEE1901 and Homeplug AV Support
  • MII Standard Interface
  • 128-bit AES Encryption of Data
  • A maximum of 8 modules can interface with each other
  • Works below CATV signal interference range

Packaging

  • Product Dimensions:40mm x 30mm
  • Product Weight:1kg
  • Inclusions:
    • 1pc The LX200V30 Board
  • Where can I find a more details datasheet for these (like you have for the LX200V20)? There is very limited information available. For example what is the total power requirement for the 3.3v and 12v inputs?

    Hello,

    At present I believe this is the sum tottal of the information available:

    https://downloads.rakwireless.com/en/PLC/LX200V30/

    I realize it is not much, however this is it. I will do a little digging, hopefully I find some more infroamtion.
    I also suggest you post your question in the forums.
    http://forum.rakwireless.com

    Regards
    Vladislav

  • Hi, it is possible to modify the firmware of the LX200V30 module?

    Hello,

    I do not believe this is an option at this time.
    However I suggst posting in the forums just in case someone can help you out.
    http://forum.rakwireless.com

    Regards
    Vladislav
