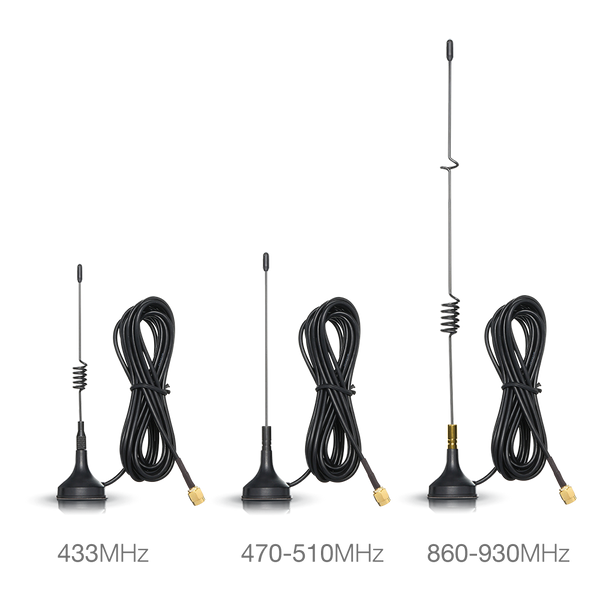

Magnetic Base Monopole Antenna

SKU:925010

$6.00

The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

LoRa Frequency Map Guide

Hover over your region on the map to see local country frequencies.

Quantity

Details
Documentation
Q/A
Reviews

This is a magnetic base omnidirectional antenna tuned for operation in the license-free spectrum band of 433 MHz, 470 - 510 MHz, and 860 - 930 MHz. It is lightweight and can be easily mounted on a metallic surface thanks to its strong magnetic base. We designed this antenna to be a perfect match for RAK7258, with stable performance and good VSWR. The coaxial cable attached to the magnetic base has a length of 1.5 meters.

Key Features

Frequency	433 MHz	470 - 510 MHz	860 - 930 MHz
Gain	-9.5 dBi	-9.5 dBi	1.27 dBi
VSWR	≤ 2.5	≤ 3.0	≤ 2.0
Efficiency Max	12%	22%	53%
Impedance	50 Ω	50 Ω	50 Ω
Polarization	Linear polarization - Vertical	Linear polarization - Vertical	Linear polarization - Vertical
Radiation pattern	Omni-directional	Omni-directional	Omni-directional
Connector	RP-SMA-J	RP-SMA-J	RP-SMA-J
Length	142 ± 3 mm	147 ± 3 mm	278 ± 3 mm
Operation Temperature	-30 ºC ~ 65 ºC	-30 ºC ~ 65 ºC	-20 ºC ~ 65 ºC
Storage Temperature	-30 ºC ~ 75 ºC	-30 ºC ~ 75 ºC	-30 ºC ~ 75 ºC
