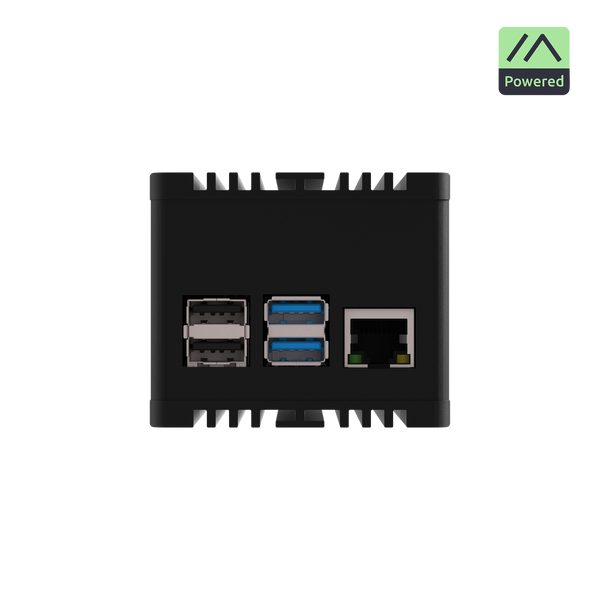

WisMesh Station/WisMesh Station HP

What Is the WisMesh Station/WisMesh Station HP?

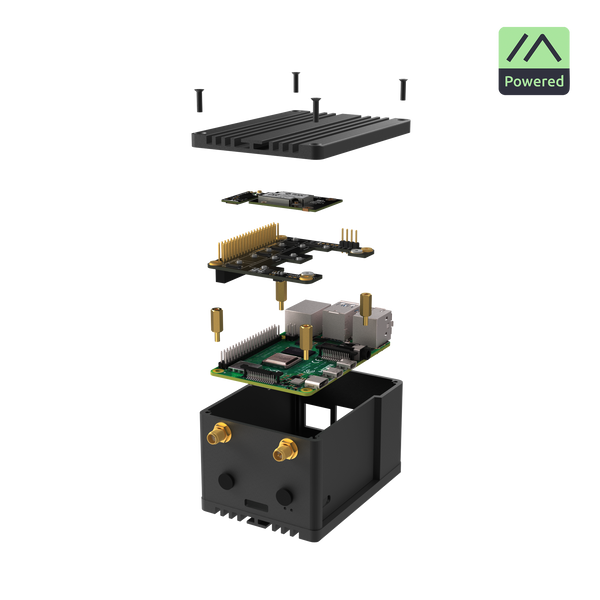

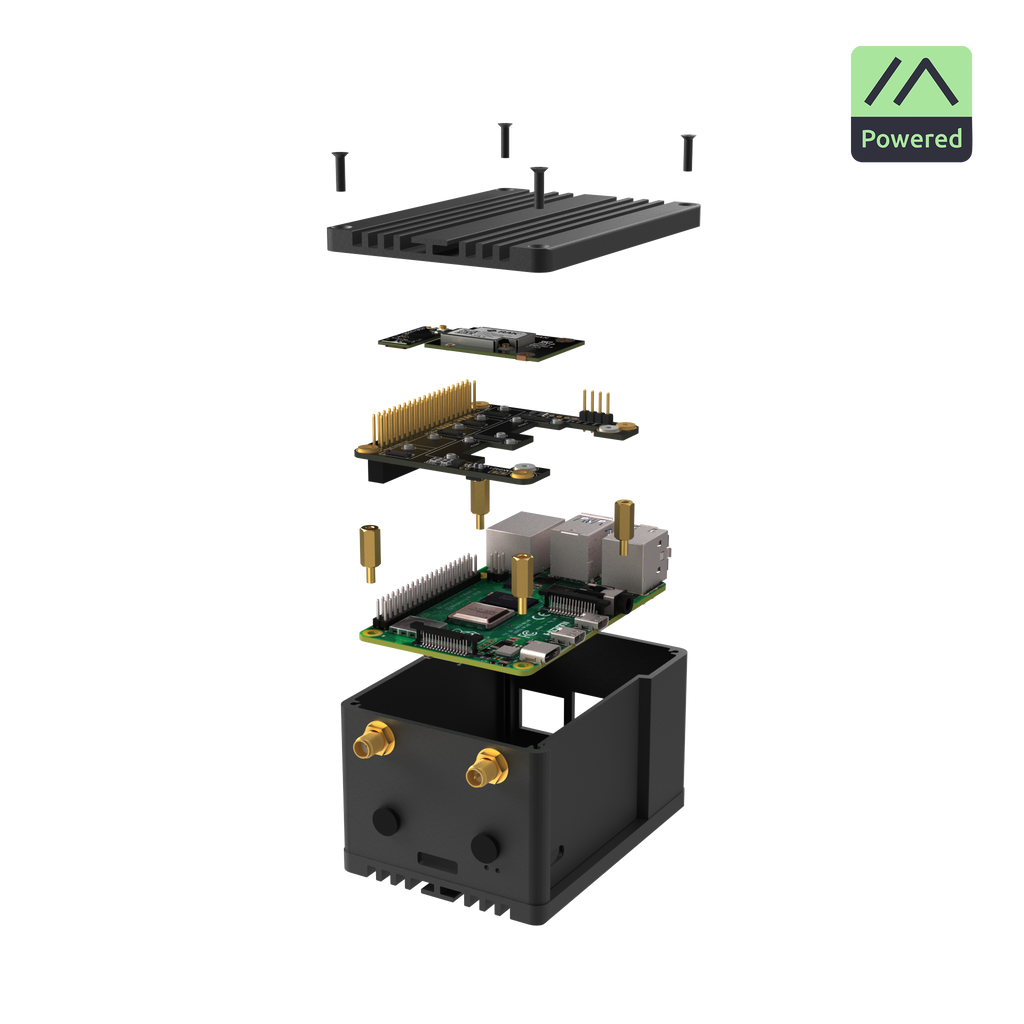

WisMesh Station / WisMesh Station HP is a ready-to-run Meshtastic gateway and base station built for fixed, always-on deployments. It combines Raspberry Pi 4 computing, LoRa mesh communication, local MQTT processing, and WisBlock expansion in one enclosed system, so users can deploy faster without assembling and configuring separate parts.

Available in standard-power and high-power variants, it gives users a clear choice based on coverage needs, whether for urban mesh networks, relay nodes, or long-range rural installations.

With pre-installed meshtasticd, Mosquitto, Node-RED, and Grafana, the system is ready for communication, monitoring, and local data handling out of the box. Support for GNSS and WisBlock sensor modules also makes it suitable for location-aware mesh infrastructure, environmental monitoring, and custom gateway deployments.

Why Use a Ready-to-Run Meshtastic Gateway Instead of DIY?

Deploying a reliable mesh network often requires assembling hardware, configuring software, and managing integration. This system reduces setup time and simplifies deployment, allowing faster rollout of communication and monitoring infrastructure.

Why it’s useful:

• Faster deployment: Pre-configured system reduces setup time and avoids manual integration steps
• Independent operation: Runs locally without relying on internet or cloud services
• Flexible expansion: Supports sensors, GPS, and IO modules for evolving requirements
• Scalable coverage: Enables both local networks and long-range backbone connections

How WisMesh Station Works in a LoRa Mesh Network

WisMesh Station / WisMesh Station HP works as a fixed, always-on Meshtastic node in a LoRa mesh network. It receives and relays packets between nearby nodes to help extend coverage and improve network stability. With Raspberry Pi 4 and pre-installed meshtasticd, it also supports local MQTT processing and connected sensor data without relying on cloud services.

Key Features of the WisMesh Station/WisMesh Station HP

Standard vs High Power (22 dBm vs 1W)

Choose from two output options to fit your deployment.

• 22 dBm Standard Power: Best for urban or dense mesh networks where nodes are closer together
• 1W High Power: Better for rural areas, elevated relay points, and longer-distance links where maximum range is needed

Both versions use the same ready-to-run platform, so the main difference is coverage and deployment environment.

Deployment Scenarios

WisMesh Station / WisMesh Station HP can be deployed across different environments, depending on coverage needs and network layout.

Urban

Suitable for dense mesh networks where nodes are closer together and stable local coverage is the priority.

Rural

Well suited for longer-range links, relay points, and wider-area communication with fewer obstacles.

Off-grid

Supports independent operation for remote monitoring and local data handling without relying on cloud connectivity.

Compatible Sensor Modules (WisBlock)

Sensor support depends on Meshtastic firmware and keeps evolving. Refer to Meshtastic documentation for the latest compatibility.

Use Case Examples for the WisMesh Station/WisMesh Station HP

A single system supports communication, monitoring, and data handling across different deployment environments, improving reliability and reducing setup complexity for operators.

Use Case #1: Long-Range Relay Node Deployment

A network operator faced limited coverage beyond 2 km using handheld nodes. After installing the high-power variant with GPS logging, tests showed stable 12 km links. Deployment remained repeatable across elevated sites, with users reporting consistent message delivery reliability.

Use Case #2: Environmental Monitoring Gateway

An operations team previously collected manual temperature and air quality readings with inconsistent intervals. After integrating sensors and MQTT locally, they achieved continuous data logging with 98% uptime, validated through weekly checks. Feedback noted more reliable monitoring without external dependencies.

Comparison Table: WisMesh Station / WisMesh Station HP vs. Alternative Hardware

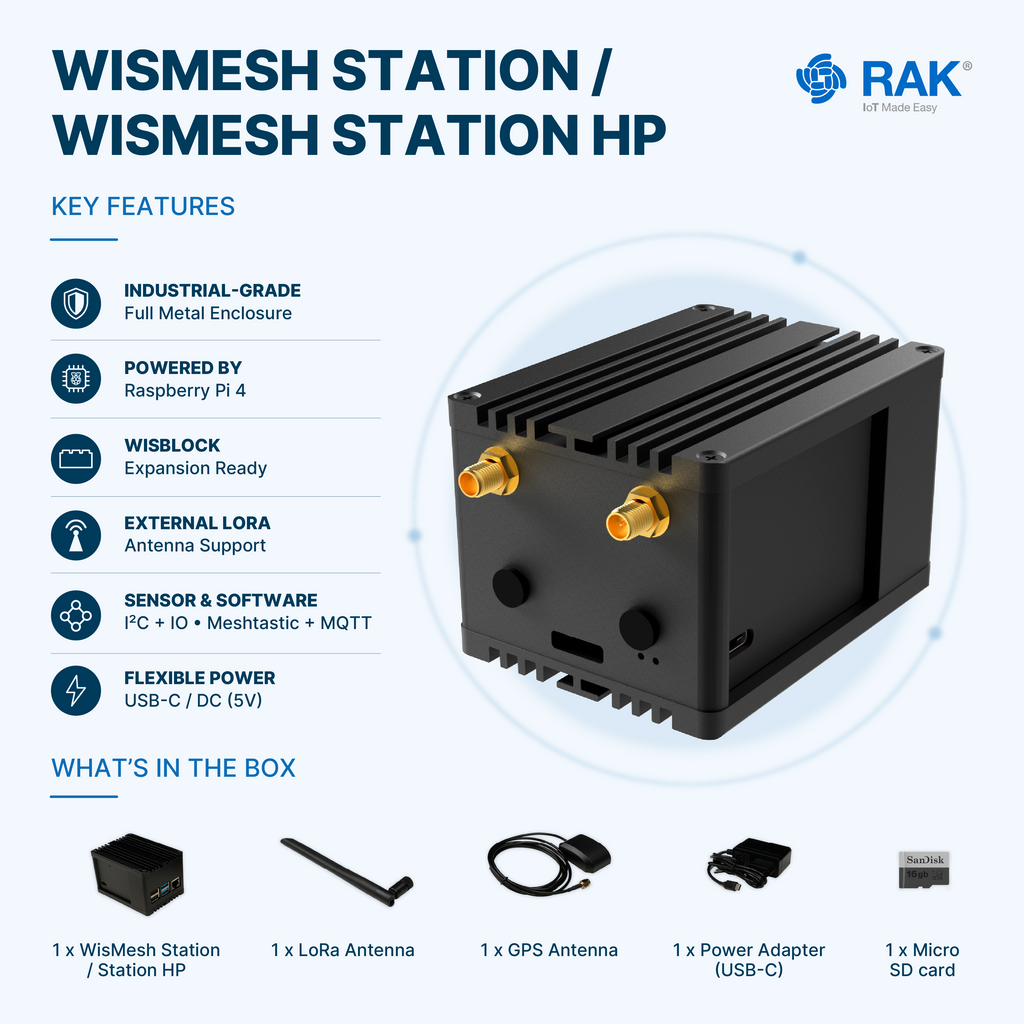

What’s in the Box

• 1 pc WisMesh Station/Station HP
• 1 pc LoRa Antenna
• 1 pc GPS Antenna
• 1 pc Power Adapter
• 1 pc SD Card (16GB)

How to Get Started with

• First Step of WisMesh Station RAK8622/WisMesh Station HP RAK8623
• Overview for WisMesh Station RAK8622/WisMesh Station HP RAK8623
• Quick Start Guide for WisMesh Station RAK8622/WisMesh Station HP RAK8623
• Datasheet for WisMesh Station RAK8622/WisMesh Station HP RAK8623
• EEPROM Flashing Guide
