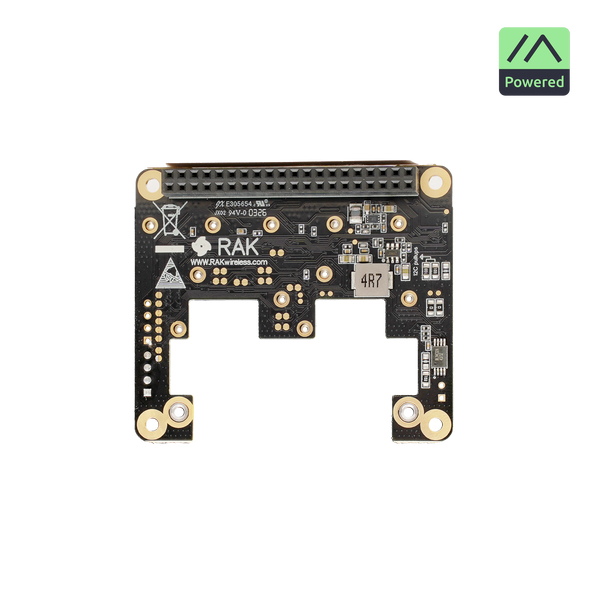

WisMesh Pi HAT RAK6421

What Is WisMesh Pi HAT RAK6421

WisMesh Pi HAT is a Raspberry Pi HAT based on RAK6421, designed to connect WisBlock LoRa radios and sensors directly to Raspberry Pi platforms (Pi 4, Pi 5).

It is built for users who want to run Meshtastic on Raspberry Pi (meshtasticd) and need:

• Flexible radio options (standard or high-power)
• Sensor and GPS expansion
• A stable base for long-running Meshtastic nodes or gateways

By choosing the right radio and sensor combination, WIsMesh Pi HAT can be used as a city node, relay, or high-power backbone node.

Why Use a Raspberry Pi HAT for meshtasticd?

Many Meshtastic builders use Raspberry Pi 4 as the base for an always-on node because it is stable, widely available, and easy to run with Ethernet, PoE, remote access, MQTT, logging, and dashboards. WisMesh Pi HAT RAK6421 gives that setup a cleaner hardware base by integrating the LoRa radio and WisBlock modules directly with the Raspberry Pi instead of relying on USB radios, jumper wires, or stacked adapters.

It also supports Raspberry Pi 5 for users who want more processing headroom for Linux services, visualization tools, or more advanced gateway-style workflows.

A Meshtastic Raspberry Pi HAT is a strong fit when you want to build a fixed Meshtastic base station, Meshtastic relay node, or Meshtastic MQTT gateway with a more repeatable setup.

• Cleaner than USB radio setups: Direct 40-pin connection helps avoid loose cables, adapter stacks, USB enumeration issues, and connector wear in long-running nodes.
• Built for always-on Raspberry Pi nodes: Works well with Raspberry Pi 4 and Raspberry Pi 5 deployments that need Ethernet, PoE options, local network access, and remote management.
• Better for gateway workloads: A Meshtastic gateway Raspberry Pi can run MQTT forwarding, logging, Node-RED, Grafana, and visualization tools alongside meshtasticd.
• Ready for high-power radio builds: Supports modular LoRa radios such as RAK13302 for users building a high power Meshtastic node for rooftops, relays, and backbone links.
• Supports sensor and GPS expansion: WisBlock add-ons let you add GPS, environmental sensing, RTC, and other modules for telemetry or location-aware deployments.
• Easier to repeat across multiple nodes: A standardized HAT setup makes it simpler to clone configurations, swap units, and deploy the same build in multiple locations.

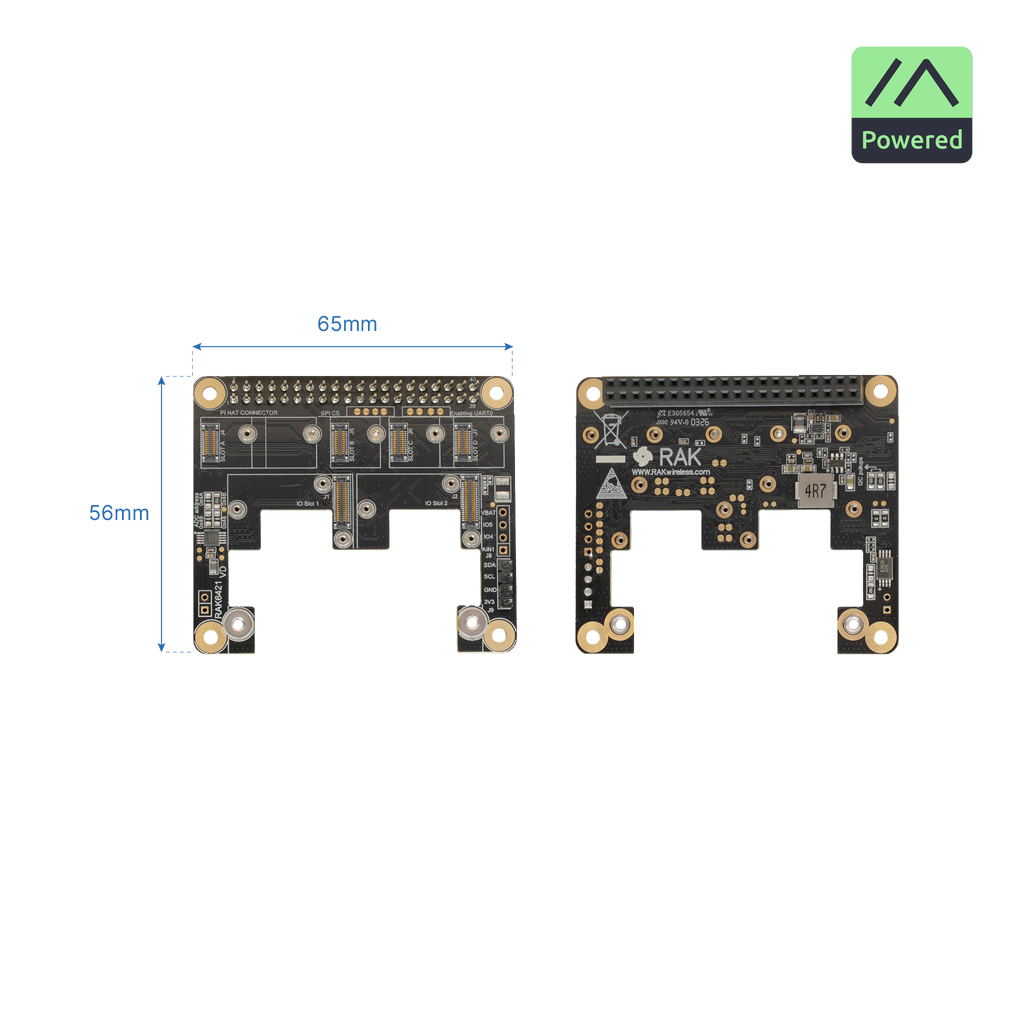

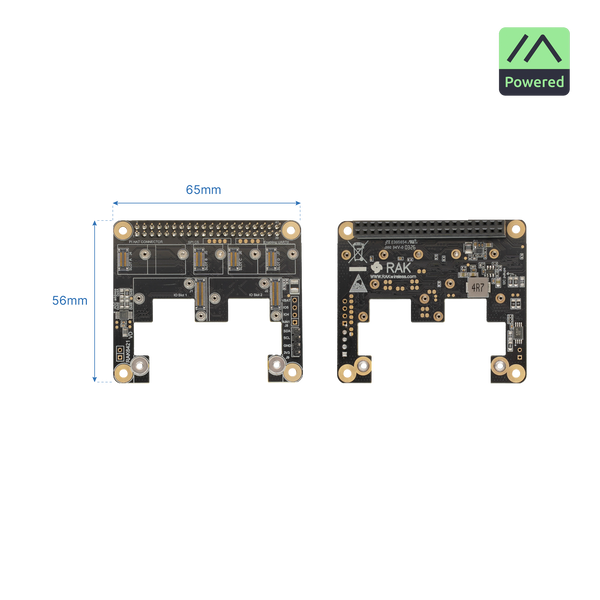

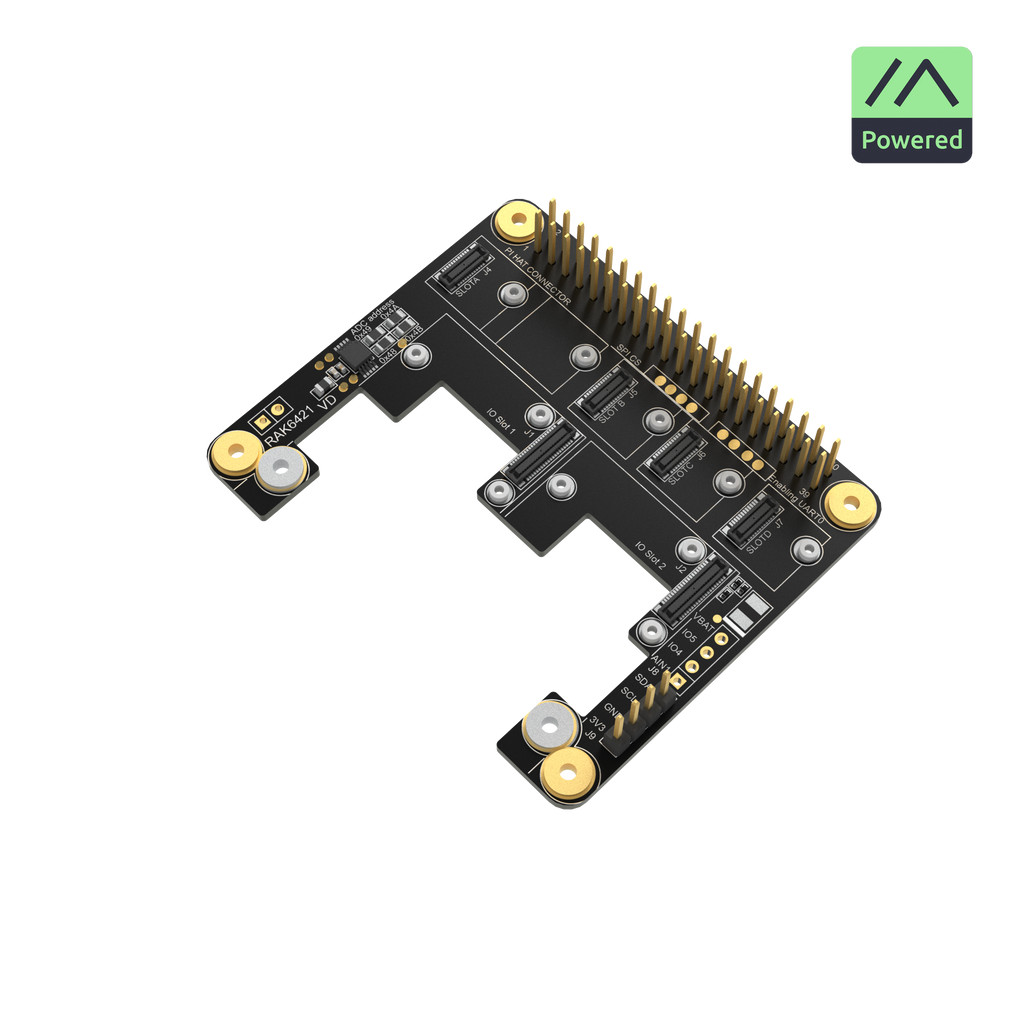

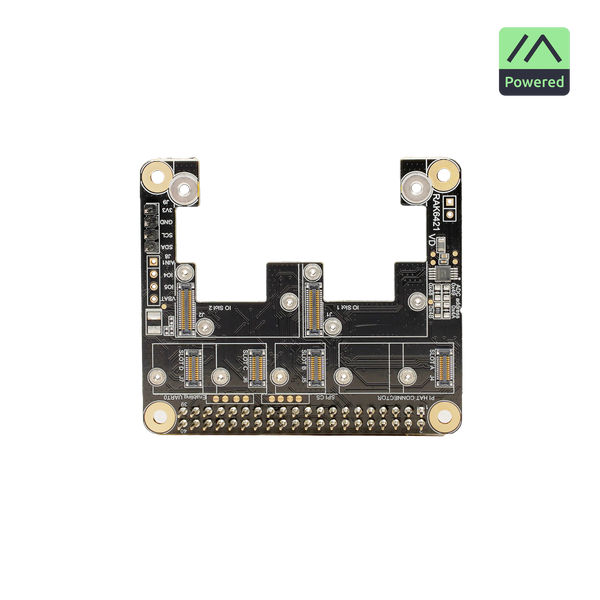

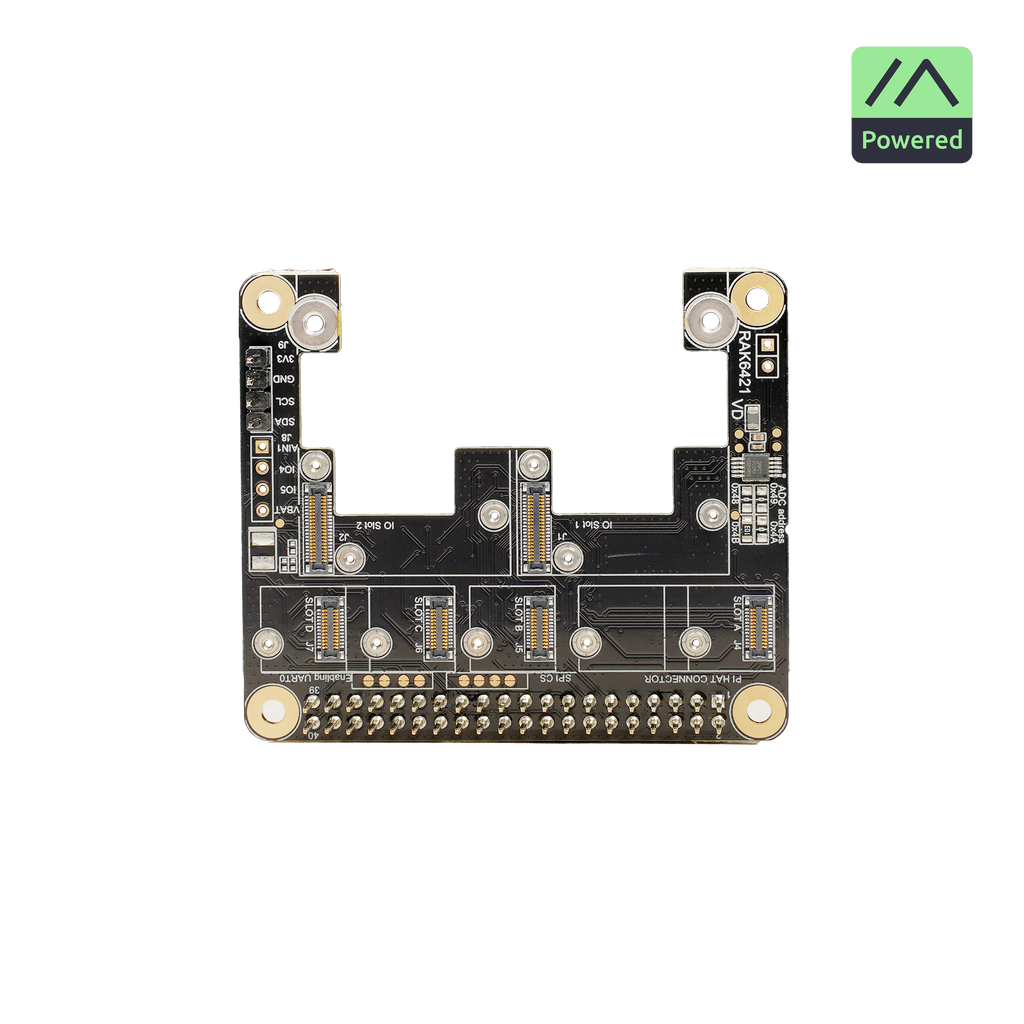

Key Features of WisMesh Pi HAT RAK6421

• Standard 40-pin Raspberry Pi header
• 2 × WisBlock IO slots (for LoRa radios)
• 4 × WisBlock Sensor slots (I²C)
• Supports LoRa, GPS, environmental sensors, motion sensors
• Onboard I²C ADC for analog input
• Powered from Raspberry Pi 5V rail (3.3V & VBAT outputs)
• Fully compatible with RAK13300 and RAK13302
• HAT+ compliant with onboard EEPROM for hardware auto-discovery
• Designed for Meshtastic (meshtasticd) on Linux

Product Variants

Supported LoRa Radios

High-power configurations are suitable for fixed installations such as rooftops, hills, and backbone deployments.

Supported Sensors & Modules

Sensor support depends on Meshtastic firmware and keeps evolving. Refer to Meshtastic documentation for the latest compatibility.

Optional: Pre-flashed SD Card

An optional pre-flashed SD card is available for users who want to reduce setup time.

Pre-installed software includes:

• meshtasticd
• MQTT broker
• Node-RED
• Grafana

This allows the system to boot into a working environment without manual flashing or package installation.

How WisMesh Pi HAT Works in a meshtasticd Raspberry Pi Build

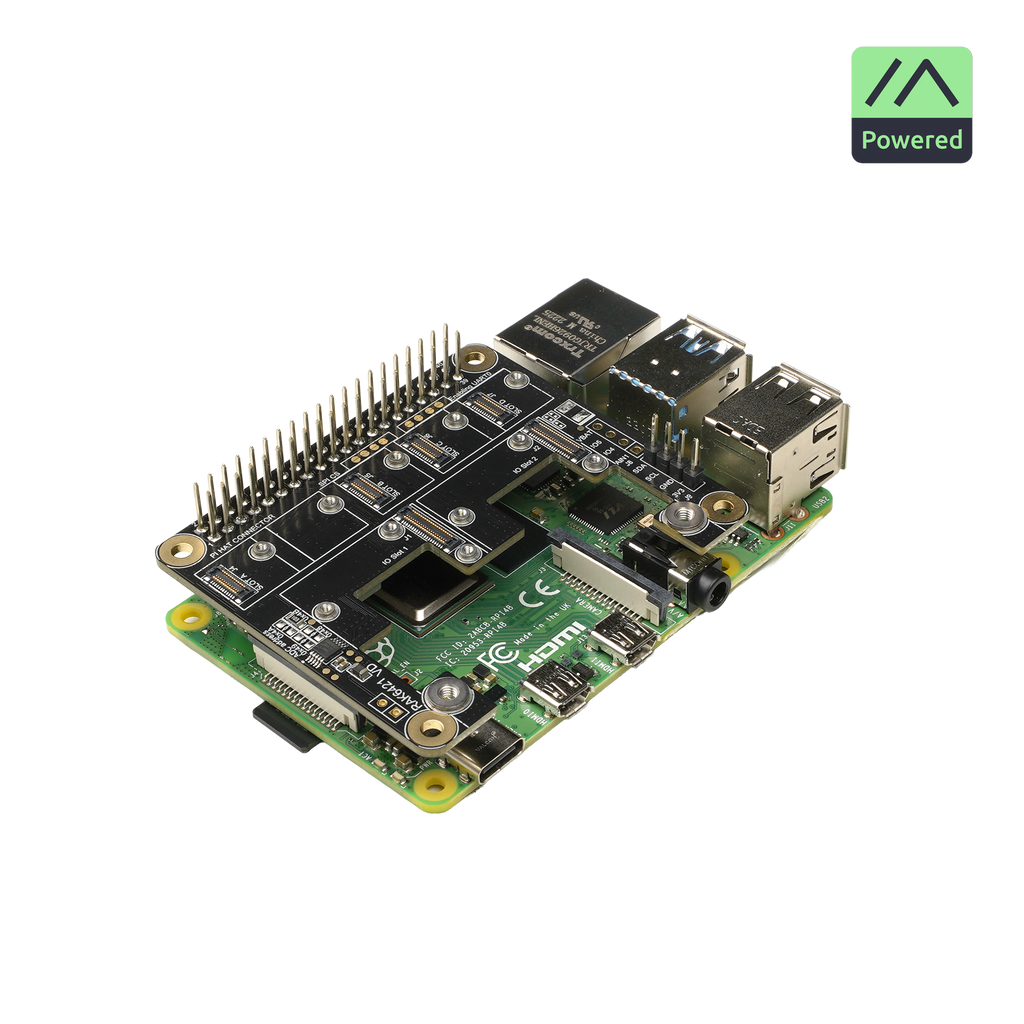

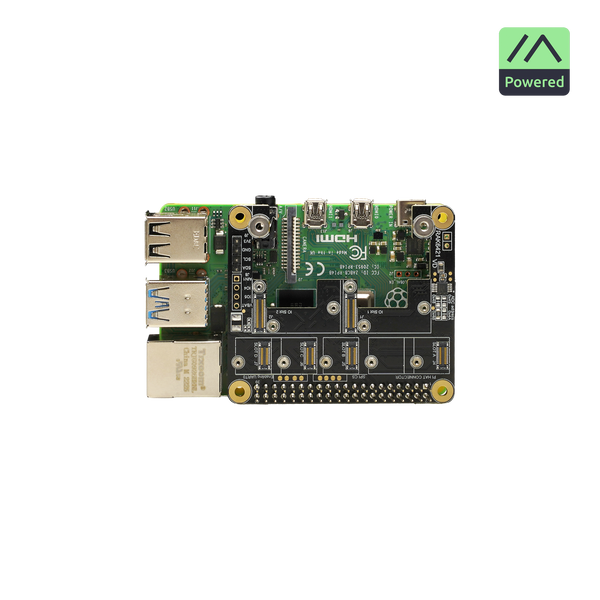

WisMesh Pi HAT RAK6421 acts as the hardware integration layer between a Raspberry Pi and a WisBlock LoRa radio. Mounted directly on the 40-pin header, it provides fixed SPI, I²C, and UART routing, stable power delivery, and structured expansion for GPS and sensors. This eliminates USB adapters and loose wiring.

On the software side, meshtasticd runs as a Linux service on Raspberry Pi OS or Ubuntu. It interfaces with the attached LoRa radio through the HAT’s SPI connection, handling mesh networking, routing, and radio configuration.

For gateway deployments, meshtasticd can run alongside MQTT brokers, Node-RED, Grafana, and logging services. This allows a single Meshtastic gateway Raspberry Pi to forward packets, visualize traffic, and integrate with automation systems while maintaining stable radio connectivity through the HAT.

Choose the radio based on the deployment role: RAK13300 (SX1262 Meshtastic Raspberry Pi) for standard nodes, or RAK13302 Meshtastic for a high power Meshtastic node used as a fixed relay or backbone hop.

Meshtasticd vs Firmware-Based Nodes

Comparison: WisMesh Pi HAT RAK6421 vs Common Meshtastic Setups

Many users move to WisMesh Pi HAT RAK6421 after starting with standalone Meshtastic devices, USB-connected WisBlock radios, or other Raspberry Pi LoRa HATs. The right setup depends on whether you need a portable node, a quick test build, or a fixed Meshtastic Linux node that can run meshtasticd, MQTT, logging, and dashboards.

Use Case Examples for WisMesh Pi HAT RAK6421

WisMesh Pi HAT RAK6421 is best suited for fixed Meshtastic builds that need a cleaner Raspberry Pi-based setup, stable networking, remote access, and room for LoRa, GPS, and sensor expansion.

Use Case #1: Home or Office Meshtastic Base Station

Use WisMesh Pi HAT RAK6421 with Raspberry Pi 4 or Raspberry Pi 5 to build an always-on Meshtastic base station for a home, office, lab, or workshop. With Ethernet, PoE options, and Linux access, the node can stay connected, be managed remotely, and support MQTT, logging, or local dashboards.

Use Case #2: Rooftop or Hilltop Backbone Relay

For wider mesh coverage, WisMesh Pi HAT RAK6421 can be paired with a high-power LoRa radio such as RAK13302 and deployed as a fixed Meshtastic relay node. This setup is useful for rooftops, elevated locations, and backbone links where a cleaner, repeatable Raspberry Pi-based build is easier to maintain than USB radios or loose adapter stacks.

Software & Compatibility

• Compatible with Meshtastic (meshtasticd)
• Supports Raspberry Pi OS, Ubuntu, and custom Linux builds
• Full access to I²C, SPI, UART, and GPIO
• HAT+ compliant with onboard EEPROM for hardware auto-discovery

The system can automatically detect the board at boot and apply the correct hardware configuration, reducing manual setup and deployment errors.

Notes for Users

• Designed for Raspberry Pi–based Meshtastic nodes, not low-power battery devices
• Output characteristics depend on the selected LoRa radio module
• High-power configurations must comply with local RF regulations
• For PoE, enclosed, rooftop, or high-temperature deployments, check clearance for fans, heatsinks, PoE HATs, standoffs, and WisBlock modules before final mounting.

Setup Notes Before You Deploy

Before installing the node in a rooftop, enclosure, or remote location, complete a short local test first.

• Confirm the correct meshtasticd image, Docker setup, or pre-flashed SD card version.
• Select the right LoRa radio configuration for RAK13300 or RAK13302.
• Verify MQTT, Node-RED, Grafana, and logging services if you plan to use gateway workflows.
• Check GPS and I²C sensor detection when using RAK12501, RAK1906, RAK1901, or other WisBlock modules.
• Test the node indoors with the antenna, power source, and final module setup before deployment.

For step-by-step setup, refer to the Quickstart Guide for WisMesh Pi HAT.

Why choose WisMesh Pi HAT RAK6421 for Meshtastic on Raspberry Pi?

WisMesh Pi HAT RAK6421 is designed for long-running Meshtastic gateway and relay deployments on Raspberry Pi using meshtasticd (Linux-native Meshtastic). It creates a repeatable hardware baseline that supports modular LoRa radios, sensor expansion, and gateway workflows like MQTT forwarding and monitoring. Unlike generic LoRa HATs that are not Meshtastic-specific, WisMesh Pi HAT is built to standardize deployments and reduce wiring and configuration variance when scaling from one node to many.

What’s in the Box

WisMesh Pi HAT Only Variant:

• 1 pc WisMesh Pi HAT RAK6421
• 1 set Screw

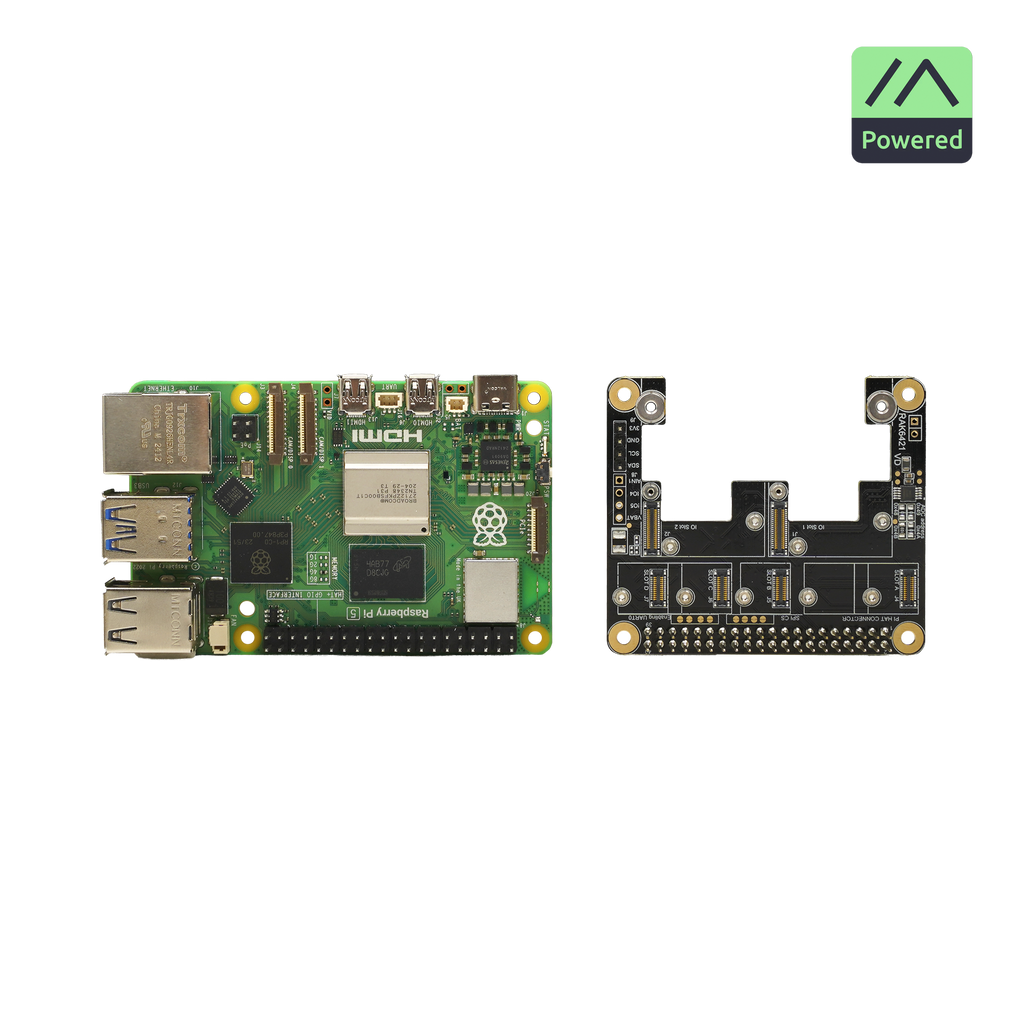

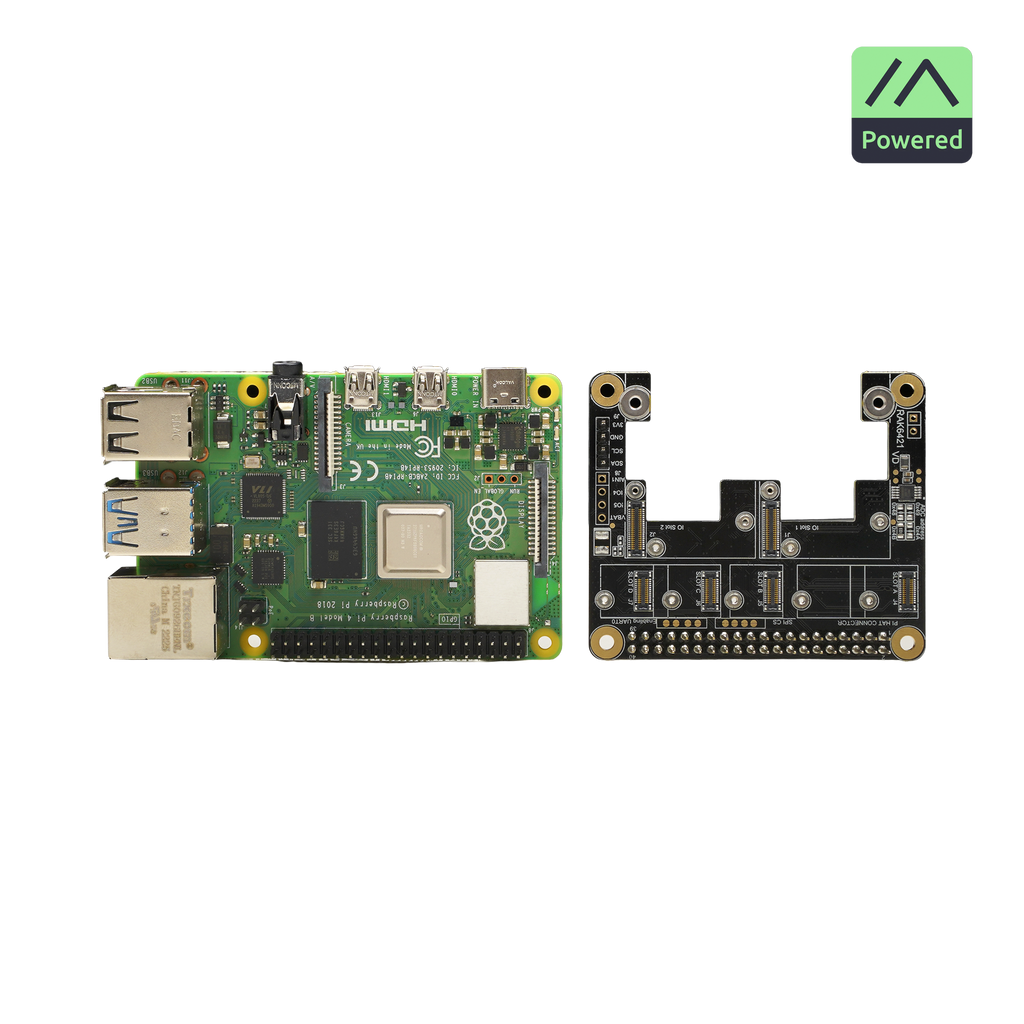

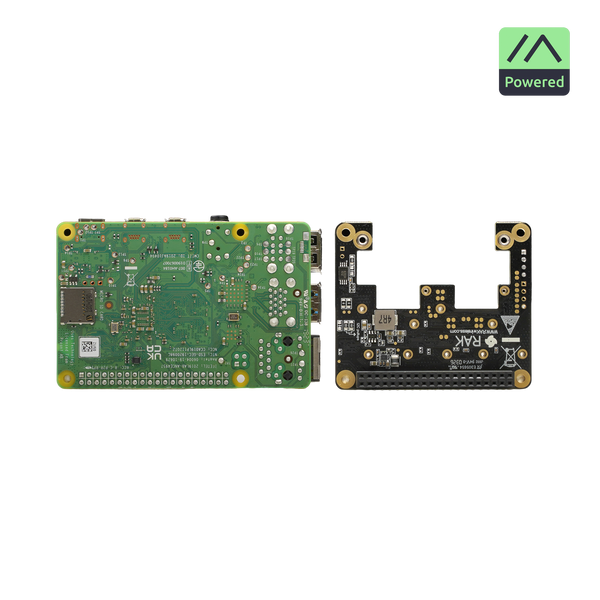

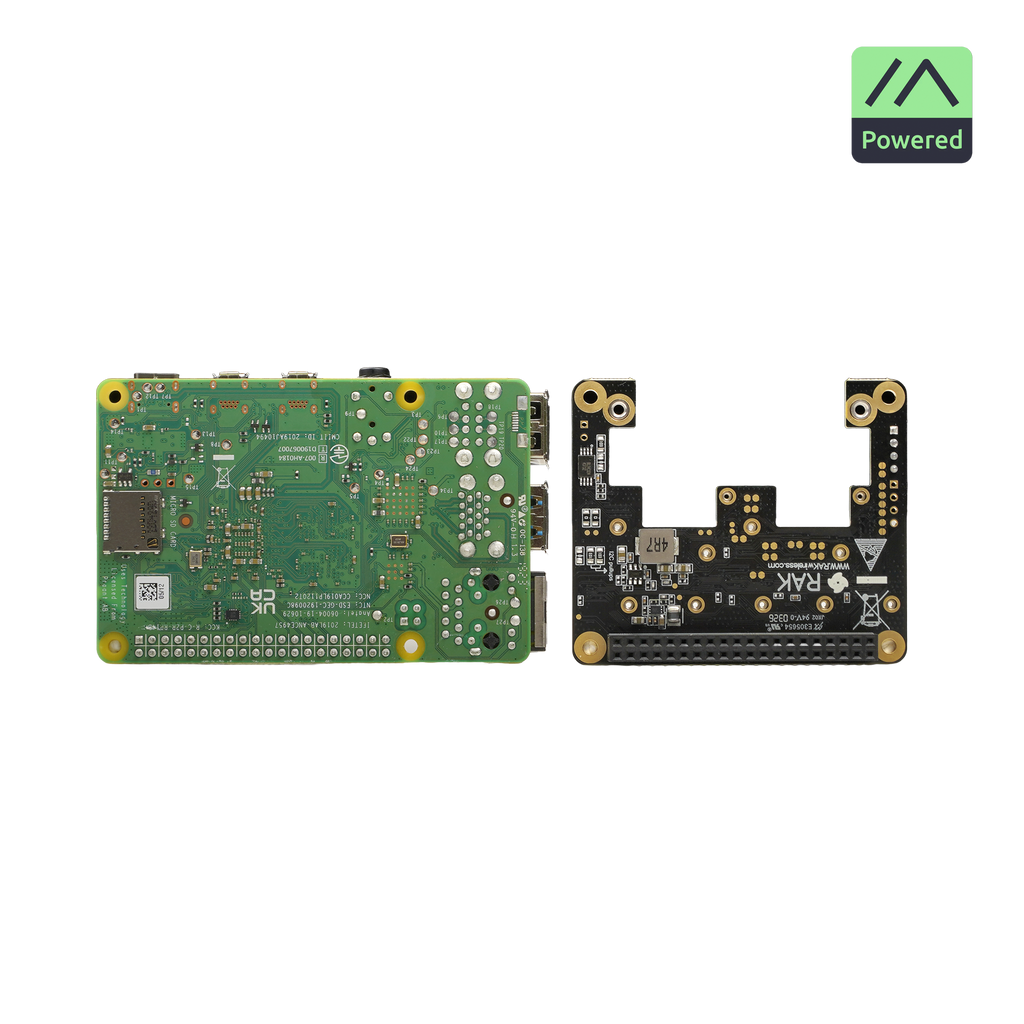

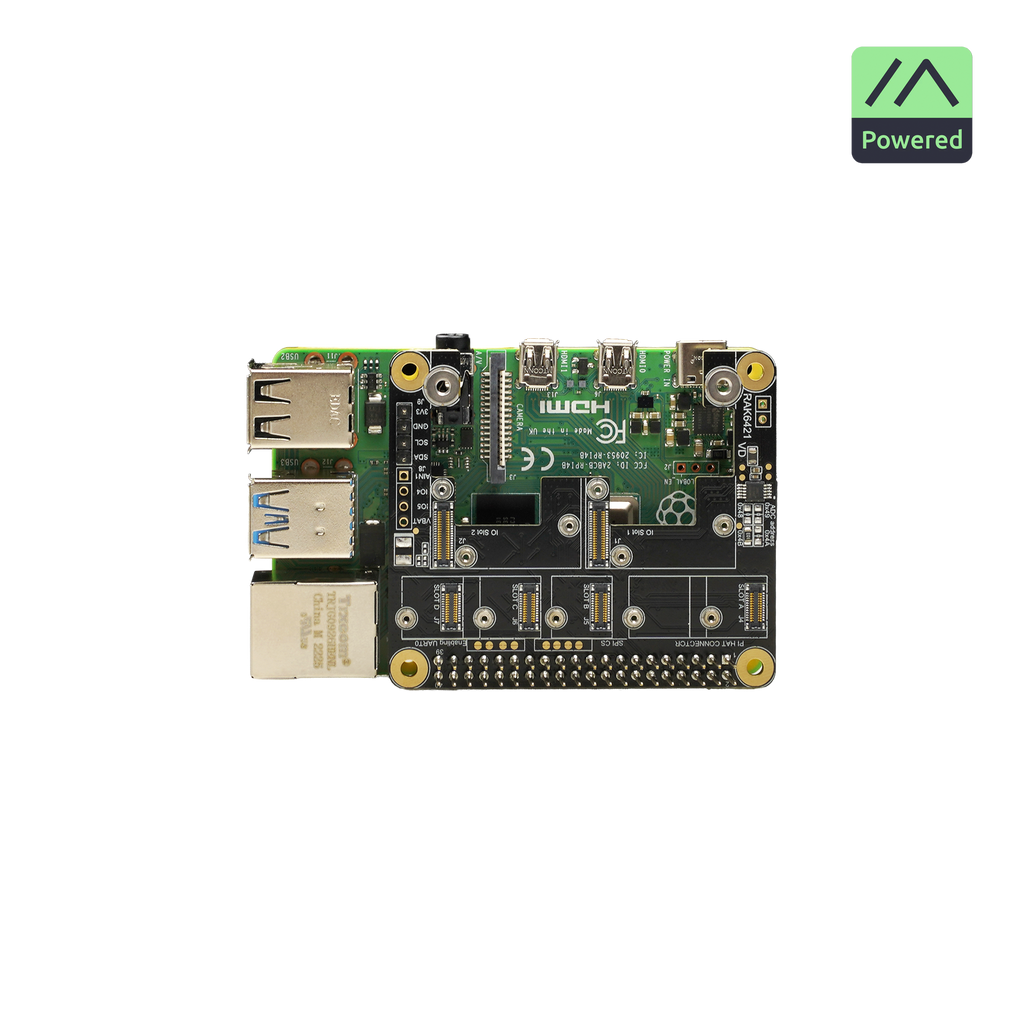

WisMesh Pi HAT RAK6421+ Raspberry Pi 4 Variant:

• 1 pc WisMesh Pi HAT RAK6421
• 1 pc Raspberry Pi 4
• 1 pc TF Card
• 1 set Screw

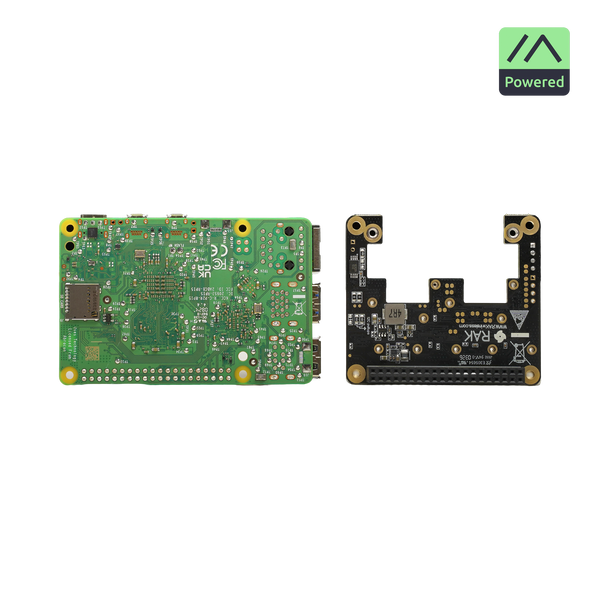

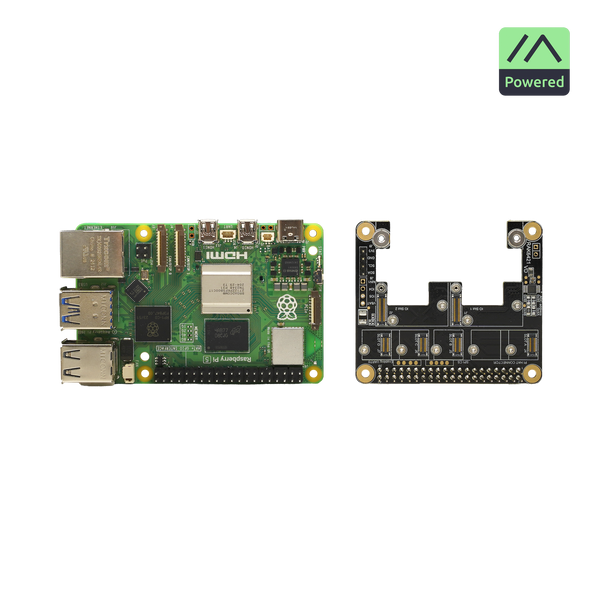

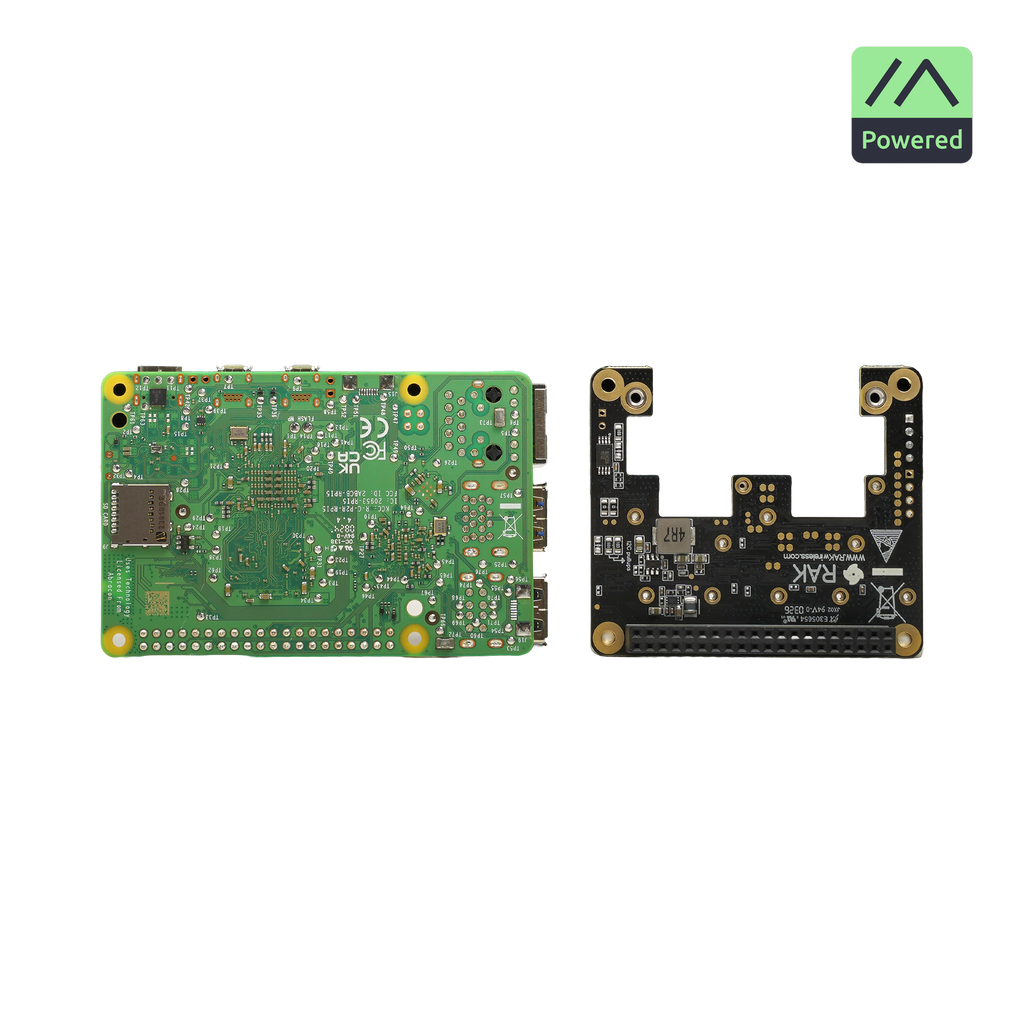

WisMesh Pi HAT RAK6421+ Raspberry Pi 5 Variant:

• 1 pc WisMesh Pi HAT RAK6421
• 1 pc Raspberry Pi 5
• 1 pc TF Card
• 1 set Screw

How to Get Started with WisMesh Pi HAT RAK6421

• Overview for WisMesh Pi HAT RAK6421
• Quick Start Guide for WisMesh Pi HAT RAK6421
• Datasheet for WisMesh Pi HAT RAK6421
