WisMesh TAP V2

What Is WisMesh TAP V2?

The WisMesh TAP V2 is an outdoor Meshtastic communicator and a fully standalone SX1262 LoRa mesh communicator that allows users to send and receive messages directly over a mesh network without connecting a phone. It is the successor to the WisMesh TAP, using the RAK3312 WisBlock Core module instead of the RAK4631. This makes it a modern ESP32-S3 Meshtastic client developed on the proven WisBlock platform. The WisMesh TAP V2 is a Meshtastic touchscreen device designed for users who want a fully standalone, phone-free, and outdoor-ready communicator.

Built on the Espressif ESP32-S3 MCU and featuring a Semtech SX1262 transceiver module for LoRa connectivity, the device uses the industry-standard SX1262 transceiver module based on LoRa technology. It supports the latest Meshtastic User Interface (MUI) for a more interactive experience. It includes a TFT touch screen, an on-screen keyboard, and an SD card slot to store and display maps within the MUI. New messages are announced through an integrated buzzer, and users can also send preset (“canned”) messages, which can be configured via BLE using the Meshtastic mobile app. The built-in GNSS location module provide accurate positioning and movement data across the network, making it a reliable Meshtastic device with GPS.

Designed for field and outdoor environments, the Meshtastic TAP V2 carries an IP65 rating and runs on a 3200mAh battery for long operation between charges. Setup is simple and can be configured over BLE with the Meshtastic mobile app or via USB using the Meshtastic WebUI. Ideal for remote communication, off-grid coordination, and IoT field deployments, it offers a reliable, self-contained way to stay connected through LoRa-based networks.

Why You Need a Phone-Free Meshtastic Client?

The WisMesh TAP V2 helps users stay connected and informed even in areas without traditional connectivity. It offers reliable communication, real-time location tracking, and easy message exchange in remote or outdoor conditions. WisMesh TAP V2 is designed as a fully standalone Meshtastic handheld device for outdoor and off-grid use. Unlike typical Meshtastic boards that rely on a phone or laptop, TAP V2 includes a touchscreen, on-screen keyboard, GNSS sensing and offline SD maps, making it ideal for emergency communications, remote field teams, hiking groups, and IoT deployments. Its IP65 rugged enclosure, 3200mAh battery, and SX1262 LoRa transceiver module for LoRa connectivity provide reliable long-duration operation, while the new Meshtastic UI (MUI) offers a modern, intuitive interface. Compared to hobbyist devices like T-Beam or Heltec boards, TAP V2 eliminates setup friction and provides a purpose-built, professional-grade experience as a handheld Meshtastic device for 2026.

Why it’s useful:

• Reliable field communication: Enables direct messaging across a mesh network
• Simple, phone-free operation: Send and receive messages independently of a smartphone
• Portable and long-lasting: A 3200mAh battery and IP65 rating
• Quick setup: Easily configured via BLE or USB
• Location awareness: Built-in GNSS sensors share accurate movement data.

Key Features of WisMesh TAP V2

• Supports Meshtastic 8xx and 9xx MHz networks
• Powered by a 3200mAh battery

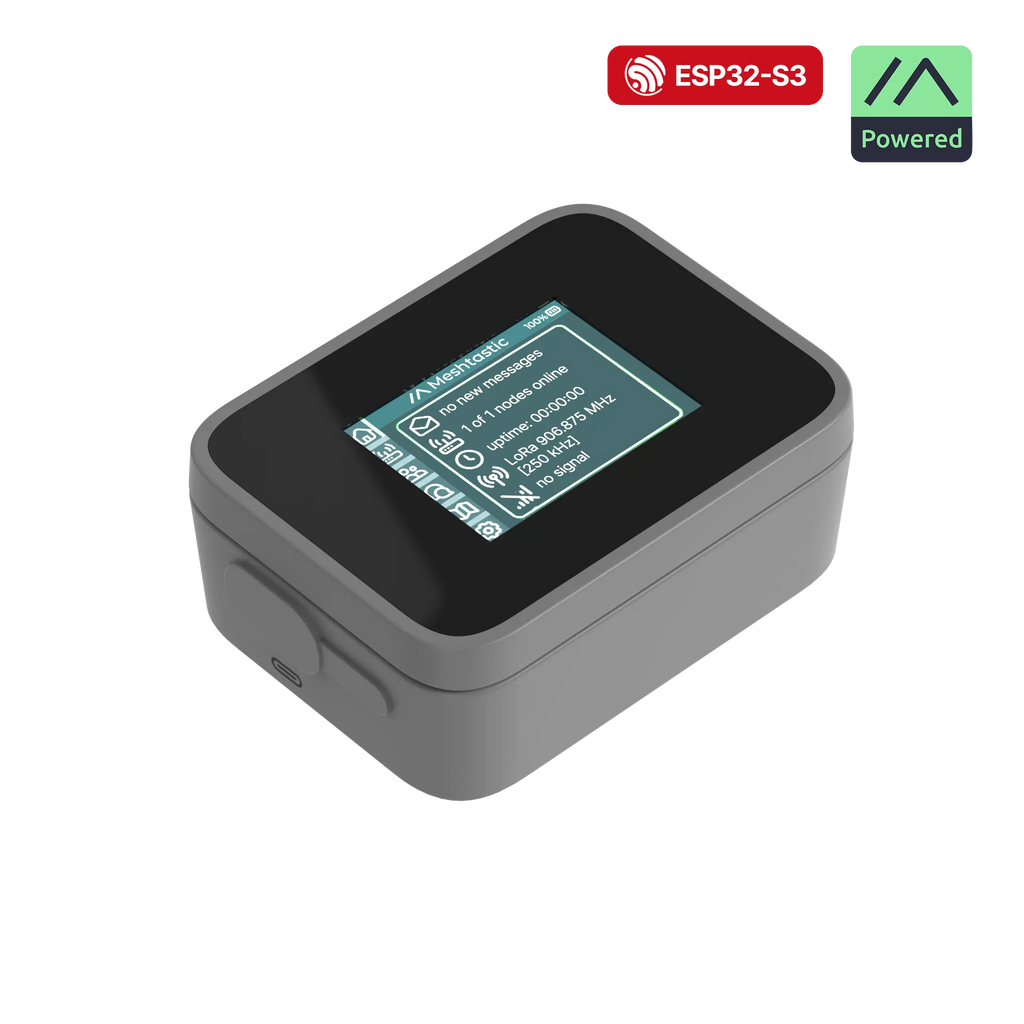

• 320x240 TFT touch screen + MUI Experience
• On-screen keyboard
• RAK3312 Espressif ESP32-S3 MCU with Semtech SX1262 LoRa transceiver
• RAK12501 GNSS location module Quectel L76K
• SD-Card slot
• GNSS Sensor and Offline SD Maps
• Buzzer
• Battery Life and Outdoor Durability

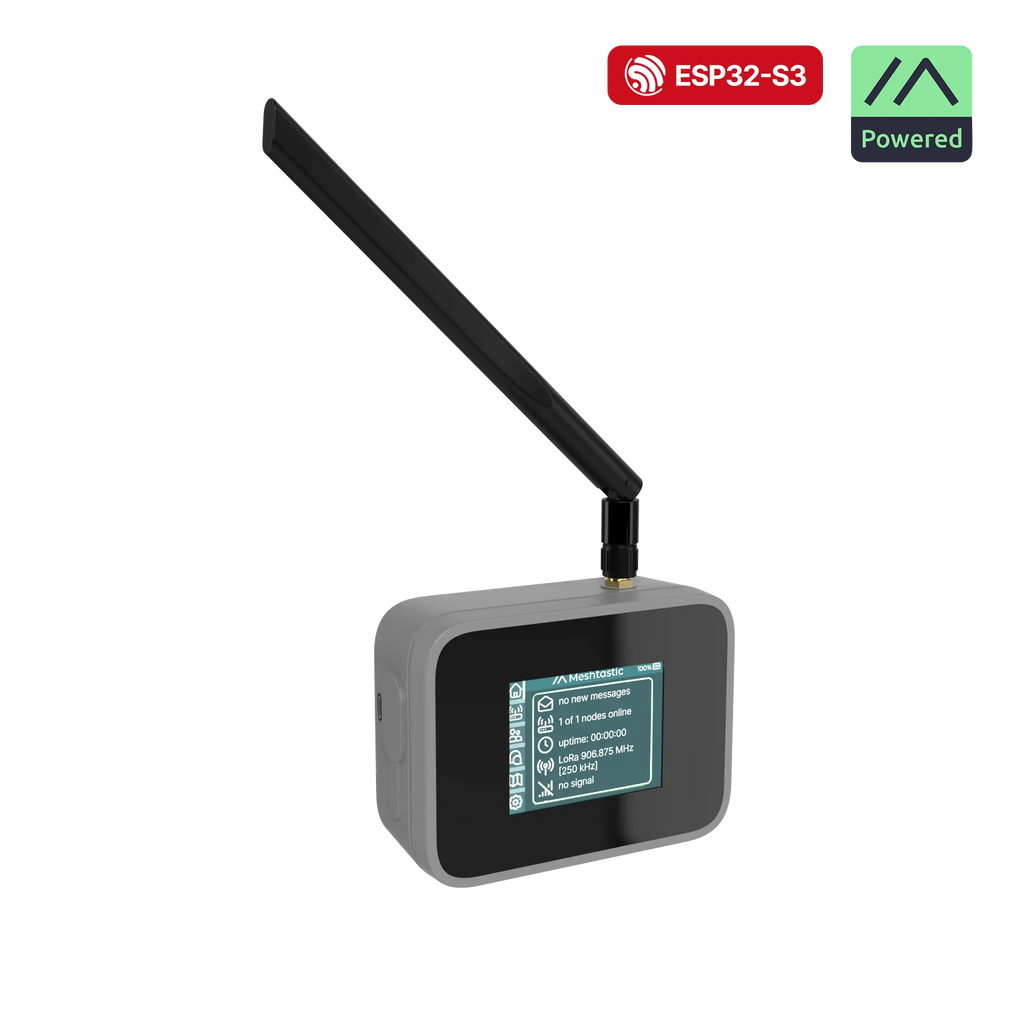

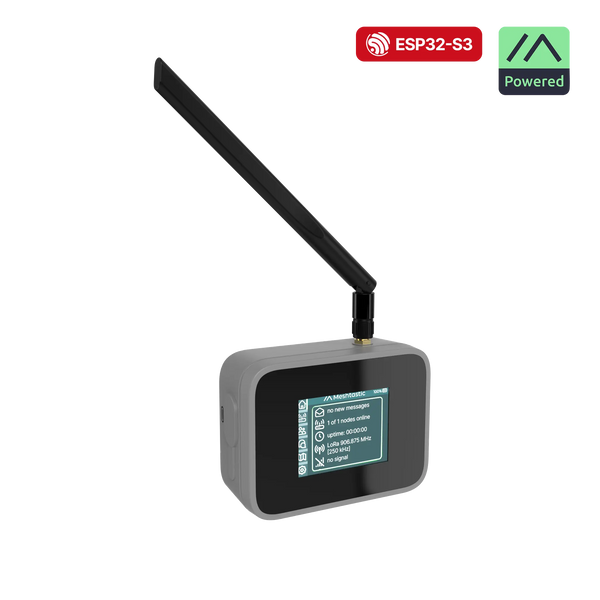

• 2.3dBi external Blade antenna
• Operating and storage temperature range: -20℃ to 60 ℃.
• Charing Temperature: 0℃ to 60℃

Use Case Examples of WisMesh TAP V2

The WisMesh TAP V2 supports a variety of field, emergency, and IoT coordination needs, offering dependable communication and data sharing where traditional networks are unavailable.

Use Case #1: Emergency Response Coordination

During rescue operations in off-grid zones, teams use the WisMesh TAP V2 to send real-time location and status updates through a LoRa-based network, ensuring everyone stays informed and connected.

Use Case #2: Agricultural Field Monitoring

Farm technicians deploy WisMesh TAP V2 units to exchange sensor data and coordinate irrigation tasks across wide farmlands, maintaining continuous communication without cellular infrastructure.

Comparison Table: WisMesh TAP vs WisMesh TAP V2

Comparison Table: WisMesh TAP V2 vs Common Meshastic Devices

Compared to hobby boards like T-Beam or Heltec, TAP V2 is purpose-built for field communication with a rugged enclosure, full MUI touchscreen, and offline maps.

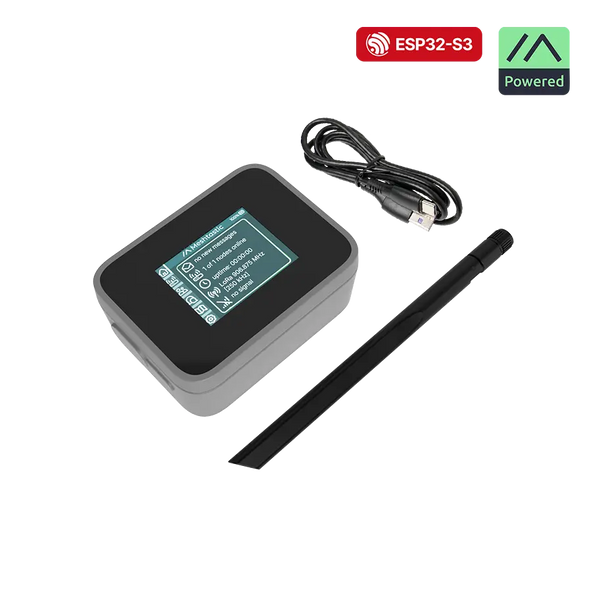

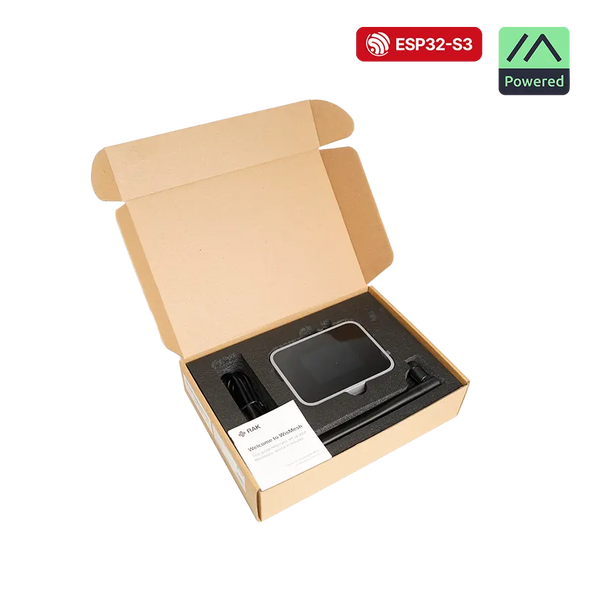

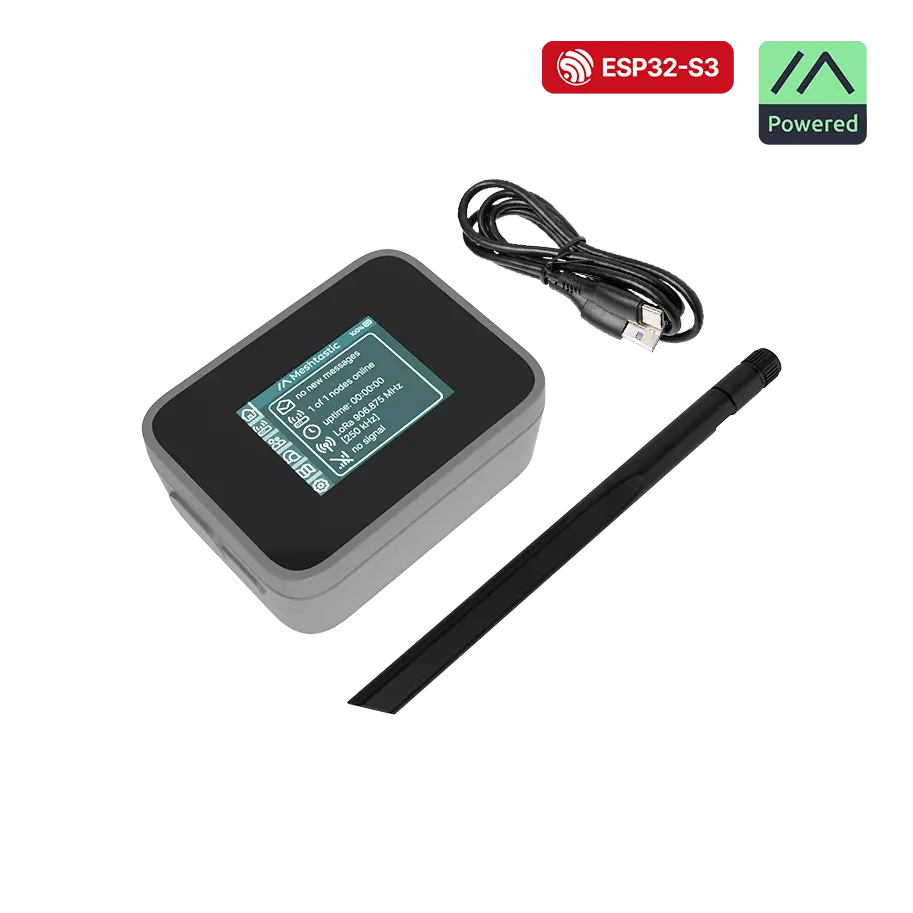

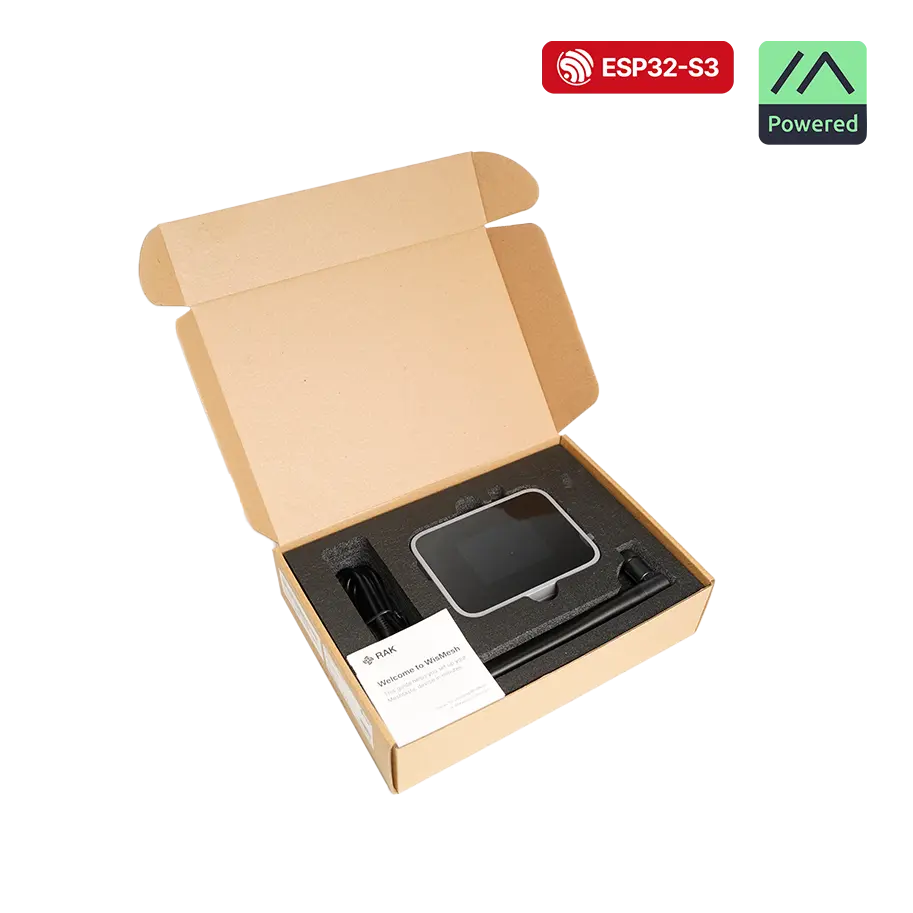

What’s in the Box

• 1 x WisMesh TAP V2 Device
• 1 x LoRa Antenna
• 1 x USB Cable

How to Get Started with WisMesh TAP V2?

• First Steps for WisMesh TAP V2
• Overview of WisMesh TAP V2
• Quick Start Guide for WisMesh TAP V2
