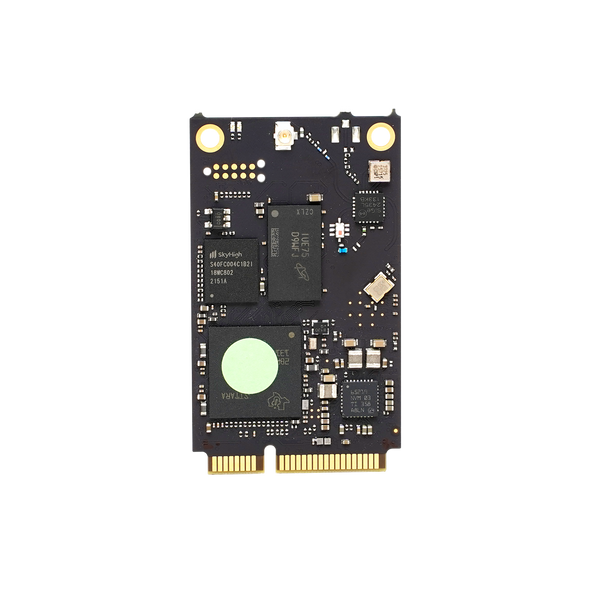

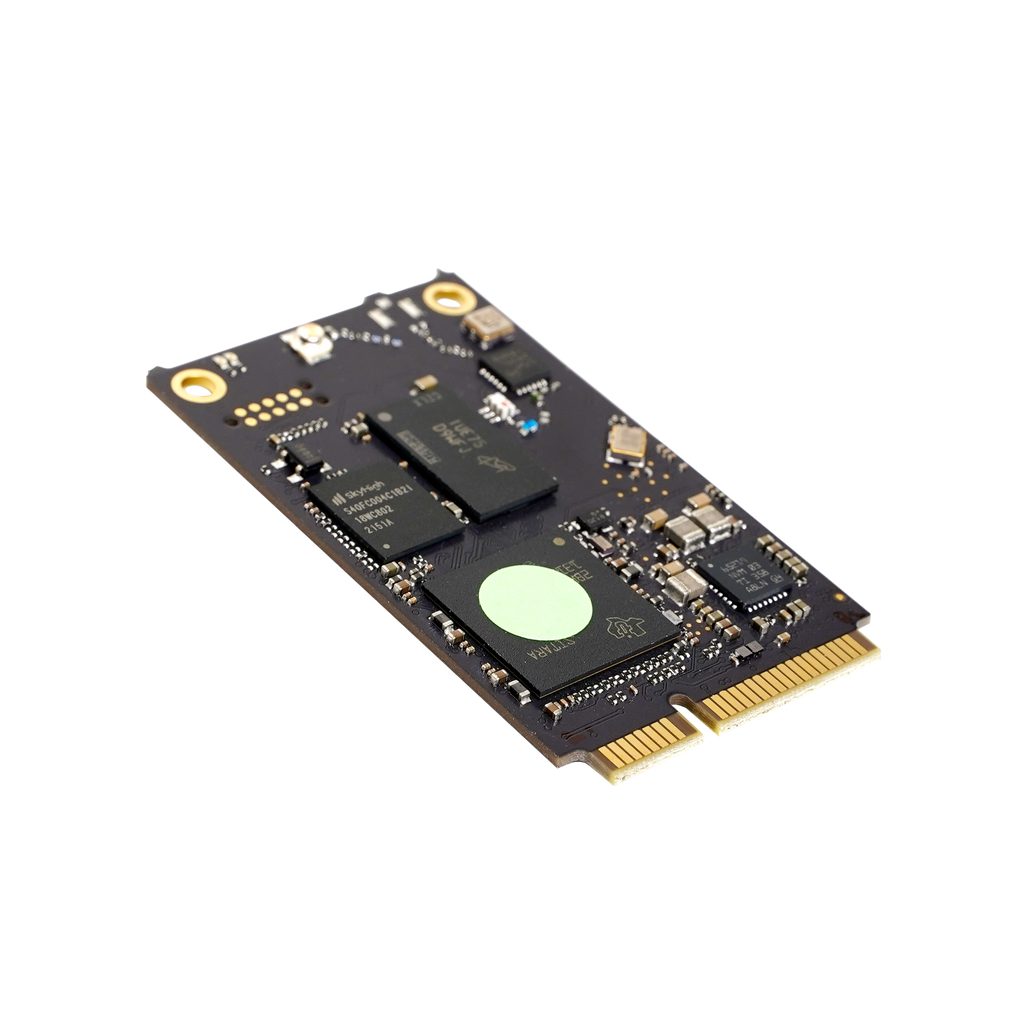

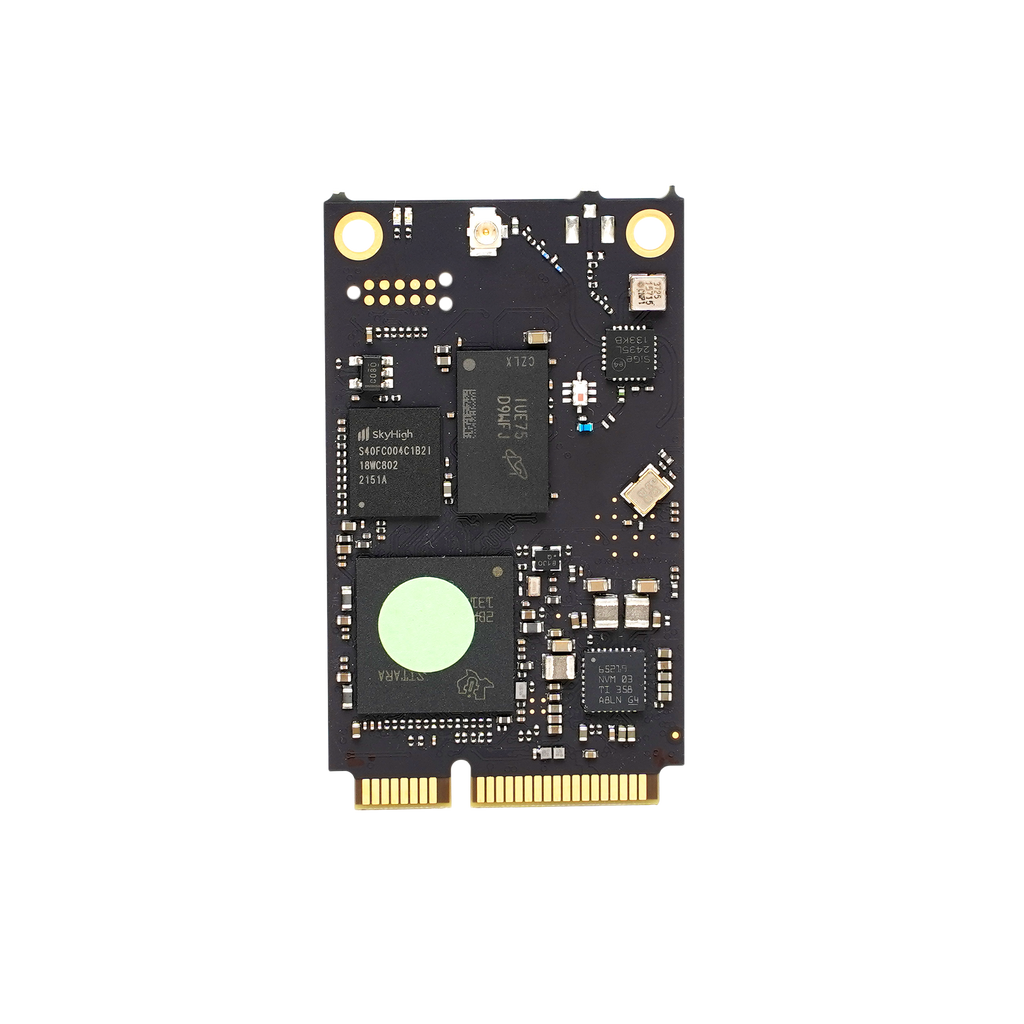

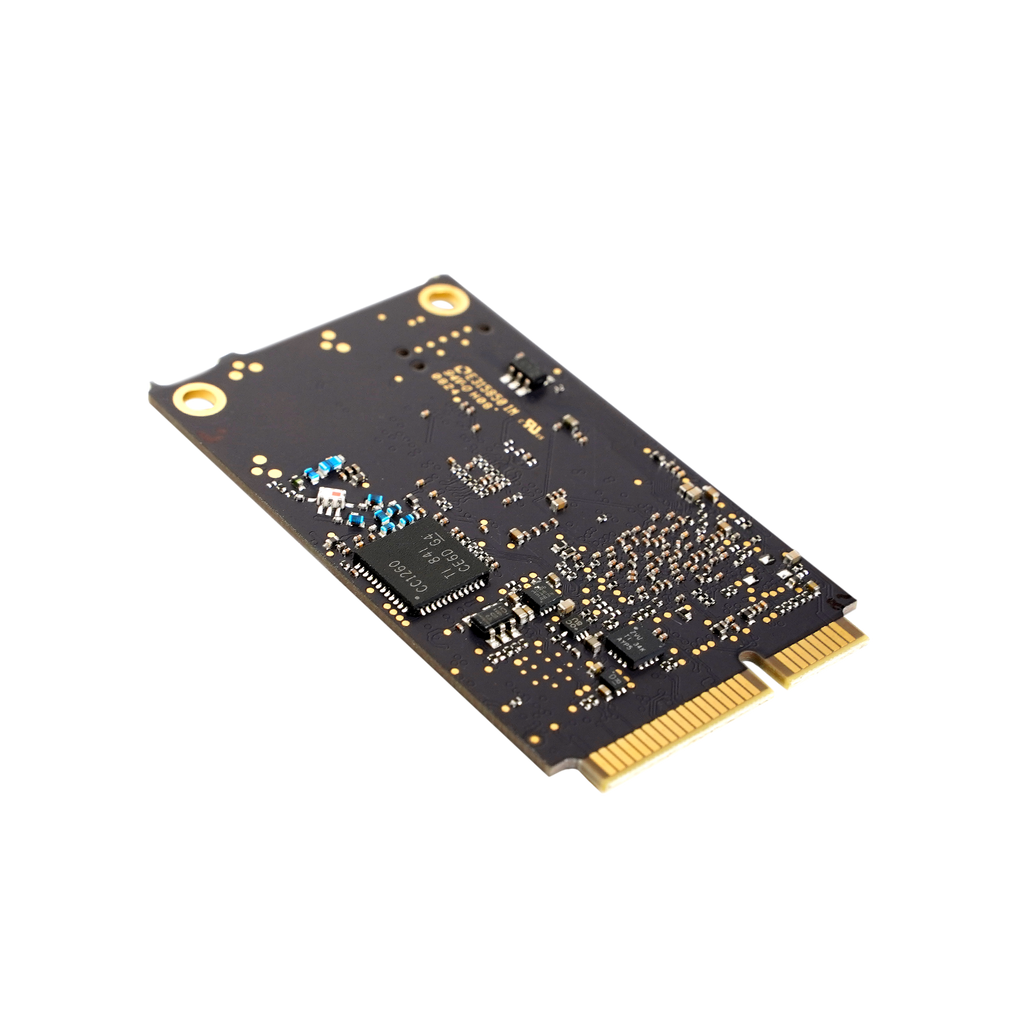

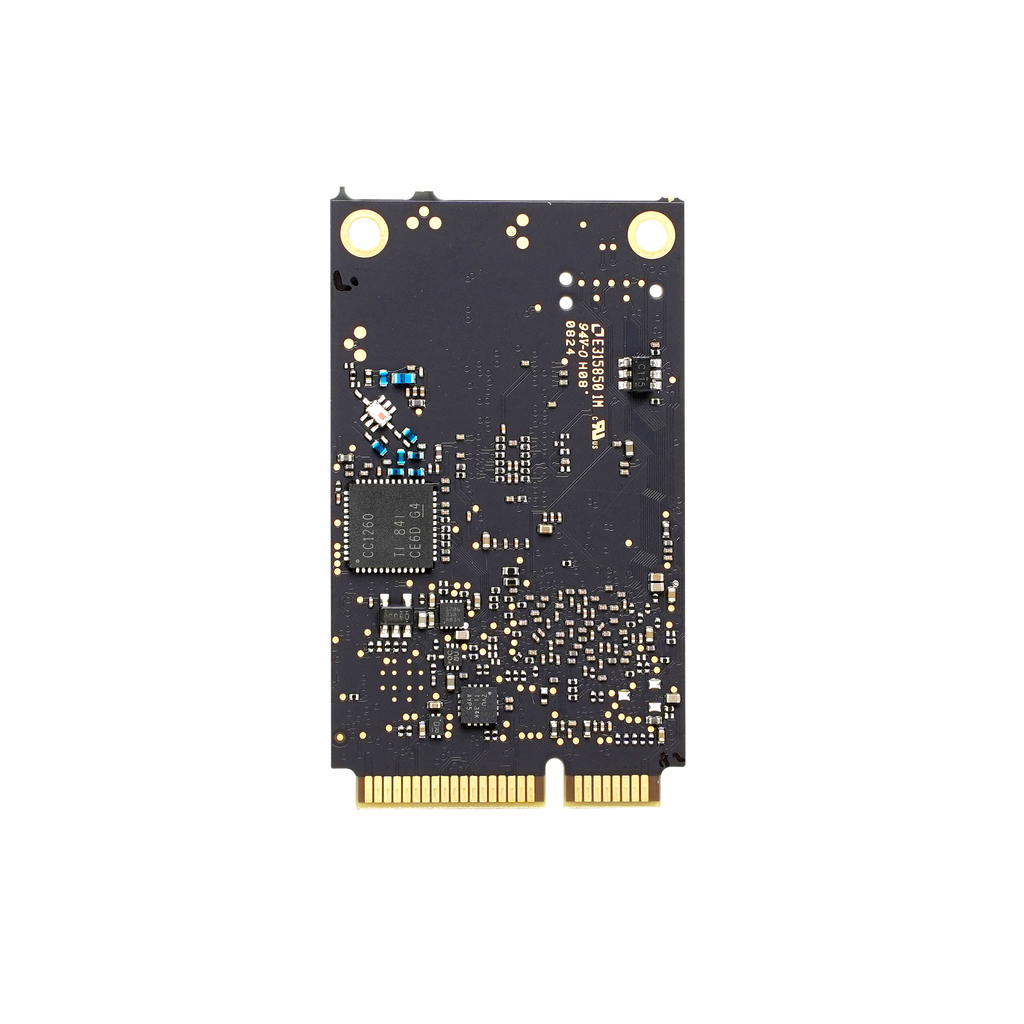

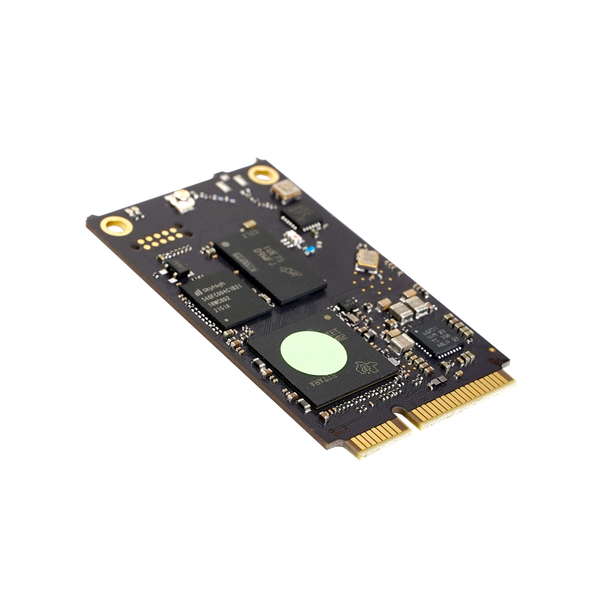

Miro EdgeCard Mioty® 868 Mhz

The Miro EdgeCard mPCIe Mioty® Base Station Card (GWC-62-MY-868) by Miromico is a full System-on-Module (SOM) that provides a plug-and-play solution for long-range and low-power wireless communication networks based on the Mioty® standard. It comes in a MiniPCIe form factor exposing a network interface over a USB 2.0 communication device class (CDC) to interface the Mioty® Base Station Service Center Interface (BSSCI) data to a host processor.

The card is based on a high-performance Sitara processor running the Mioty® base station core library and implementing software-defined radio (SDR). The card embeds an RF frontend with an integrated Low Noise Amplifier (LNA), reaching a sensitivity of down to -136 dBm, and a Power Amplifier (PA), allowing a transmit output power of up to +27 dBm.

The Miro EdgeCard Mioty® is fully compatible with the WisGate Connect gateway and a helper setup script is available in the latest RAKPiOS versions.

Product Features

• Full Mioty® base station on Mini PCIe card
• ISM 868 MHz frequency band
• Direct Mioty® BSSCI interface
• Up to 3.5M telegrams per day
• Sub-GHz RF I/Q frontend
• TX power up to 27 dBm
• High sensitivity down to -136 dBm
• Fully Mini PCIe compliant card using USB CDC
