PoE Splitter Raspberry Pi | DC Jack 12V Type-C 5V PoE Splitter

PoE Splitter

RAK9168

SKU:910172
Regular price $32.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Product description

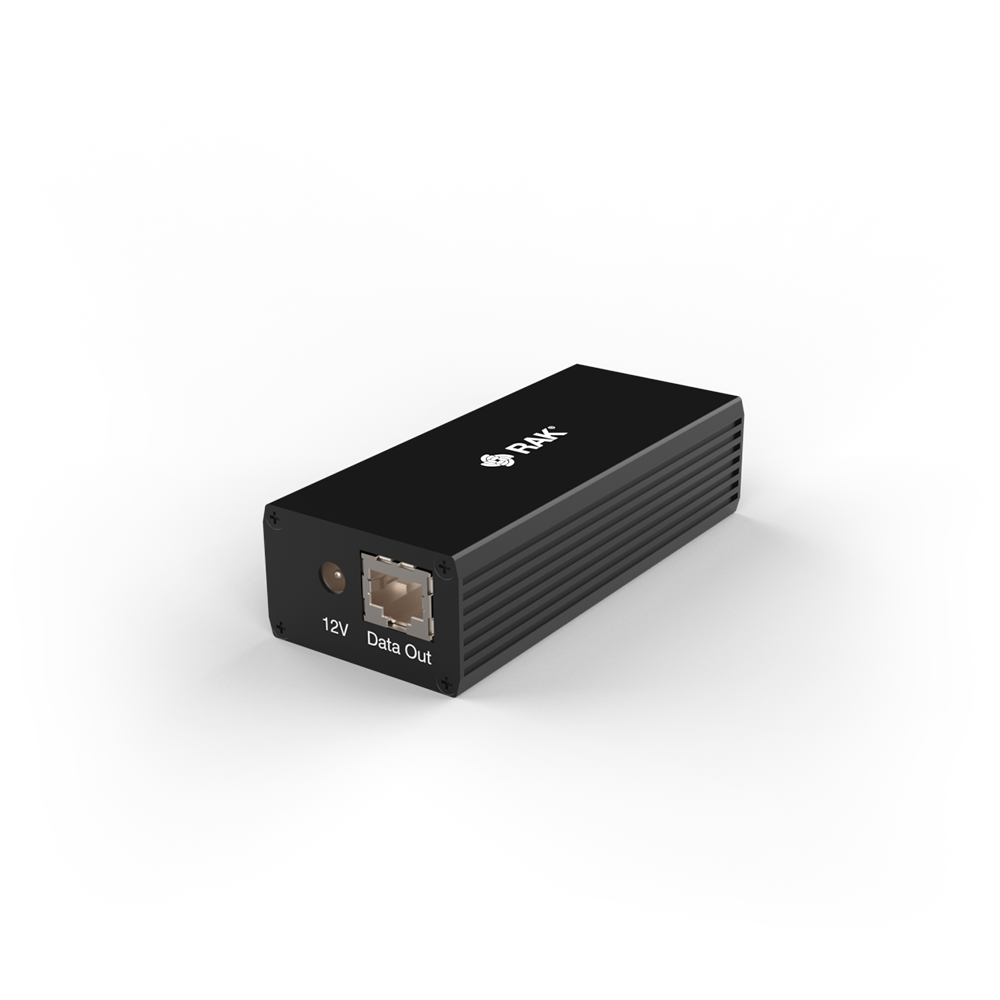

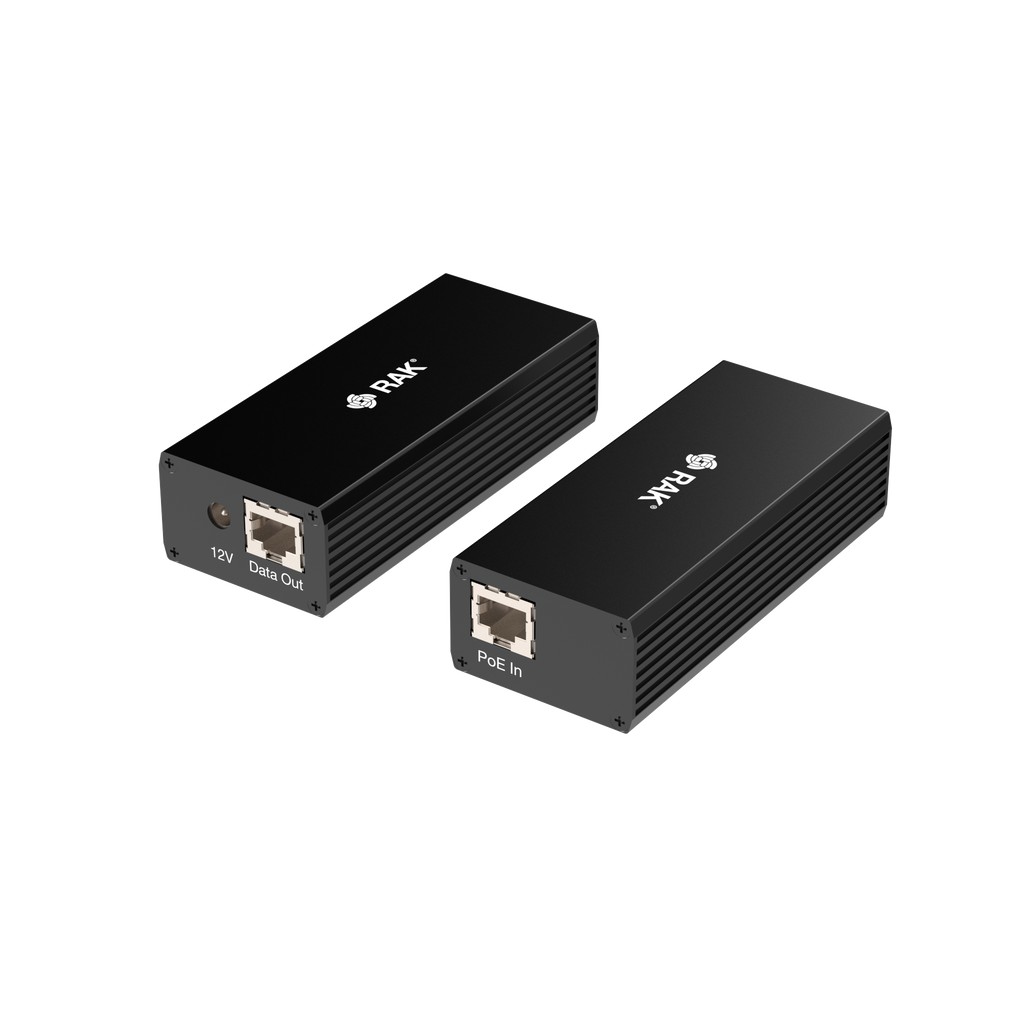

The RAK PoE Splitter RAK9168 is a device that draws power from a traditional Category 5 twisted-pair Ethernet cable with PoE and complies with the IEEE 802.3af/at PoE standard. It has an isolated 42~57VDC input and a 30W DC-DC converter. You can choose between two versions, one with 12V jack output with a maximum output current of 2.5A and one with 5V USB Type-C output with a maximum current of 6A.

Product features

  • Input: 42V~57V
  • Full features 802.3af/at interface
  • Output for the 5V version: 5V/6A Type C USB
  • Output for the 12V version: 12V/2.5A Barrel jack
  • Over current /short circuit protection
  • Power Pin:1/2(+),3/6(-) or 4/5(+),7/8(-)
  • Data Pin: 1/2,3/6,4/5,7/8
  • Data speed: 10/100/1000Mbps
  • Operating Temperature: -30℃~+75℃

Package inclusion

  • For the 5V version
    • 1x RAK9168/5V PoE splitter
    • 1x USB Type C cable (29 cm length)
    • 1x Ethernet cable (27 cm length)
  • For the 12V version
    • 1x RAK9168/12V PoE splitter
    • 1x Barrel jack cable (29 cm length)
    • 1x Ethernet cable (27 cm length)
