3-axis Accelerometer Sensor Analog Devices ADXL313

Product Description

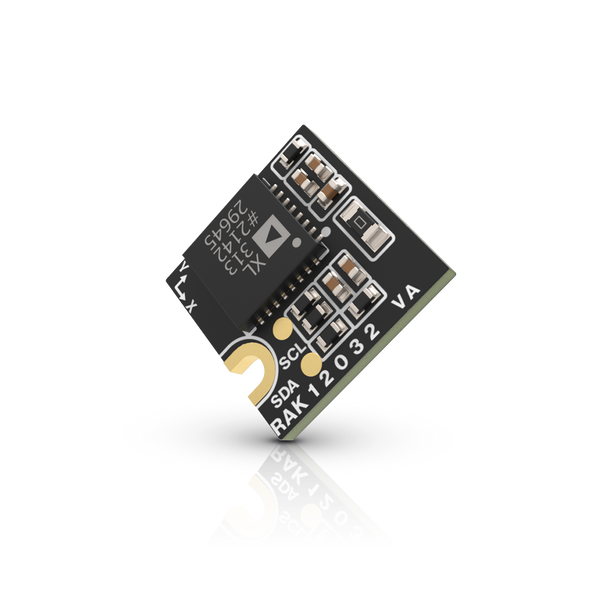

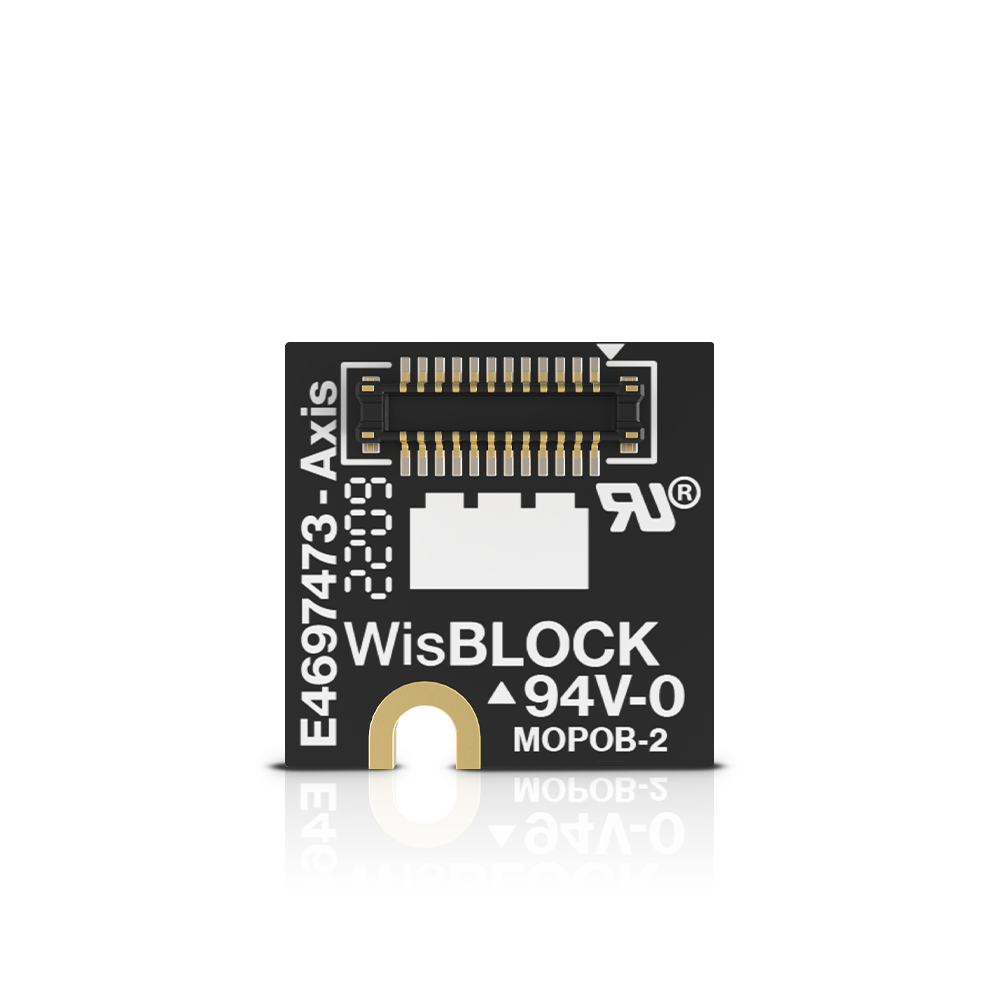

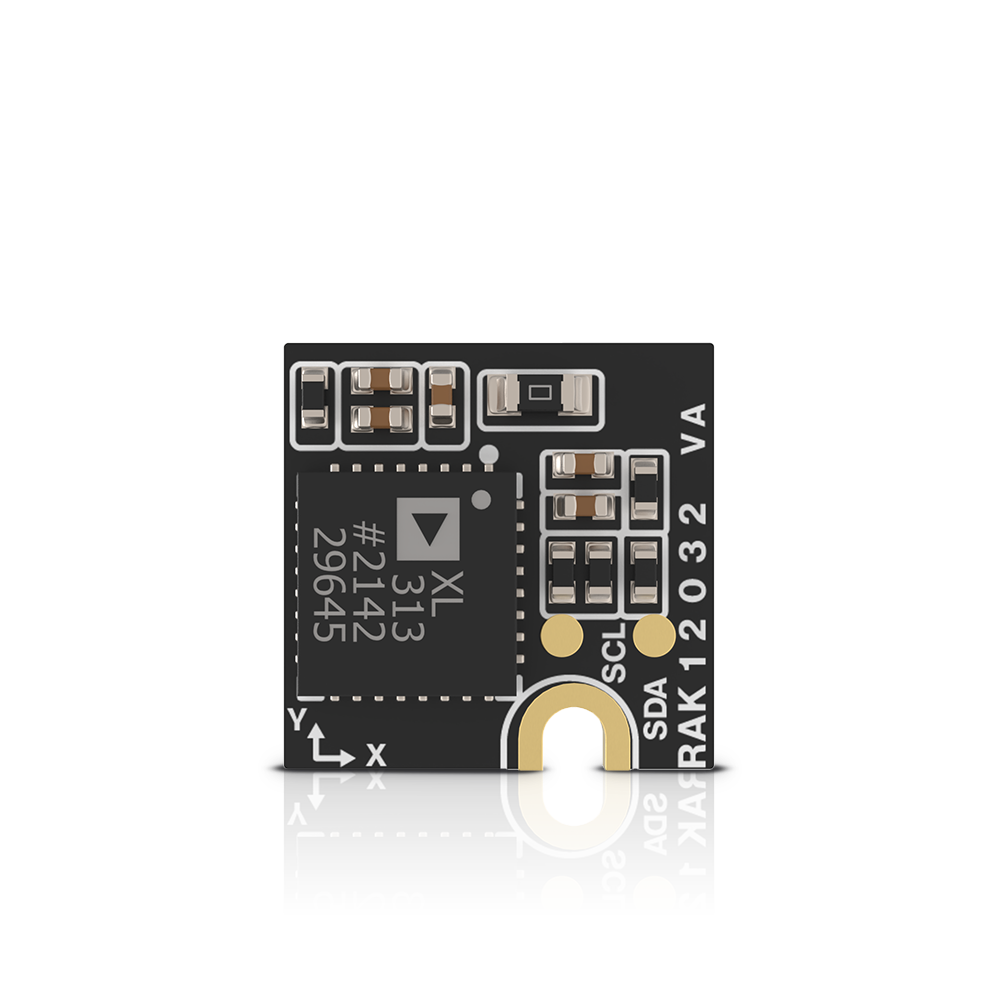

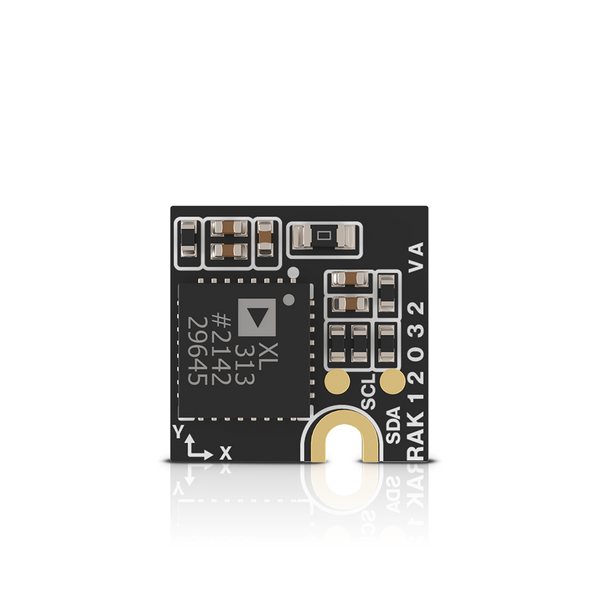

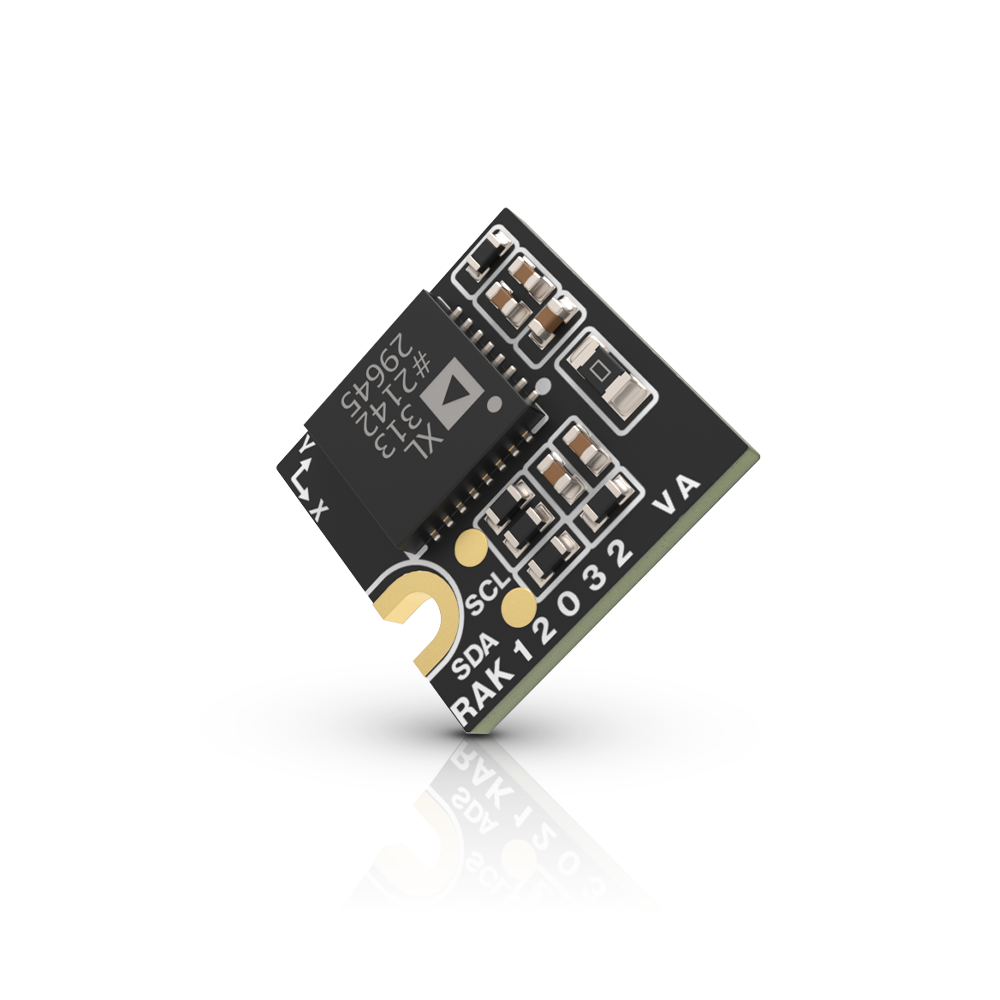

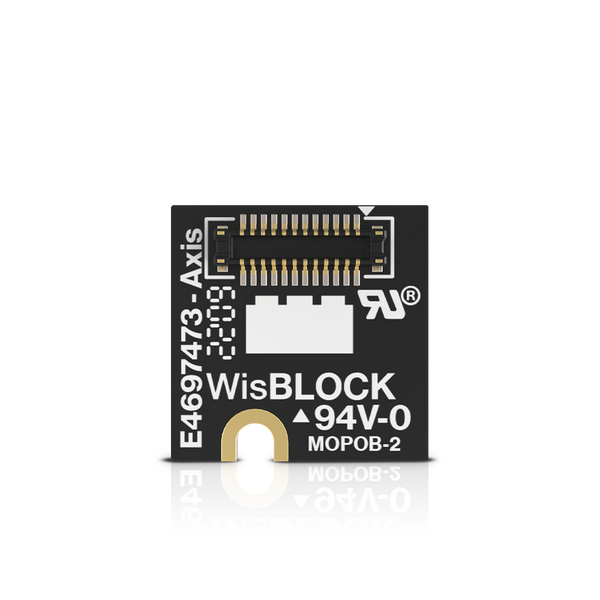

RAK12032 is a WisBlock Sensor based on the Analog Devices ADXL313 chip which extends the WisBlock system with an acceleration sensor. A ready to use SW library and tutorial makes it easy to build up a motion data acquisition system.

RAK12032's scale from ±0.5g to ±4g can be adjusted to the requirements of your application.

RAK12032 combined with any WisBlock Core module is a ready to go system for a motion tracking system, detecting and monitoring vibrations in rotating machinery. The acquired data can be sent using LoRaWan® communication, LoRa® point to point connections, BLE or WiFi, depending on the Core module.

RAK12032 is ideal for battery-powered applications because of its low power consumption.
RAK12032 acceleration sensor can be joined with other WisBlock sensors like a GPS module to create an inertial navigation system.

Features

• Based on Analog Devices ADXL313
• Measurement Range: ±0.5g, ±1g, ±2g, ±4g
• High Resolution (up to 13-bit)
• Ultralow power (scales automatically with data rate)
• As low as 30 μA in measurement mode
• Low noise performance: 150 μg/Hz typical for X- and Y-axes
• Built-in motion detection functions for activity/inactivity monitoring
• I2C digital interfaces
• 3.3V Power supply
• Operating Temperature: -40° C ~ 85° C
• Size 10x10mm
