WisBlock Base Board 2nd Gen | RAK19007
WisBlock Base Board 2nd Gen | RAK19007
WisBlock Base Board 2nd Gen | RAK19007

WisBlock Base Board 2nd Gen


Regular price $9.99 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

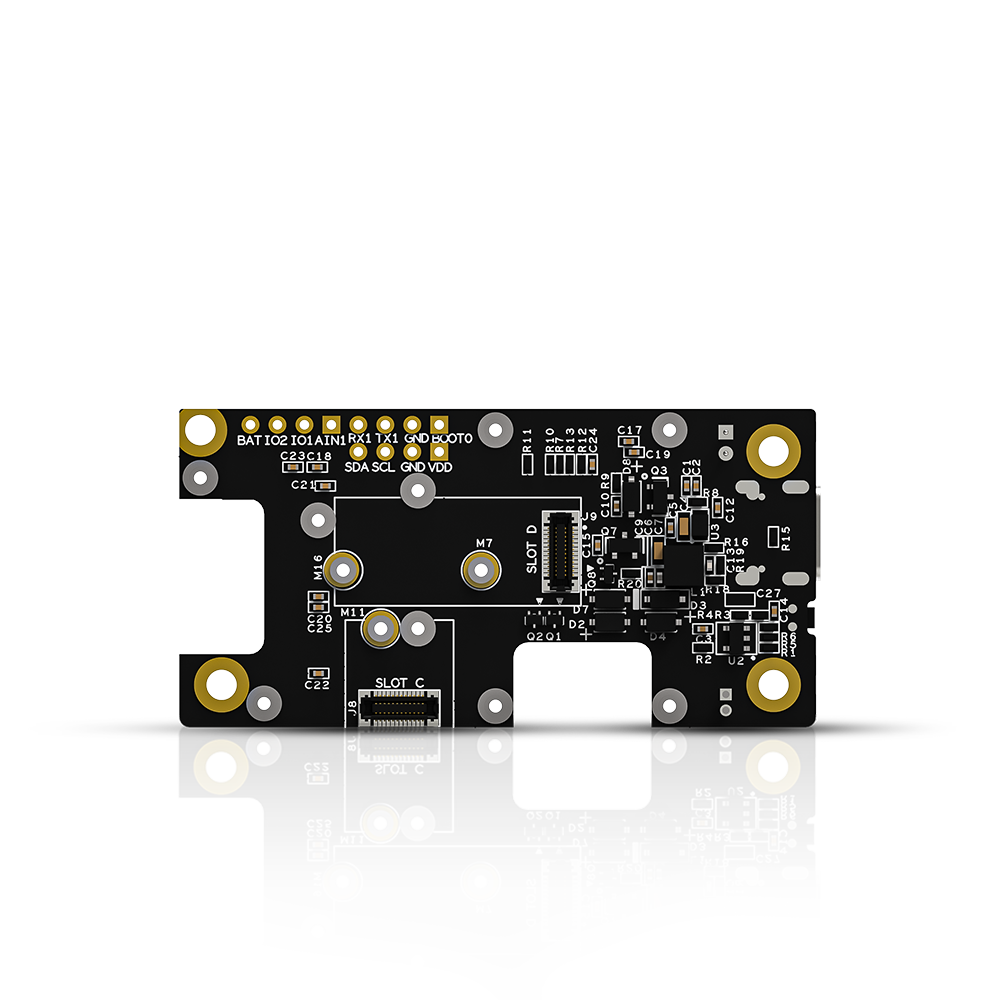

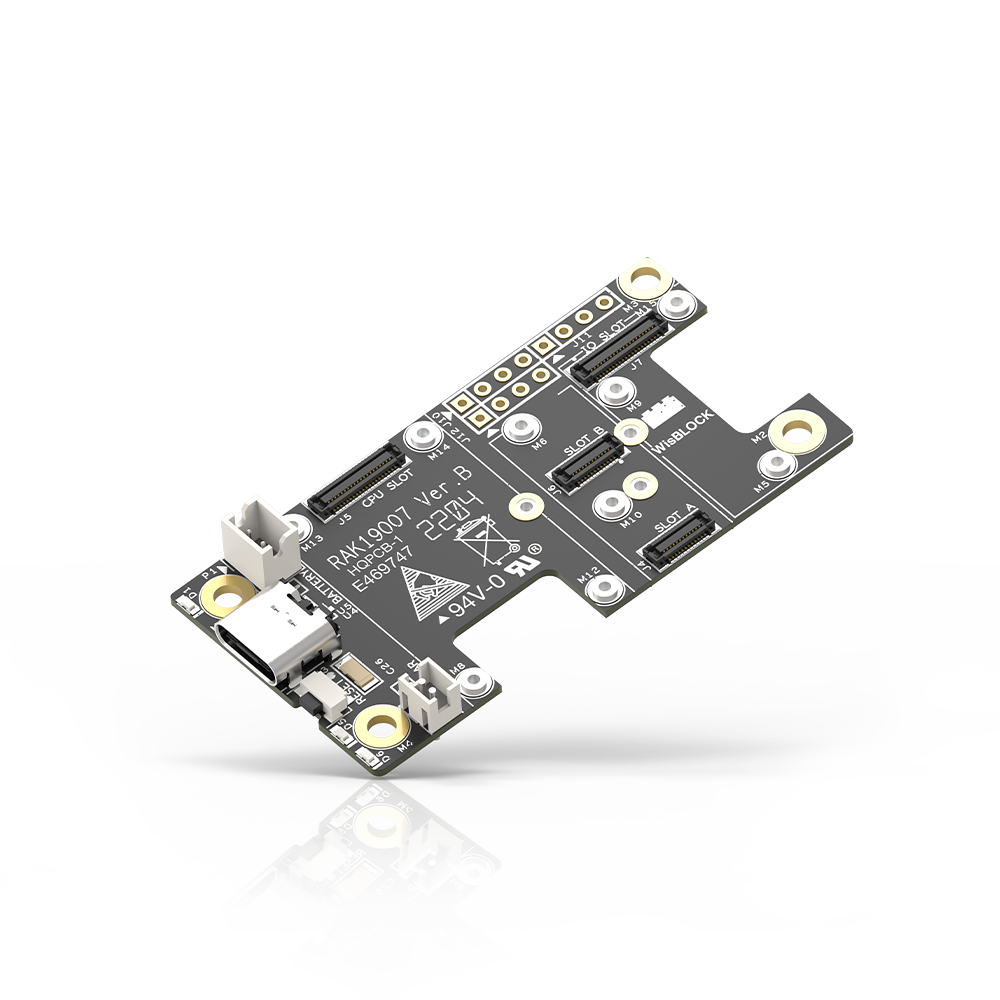

The RAK19007 is the second generation of our standard WisBlock Base Board RAK5005-O. It has several improvements: - USB type C connector - GNSS modules can be used without blocking another sensor slot - improved voltage regulator REMARK: We will continue to sell RAK5005-O until stock is used up. In the meantime we offer both modules (RAK5005-O has a minimal price difference).


  • Supports both 5 V USB and 3.7 V rechargeable battery as power supply
  • 5 V solar panel connector to recharge the battery in a remote solution
  • Power consumption control
  • RAK19007 has an electronic load switch to power the WisBlock modules. The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules application.
  • RAK19007 has a size of only 30 x 60 mm, which lets you create solutions that fit into the smallest housings.

Package Inclusion

  • 1 pc RAK19007
  • 1 pc USB Cable
  • 15 pc M1.2*3 Screw
  • 8 pc M2.5*4 Screw
