RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT
RAK2287/RAK5146 Pi HAT

RAK2287/RAK5146 Pi HAT

SKU:610003
Regular price $27.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Note: RAK2287/RAK5146 Pi HAT is compatible only with the SPI version of the RAK2287 and RAK5146 LPWAN concentrators.

Product Description

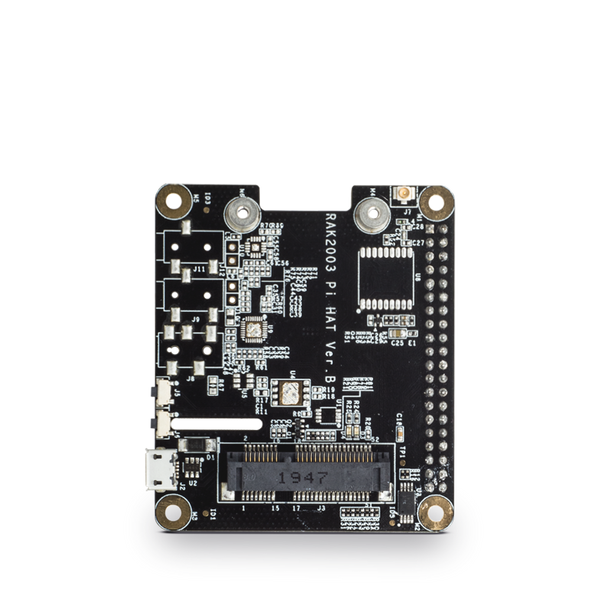

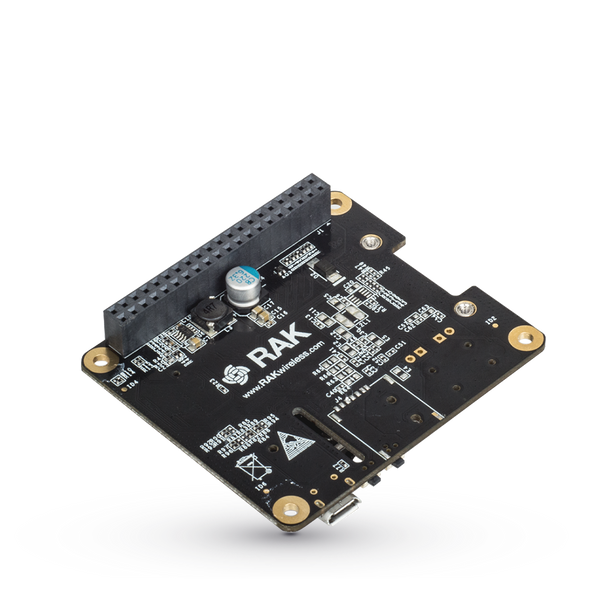

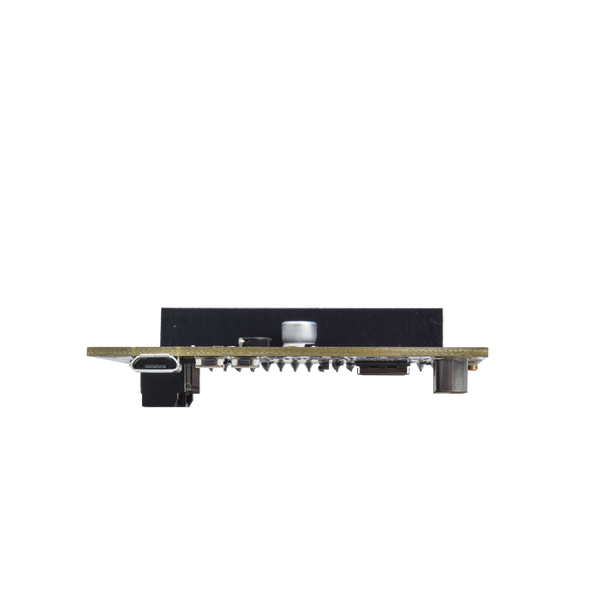

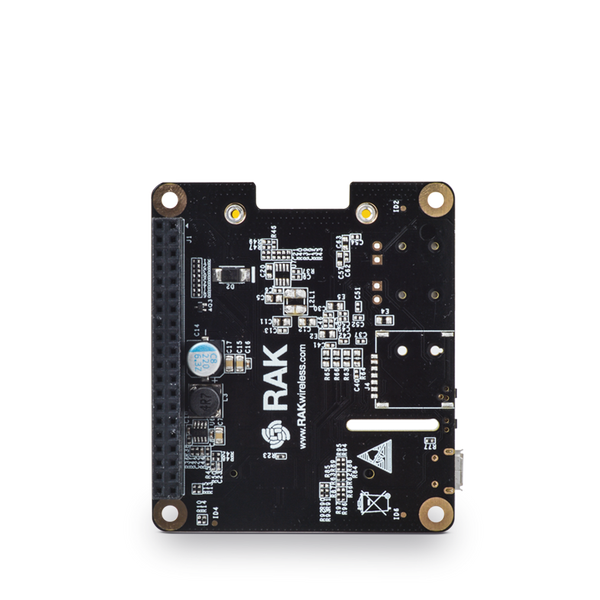

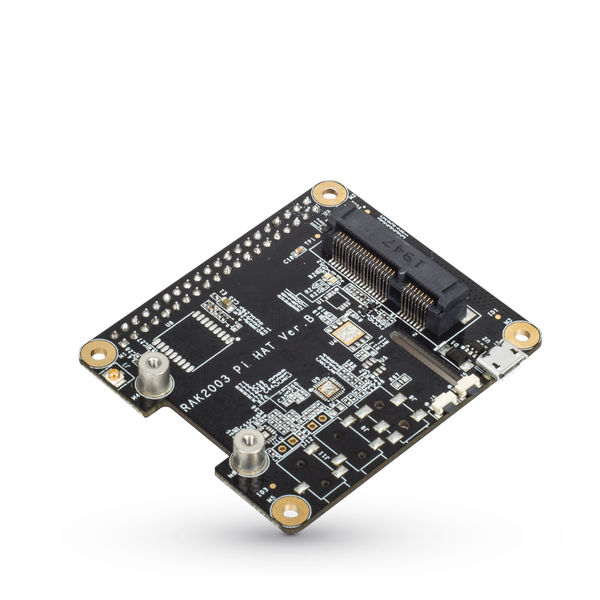

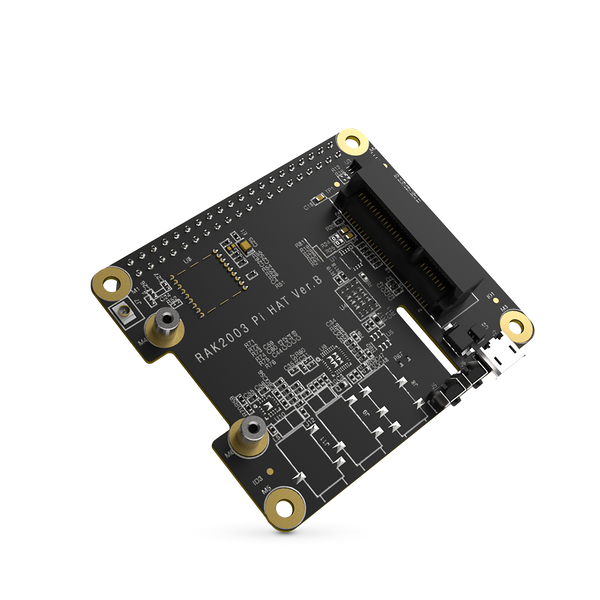

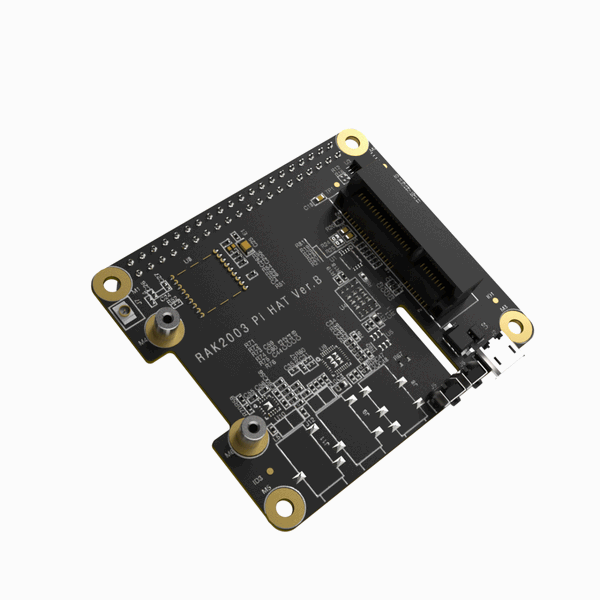

RAK2287/RAK5146 Pi HAT is a converter board that makes it possible to connect the RAK2287 LPWAN Concentrator Module or RAK5146 LPWAN Concentrator Module to Raspberry Pi.

Compatible Product

  • RAK2287 SPI
  • RAK5146 SPI

Product Details

  • Dimensions: 65mm x 55mm x 18mm (±2mm)
  • Weight: 22.7g

Documentation

Questions and Answers

  • What kind of connectors are required to connect the LoRa and GPS antennas?

    Hello,

    The antennas connect to the concentrator itself, not the hat, which has two iPEX ports, uFl.

    Regards
    Vladislav
