GNSS Tracker for LoRaWAN u-blox ZOE-M8Q

RAK10700

SKU:116034
Regular price $94.00 $0.00
Variant prices start at $94.00 to $108.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Note:

  • If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.
  • If a battery is used with WisBlock Base Board, please check that the battery connector has the correct polarity. You can check the required polarity in our Documentation Center
  • Since the RAK10700 is a portable device, it requires a battery to be used. Due to higher cost of worldwide transportation of batteries, we recommend you to buy a battery from Adafruit or Sparkfun. If you can't buy the battery, we recommend you to choose the variants with battery to be able to immediately use the RAK10700.


Product Description

WisBlock LPWAN Tracker Solution is a GNSS location tracker "Built With RAK's WisBlock"

It is a ready to use product that can be used to track the location of assets, trucks, containers.

It comes in an IP65 enclosure with an optional Solar Panel to recharge the battery and extend the work time.

It supports both LoRaWAN and LoRa P2P connectivity.

The customer can setup all credentials and settings over USB by using an AT command interface that is compatible with our RAK3172

The product supports all upper frequency LoRaWAN regions (RU864, IN865, EU868, RU865, US915, AU915, KR920, AS923)

The firmware of the LPWAN Tracker is open source and can be easily adapted by the customer to his personal needs (https://github.com/RAKWireless/LPWAN-Tracker-Solution)

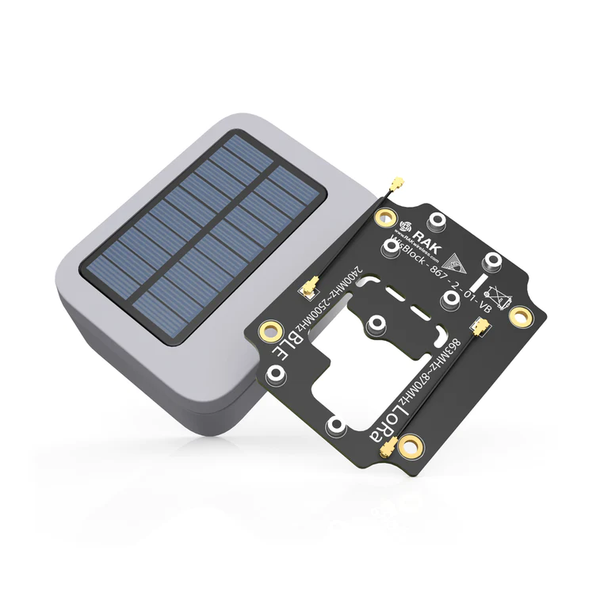

This product includes a mounting plate with a highly optimized integrated antenna for BLE and LoRaWAN. Please follow our mounting guide for the correct connection of the antennas to the WisBlock Core module.

Product Features

  • Supports sleep mode, low power consumption.
  • Built-in LIS3DH - digital motion sensor, which has dynamic user selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5 kHz.
  • Environment sensor: Built-in Bosch BME680 air quality sensor
  • GNSS location sensor: u-blox ZOE-M8Q
  • LoRaWAN 1.0.2 Standard support - ABP or OTAA mode.
  • LoRa P2P support.
  • LoRa, BLE, and GPS antenna are integrated inside the casing.
  • Micro USB for configuration and charging of the battery
  • Supports global license-free frequency band: RU864, IN865, EU868, RU864, US915, AU915, KR920, and AS923.
  • Unify Enclosure 100x75x38, optional with Solar Panel
    • Mounting Accessories (order separate)
      • Unify Pole Mounting Vertical Kit (Type A)
      • Unify Wall Mounting Kit (Type D)
      • Unify Belt Clip Kit (Type E)
      • Unify DIN Rail Mounting Kit (Type F)
      • Unify Magnet Mounting Kit (Type G)
      • Unify Belt Loop Kit (Type H)
      • Unify Label Kit (Type I)
      • Unify Hook Loop Kit (Type J)
