WisGate Connect Outdoor

Industrial Outdoor IoT Gateway Based on Raspberry Pi CM4/CM5

RAK7393(No LTE) / RAK7393C(With LTE)

SKU:715232

$389.00

Variant prices start at $389.00 to $679.00.

The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Quantity

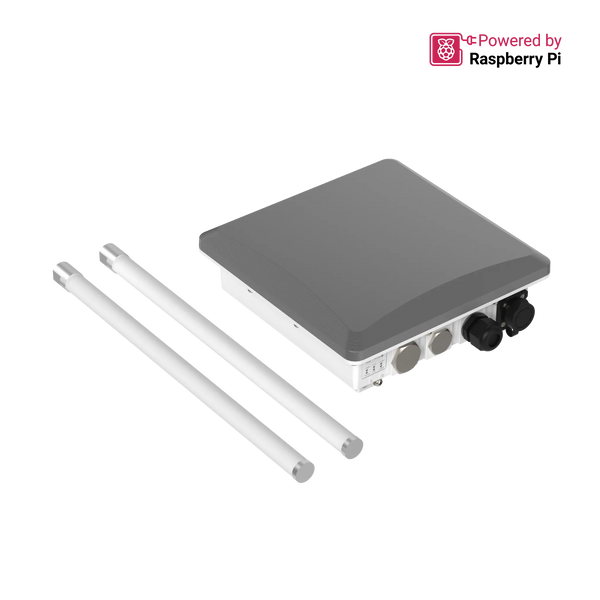

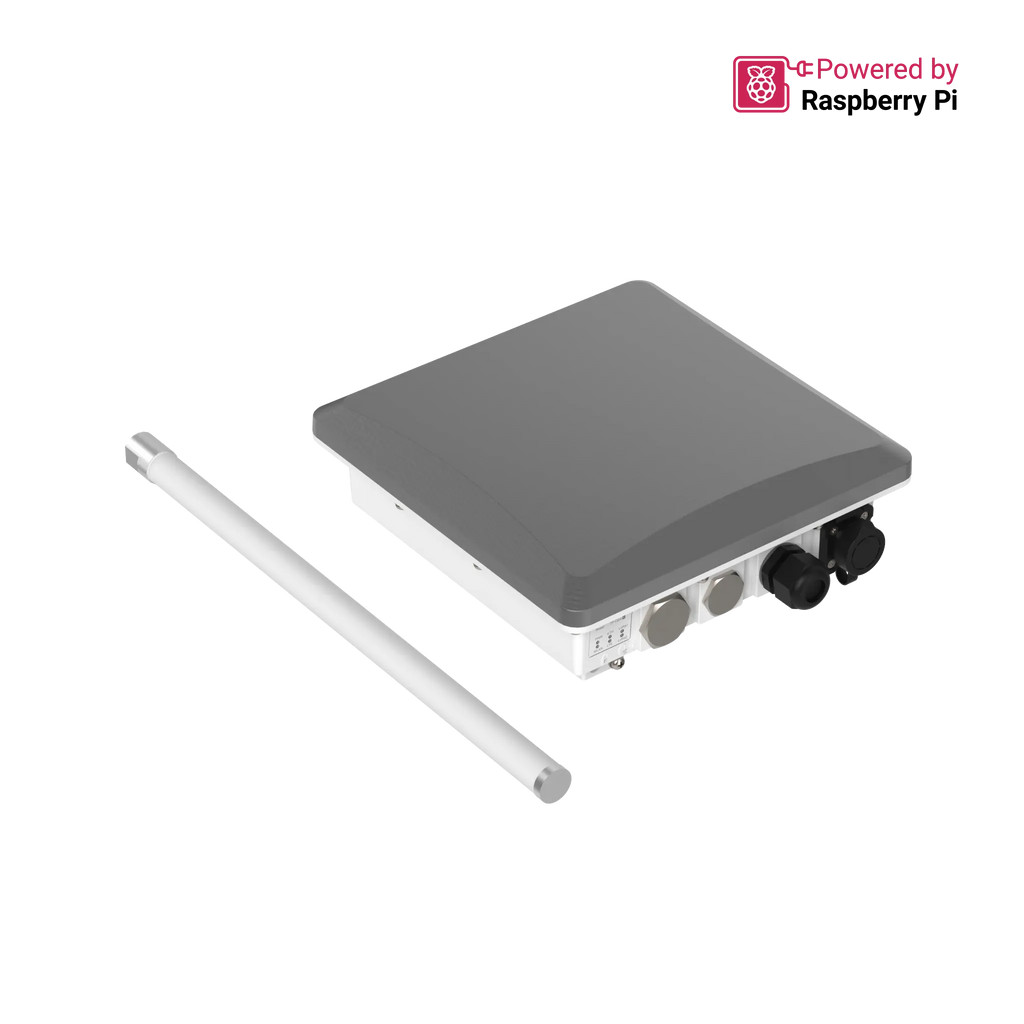

Note: This product does not include the LoRa antenna/s out of the box. Please select them below. 8ch and Mioty(without LoRa) version requires one LoRa antenna, 16ch and Mioty(with LoRa) version requires two LoRa antennas.

Details
Documentation
Q/A
Reviews

What is RAK7393 WisGate Connect Outdoor?

The RAK7393 WisGate Connect Outdoor is a fully industrialized, outdoor-ready IoT gateway based on the Raspberry Pi Compute Module 4 (CM4) and compatible with CM5. It’s purpose-built for real-world deployment and scalable production use in smart cities, smart agriculture, and industrial IoT scenarios.

Unlike typical Raspberry Pi boards designed for prototyping or hobbyist use, the RAK7393 brings field-level reliability, FCC/IC/CE/UKCA certification, and industrial-grade design into the Raspberry Pi ecosystem — all in one IP67-certified enclosure.

Why You Need RAK7393 WisGate Connect Outdoor

Built for evolving field deployments, this outdoor gateway for LoRaWAN enables organizations to expand their IoT networks without replacing existing infrastructure or compromising performance.

Why it's useful:

Built for Deployment: Not just another dev board; it’s a field-ready device engineered for volume rollout and long-term outdoor use.
FCC, ISED, CE, and UKCA Certified: Fully compliant for commercial and industrial deployments worldwide.
Industrial Enclosure (IP67): Cast aluminum base + waterproof cable glands = reliable performance in harsh environments.
Flexible Wireless Architecture: 3 × MiniPCIe slots to support different configurations:

Dual-band LoRaWAN (sub-GHz + 2.4GHz)
16-channel gateways for LoRaWAN (with two concentrators)
LoRa + mioty hybrid protocol gateways
Optional LTE cellular backhaul

Solar-Ready Power Design: Compatible with the RAK Battery Plus (50Ah + 80W solar), via 9–36VDC input and RS485 battery monitoring.

Key Features of RAK7393 WisGate Connect Outdoor

Compute Module: Supports Raspberry Pi CM4 (included) and CM5
Radio Expansion: 3 × MiniPCIe (USB + SPI) for LoRa, LTE, mioty, etc.
Power Options: IEEE 802.3at PoE or 9–36VDC input (solar-ready)
SIM Slots: 3 × nanoSIM (1 accessible externally)
Enclosure: IP67/NEMA-6, wall & pole mount ready
I/O Access: USB-C console port, USB-C flashing port, SD card slot
Security: ATECC608 crypto chip + RTC with battery
LED Indicators: Power, activity, and user-programmable LED (visible externally)

Use Case Examples for RAK7393 WisGate Connect Outdoor

This Raspberry Pi CM4 industrial gateway enables teams to streamline network rollout while improving operational efficiency in large outdoor areas.

Use Case #1: Remote Agriculture Monitoring

A farming cooperative installs the industrial IoT gateway for remote monitoring across several fields to gather soil and crop sensor data locally, ensuring faster response to environmental changes while reducing cellular data usage.

Use Case #2:

A municipality deploys multiple units across urban zones to monitor air quality and noise levels, giving planners real-time insights that guide policy and infrastructure decisions.

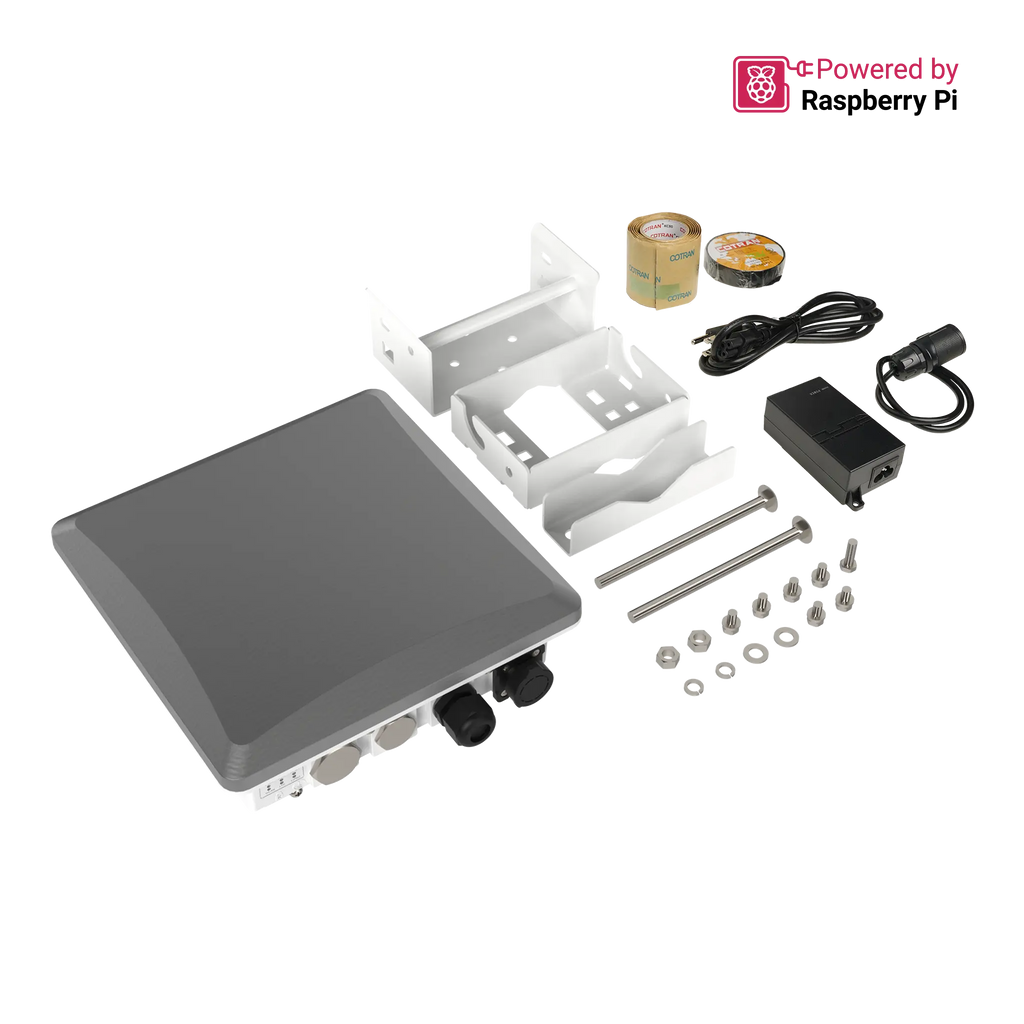

What’s in the Box

1 pc WisGate Connect Outdoor Gateway RAK7393
1 pc PVC tape
1 pc Waterproof tape
1 pc PoE injector
1 pc Power cable for PoE injector
1 pc 12V cable
1 set of mounting brackets
1 set of screws

Note: The LoRa antennas are not included. They need to be bought separately, one for the 8-channel and Mioty(without LoRa) gateway and two for the 16-channel and Mioty(with LoRa) Gateway.

How to Get Started with RAK7393 WisGate Connect Outdoor
