Relay Module 30V 2A HONGFA HF46F
RAK13001
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description

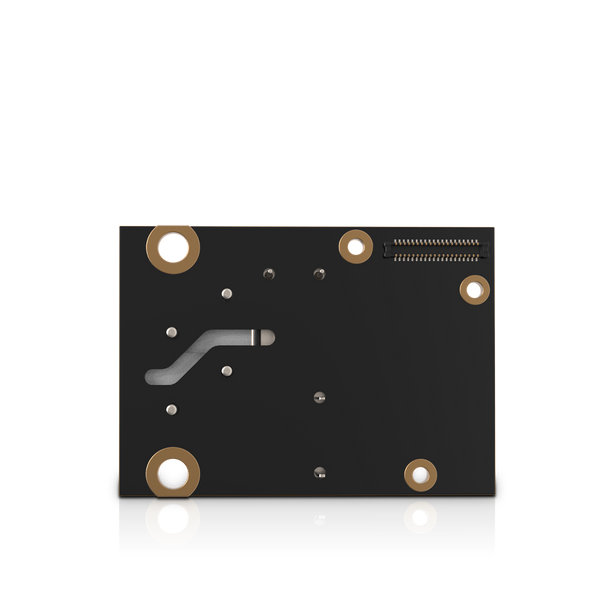

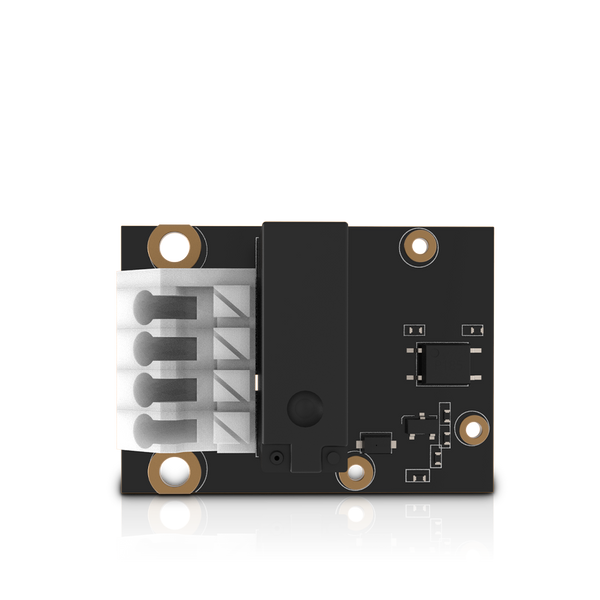

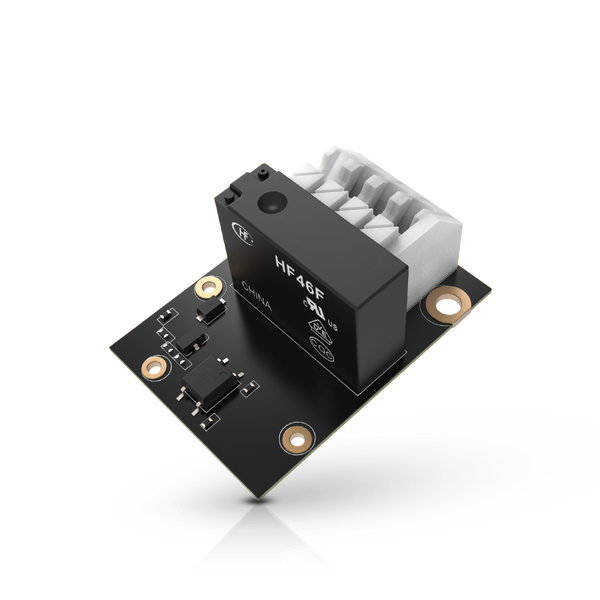

RAK13001 is a WisBlock relay module with one isolated input and one isolated output based HONGFA HF46F relay. It is used to control higher voltage signals and peripherals safely from WisBlock.
Product Features
- One relay isolated output
- One opto-couple isolated input
- The isolation between internal and external is up to 3750 VDC
- The output of relay supports 30VDC/2A rating
- The input of opto-couple supports 12-24V
- Module size: 25X35mm
