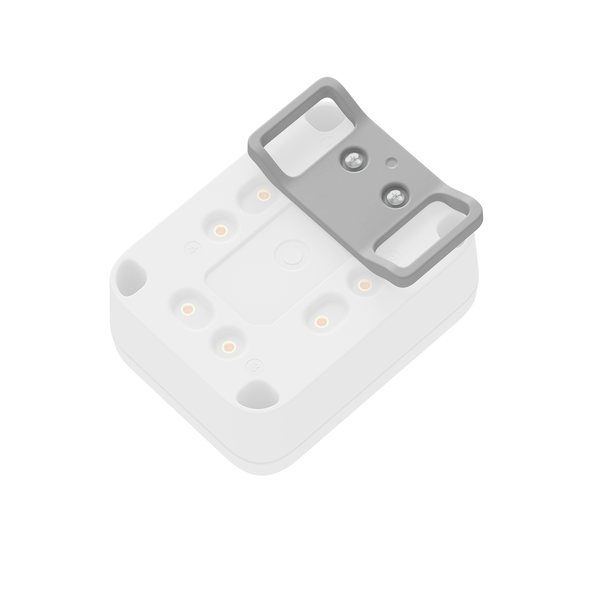

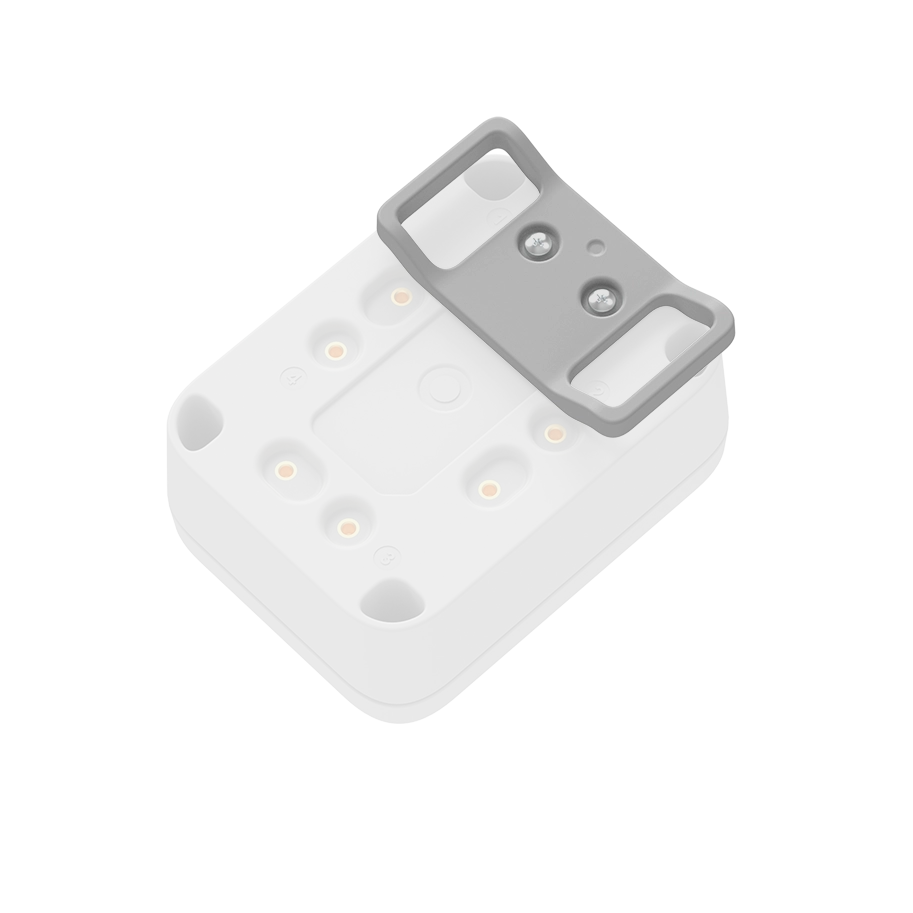

Unify Belt Loop Kit (Type H)

Description

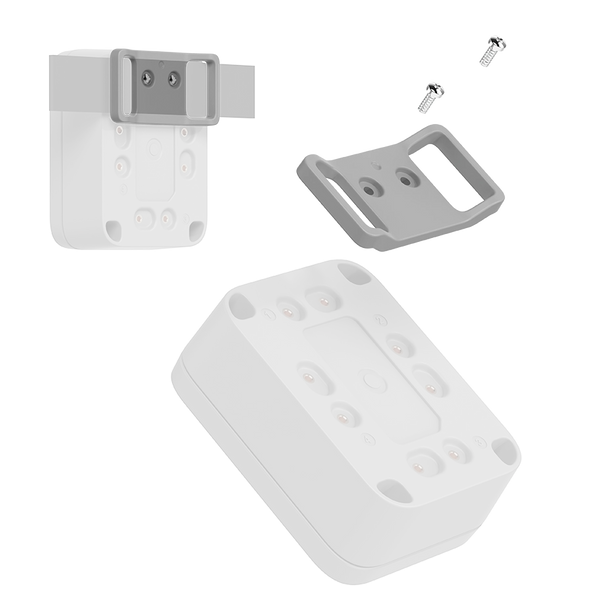

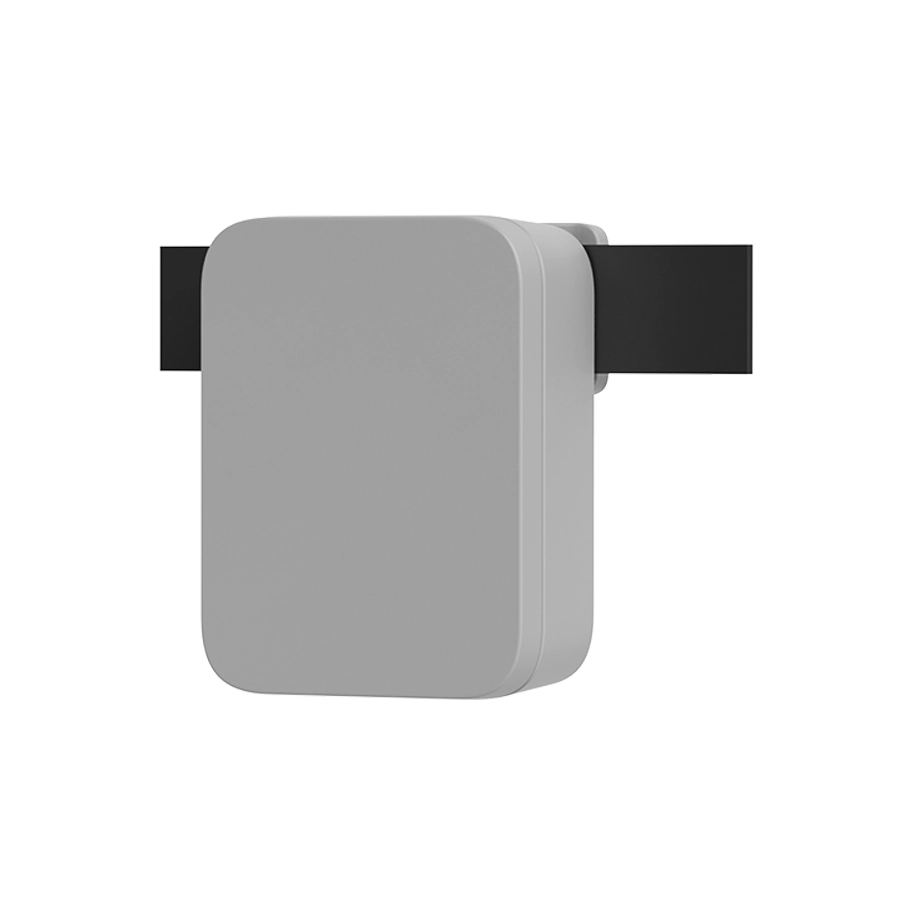

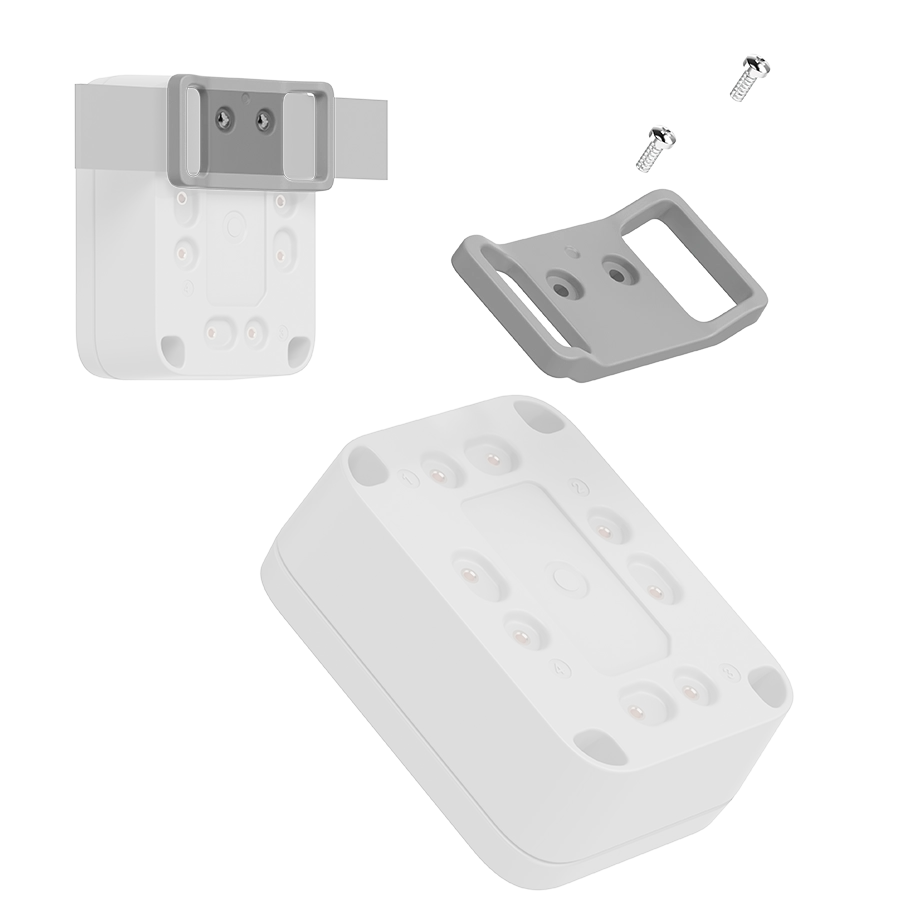

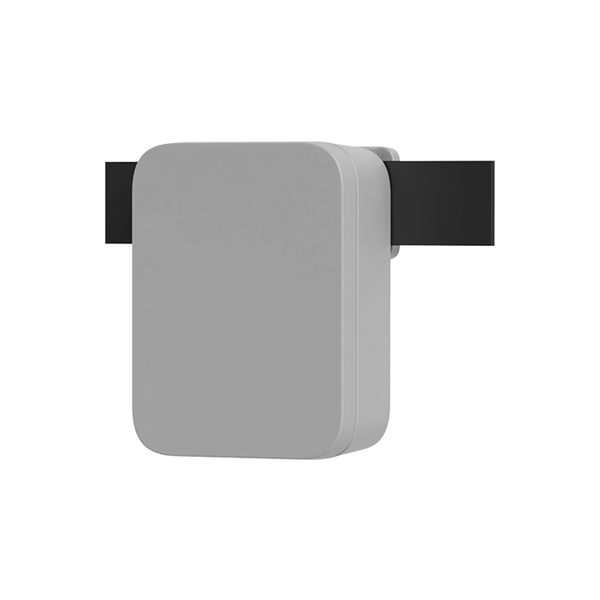

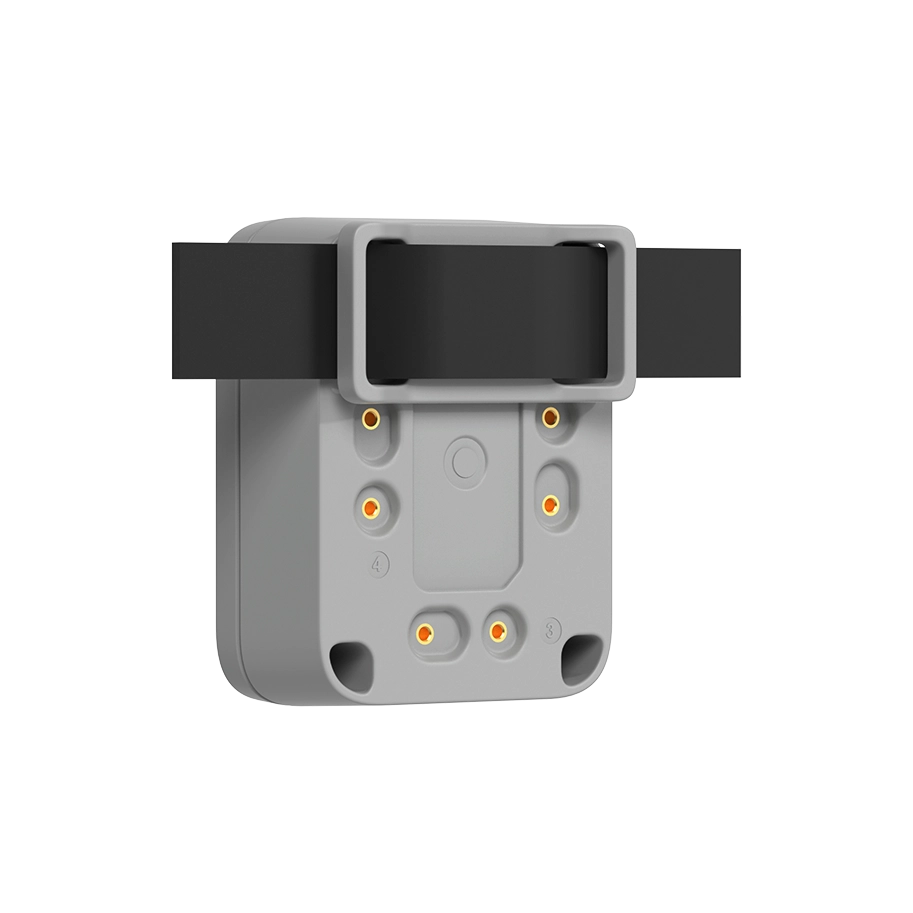

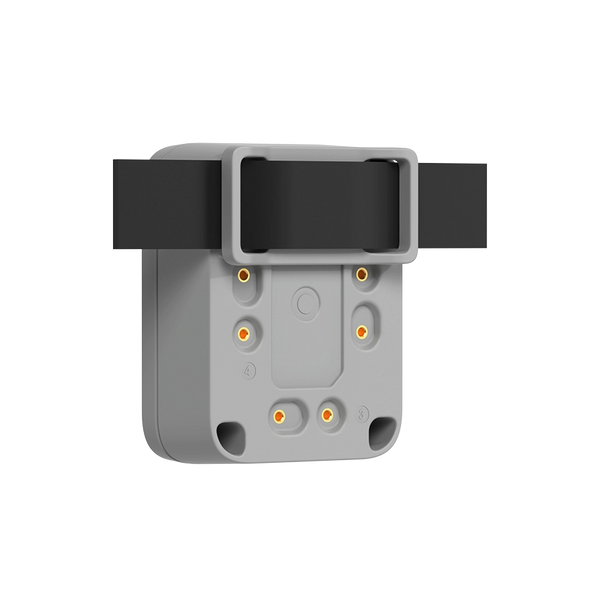

The Unify Belt Loop Kit (Type H) consists of the key accessories to enable you to mount your Unify Enclosure to on a belt or strap, such as personal clothing or low-tension industrial straps.

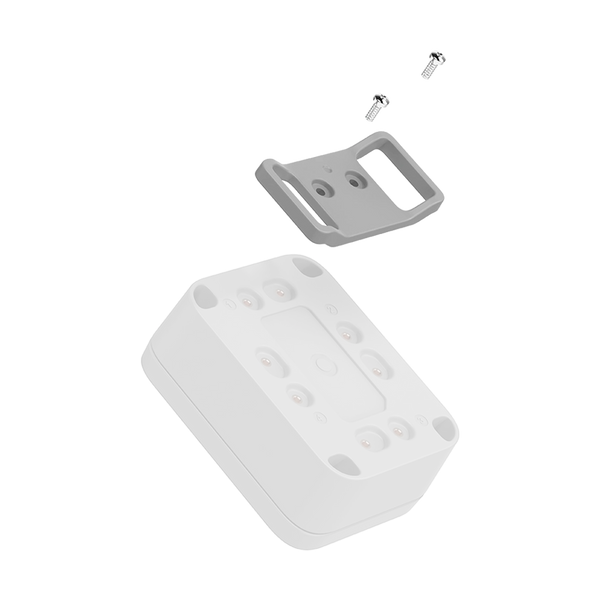

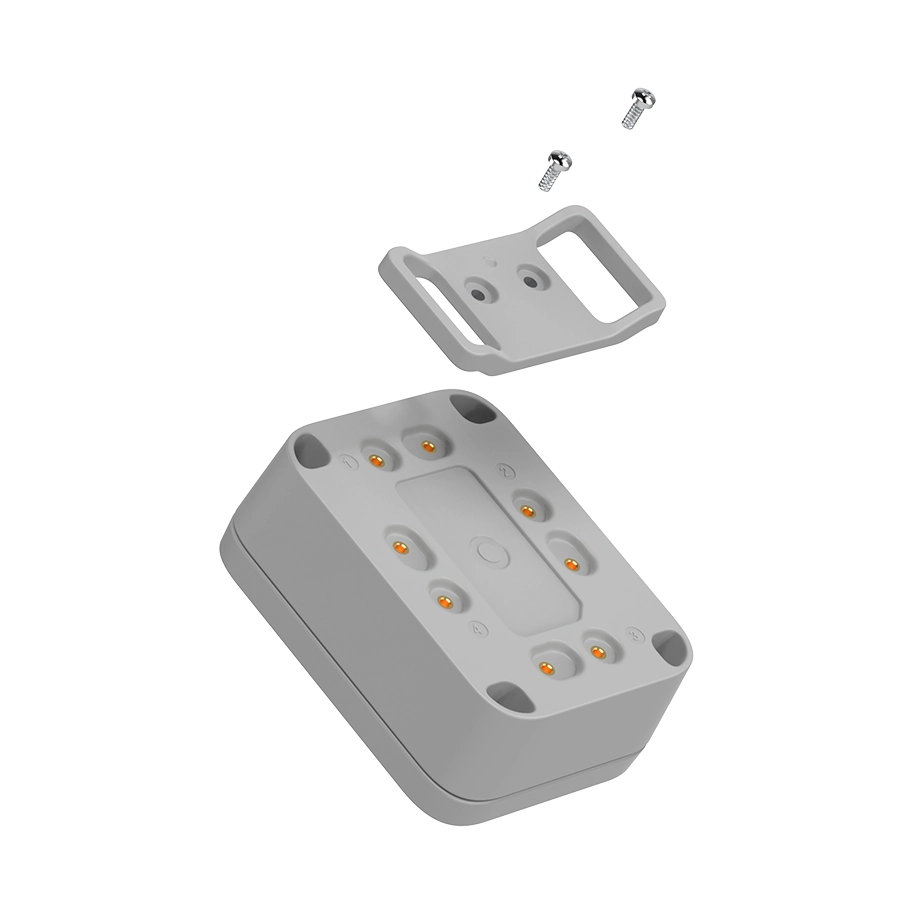

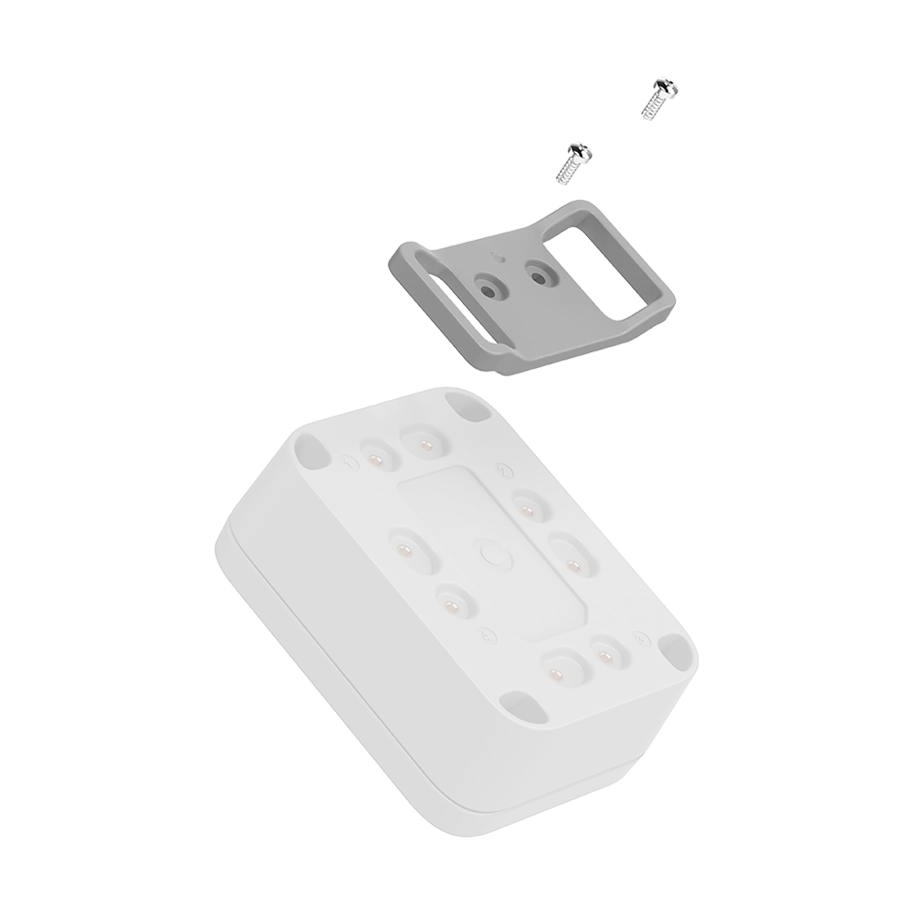

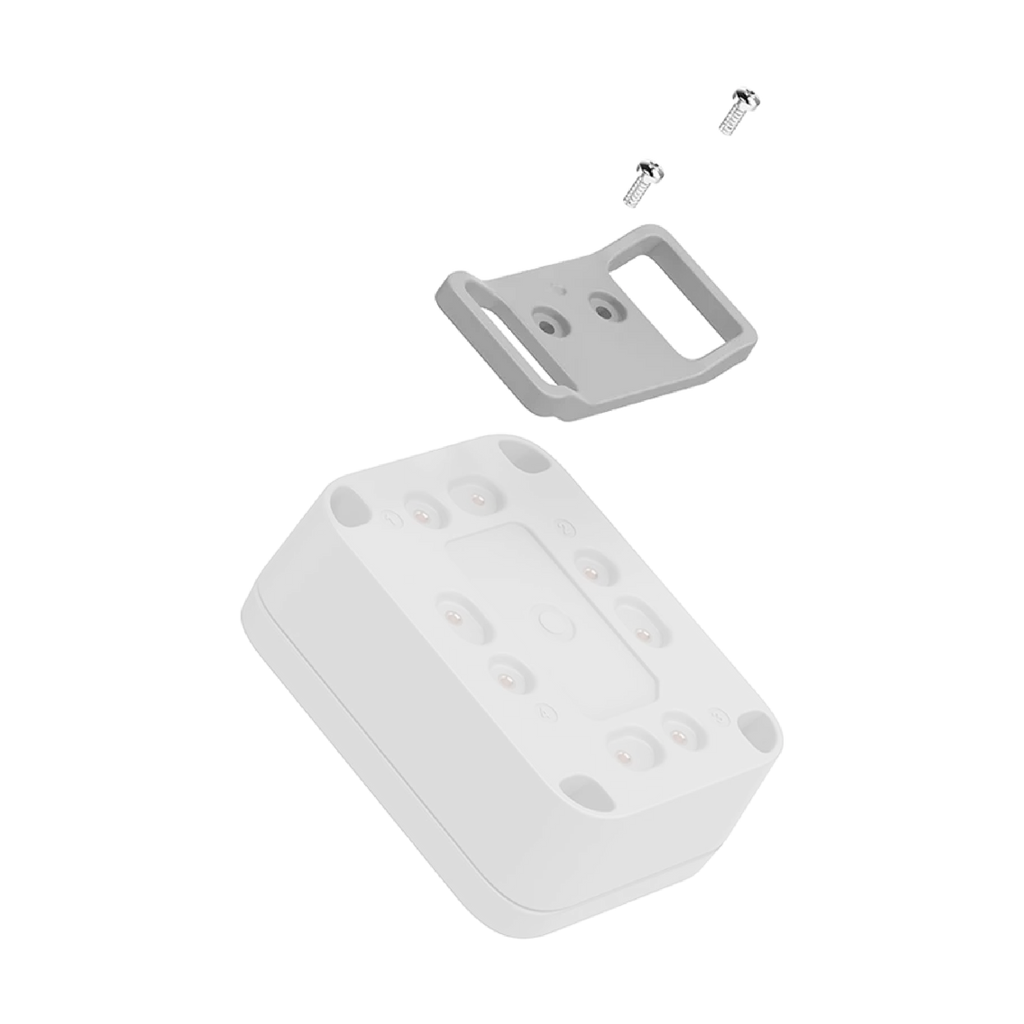

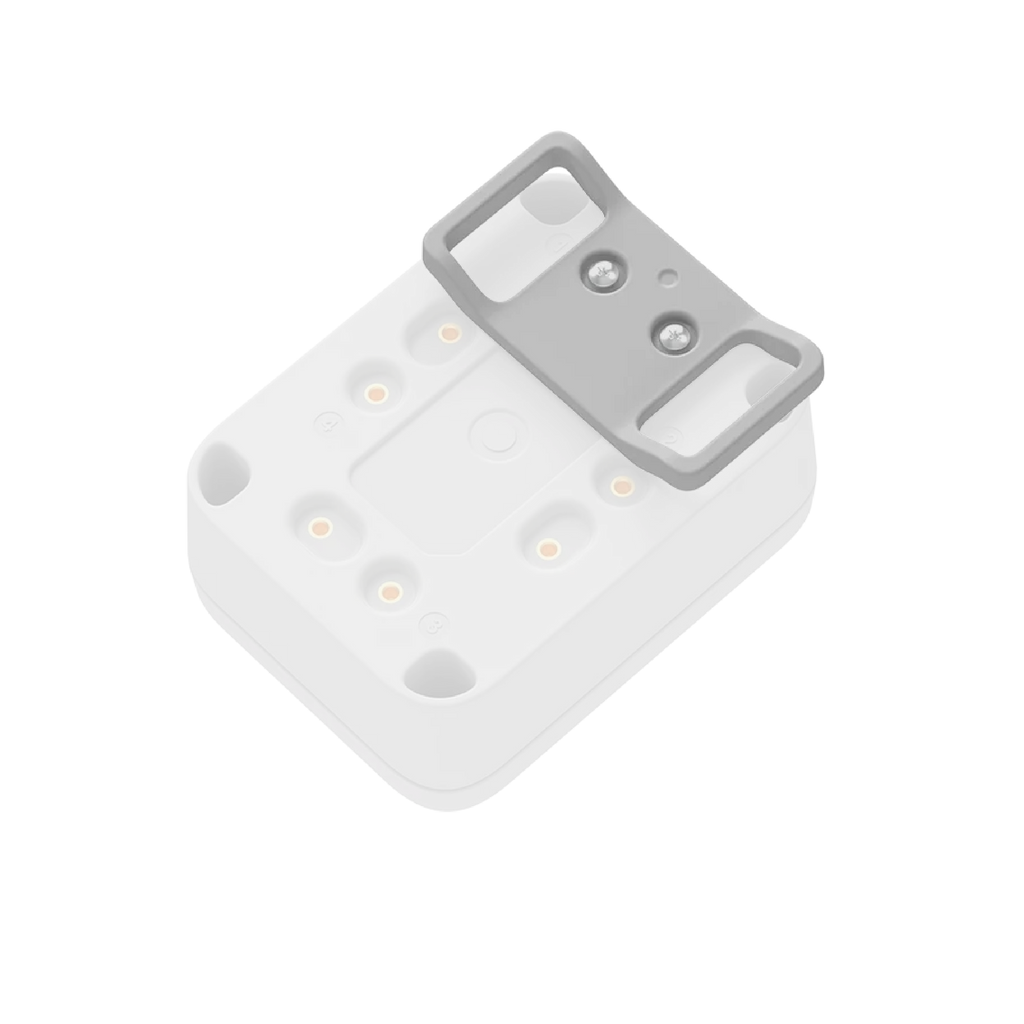

The Unify accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.

The Unify Belt Loop Kit (Type H) accessory is compatible with all Unify Enclosures.

Unify Belt Loop (Type H) Specifications

• Material: ABS UL94V-0
• General Wall Thickness: 4.0mm
• Typical belt / strap width supported：27mm max
• Typical belt / strap thickness supported：5mm max
• Compatible with Unify Enclosure 100x75x38mm
• Compatible with Unify Enclosure 150x100x45mm
• Compatible with Unify Enclosure 180x130x60mm

Package Inclusion

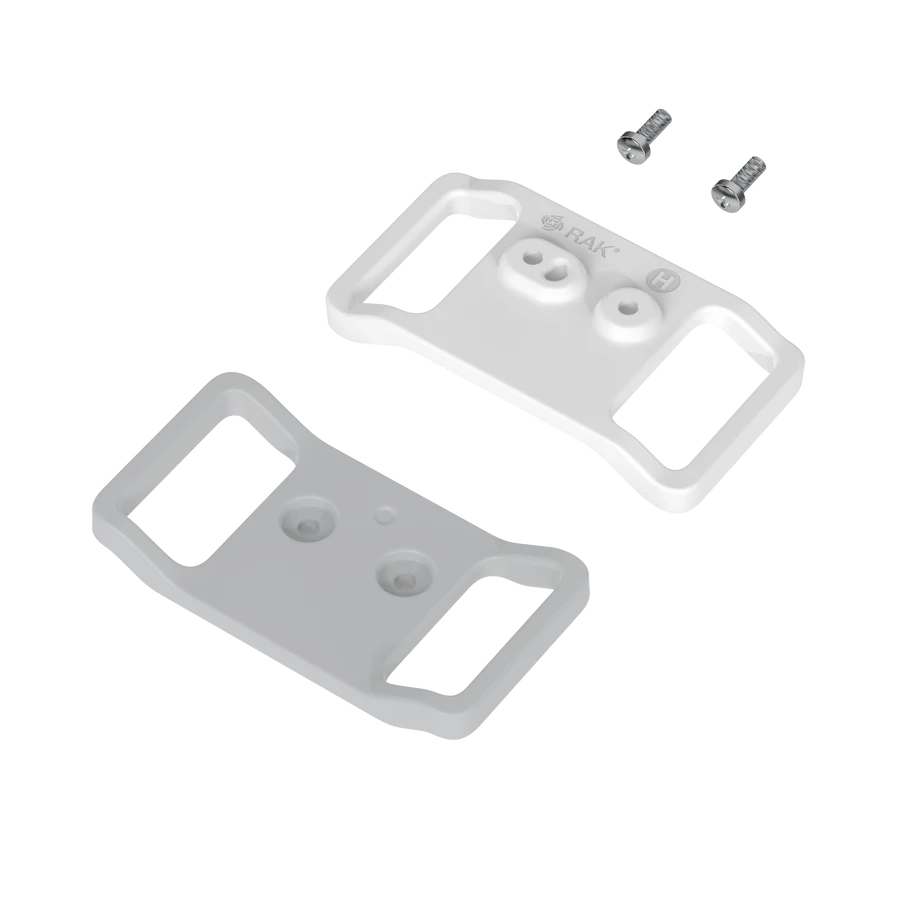

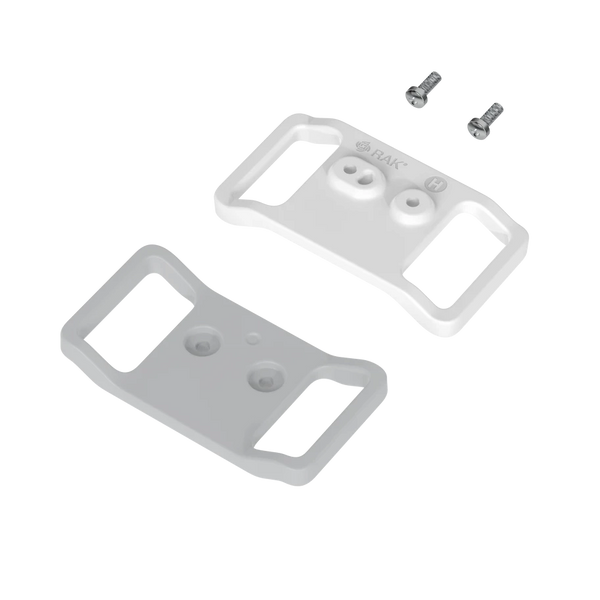

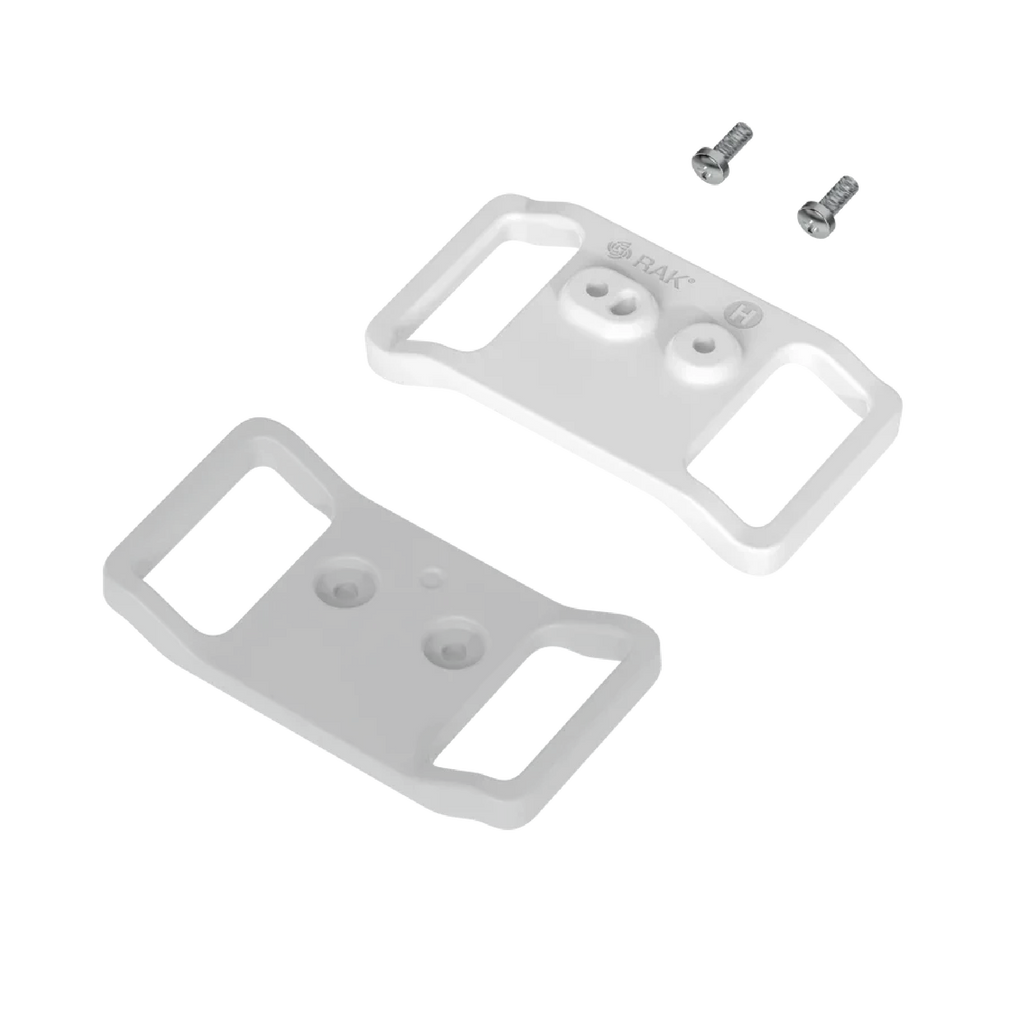

• 1 pc Unify Belt Loop (Type H) accessories
• 2 pc M3x8mm Stainless Steel Screw (to mount the accessory to the enclosure)

Documentation

• Unify Belt Loop Kit (Type H)
• RAKBox-Belt-Loop
