Flash Module GigaDevice GD25Q16
RAK15001
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation

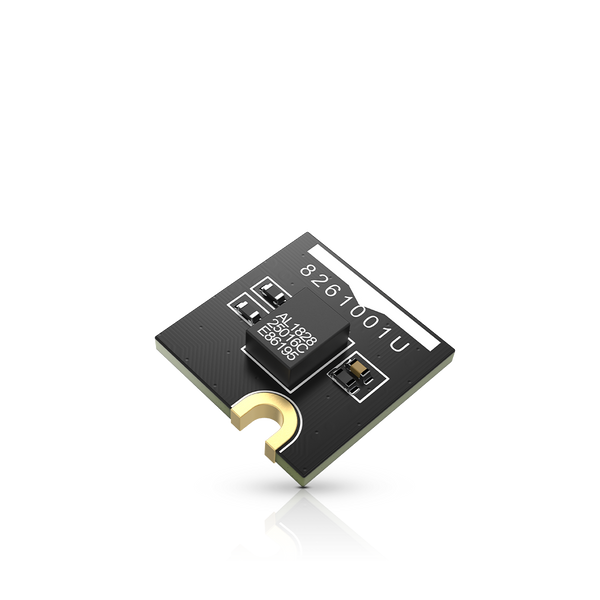

RAK15001 is a WisBlock NOR flash module based on GigaDevice GD25Q16CNIG with 16 MBit (2 MByte) nonvolatile memory that is based on standard SPI interface. In this large memory, you can save big data that your applications need to access frequently, like conversion tables, lookup tables or images, and even sound files. Compared to the EEPROM module, the RAK15001 Flash Memory module has fewer write/erase cycles, so it is not ideal as storage for constantly changing data like for sensor readings.
Key Features
- 16 Mbit (2 MByte) capacity
- SPI interface: SCLK, CS#, SI, SO, WP#, HOLD#
- Software/Hardware write protection
- GigaDevice GD25Q16 chip
- Full voltage range: 2.7~3.6V
- Standby current less than 5uA
- Temperature range: -40°C to +85°C

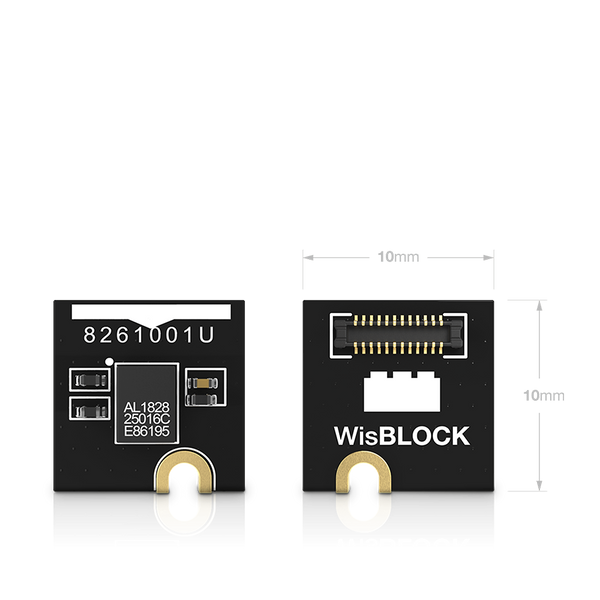

- Module size: 10x10mm
