LED Bar Module Microchip, Hongke Lighting MCP23017 KEM-102510A-RYG
RAK14003
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Check our WisBlock Documentation
Product Description

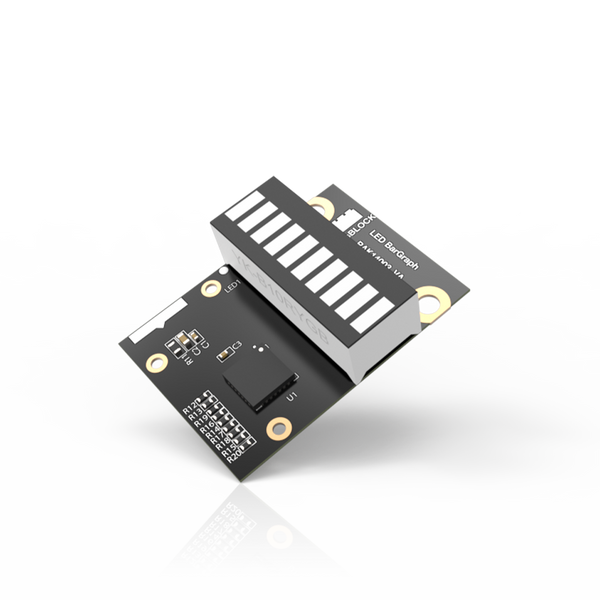

RAK14003 is a WisBlock LED Bar Graph module that uses Microchip MCP23017. It consists of 10 configurable LEDs (5 green color LEDs, 3 yellow color LEDs, and 2 red color LEDs). RAK14003 uses the KEM-102510A-RYG from Hongke Lighting as the LED bar. Each LED in the module can be controlled separately so the module can build a multipurpose graphic feedback display.
Product Features
- Hongke Lighting KEM-102510A-RYG
- I2C interface
- LED Bar Graph module
- 5 green colour LEDs, 3 yellow colour LEDs，and 2 red colour LEDs
- Each LED can be controlled separately
- 3.3 V Power Supply
- Module size: 25 x 45 mm
