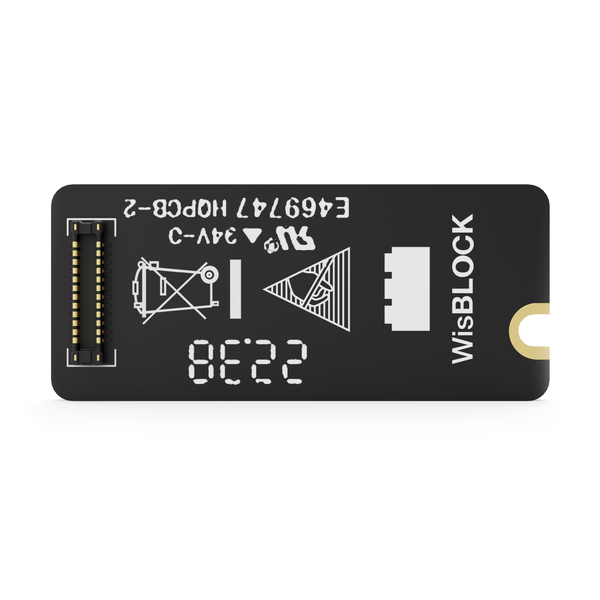

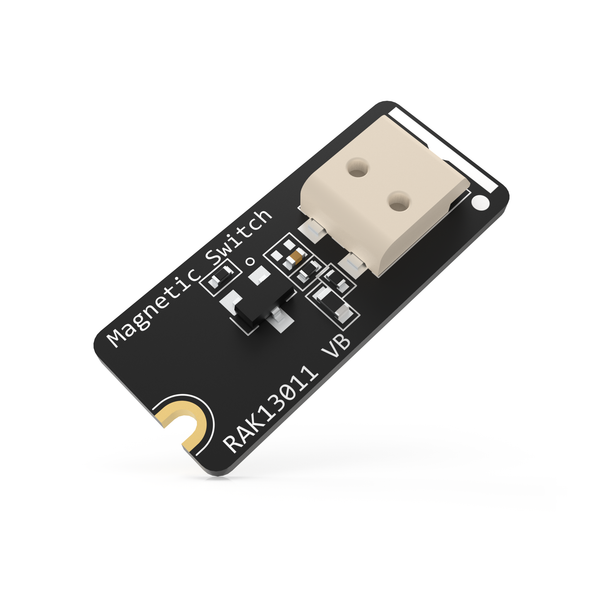

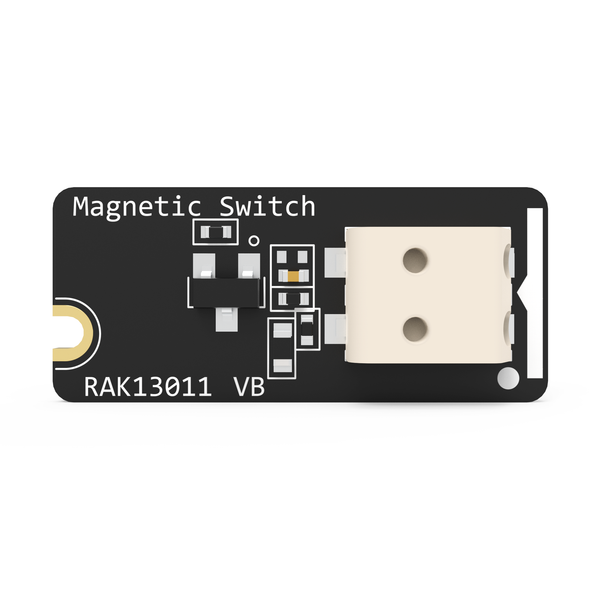

Wisblock Magnetic Switch | RAK13011
Wisblock Magnetic Switch | RAK13011
Wisblock Magnetic Switch | RAK13011

Wisblock Magnetic Switch

RAK13011

SKU:110062
Regular price $7.80 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Description

The RAK13011 is an interface module that comes with a reed relay and a magnet. It can raise an interrupt if the status of the reed relay changes. This can be used to build window and door security systems to detect intrusion. It can be used as well in industrial applications to detect opening and closing of security doors or detect the presence of a rig in a production line. The module fits into one of the WisBlock Base Sensor slots, but it occupies two slots due to its size.

Features

  • Standard Screw Fastening Reed Sensor with Cable Termination
  • Push-in termination of solid wires on the module, easy wire removal via operating tool
  • Single GPIO Interface
  • 3.3V Power supply
  • Operating Temperature: -40° C ~ 85° C
  • Module size 10 x 23 mm

Included in the package:

  • 1 pc RAK13011
  • 1 pc Sensor Assembly-Reed Sensor & Magnet
