WisGate Connect for mioty®

What Is WisGate Connect for mioty?

The WisGate Connect for mioty is a hybrid gateway supporting both mioty and LoRaWAN® protocols. It connects via Ethernet, Wi-Fi, or optional LTE, offering flexible backhaul options. Built with an industrial-grade enclosure, it ensures reliable performance in harsh environments. This gateway is ideal for urban and industrial IoT deployments, supporting long-range communication for both mioty and LoRaWAN® networks.

Note: At the moment we only offer the 868MHz mioty band. Please contact us if you need a different band.

Why You Need WisGate Connect for mioty

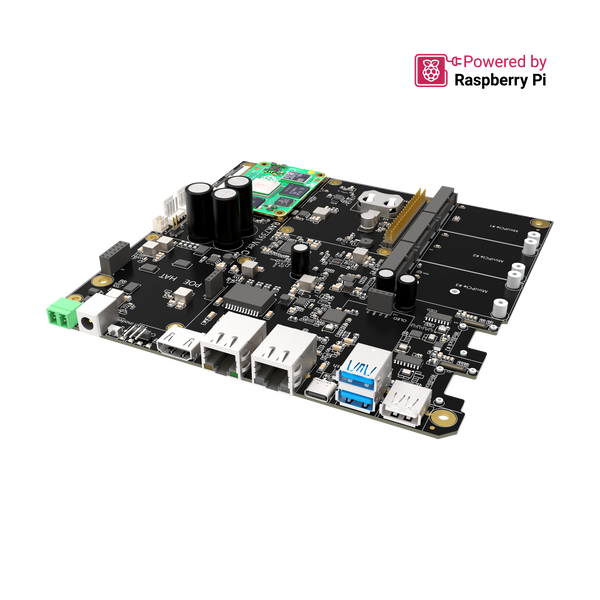

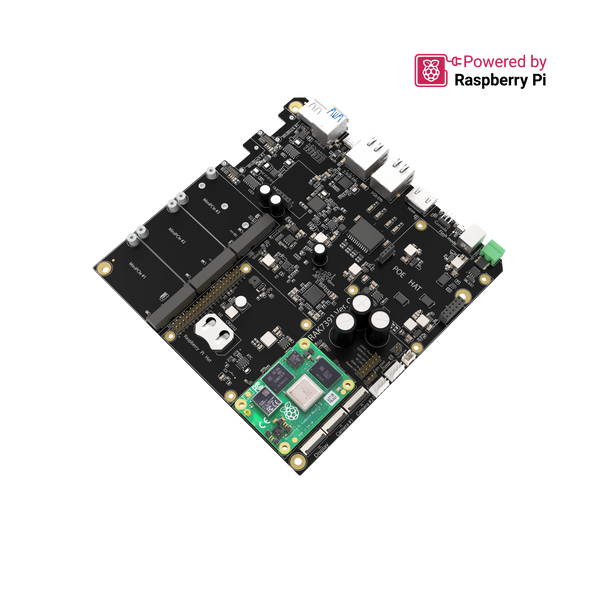

The WisGate Connect is built on the Raspberry Pi CM4, offering mioty support alongside an optional LoRaWAN module for a true Dual Protocol gateway. Powered by the latest SX1303 LoRa core, it improves sensitivity and performance. It also supports multi-backhaul options, such as Ethernet, Wi-Fi, and optional Cellular connectivity.

Why it's useful:

• Dual Protocol Gateway – Supports both mioty and LoRaWAN® technologies.
• Improved Sensitivity – Enhanced signal reception with the SX1303 LoRa core.
• Multi-Backhaul Options – Connect via Ethernet, Wi-Fi, or optional Cellular.

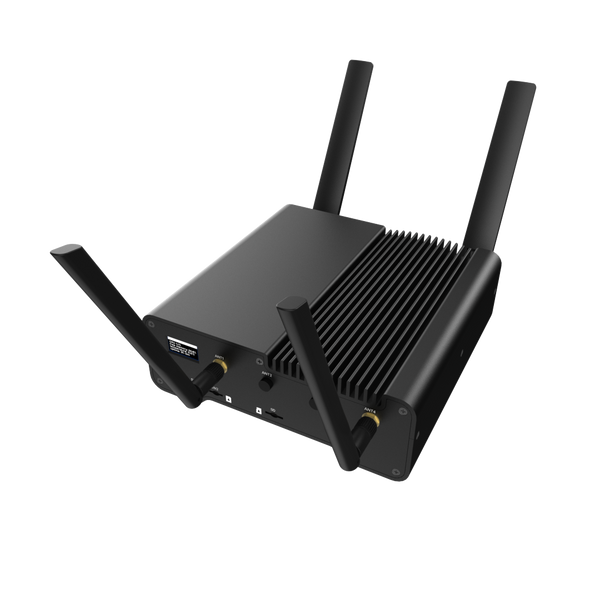

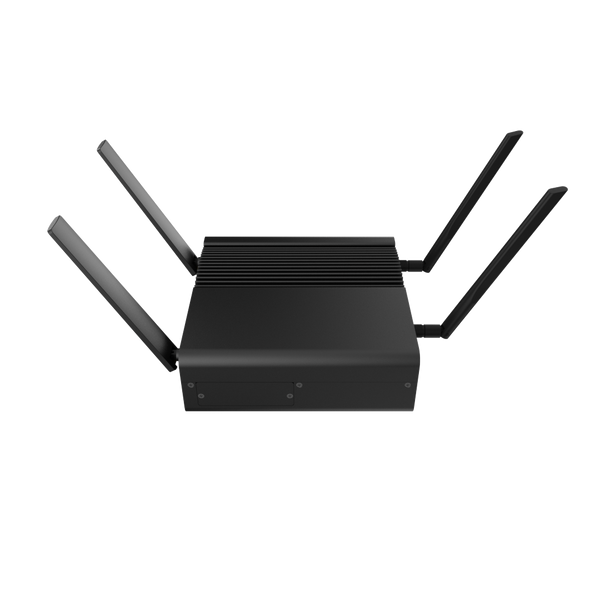

• Better Antenna Performance – Antennas extend outside the enclosure for superior signal strength.
• Pre-Flashed with RAKPiOS – Comes with RAKPiOS and a convenient utility for configuration.

Key Features of WisGate Connect for mioty

• Hardware
  • Industrial-grade enclosure

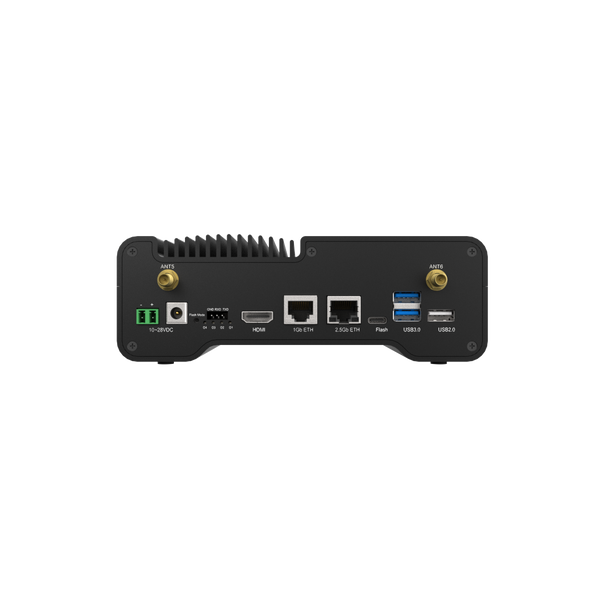

  • Supports 9-28VDC (barrel jack or Phoenix terminal) or PoE+ (optional)
  • mioty Base Station support
  • 8 channels subGHz LoRa concentrator (RAK5146, optional)
  • Backhaul: Wi-Fi, Ethernet, and LTE (optional)

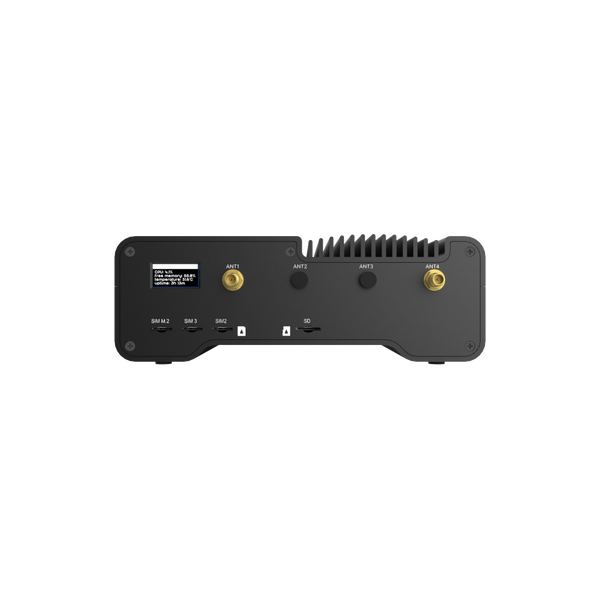

  • SMA connectors for mioty, LoRa, Wi-Fi, and LTE antennas
  • 1x Gigabit Ethernet port with PoE support (optional)
  • 1x 2.5 Gigabit Ethernet
  • 1x USB2.0 + 2x USB3.0
  • Dying gasp

Key Benefits of WisGate Connect for mioty

A robust and flexible gateway designed for reliable, long-range IoT deployments with mioty and LoRaWAN® support.

• Dual Protocol Support – Enables both mioty and LoRaWAN® connectivity for versatile IoT applications.
• Reliable Multi-Backhaul – Connect via Ethernet, Wi-Fi, or optional LTE for stable network coverage.
• Industrial-Grade Design – Durable enclosure with multiple antenna options for optimal signal performance.

Use Case #1

Deploy the WisGate Connect for mioty in industrial settings to monitor machinery and environmental conditions. Its robust dual-protocol support ensures reliable data transmission even in interference-prone environments.

Use Case #2

Use the WisGate Connect for mioty to manage urban infrastructure, such as smart lighting and waste management systems. Its long-range capabilities and scalability make it ideal for city-wide deployments.

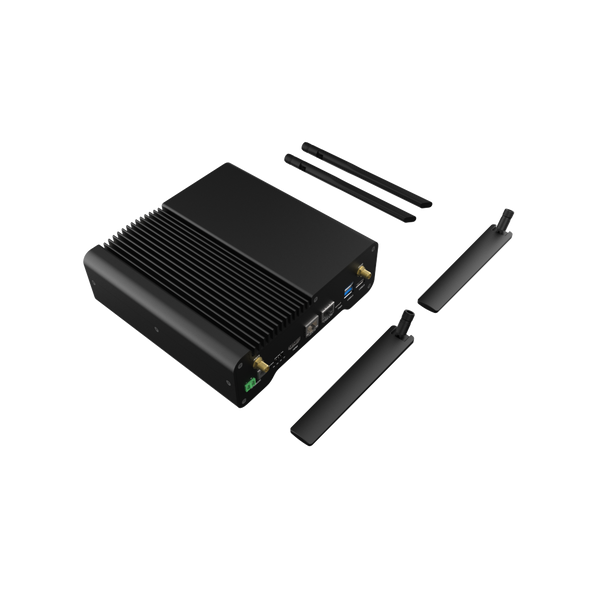

Package Inclusions

• 1 pc WisGate Connect for mioty
• 1 pc 12V2A power supply

• 1 pc Phoenix male connector
• 2 pcs LTE Antenna (If you select With LTE)
• 1 pc LoRa Antenna (If you select With LoRaWAN)
• Set of standoffs and screws to protect the board

How to Get Started with WisGate Connect for mioty

• Read about the mioty protocol
• Getting started with the RAKPiOS and Miromico mioty Card

Frequently Asked Questions

What is mioty?

mioty, based on Fraunhofer IIS's patented Telegram Splitting technology, divides messages into multiple sub-packets transmitted at different times and frequencies with low time on air (ToA), reducing interference and enabling low Packet Error Rates (PER) and high network capacity.

What is the difference between mioty and LoRaWAN?

mioty and LoRaWAN are both LPWAN (Low-Power, Wide-Area Network) protocols, but they have distinct differences:

mioty uses Telegram Splitting technology, which splits messages into sub-packets and transmits them over multiple frequencies and times. This reduces interference and ensures robust communication in dense environments. LoRa uses chirp spread spectrum modulation, which is effective for long-range communication but may face more interference in dense networks.

How do I utilize the features of WisGate Connect for mioty in my deployment?

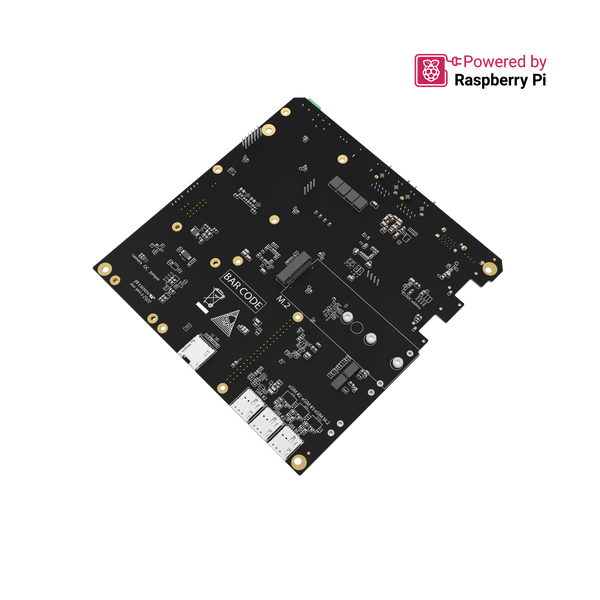

• Multi-Protocol Support: Leverage the Mini PCIe and M.2 slots to integrate additional radio modules as needed.
• Flexible Power Options: Choose the power supply method that best fits your deployment scenario, whether it's direct DC input or PoE+.
• Backhaul Connectivity: Configure the gateway to use the most reliable backhaul option available, ensuring consistent data transmission.
