WisGate Connect for mioty®
The First Hybrid Gateway for mioty and LoRaWAN® Based on CM4
Prefer another courier for your delivery? Contact us for special shipping arrangements.
What Is WisGate Connect for mioty?
The WisGate Connect for mioty is a hybrid gateway supporting both mioty and LoRaWAN protocols. It connects via Ethernet, WiFi, or optional LTE, offering flexible backhaul options. Built with an industrial-grade enclosure, it ensures reliable performance in harsh environments. This gateway is ideal for urban and industrial IoT deployments, supporting long-range communication for both mioty and LoRaWAN networks.
Note: At the moment we only offer the 868MHz mioty band. Please contact us if you need a different band.
Why You Need WisGate Connect for mioty

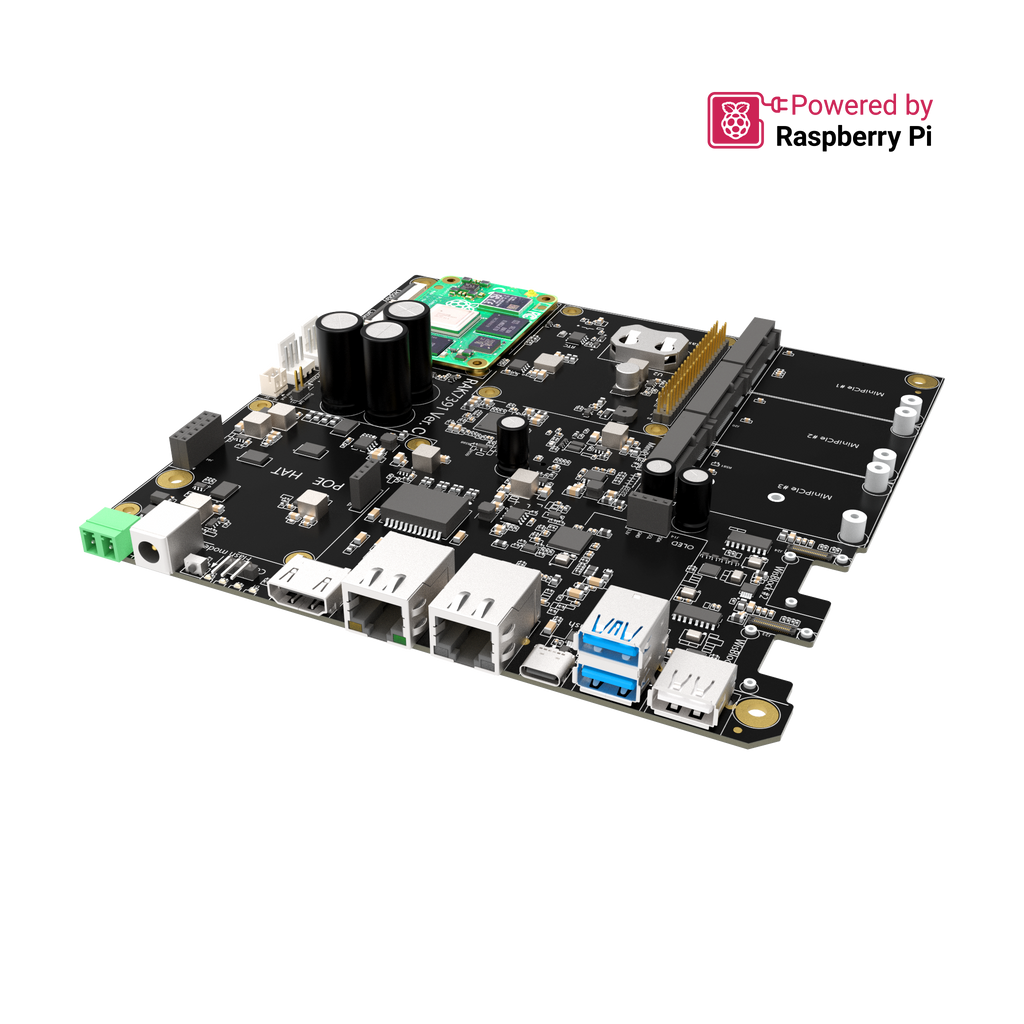

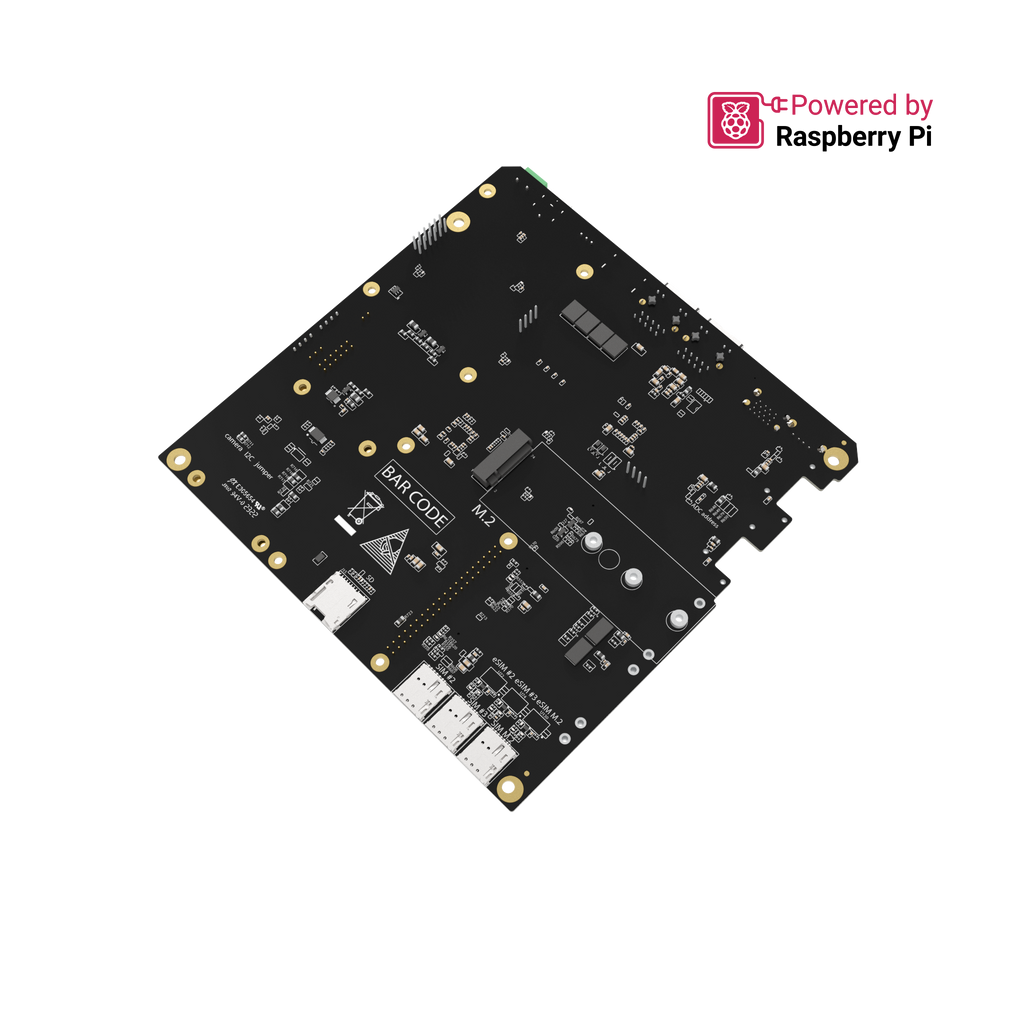

The WisGate Connect is built on the Raspberry Pi CM4, offering mioty support alongside an optional LoRaWAN module for a true Dual Protocol gateway. Powered by the latest SX1303 LoRa® core, it improves sensitivity and performance. It also supports multi-backhaul options, such as Ethernet, WiFi, and optional Cellular connectivity.
Why it's useful:
- Dual Protocol Gateway: Supports both mioty and LoRaWAN technologies.
- Improved Sensitivity: Enhanced signal reception with the SX1303 LoRa core.
- Multi-Backhaul Options: Connect via Ethernet, WiFi, or optional Cellular.

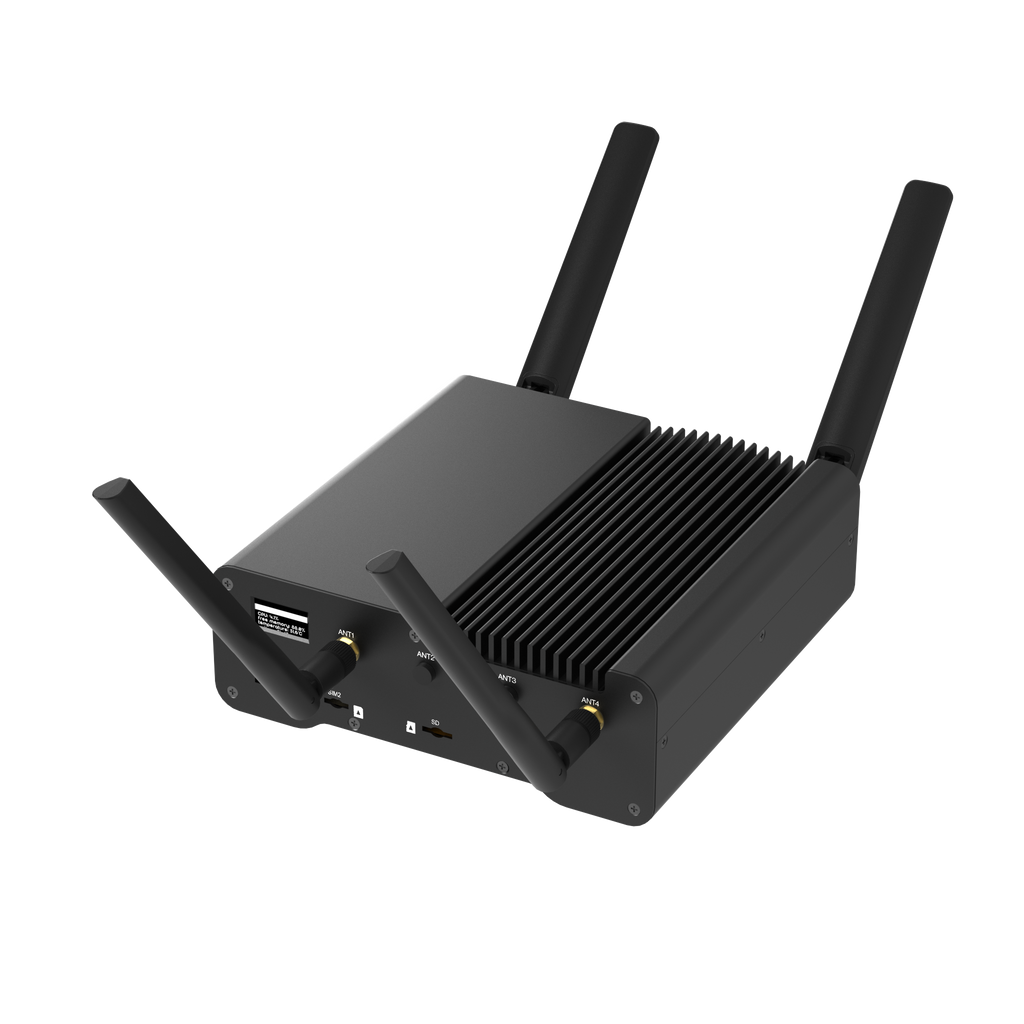

- Better Antenna Performance: Antennas extend outside the enclosure for superior signal strength.
- Pre-Flashed with RAKPiOS: Comes with RAKPiOS and a convenient utility for configuration.
Key Features of WisGate Connect for mioty
- Hardware
- Industrial-grade enclosure
- Supports 9-28VDC (barrel jack or Phoenix terminal) or PoE+ (optional)
- mioty Base Station support
- 8 channels subGHz LoRa concentrator (RAK5146, optional)

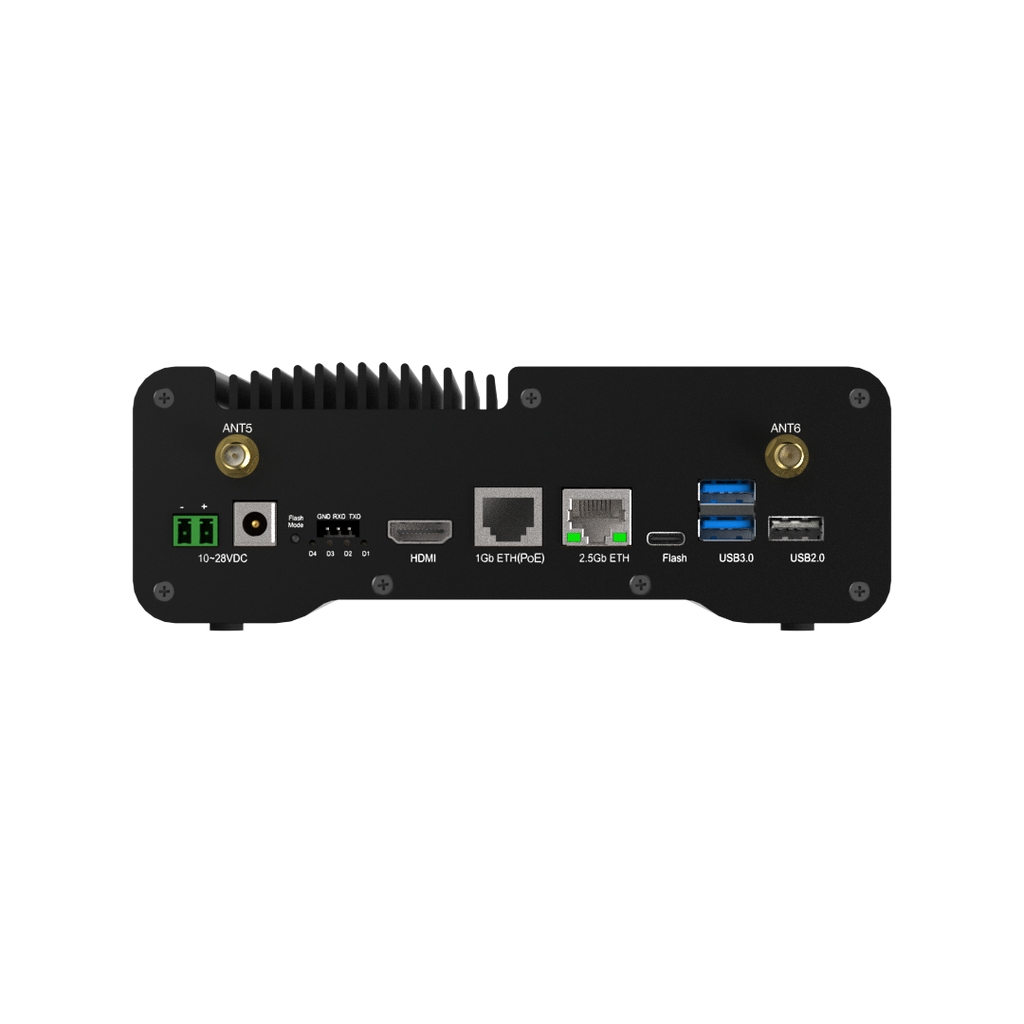

- Backhaul: WiFi, Ethernet, and LTE (optional)
- SMA connectors for mioty, LoRa, WiFi, and LTE antennas
- 1x Gigabit Ethernet port with PoE support (optional)
- 1x 2.5 Gigabit Ethernet
- 1x USB2.0 + 2x USB3.0
- Dying gasp
Mounting & Installation
The device supports multiple installation methods, allowing flexible deployment across industrial and commercial environments.
Wall Mounting
WisGate Connect for mioty supports direct wall mounting using the included mounting brackets. This enables flexible installation on walls or flat vertical surfaces, making it suitable for a wide range of indoor and semi-industrial deployments.
Wall mounting provides a reliable and straightforward installation method without requiring additional accessories.
|
Benefit |
Description |
|
Flexible Deployment |
Suitable for offices, utility rooms, industrial sites, and edge installations. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted on vertical surfaces for long-term operation. |
|
No Additional Accessories Required |
Wall mounting hardware is included for out-of-the-box installation. |
|
Versatile Positioning |
Allows installation in locations where DIN rail infrastructure is not available. |

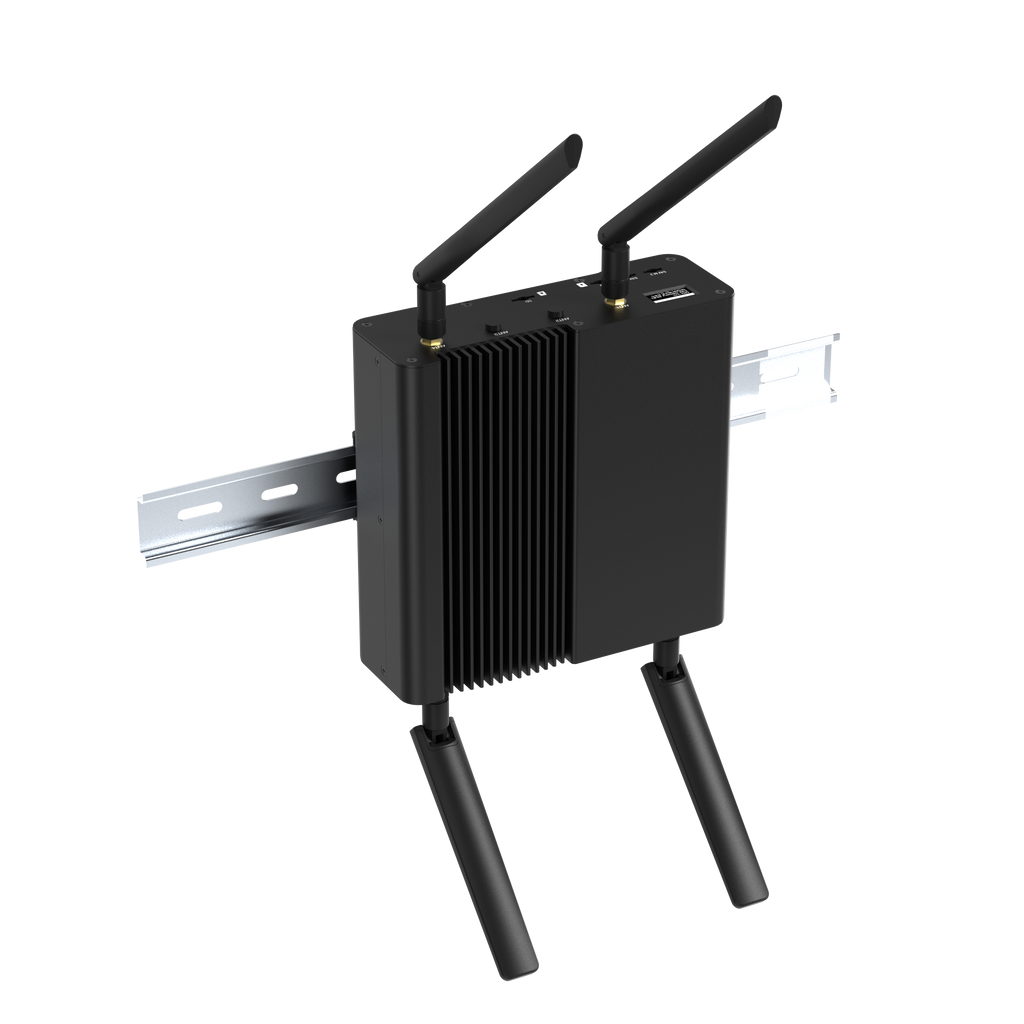

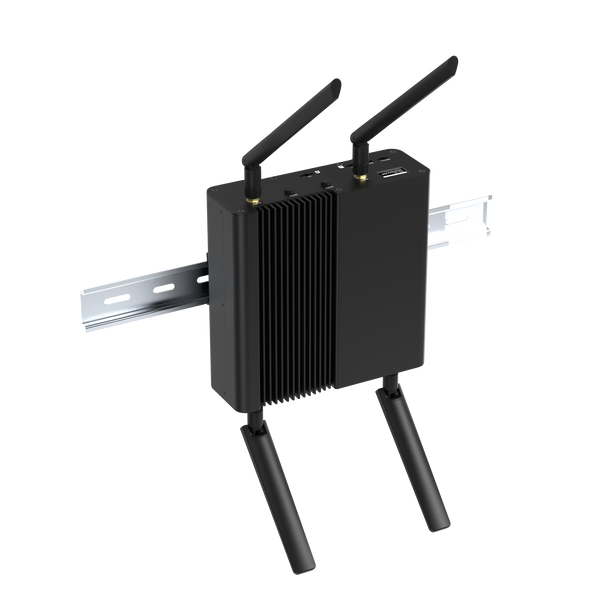

DIN Rail Mounting Support
WisGate Connect Smart Building supports installation on standard DIN rail systems (35mm DIN rail) using a DIN Rail Mounting Kit. This enables seamless integration into industrial control cabinets, electrical enclosures, and automation panels.
DIN rail mounting is widely used in industrial environments as it allows structured installation, efficient space utilization, and simplified maintenance.
|
Benefit |
Description |
|
Industrial-Ready Deployment |
Designed for integration into control cabinets and electrical panels. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted and protected in demanding environments. |
|
Optimized Space Utilization |
Supports clean and organized layouts within enclosures. |
|
Service-Friendly Design |
Allows easy installation, removal, and maintenance. |
Key Benefits of WisGate Connect for mioty
A robust and flexible gateway designed for reliable, long-range IoT deployments with mioty and LoRaWAN support.
- Dual Protocol Support – Enables both mioty and LoRaWAN connectivity for versatile IoT applications.
- Reliable Multi-Backhaul – Connect via Ethernet, WiFi, or optional LTE for stable network coverage.
- Industrial-Grade Design – Durable enclosure with multiple antenna options for optimal signal performance.
Use Case #1: Industrial Machinery and Environmental Monitoring
Deploy the WisGate Connect for mioty in industrial settings to monitor machinery and environmental conditions. Its robust dual-protocol support ensures reliable data transmission even in interference-prone environments.
Use Case #2: Urban Infrastructure and Smart City Management
Use the WisGate Connect for mioty to manage urban infrastructure, such as smart lighting and waste management systems. Its long-range capabilities and scalability make it ideal for city-wide deployments.

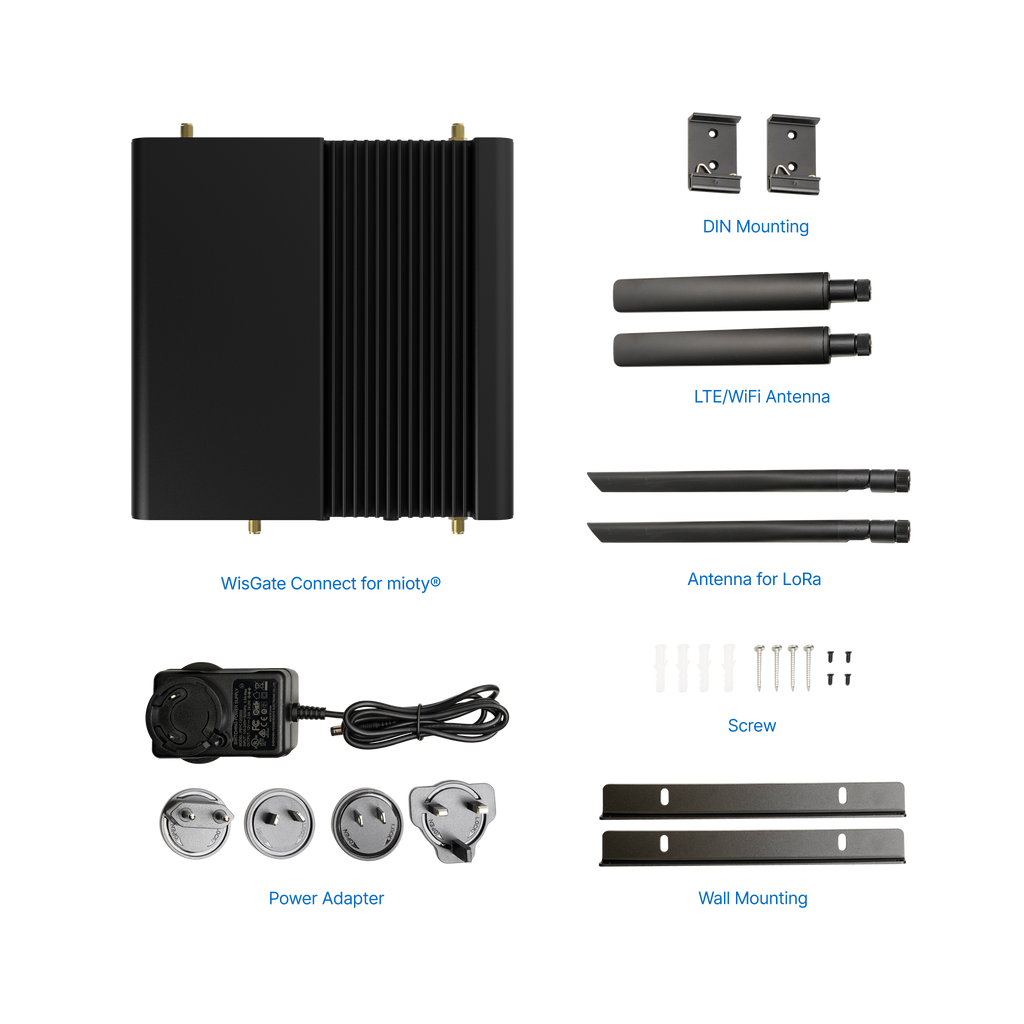

What’s in the Box
- 1 pc WisGate Connect for mioty
- 2 pc LTE Antenna (option)
- 1 pc LoRa Antenna (option)
- 1 pc Wall Mounting Kit
- 2 pc Wall Mount brackets
- 4 pc Wall anchors
- 4 pc Self-tapping screws
- 1 pc DIN Mounting Kit
- 2 pc DIN Mount brackets
- 4 pc M3 fixing screws
- 1 pc Multi-Plug Power Adapter
- 1 pc Phoenix male connector
- 1 set Screw
