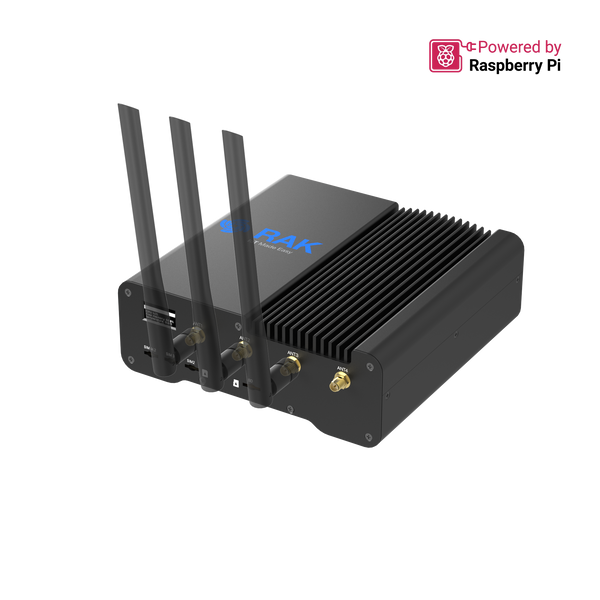

WisGate Connect Smart Building
Edge gateway for Smart Building / Smart SOHO solutions
Prefer another courier for your delivery? Contact us for special shipping arrangements.

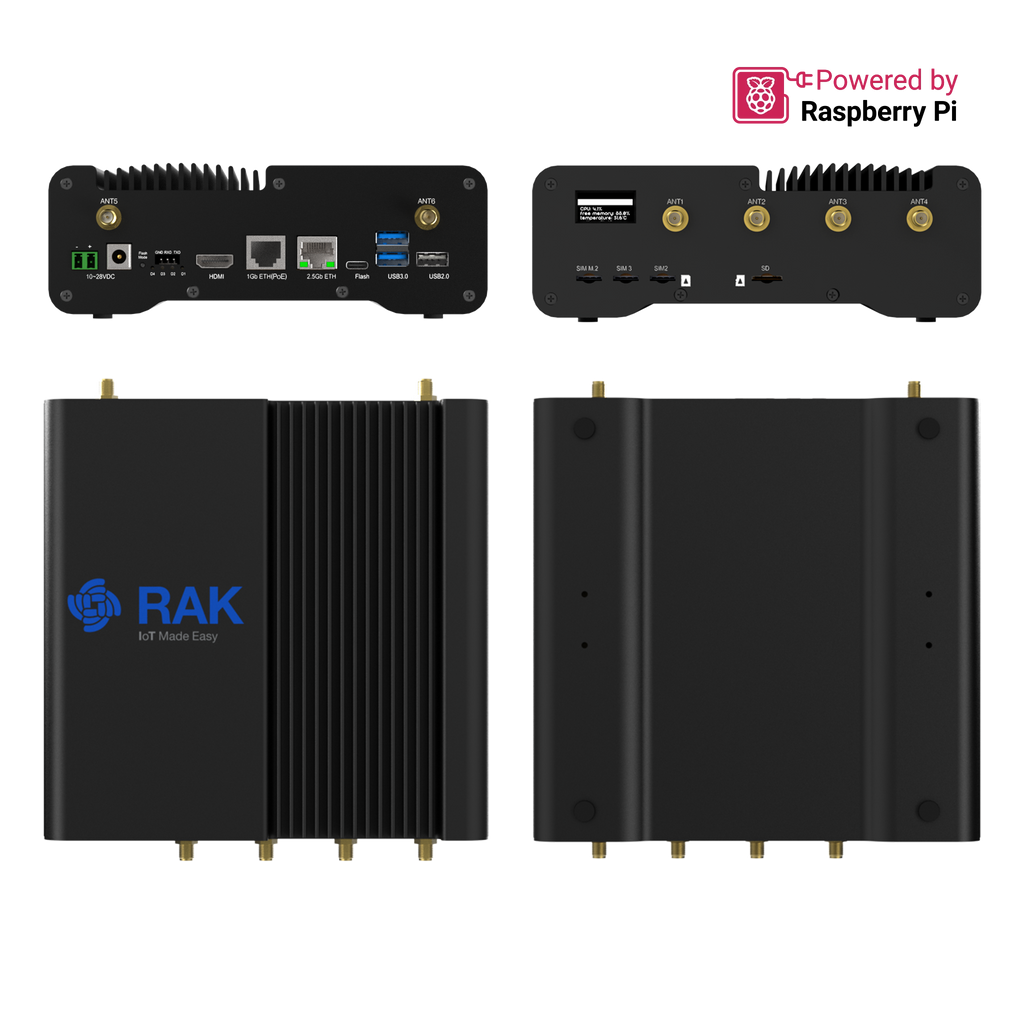

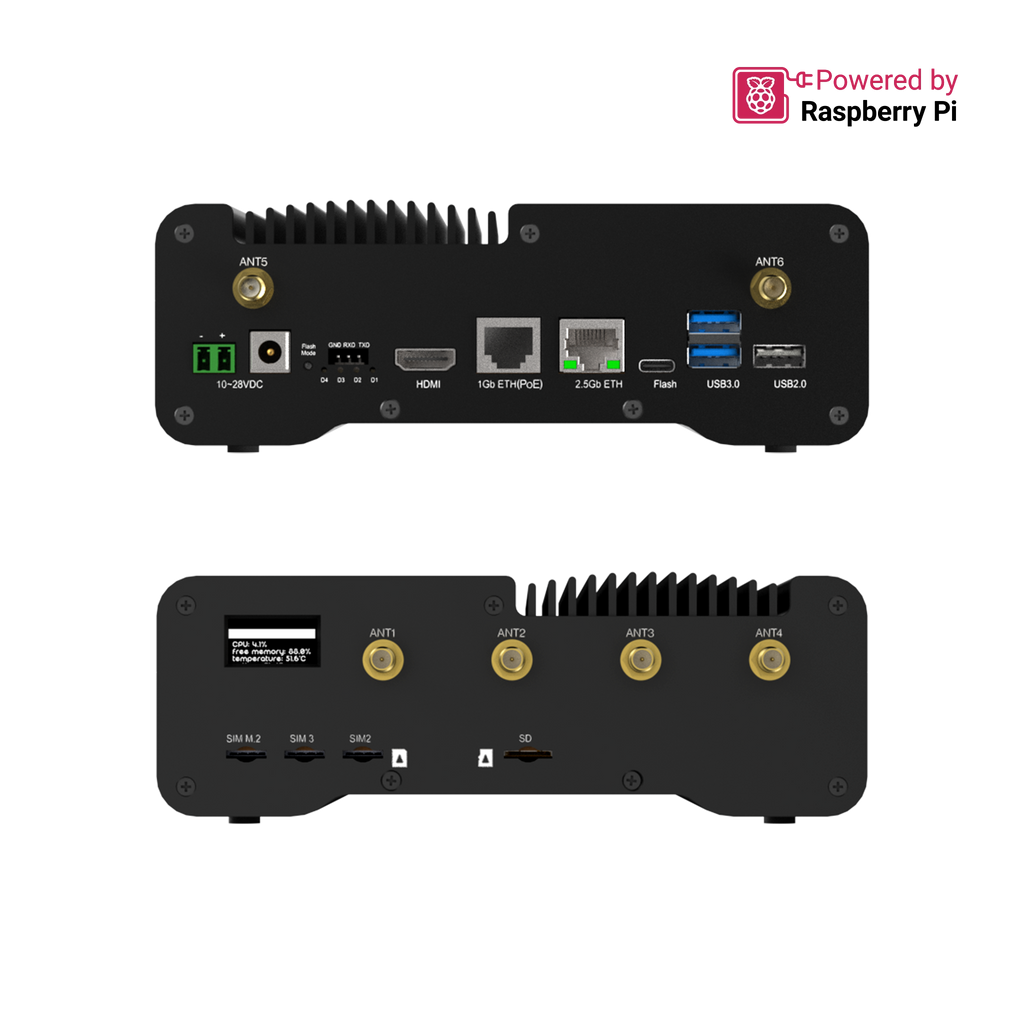

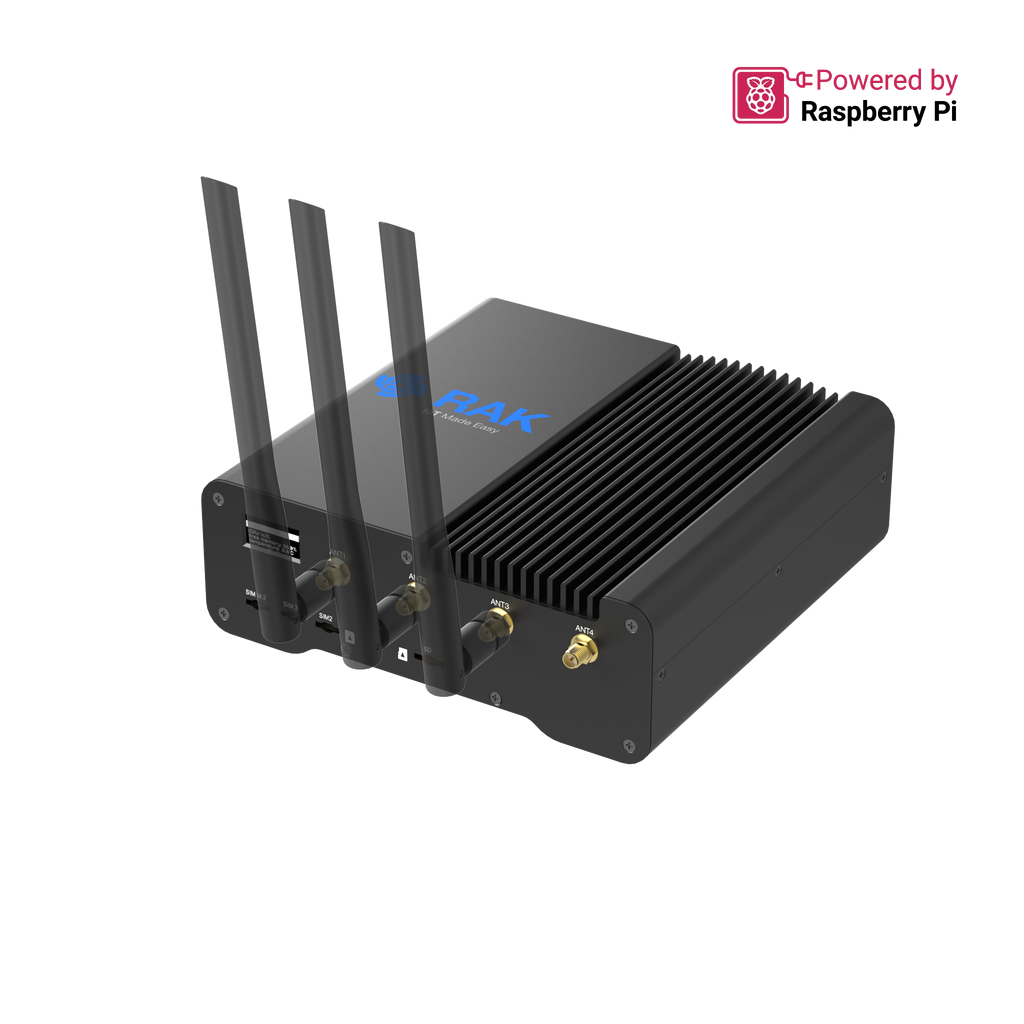

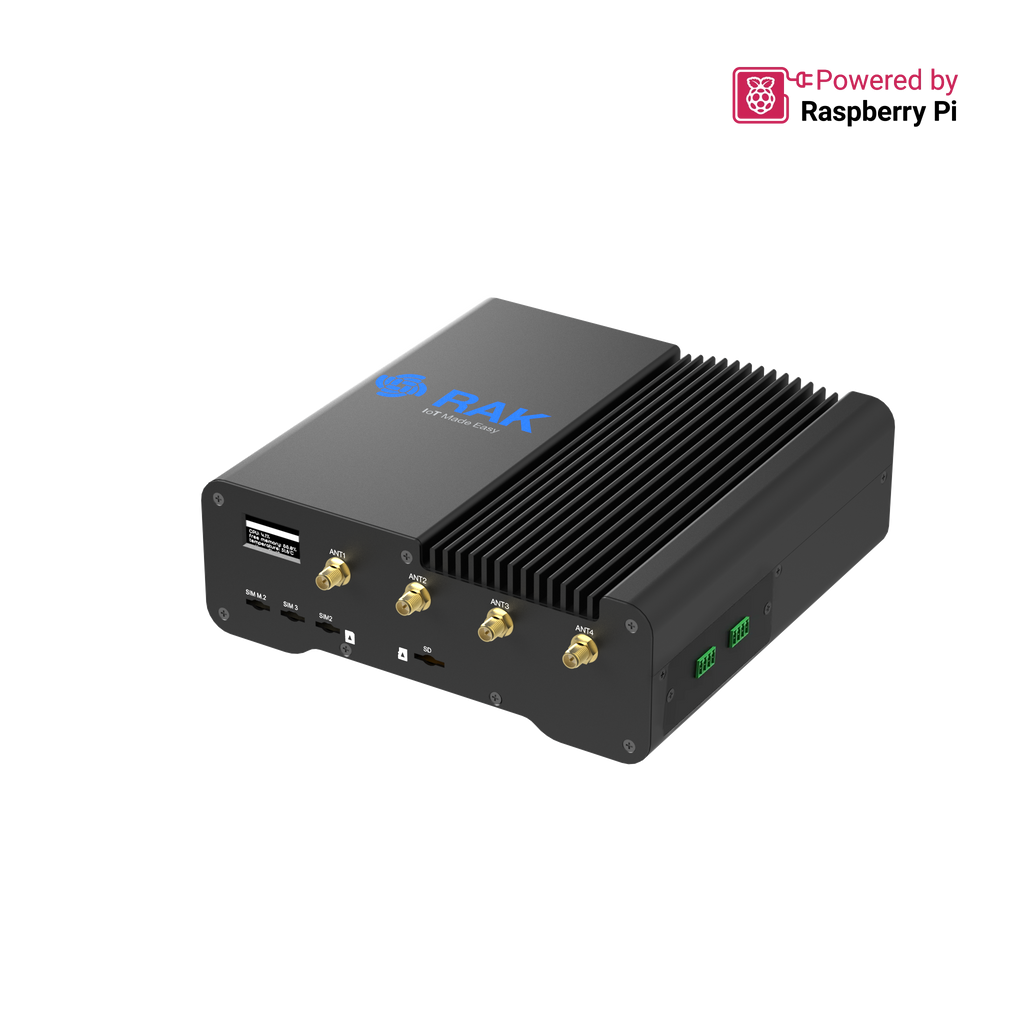

What Is WisGate Connect Smart Building

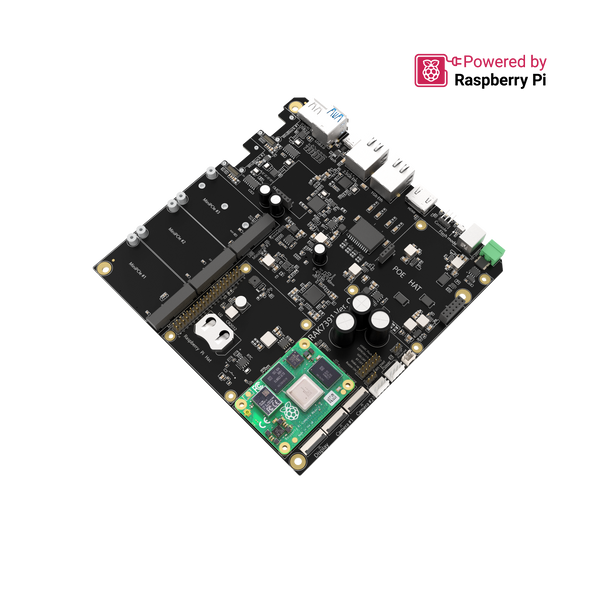

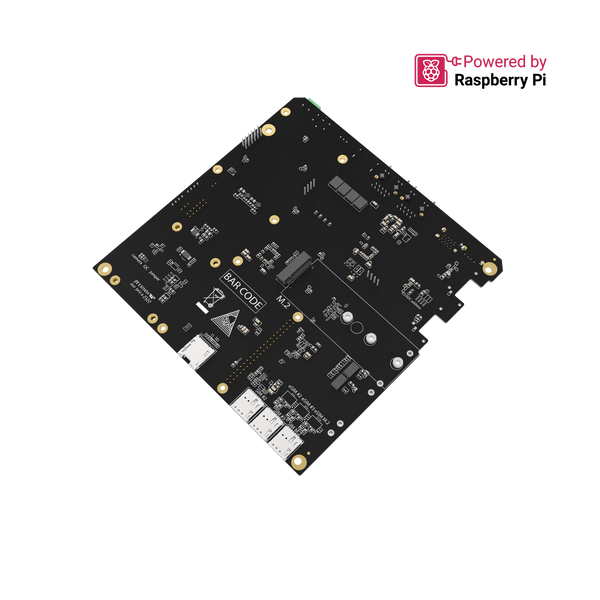

WisGate Connect Smart Building is a Raspberry Pi CM4-based IoT gateway built around the RAK7391 carrier board for smart buildings, smart homes, and office environments. It connects appliances and building systems through LoRaWAN®, Zigbee, Bluetooth, BACnet IP, and KNX, helping teams manage mixed wired and wireless deployments from one compact edge device. Its PoE+ support reduces cabling, while the aluminum enclosure supports fanless passive cooling for quiet operation.
Why You Need WisGate Connect Smart Building
Building teams need a reliable way to connect devices, reduce installation complexity, and run local services without adding multiple gateways. This setup helps simplify deployments while keeping future expansion practical.
Why it's useful:
- Simpler deployment: Combines multiple building control needs into one manageable gateway.
- Cleaner installations: Reduces cable clutter and supports desktop, cabinet, or utility-room placement.
- Local processing: Runs applications near devices to reduce cloud dependency.
- Flexible scaling: Supports changing automation needs without replacing the full gateway setup.
Key Features of WisGate Connect Industrial
Hardware
Check the WisGate Connect Compatible Hardware Documentation.
|
Category |
Hardware Details |
|
Compute Module Support |
Accepts the complete range of Raspberry Pi Compute Module 4 (CM4) modules |
|
WisBlock Expansion |
2 WisBlock IO connectors |
|
Expansion Slots |
3 mPCIe slots and 1 M.2 B-Key interface |
|
Power Input |
Flexible power supply options, including DC terminal, Phoenix terminal, and optional PoE |
|
Display Output |
HDMI 2.0 connector and MIPI DSI display FPC connector |
|
Ethernet |
1 GB Ethernet with optional PoE support and 2.5 GB Ethernet |
|
USB |
1 USB 2.0 port, 2 USB 3.0 ports, and Type-C USB socket for updating the CM4 |
|
Storage |
Micro SD card socket for CM4 Lite modules |
|
Camera Interface |
2 MIPI CSI-2 camera FPC connectors |
|
Cooling |
Standard fan connector compatible with 12 V and 5 V fans through jumper cap configuration |
|
Power Output |
Output power connector with 5 V and 12 V output when using PoE |
|
Raspberry Pi HAT Support |
Raspberry Pi HAT connector |
|
Debugging |
Debug UART port |
|
RTC |
RTC with battery socket and wake-up support for CM4 |
|
Configuration |
Jumpers for Wi-Fi and BLE enable/disable, EEPROM write enable, and buzzer enable |
|
Enclosure |

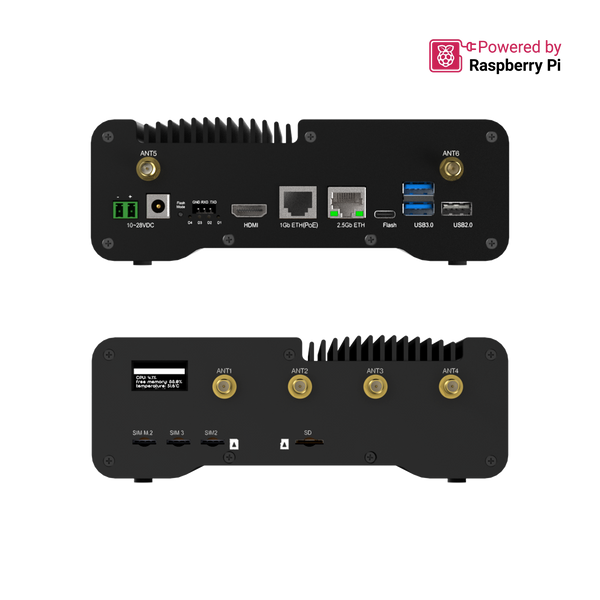

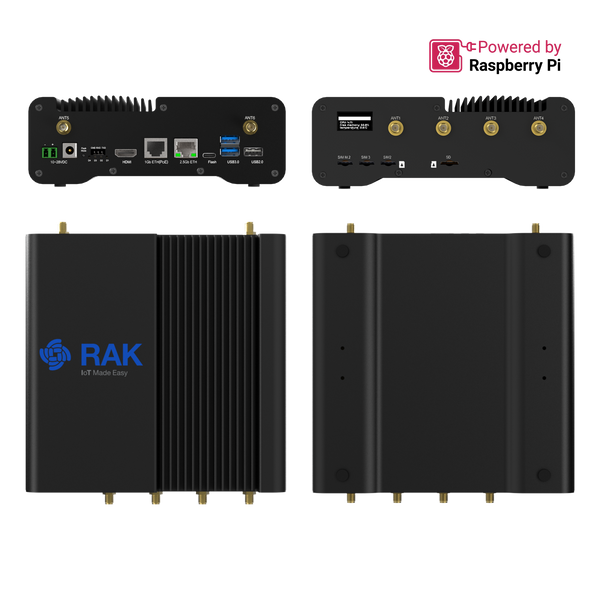

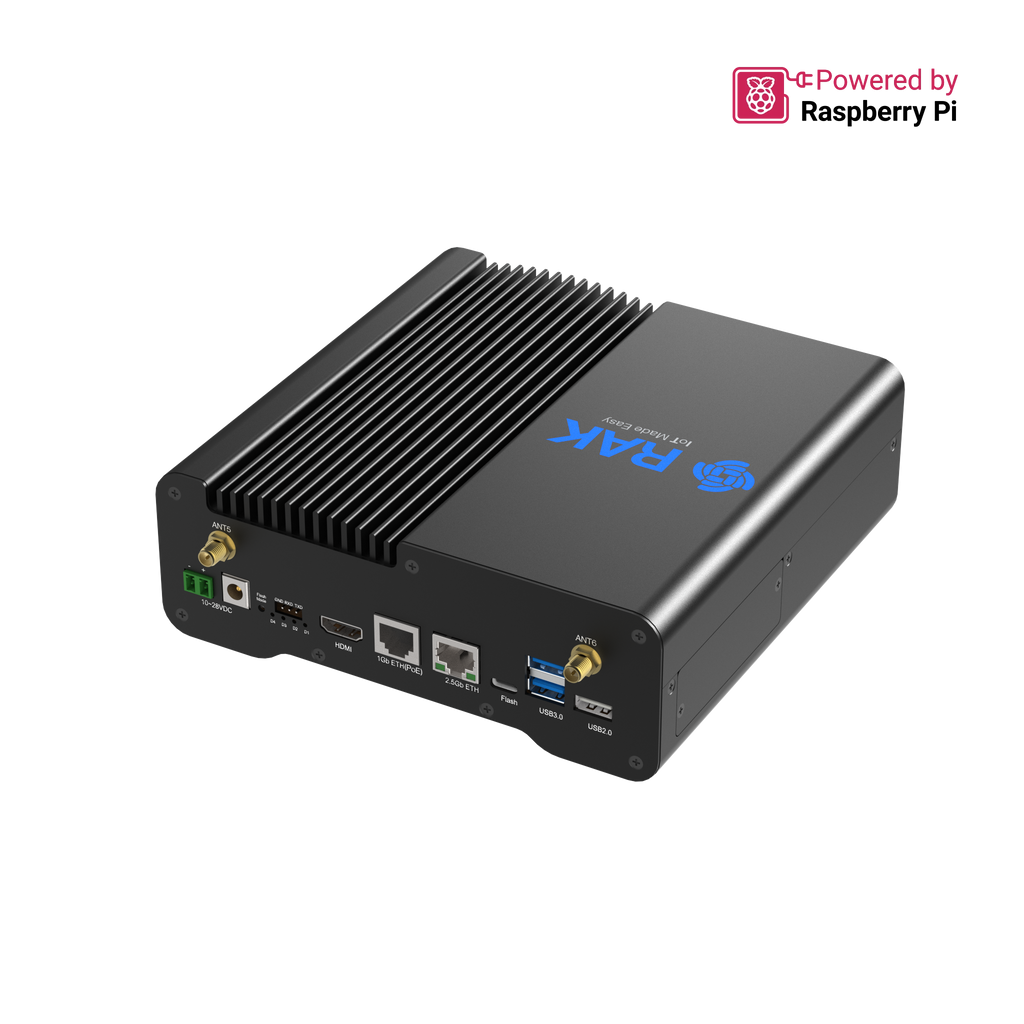

Ruggedized 1U rack-mountable sheet metal enclosure |
|
Status Display |
OLED screen for quick real-time information |
|
External Antenna Support |
Up to 6 SMA connectors |
Mounting & Installation
The device supports multiple installation methods, allowing flexible deployment across industrial and commercial environments.
Wall Mounting
WisGate Connect Smart Building supports direct wall mounting using the included mounting brackets. This enables flexible installation on walls or flat vertical surfaces, making it suitable for a wide range of indoor and semi-industrial deployments.
Wall mounting provides a reliable and straightforward installation method without requiring additional accessories.
|
Benefit |
Description |
|
Flexible Deployment |
Suitable for offices, utility rooms, industrial sites, and edge installations. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted on vertical surfaces for long-term operation. |
|
No Additional Accessories Required |
Wall mounting hardware is included for out-of-the-box installation. |
|
Versatile Positioning |
Allows installation in locations where DIN rail infrastructure is not available. |

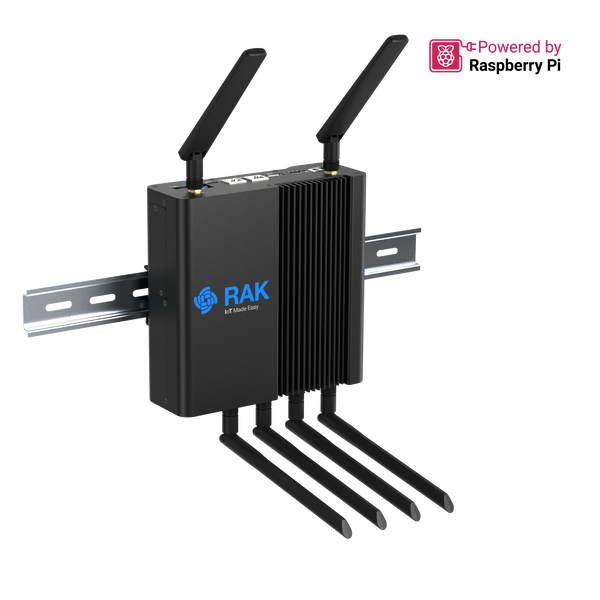

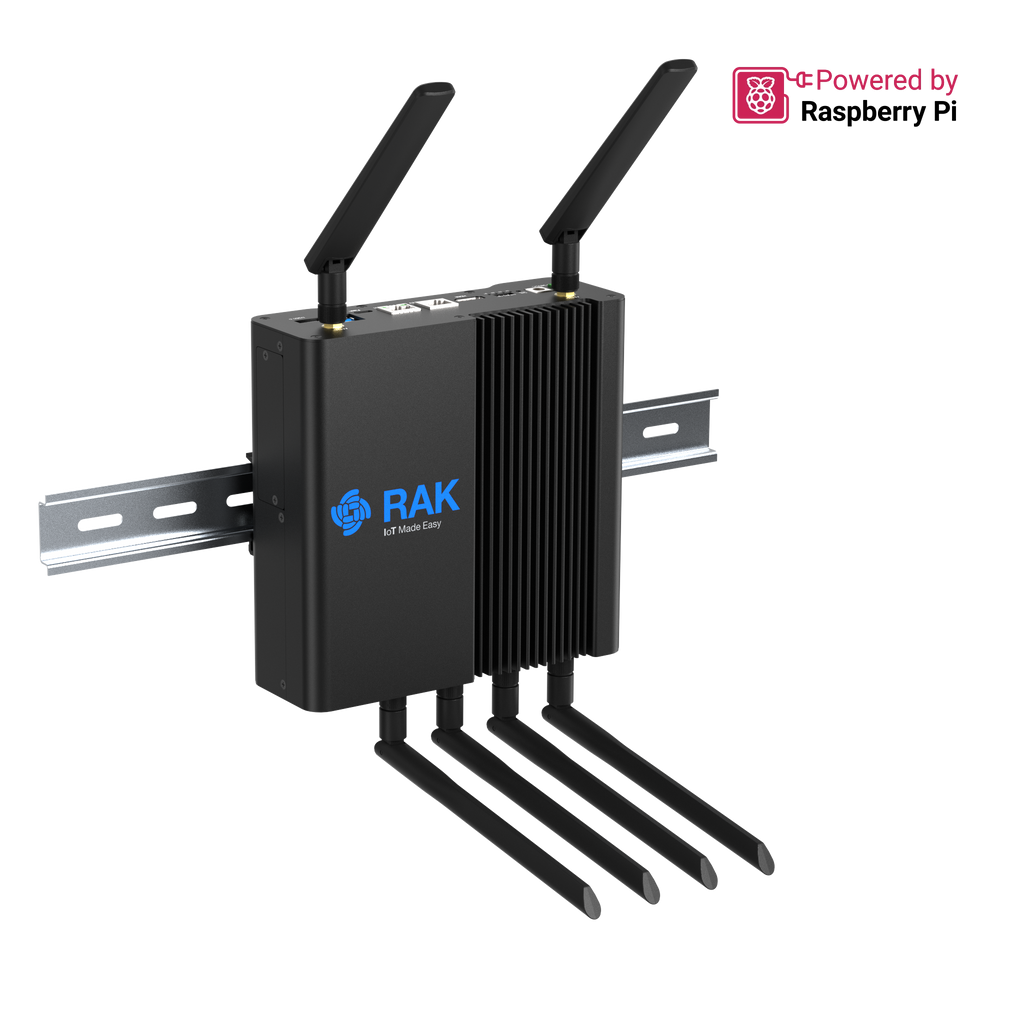

DIN Rail Mounting Support
WisGate Connect Smart Building supports installation on standard DIN rail systems (35mm DIN rail) using a DIN Rail Mounting Kit. This enables seamless integration into industrial control cabinets, electrical enclosures, and automation panels.
DIN rail mounting is widely used in industrial environments as it allows structured installation, efficient space utilization, and simplified maintenance.
|
Benefit |
Description |
|
Industrial-Ready Deployment |
Designed for integration into control cabinets and electrical panels. |
|
Secure and Stable Installation |
Ensures the device is firmly mounted and protected in demanding environments. |
|
Optimized Space Utilization |
Supports clean and organized layouts within enclosures. |
|
Service-Friendly Design |
Allows easy installation, removal, and maintenance. |
Software
We have prepared a custom Linux distribution for the WisGate Connect called RAKPiOS. The RAKPiOS is a fork of the Raspberry Pi OS with all the required drivers to use the device, some security changes, helper scripts and Docker included by default.
With the included rakpios-cli you can easily configure the network and deploy several IoT services from a curated list of docker containers available from the device.
Use Case Examples of WisGate Connect Smart Building
Teams can use WisGate Connect Smart Building to connect automation systems, monitor conditions, and test building improvements before wider deployment.
Use Case #1: Office Energy Monitoring Upgrade
A facility team had uneven device visibility, with baseline manual checks taking 40 minutes per floor. They installed WisGate Connect Smart Building, tested readings against meter logs for 14 days, cut review time by 65%, and achieved 96% repeatable data capture. Production notes showed 28/30 tested devices connected consistently.
Use Case #2: Smart Apartment Access and Sensor Trial
Maintenance staff managed separate access, sensor, and room-status systems, causing eight weekly follow-up visits. WisGate Connect Smart Building centralized the trial setup, verified performance through three controlled occupancy tests, reduced callbacks by 50%, and maintained 94% repeatability across 20 units. Production notes recorded stable yield after two configuration passes.
What’s in the Box

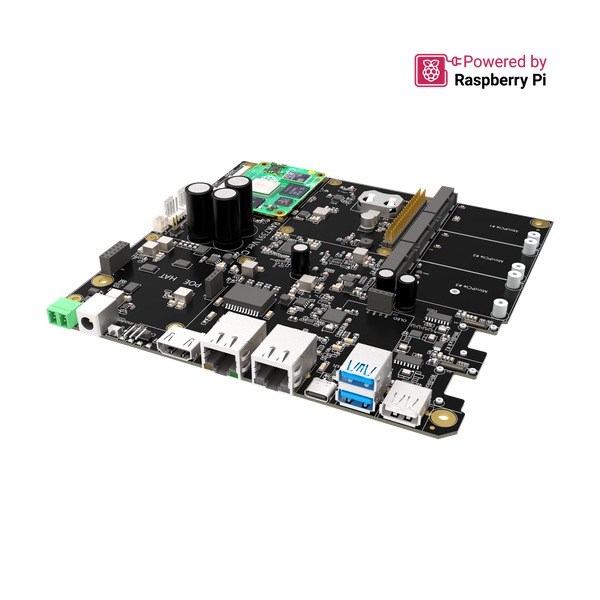

- 1pc RAK7391 CM4 carrier board
- 1pc 12V2A power supply
- Set of jumpers
- Phoenix male connector
- Set of standoffs and screws to secure the board
- Set of screws for the mPCIe, M.2 and WisBlock slots

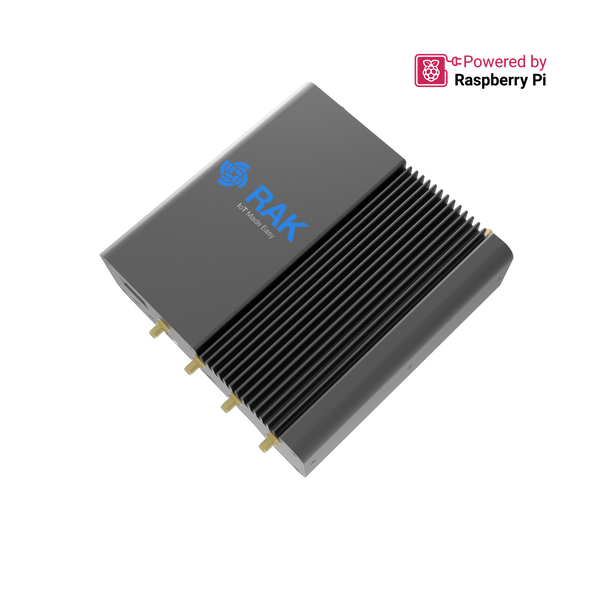

- 1pc Aluminum enclosure with OLED screen
- Set of screws for the enclosure
- Set of rubber feet
- Set of SMA caps
- Set of SMA pigtails
- 1 pc 2.4G Antenna (Only Dual Band Gateway Variant)
- 1 pc GPS Antenna 27dBi
- 1 pc LoRa Antenna
- 1 pc WiFi Antenna (Only choose WiFi Module Variant)
- 1 pc Wall Mounting Kit
- 2 pc Wall Mount brackets
- 4 pc Wall anchors
- 4 pc Self-tapping screws
- 1 pc DIN Mounting Kit
- 2 pc DIN Mount brackets
- 4 pc M3 fixing screws
How to Get Started with WisGate Connect Smart Building
