WisGate Edge Lite 2 Verizon

What Is WisGate Edge Lite 2 Verizon?

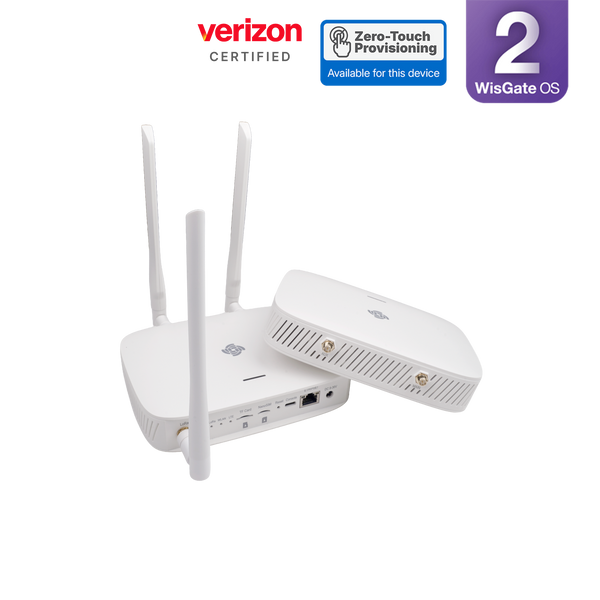

The WisGate Edge Lite 2 Verizon (RAK7268CV2-V) is an 8-channel indoor gateway for LoRaWAN designed for deployments on the Verizon cellular network in the United States. It combines Ethernet, WiFi, and Verizon-certified LTE Cat 4 connectivity with WisGateOS 2 and WisDM remote management for secure, reliable enterprise deployments.

With flexible power options, including PoE and 9-36V DC input, plus LTE configurations (with external antenna), the RAK7268CV2-V adapts to various deployment scenarios.

Why Choose the Verizon Version?

Choose the RAK7268CV2-V when Verizon certification is required for your indoor LoRaWAN deployment. It supports approved connectivity on the Verizon US network while providing flexible backhaul, power, antenna, operating system, and remote management options.

View in Verizon Business Device Showcase

• Verizon-certified LTE Cat 4
• Simplifies Verizon procurement and deployment approval
• Designed for US Verizon cellular connectivity
• Ethernet, WiFi, and LTE backhaul
• 9–36 V DC input
• External LTE antenna for improved coverage
• WisGateOS 2
• WisDM support

Best Fit for WisGate Edge Lite 2 Verizon

RAK7268CV2-V is especially useful for teams that need to:

• Deploy LoRaWAN coverage inside smart buildings, offices, equipment rooms, and facilities
• Connect indoor sensors for energy monitoring, air quality, occupancy, leak detection, security, or equipment status
• Use Ethernet, WiFi, or LTE depending on site infrastructure
• Power the gateway through PoE or the DC input supported by the selected model
• Manage gateways remotely through WisDM
• Use WisGateOS 2 for configuration, security, and gateway operation
• Connect to common LoRaWAN network servers, such as ChirpStack, The Things Stack, AWS IoT Core for LoRaWAN, Actility, and Loriot

Key Features of Verizon-Certified RAK7268CV2-V

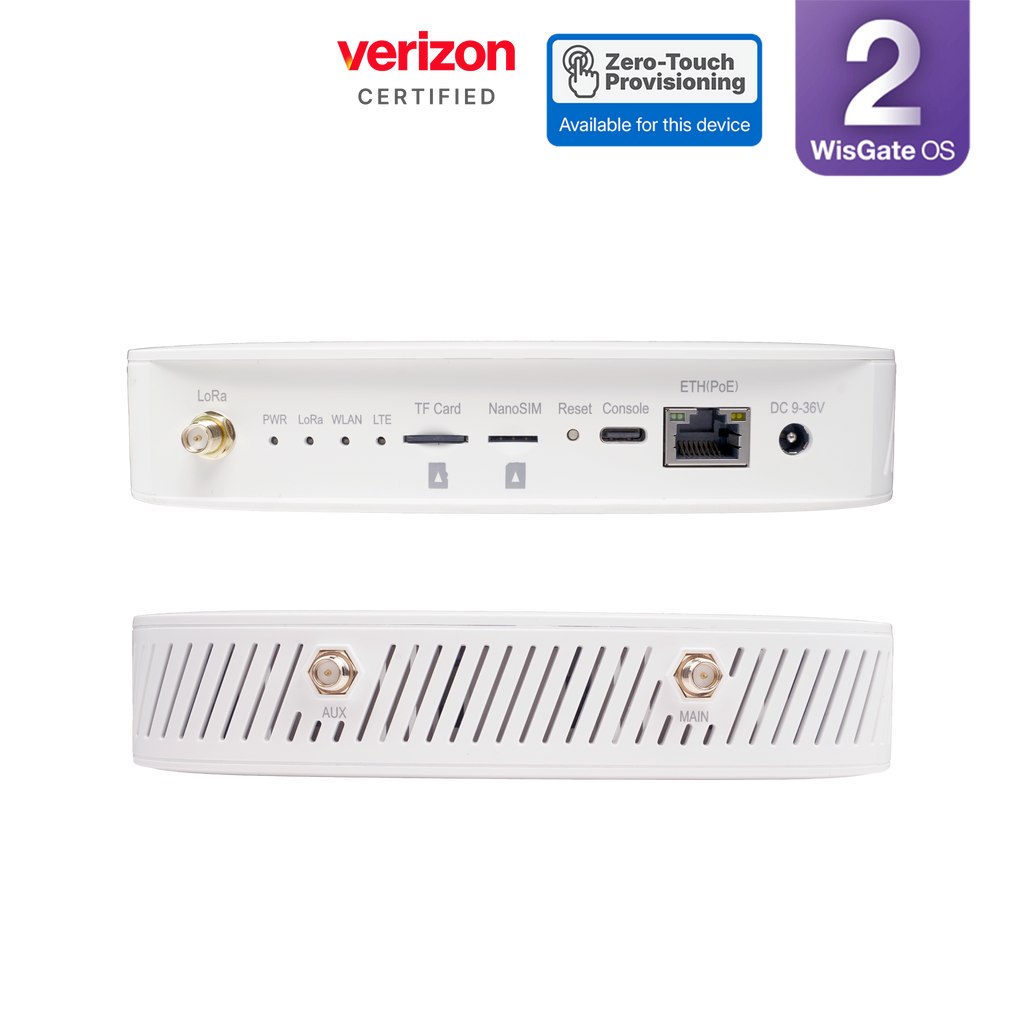

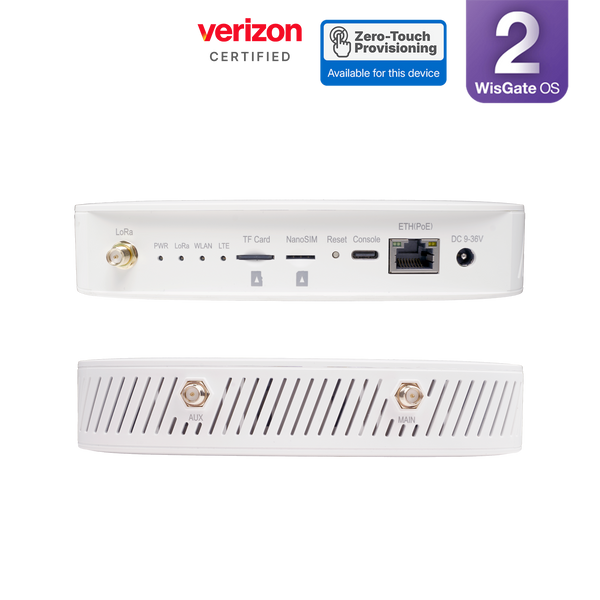

• Hardware
• 9–36V DC Input – Available on the RAK7268CV2-V Verizon-certified variant
• External LTE Antenna – For improved connectivity in low-signal environments
• 8 LoRa® Channels – Reliable long-range wireless communication
• 2.4 GHz WiFi AP Mode – Enables easy local configuration
• 100M Base-T Ethernet with PoE – Wired connectivity for stable networking
• Multi Backhaul Connectivity – Ethernet, WiFi, and Verizon-certified LTE Cat 4 for resilient connectivity
• RP-SMA LoRa Antenna Connector – Supports a detachable LoRa antenna for easy replacement or antenna upgrades.
• Breathing LED Indicator – Provides real-time status updates
• Certifications – RAK7268CV2-V meets industry standards for safety, reliability, and regulatory compliance. See the full list of certifications.
• Software
• WisGateOS 2 – Unified OS with enhanced UI and custom extension add-ons.
• Built-in LoRa Network Server – Supports LoRaWAN 1.0.3.
• Supports Basics Station & Packet Forwarder – Flexible network compatibility.
• LoRa Frame Filtering (Node Whitelisting) – Ensures efficient network traffic management.
• Secure MQTT v3 Bridging with TLS Encryption – Protects LoRaWAN data communications.
• Supports popular LoRaWAN Network Servers – TTI, AWS IoT, Actility, Loriot, Chirpstack, and others
• LoRa Frame Buffering in Packet Forwarder Mode – Ensures no data loss during network failures.

Looking for the standard WisGate Edge Lite 2?

If Verizon certification isn't required, see the WisGate Edge Lite 2 (RAK7268V2 / RAK7268CV2).

Network Server and Platform Compatibility

The Verizon-certified WisGate Edge Lite 2 is designed for flexible LoRaWAN deployment. It can operate with RAK’s built-in LoRa Network Server or connect to external LoRaWAN network servers depending on the project architecture.

Compatible platforms and protocols include:

• Built-in LoRa Network Server
• UDP Packet Forwarder
• Basics Station
• MQTT Bridge
• Secure MQTT with TLS encryption
• ChirpStack
• The Things Stack / The Things Network
• AWS IoT Core for LoRaWAN
• Actility
• Loriot
• And others

This flexibility makes WisGate Edge Lite 2 Verizon suitable for private LoRaWAN networks, cloud-connected IoT projects, and enterprise sensor deployments.

Indoor Coverage and Deployment Expectations

Indoor LoRaWAN performance depends on building layout, wall materials, antenna placement, gateway location, interference, and sensor distribution. For best results, place RAK7268CV2-V in a central and elevated indoor location with minimal obstruction around the LoRa antenna.

Before final installation, test sensor communication across key rooms, floors, or facility zones and adjust gateway placement as needed. Use Field Tester Solutions to confirm coverage and adjust gateway placement before final mounting.

Deployment tips:

• Place the gateway away from metal cabinets, dense walls, and enclosed utility boxes when possible.
• Test sensor communication before final mounting.
• Use PoE when Ethernet and power are available from the same network path.
• Use LTE backhaul when Ethernet or WiFi is unavailable or unreliable.

• Use WisDM to configure, monitor, and manage deployed gateways remotely.
• Consider a rugged RAK gateway if the site needs outdoor installation or IP67 protection.

Deployment Checklist for Indoor Gateways for LoRaWAN

Use Case Examples for WisGate Edge Lite 2 Verizon

A flexible industrial gateway for LoRaWAN that provides reliable connectivity, secure data handling, and easy remote management across various IoT applications.

Use Case #1: Facility and Equipment Room Monitoring

A facility team installs RAK7268CV2-V in an equipment room to collect data from temperature, humidity, vibration, and utility sensors. The gateway helps transmit LoRaWAN sensor data to the chosen network server, making it easier to monitor critical spaces without frequent on-site checks.

Use Case #2: Remote Indoor Monitoring with LTE Backhaul

A remote site uses RAK7268CV2-V to connect LoRaWAN sensors where wired internet is limited. The external LTE antenna helps improve cellular reception in weak-signal areas, while LoRa frame buffering helps reduce data loss during temporary network interruptions.

Comparison Table: WisGate Edge Lite 2, WisGate Soho Pro, WisGate Soho Lite, and Other Indoor Gateways for LoRaWAN

WisGate Edge Lite 2 is a strong choice for indoor LoRaWAN deployments that need a compact 8-channel gateway with PoE, Ethernet, WiFi, optional LTE Cat 4, WisGateOS 2, WisDM, and flexible network server compatibility. It is especially useful for smart buildings, offices, facilities, equipment rooms, industrial IoT, private LoRaWAN networks, and remote monitoring applications.

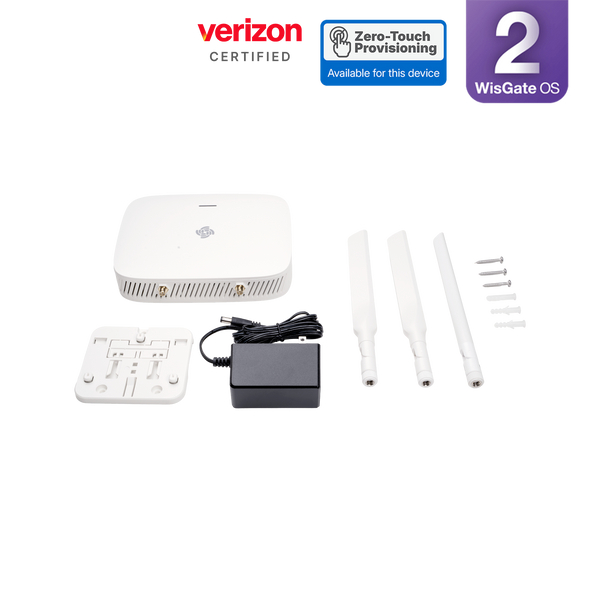

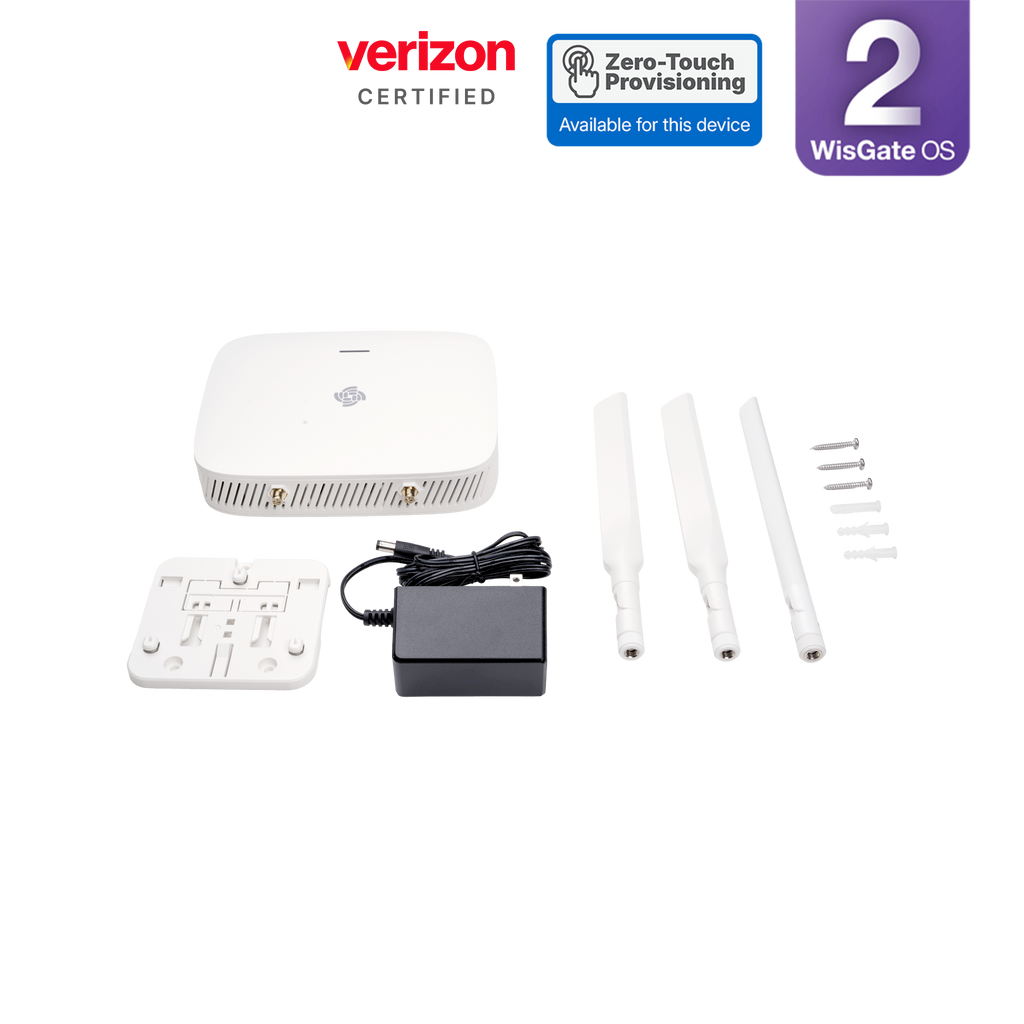

What’s in the Box

• 1 pc WisGate Edge Lite 2 Verizon RAK7268CV2-V
• 1 pc LoRa Antenna
• 1 pc Power Supply(12V 2A)
• 1 pc Mounting Bracket
• 1 pc Screw Kit for Mounting
• 2 pc LTE Antenna(RP-SMA Male Connector)
• Quick Start Guide, Datasheet, and LoRa Network Server Support
