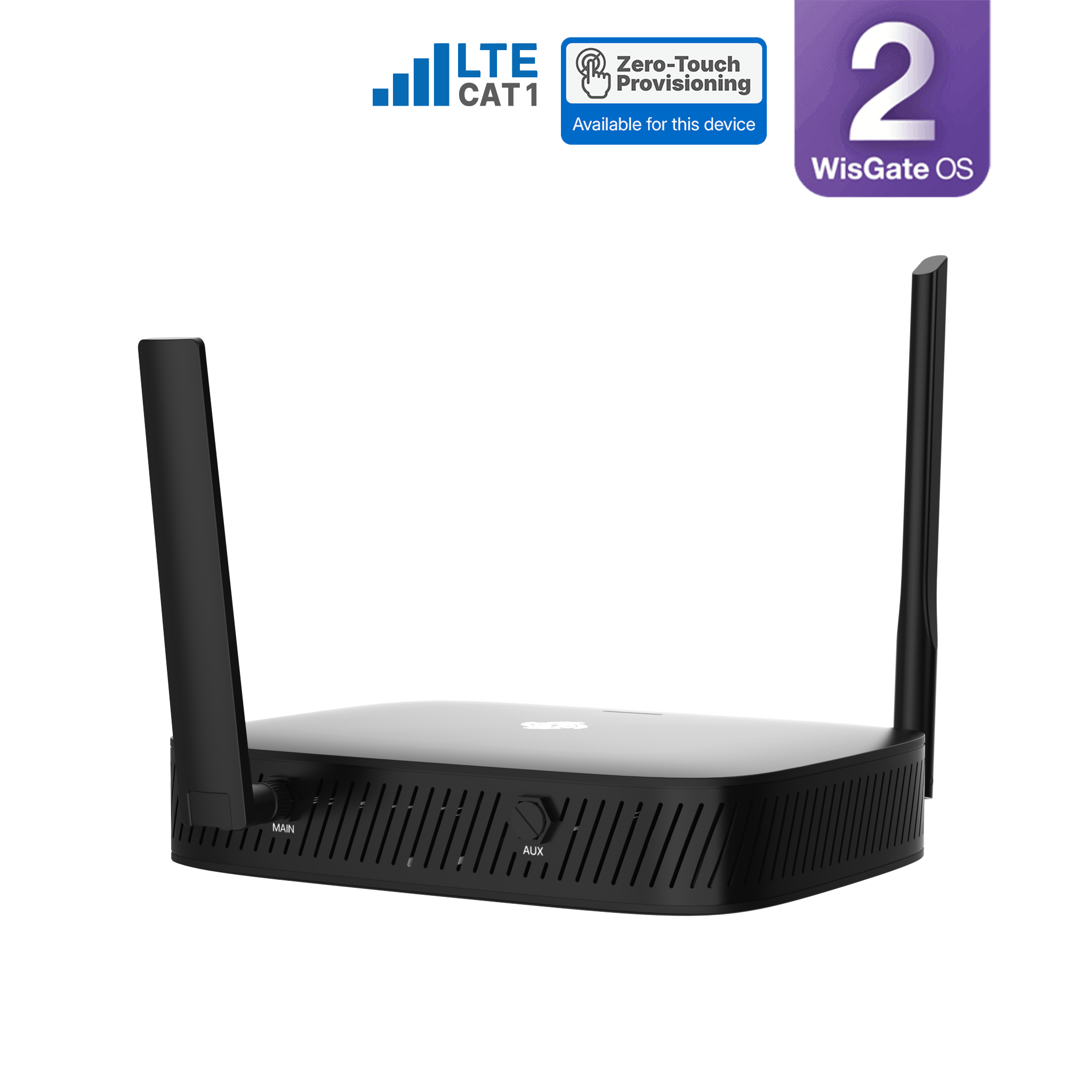

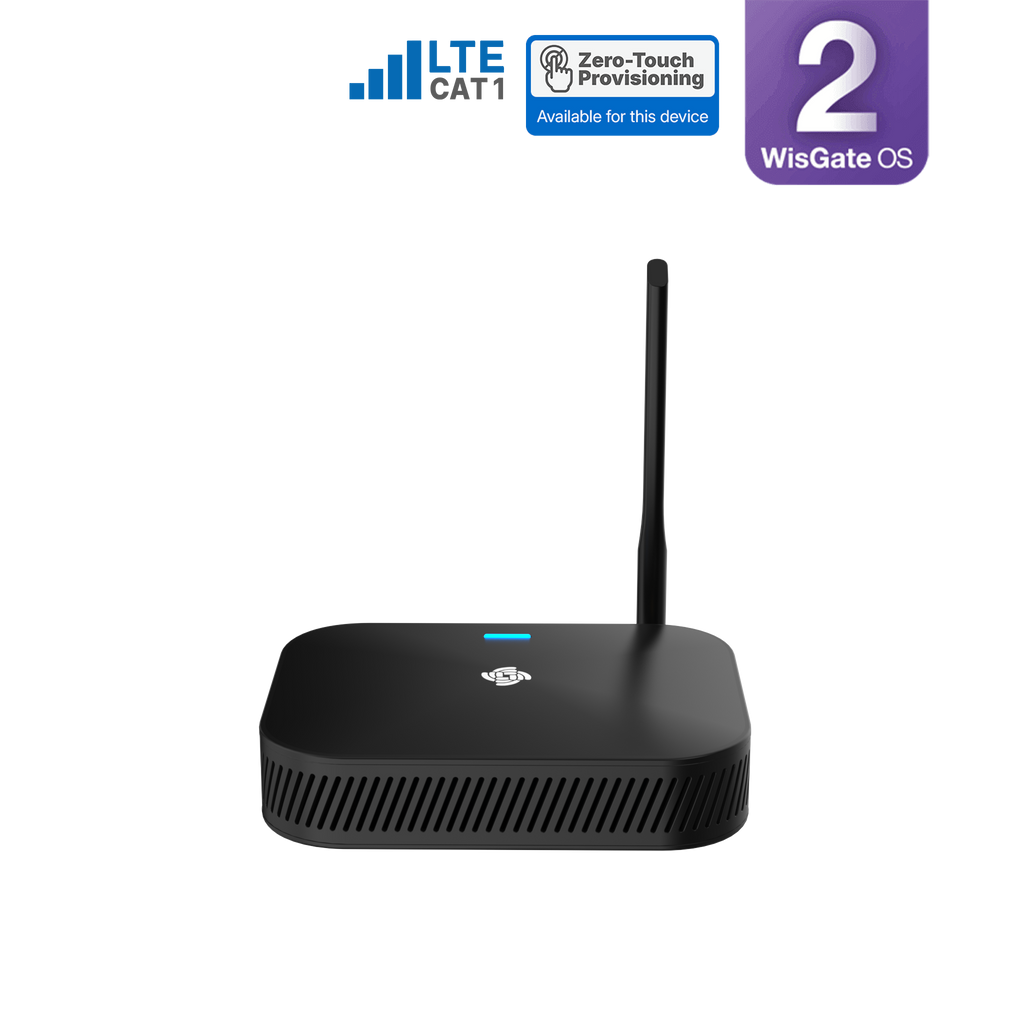

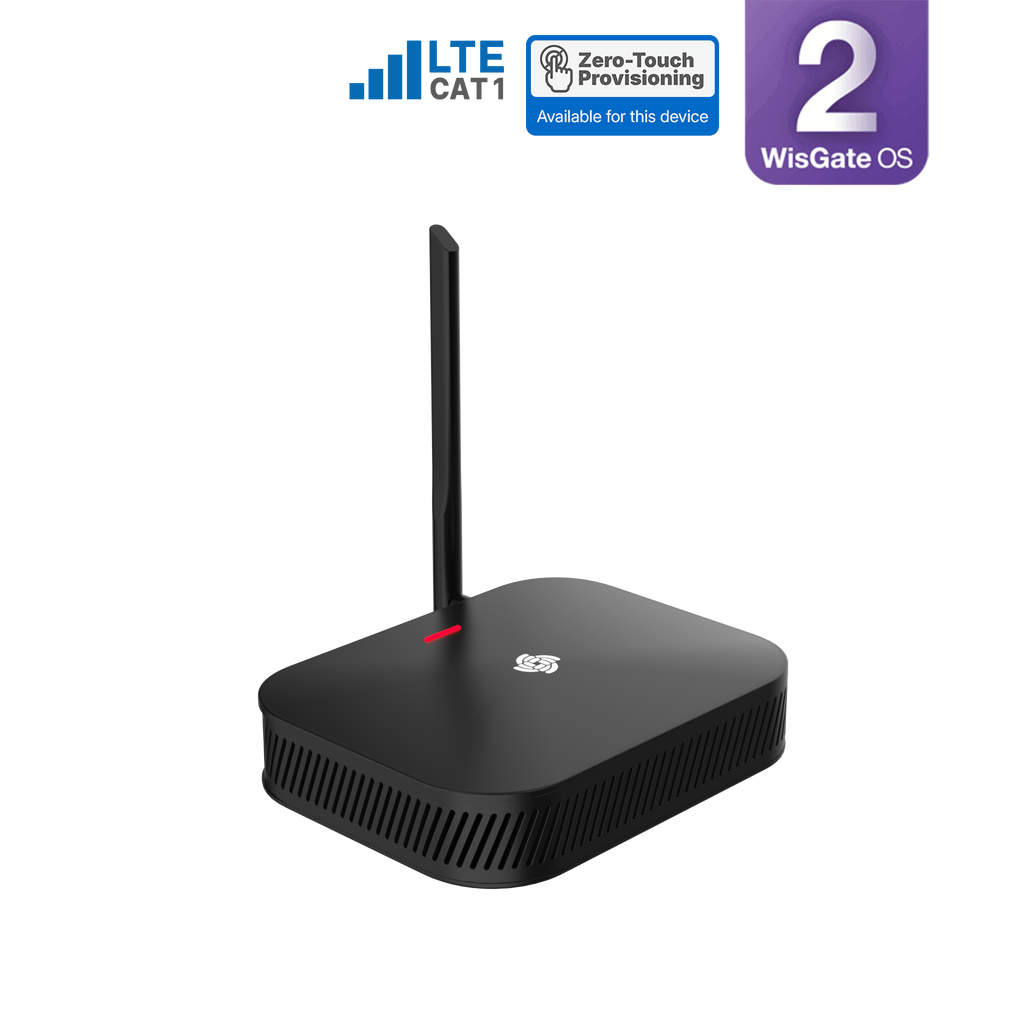

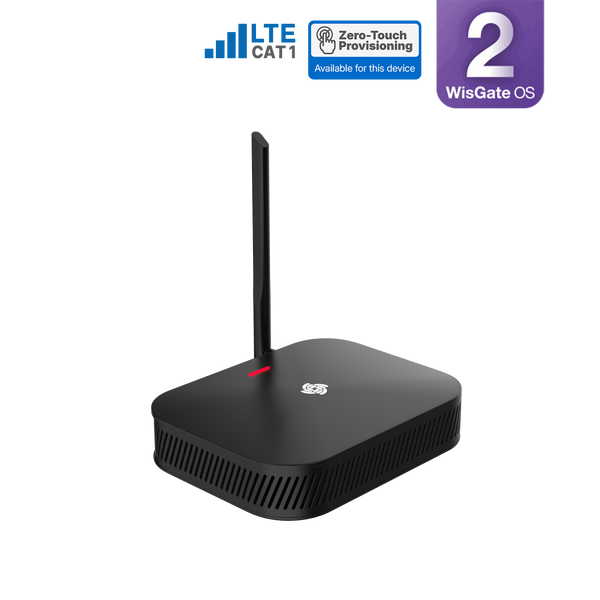

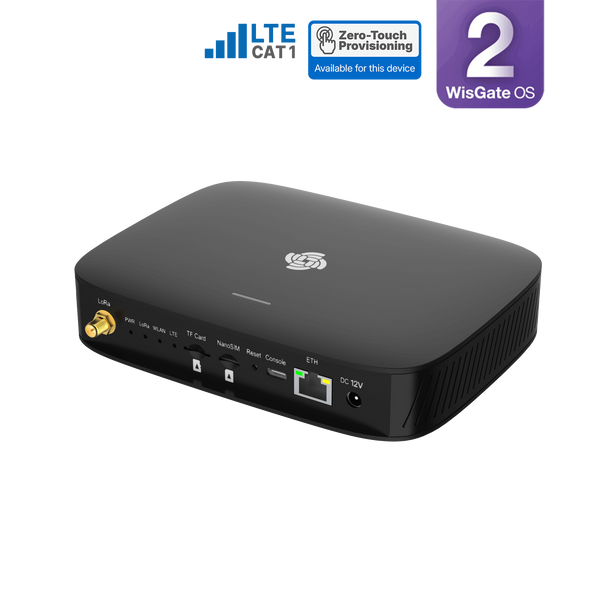

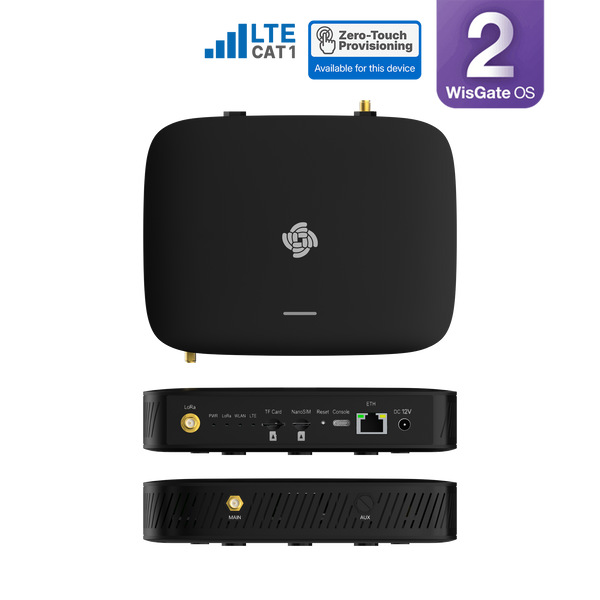

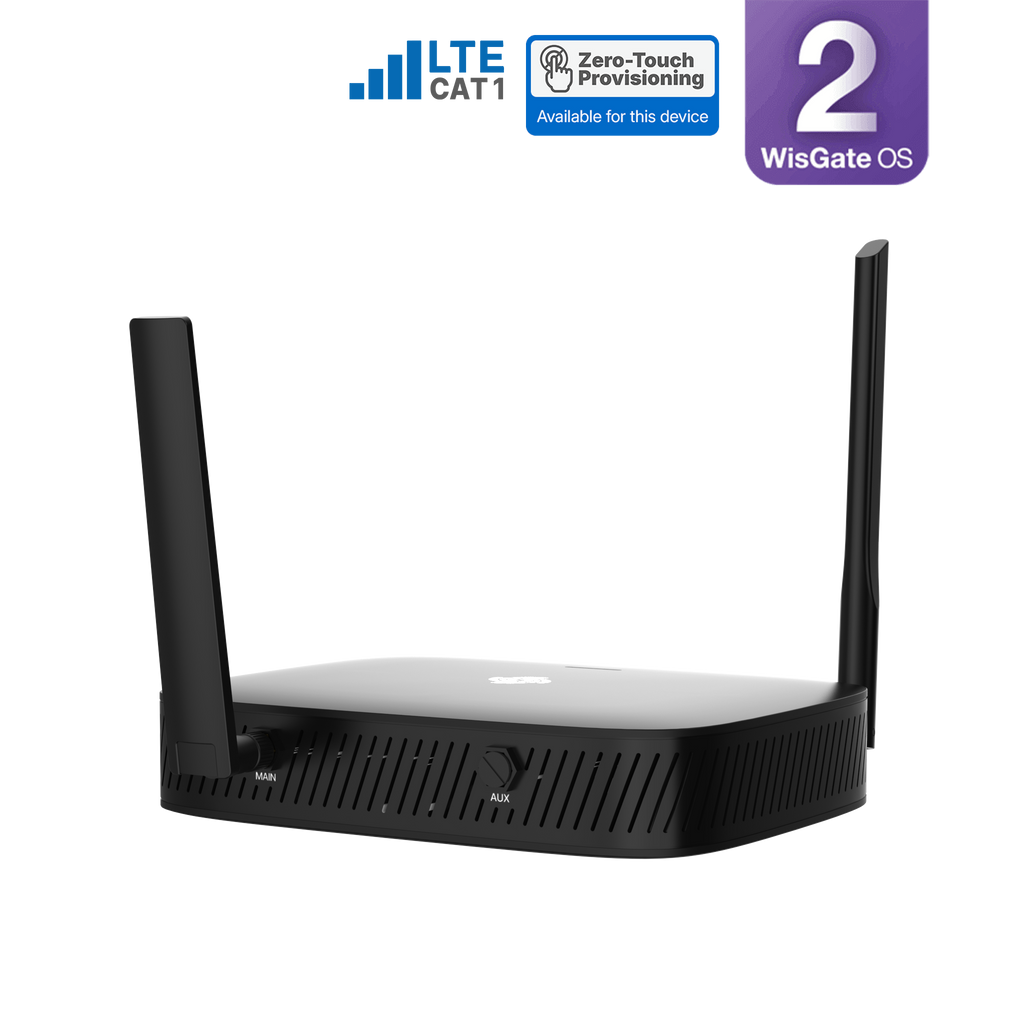

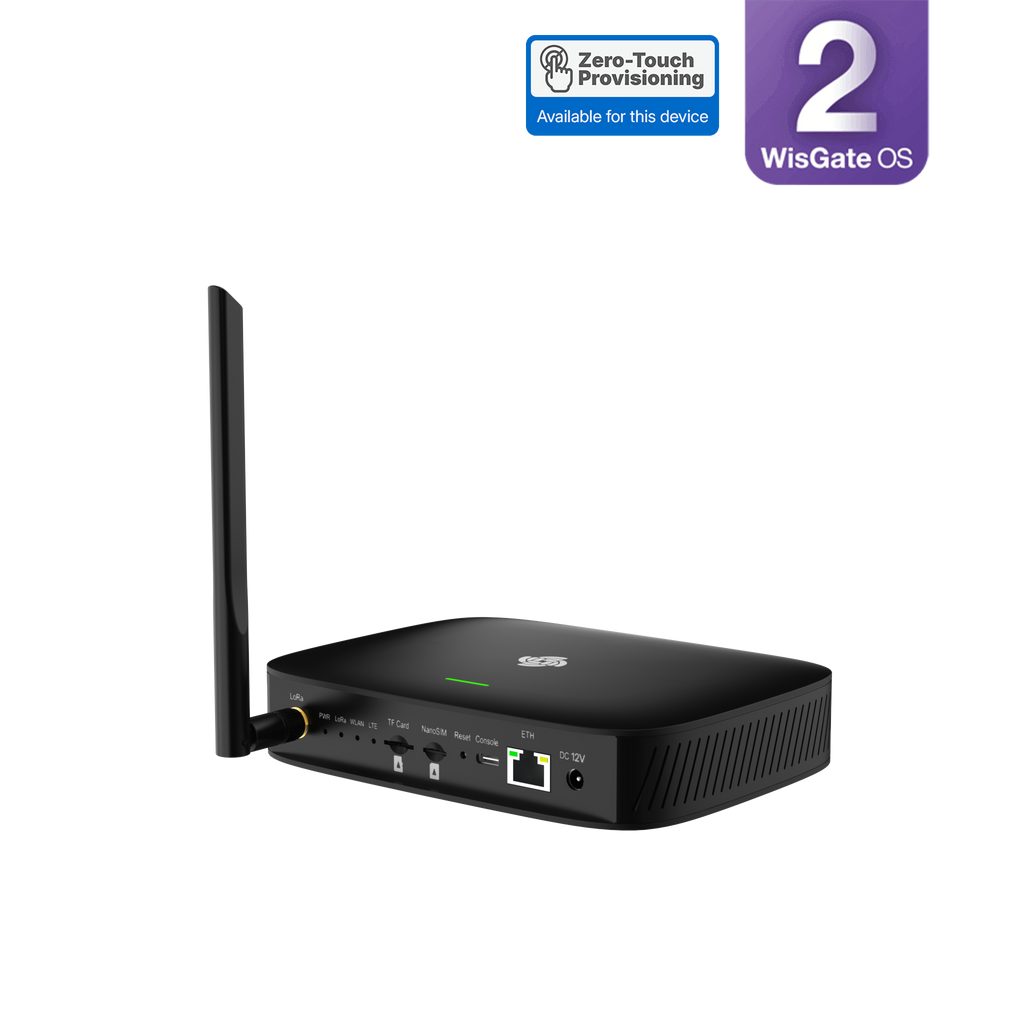

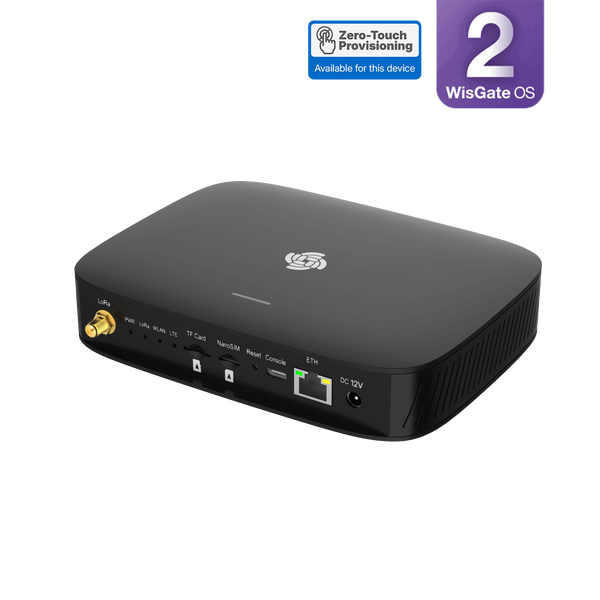

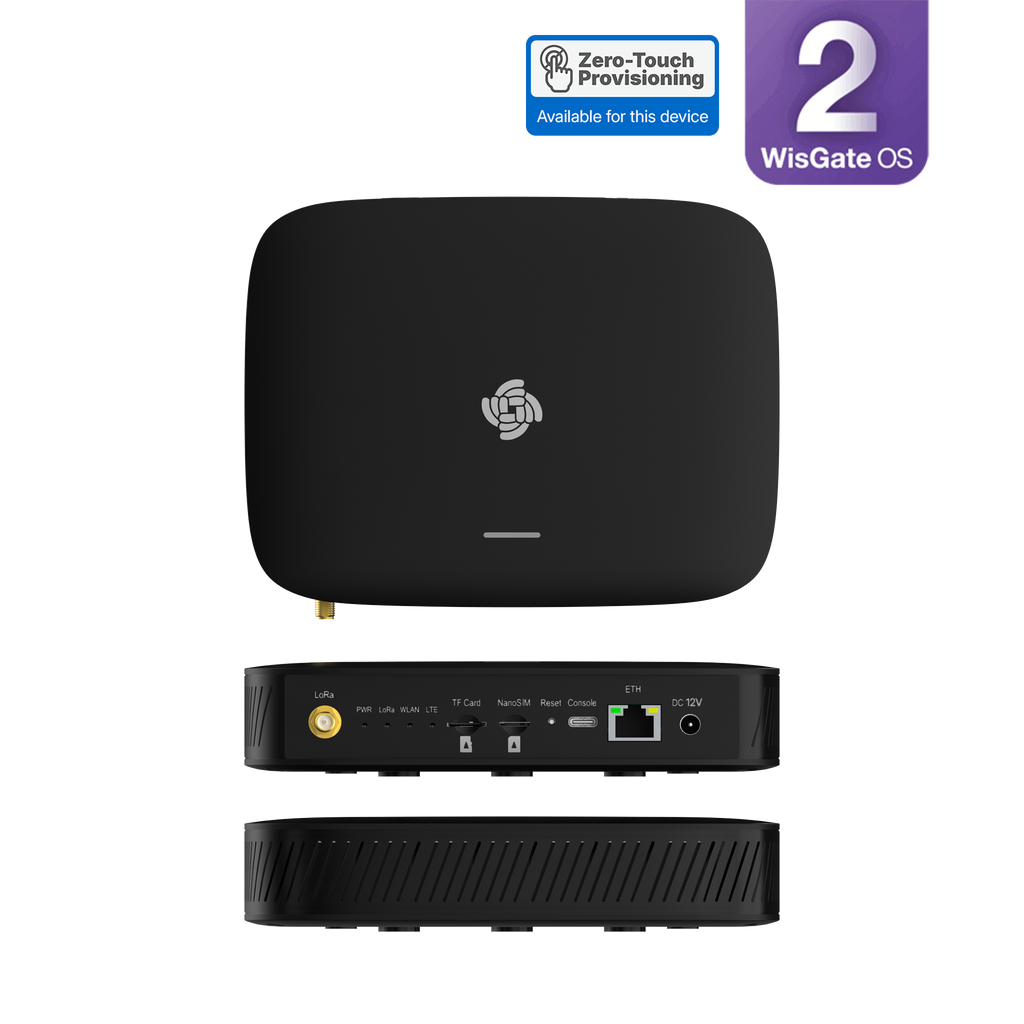

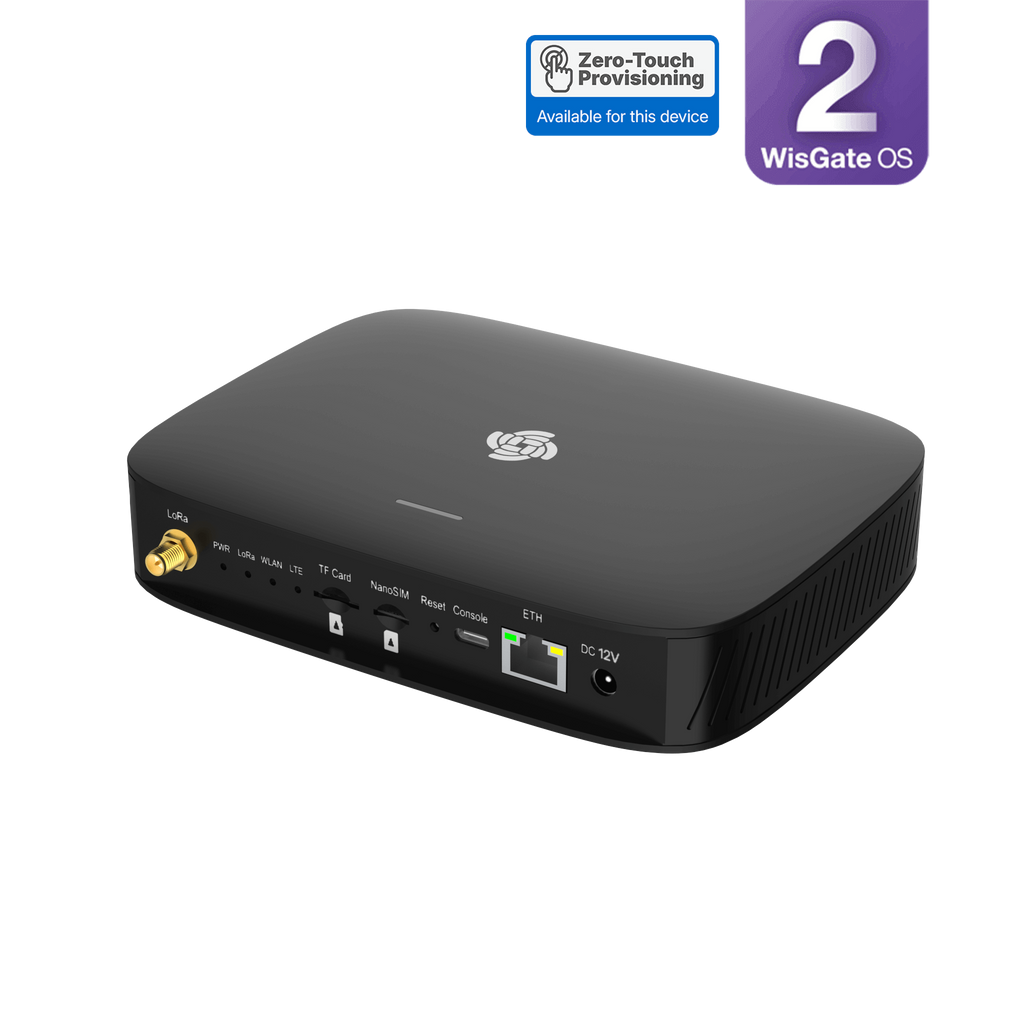

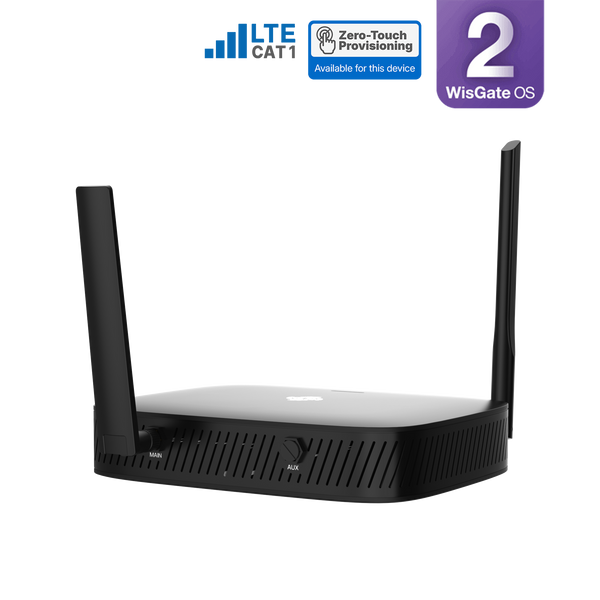

WisGate Soho Lite Gateway

8-Channel Indoor Gateway for LoRaWAN®

RAK7266

SKU:715205
Regular price $139.00 $0.00
Variant prices start at $139.00 to $145.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



What Is WisGate Soho Lite Gateway RAK7266?

The WisGate Soho Lite is a compact, cost-effective Semtech SX1302/SX1303 gateway for LoRaWAN for small and medium indoor IoT deployments. It features Cat-1 LTE cellular connectivity, 12V DC input, and the option to select between a built-in or external LTE antenna, giving you full control over your installation preferences.

Designed for simplicity and reliability, the Soho Lite is ideal for expanding LoRaWAN coverage in smart buildings, small offices, and indoor sensor networks. It is powered by WisGateOS 2, ensuring quick setup, intuitive configuration, and seamless integration with WisDM for cloud-based device management.

Why You Need WisGate Soho Lite Gateway RAK7266

The RAK7266 gateway helps extend your LoRaWAN coverage quickly and cost-effectively.

Why it’s useful:

  • Flexible Connectivity Options Supports Cat-1 LTE, WiFi, and Ethernet for dependable IoT data transmission.
  • Fast and Simple Setup WisGateOS 2 makes configuration straightforward, even for first-time LoRaWAN users.
  • Compact for Indoor Use RAK7266 is a LoRaWAN gateway for smart offices, residential buildings, and other small-scale indoor environments.

Key Features of WisGate Soho Lite Gateway RAK7266

  • 8 uplink / 1 downlink LoRaWAN channels
  • LoRa Concentrator: Semtech SX1302/SX1303
  • Cellular: LTE Cat-1
  • WiFi: 2.4 GHz 802.11b/g/n
  • Ethernet Port: 1x 10/100 Mbps RJ45 (no PoE)

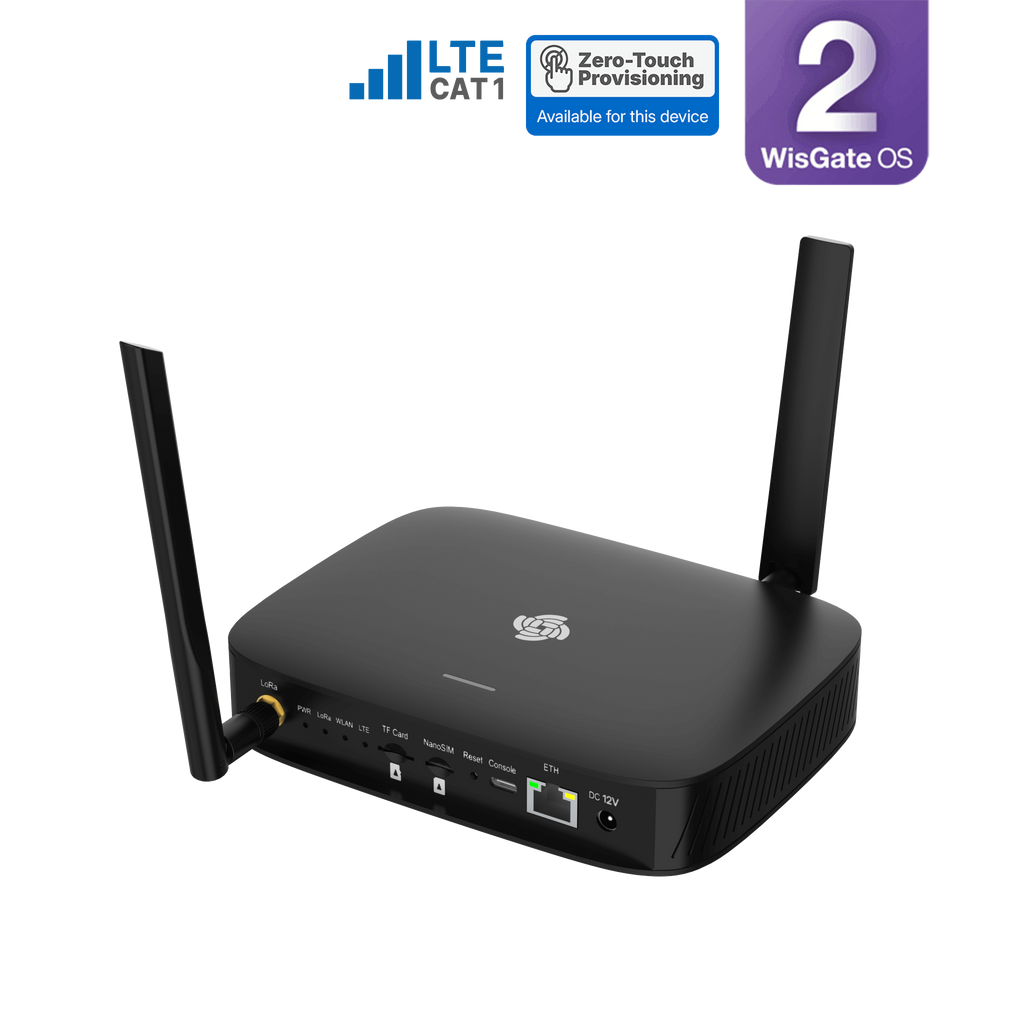

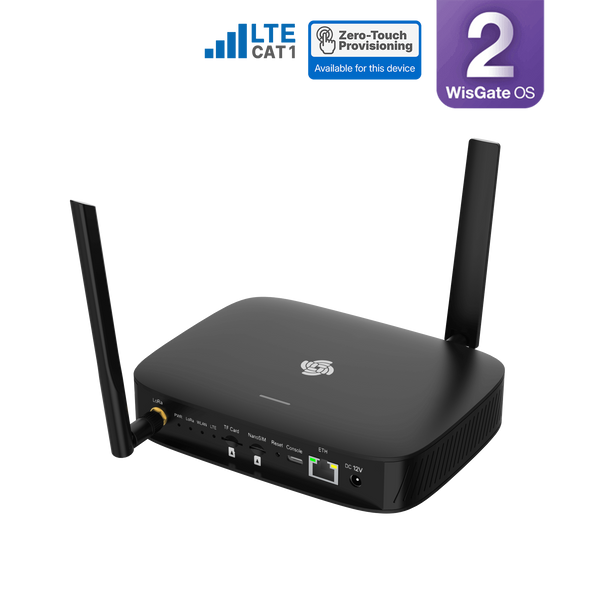

  • Flexible LTE antenna options (built-in or external)
  • Power input: 12V DC Adapter (included)
  • Fully integrated with WisDM for remote management

Key Benefits of WisGate Soho Lite Gateway RAK7266

This gateway offers reliable LoRaWAN performance for indoor environments where stable and efficient coverage are essential.

  • LoRaWAN channel support: 8 uplink and 1 downlink channels for steady, multi-sensor communication.
  • Standard power support: Operates on 12V DC input (adapter included) for straightforward power integration.

Use Case #1: Extending Coverage in Buildings

In older buildings with thick walls and no wired infrastructure, reliable wireless coverage can be tough to achieve. The WisGate Soho Lite provides seamless indoor LoRaWAN connectivity using LTE, making deployment fast and hassle-free.

Use Case #2: Facility Monitoring with Cloud Management

Small facility managers often need to monitor temperature, air quality, and water leaks across different rooms. Its compact form factor and cloud management allow sensor placement anywhere with centralized monitoring.

Comparison Table: WisGate Edge Lite 2, WisGate Soho Pro, and WisGate Soho Lite

WisGate Edge Lite 2 and Soho Lite are compact, indoor-friendly gateways with PoE and LTE, while Soho Pro is rugged, supports broader power input and outdoor IP67 use. Only Edge Lite 2 supports Ethernet and PoE together. Here's the table breakdown for deeper comparison.


WisGate Soho Lite (RAK7266)

WisGate Edge Lite 2 (RAK7268V2/CV2)

WisGate Soho Pro (RAK7267)

LoRa Channels

8

8

8

LoRa Chipset

SX1302/SX1303*

SX1302

SX1303

Backhaul Options

Ethernet, WiFi, LTE

Ethernet, WiFi, LTE

WiFi, LTE

Cellular Module

Cat-1 LTE

Cat-4 LTE

Cat-1 LTE

WiFi Support

2.4 GHz (AP + Client)

2.4 GHz (AP + Client)

2.4 GHz (AP + Client)

Ethernet

1x 10/100 Mbps

1x 10/100 Mbps

No

PoE Support

No

Yes (802.3af/at)

No

Power Supply

12V DC

12V DC(9~24V DC*) or PoE

9~36V DC or Battery Plus

Enclosure & IP Rating

Plastic, IP30 (Indoor)

Plastic, IP30 (Indoor)

UV stabilized ABS, IP67 (Indoor/outdoor)

Dimensions (mm)

166 x 127.5 x 36

166 x 127.5 x 36

180 x 130 x 60

Weight

0.3 kg

0.3 kg

0.66 kg

Operating Temp

-10 to 55 °C

-10 to 55 °C

-30 to 55 °C

Operating Humidity

0~95% RH

0~95% RH

0~95% RH

LoRaWAN Bands

EU868/IN865/RU864/US915/AU915/KR920/AS923-1/2/3/4/EU433/CN470*

Firmware

WisGateOS 2

WisGateOS 2

WisGateOS 2

Management Platform

WisDM

WisDM

WisDM

LoRaWAN Feaures

UDP Packet Forwarder, Basics Station Forwarder, MQTT Bridge, Built-In NS, LBT*

Multi-WAN/Failover

Yes

Yes

Yes

* Features related to the model selection/sub-model

Applicable Use cases

Compact indoor projects with LTE fallback


Cost-effective small-scale IoT


Smart panels, testbeds, pilot networks, coverage optimization

Indoor deployments with Ethernet + PoE


SME IoT use cases needing Cat-4 LTE


Smart buildings, offices, industry

Harsh indoor/outdoor conditions (IP67)


Solar-powered or mobile setups (Battery Plus)


Farms, remote sites, agriculture, smart city


What’s in the Box

  • 1 pc RAK7266 Gateway
  • 1 pc LoRa Antenna
  • 1 pc Power Supply
  • 1 pc Mounting Bracket
  • 1 pc Screw Kit for Mounting
  • 1 pc LTE Antenna (only included with external LTE antenna variant)

How to Get Started with WisGate Soho Lite Gateway RAK7266

Frequently Asked Questions

Why should I choose the WisGate Soho Lite Gateway RAK7266?

  • Simplicity & Affordability: This compact LoRaWAN gateway offers core LoRaWAN features at a cost-effective pricing, ideal for small projects or new deployments.
  • Technical Flexibility: It uses the Semtech SX1302/SX1303 LoRa chipset for efficient radio performance, and the LTE Cat-1 module supports reliable cellular backhaul.
  • Antenna Options: Choose between a built-in or external LTE antenna based on your indoor coverage and signal strength needs.
  • Multiple Access Types: With WiFi and Ethernet, you have backup options if LTE isn’t stable.
  • Remote Fleet Management: Fully compatible with WisDM, RAKwireless’ cloud platform for managing multiple gateways from anywhere.

How do I set up the WisGate Soho Lite?

  1. Power the gateway using the included 12V DC adapter. If cellular is used, insert the SIM card before powering the gateway.
  2. Connect to the gateway's WiFi AP to access the WisGateOS 2 web interface.
  3. Configure your preferred connectivity method and set up the LoRaWAN part.
  4. Add the gateway to WisDM for remote management if desired.

How do I manage the gateway remotely?

  1. Create an account at https://wisdm.rakwireless.com/.
  2. Register your gateway using its EUI and Serial Number.
  3. From the WisDM dashboard, you can view status, update firmware, reboot, or change settings remotely.
