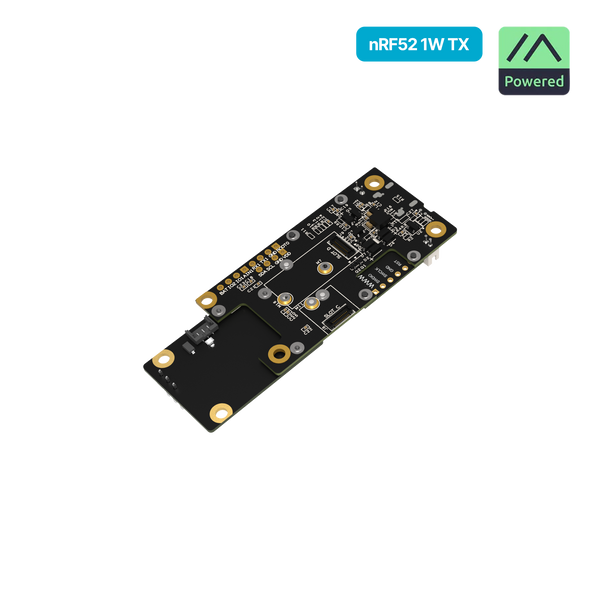

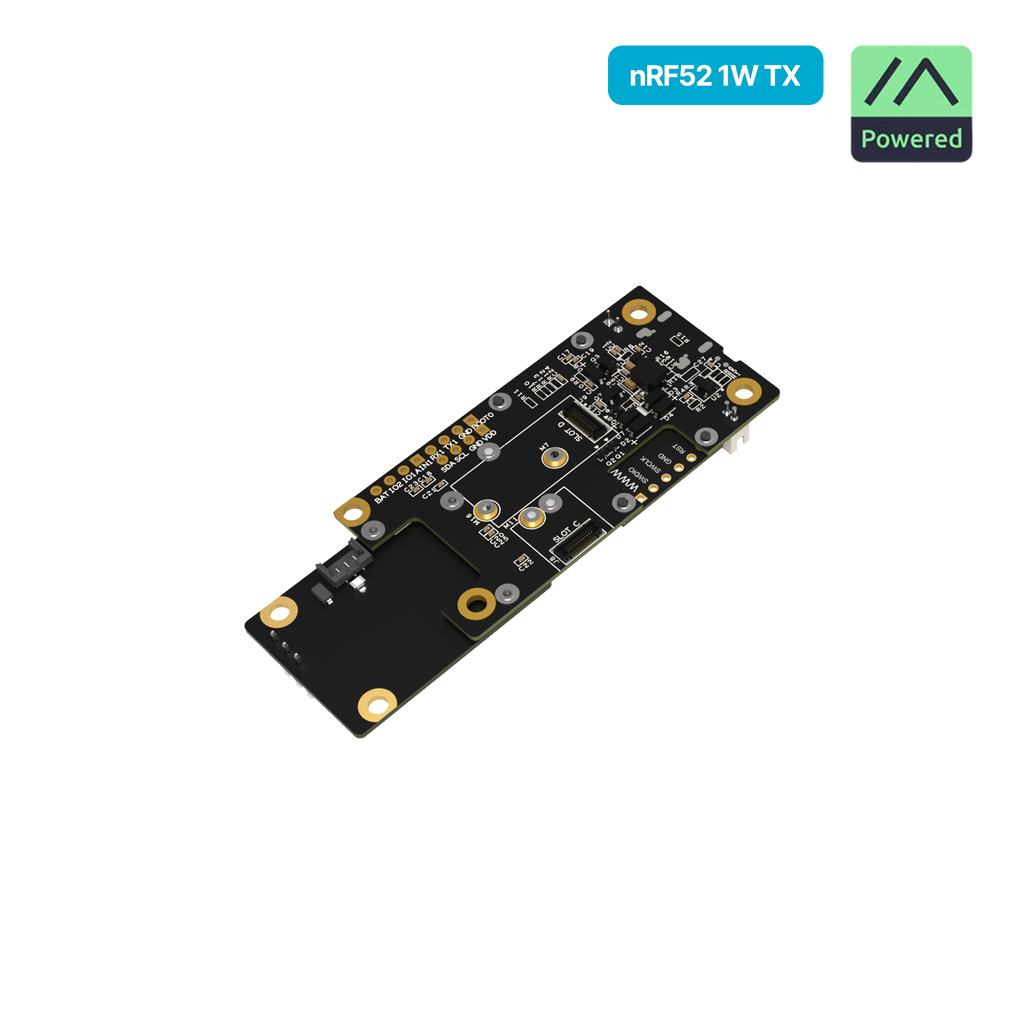

WisMesh 1W Booster Starter Kit

What is WisMesh 1W Booster Starter Kit?

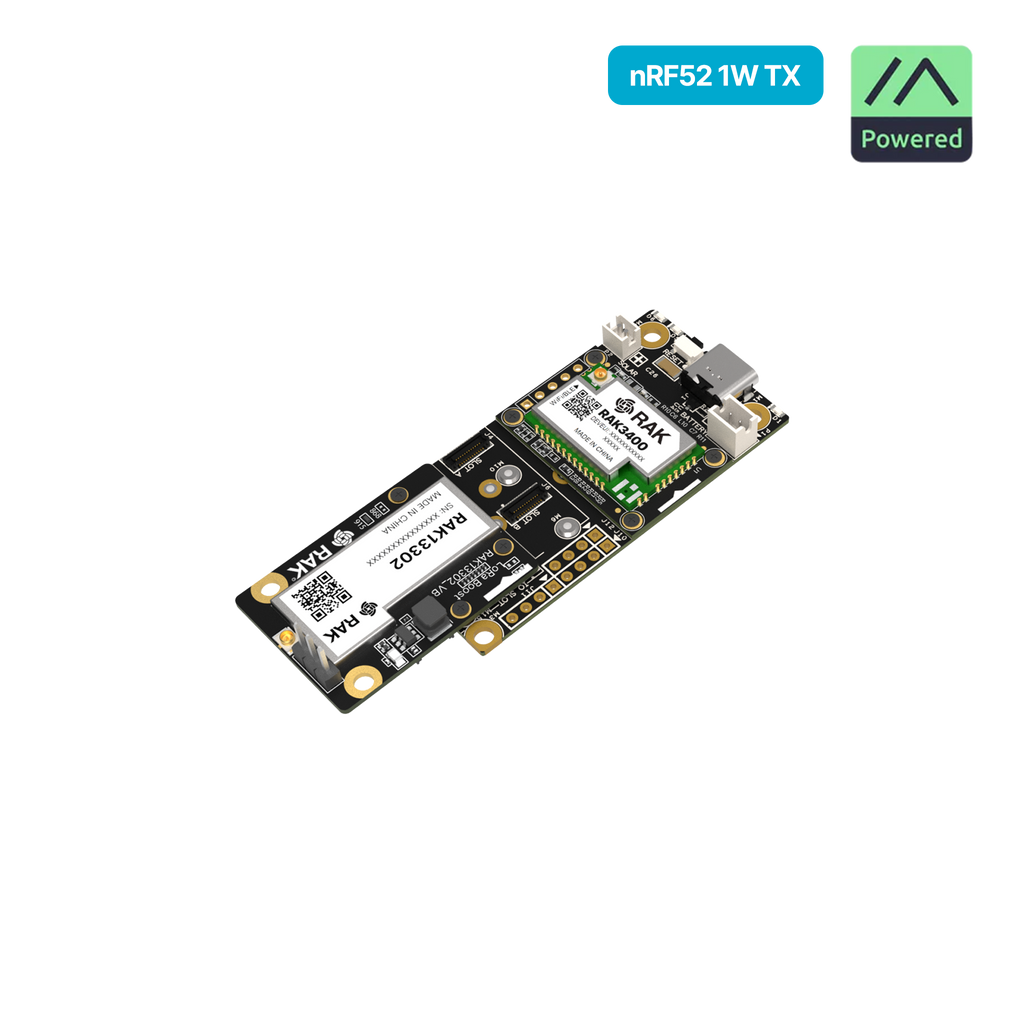

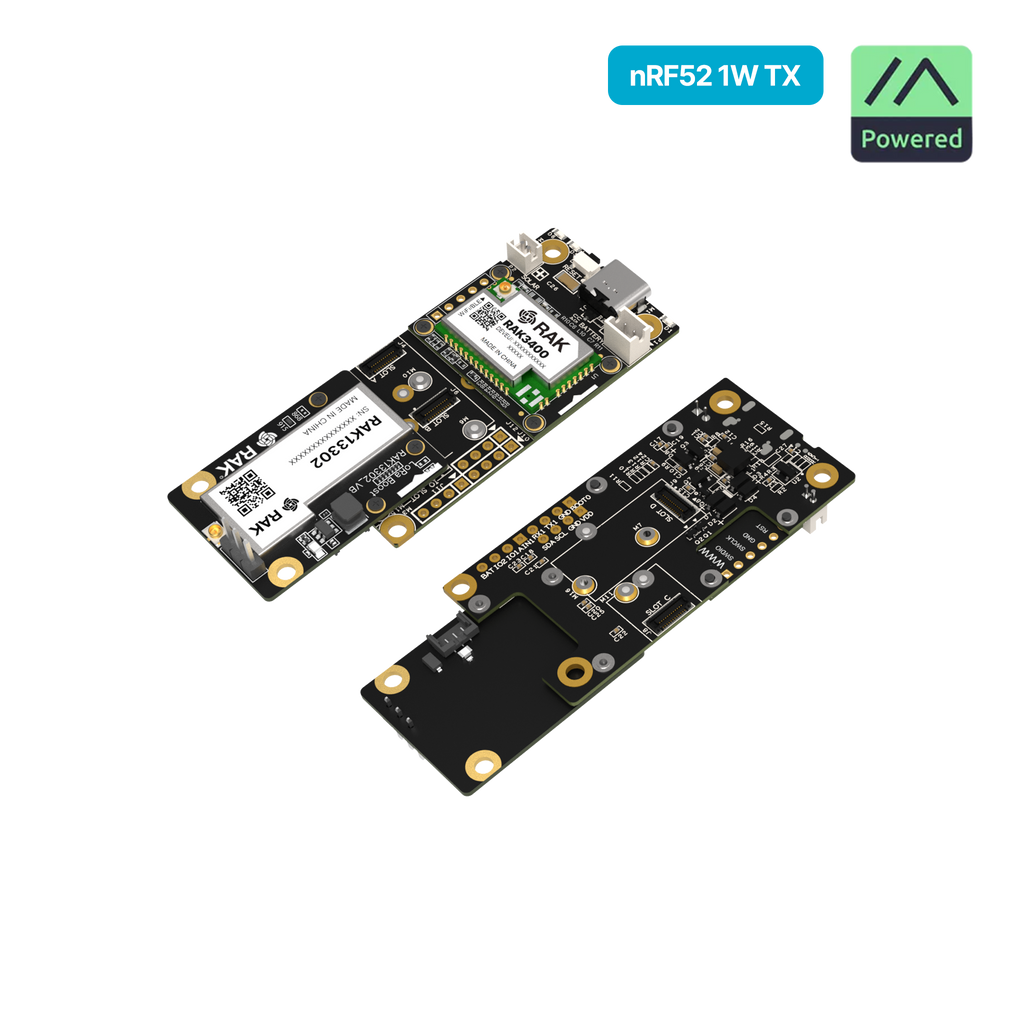

The WisMesh 1W Booster Starter Kit brings more TX power and better reception to Meshtastic networks. Powered by the RAK3401 WisBlock Core module with the Nordic nRF52840 MCU and a RAK13302 1W LoRa transceiver module, mounted on a RAK19007 Base Board.

Unlike common solutions, the RAK13302 integrates a dedicated RF filter stage, which not only enables 1W high-power transmission but also significantly enhances receiver sensitivity. This means longer range, more stable links, and stronger mesh reliability. This is ideal for outdoor adventures, emergency communications, or wide-area IoT coverage, positioning it as some of the best hardware for long-range Meshtastic networks.

Notes: Transmit power limits and allowable frequency plans differ by country and region. This product supports high power operation, but users must configure transmit power, antenna gain, and frequency settings to comply with local regulations.

Due to the high power consumption of the 1W transceiver, the RAK13302 cannot work from the 3.3V supply voltage. It requires:

• Using a battery with the WisBlock Base Board
• External 5V supply for the RAK13302 module through its own power supply connector
• Always powering from USB

Why choose the WisMesh RAK3401 Booster Starter Kit for your Meshtastic network?

Whether upgrading a Meshtastic 1W node or building a fresh deployment, this kit is engineered specifically for users who need reliable, long-range mesh communication in off-grid, outdoor, or emergency setups. With a full 1 W LoRa transmitter (30 dBm) and an integrated RF front-end including the SKY66122 amplifier + filter, you gain up to several times the coverage of standard Meshtastic nodes.

The use of the nRF52840 MCU ensures modern BLE and firmware compatibility, while the WisBlock modular ecosystem allows you to expand with sensors, displays, trackers, or repeater nodes with ease.

Compared to typical Meshtastic kits (100-160 mW output) or DIY 1W builds (which may lack RF filtering or stability), this kit delivers a proven, stable high-power solution—all while managing power, heat and regulatory concerns in a single product.

Key Features

• WisBlock RAK3401 Core module
  • Nordic nRF52840 MCU
    • ARM Cortex-M4F
    • 1MB Flash and 348KB SRAM
    • I/O ports: UART/I2C/SPI/ADC/GPIO
• WisBlock RAK13302 1W LoRa transceiver module
  • Semtech SX1262 LoRa transceiver
  • SKY66122 signal booster
  • Integrated RF filter for enhanced reception performance
  • IPEX antenna connector for LoRa
  • Support for 9xx MHz frequency band
• RAK19007 WisBlock Base Board
  • 4 sensor slots for WisBlock Sensor Modules
  • Supply voltage
    • 5V over USB
    • 5V over Solar Panel connector
    • Rechargeable battery

Range & RF Performance: SX1262 + SKY66122 Amplified Path

The WisMesh 1W Booster Starter Kit delivers exceptional performance for users needing a long-range Meshtastic solution. This is done by combining the Semtech SX1262 LoRa transceiver with the Skyworks SKY66122 high-power amplifier and a dedicated SAW filter. Unlike typical high-power boards that boost TX but degrade RX, this filtered RF chain, including an RF filter and PA for improved receiver sensitivity, preserves receiver performance while increasing output power up to 1 watt. The result is a cleaner signal, reduced self-interference, and significantly stronger SNR across real-world deployments. Users can expect more reliable two-way links, improved packet retention at long distances, and stable mesh coverage even in semi-obstructed environments.

Power Requirements & Thermal Notes

The 1W RF stage in the RAK13302 demands a stable 5V supply, as 3.3V sources cannot deliver the surge current required for high-power LoRa transmission. For reliable operation, users should power the module through USB, a regulated 5V adapter, or the WisBlock Base Board’s battery system—especially when using an SX1262 1W LoRa module in continuous or high-duty-cycle deployments.

How the 1W RF Chain Works (nRF52840 → SX1262 → PA/Filter)

The WisMesh 1W Booster Starter Kit uses a staged RF architecture to deliver clean, long-range LoRa performance. The nRF52840 MCU manages firmware and communicates with the SX1262 transceiver, which generates the sub-GHz LoRa signal, making the architecture suitable for a nRF52840 Meshtastic deployment. That signal is then boosted by the SKY66122 power amplifier, a 1W SKY66122 LoRa amplifier module, and passed through an integrated SAW filter to remove noise and harmonics. This ensures both high transmit power and excellent receiver sensitivity, enabling stable two-way communication even at long distances, as shown in the diagram below.

Comparison Table: WisMesh RAK3401 Booster Starter Kit vs Popular Meshtastic Board

This section provides a clear Meshtastic 1W vs standard SX1262 comparison, highlighting differences in RF filtering, amplifier stages, MCU performance, and practical range.

Use Case Examples for WisMesh 1W Booster Starter Kit

Enables reliable mesh communication in diverse scenarios where signal reach and network resilience are critical, supporting long-range low-power mesh communication for field deployments.

Use Case #1: Remote Sensor Link Verification

A field technician evaluated environmental sensor communication across a 4km site using the WisMesh 1W Booster Starter Kit’s SX1262 + SKY66122 radio path. Tests showed 35% stronger signal retention, 98% packet delivery, and repeatable performance during five field trials, confirming reliable long-range operation.

Use Case #2: Community Emergency Relay Setup

During a local preparedness drill, engineers assembled a temporary Meshtastic network using several WisMesh 1W Booster Starter Kits. The result: stable 1W links, verified through 24 hours of uptime logs and user testimonials citing clear, uninterrupted message relays over forested terrain. This makes the setup highly suitable for deployments that require a LoRa mesh repeater to maintain reliable communication paths. It also serves effectively as a Meshtastic repeater node for emergency communications, ensuring message delivery even when infrastructure is unavailable.

What’s in the Box

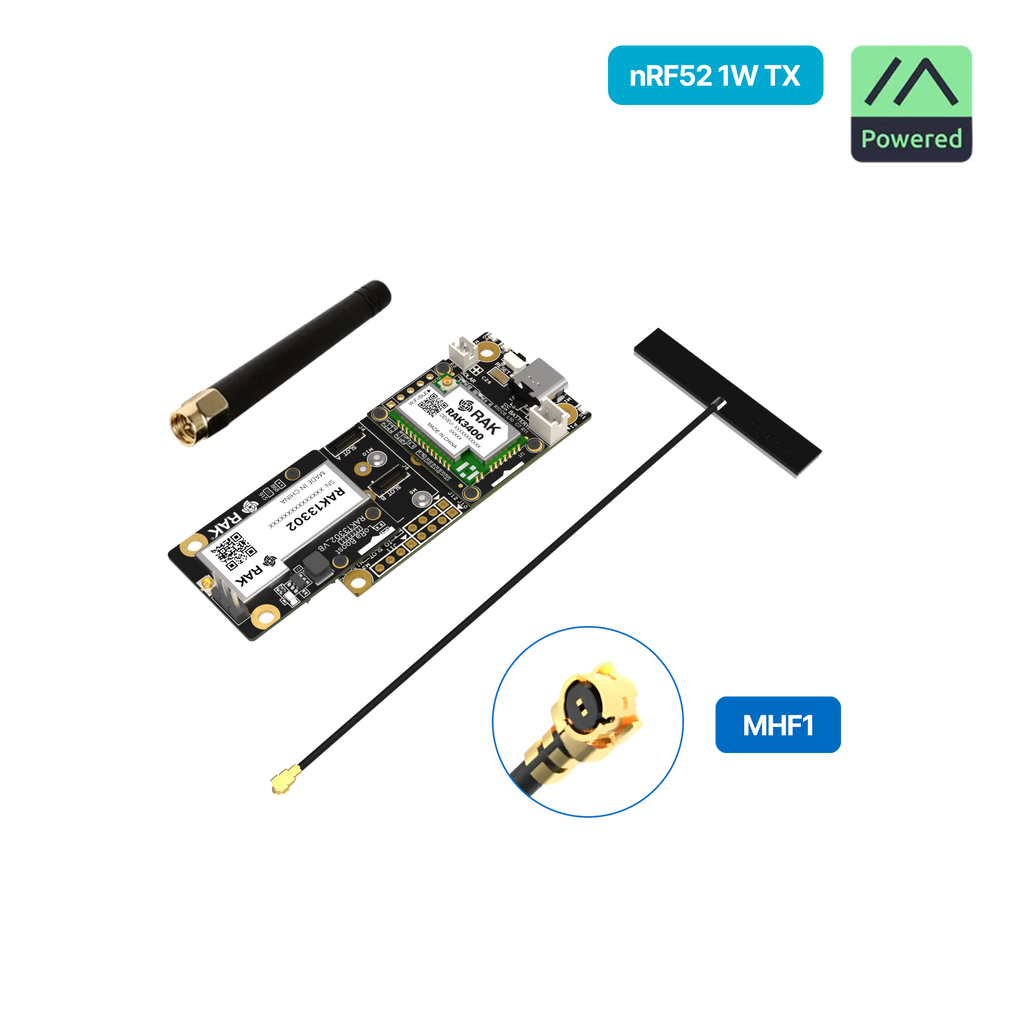

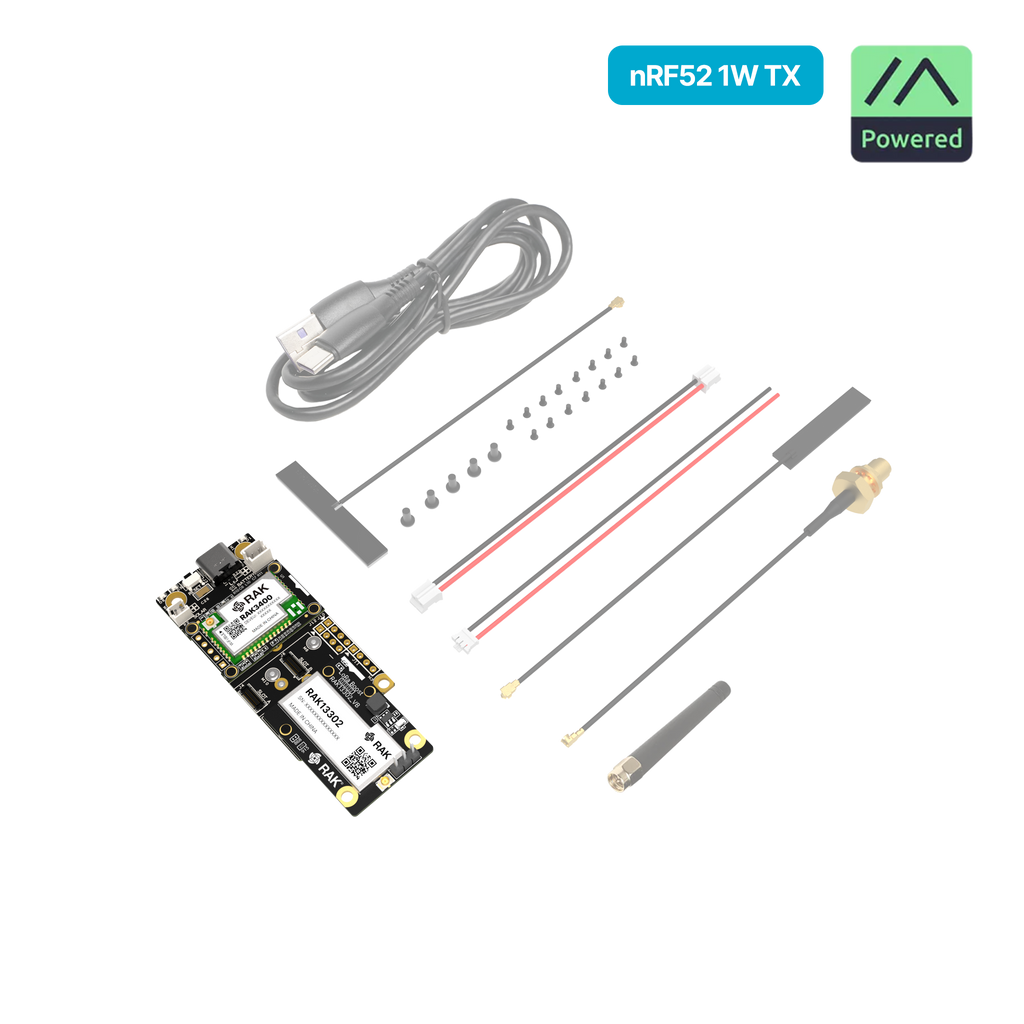

• 1 pc WisBlock Base Board RAK19007
• 1 pc WisBlock Core Module RAK3401
• 1 pc WisBlock LoRa module RAK13302
• 1 pc WiFi/BLE PCB antenna
• 1 pc 900Mhz LoRa PCB antenna
• 1 pc USB cable
• 1 pc IPEX to SMA cable for LoRa Antenna
• 1 pc SMA Rubber LoRa Antenna
• 2 pc 5V supply cable (same as used on WisBlock Audio Amplifier module)
• 1 set screw
• 1 pc Quick Start Guide

How to Get Started with WisMesh 1W Booster Starter Kit

• First Steps for WisMesh 1W Booster Starter Kit
• Overview of WisMesh 1W Booster Starter Kit
• Quick Start Guide for WisMesh 1W Booster Starter Kit
• Overview of RAK3401 WisBlock BLE Module
• Quick Start Guide for RAK3401 WisBlock BLE Module
• Datasheet for RAK3401 WisBlock BLE Module

Frequently Asked Questions

How does the WisMesh 1W Booster Starter Kit improve network range compared to standard Meshtastic nodes?

The kit integrates a dedicated RF front end that includes a filter and amplification stage. This design minimizes out-of-band noise and increases receiver sensitivity, resulting in stronger signal-to-noise ratios and more stable mesh links over extended distances. It also helps sustain packet delivery consistency when nodes are spaced farther apart or deployed in terrain with moderate obstruction.

This performance profile also places it among the recommended long-range Meshtastic hardware for 2025, especially for users prioritizing reliable field deployment.

Can the kit operate directly from a 3.3V source?

No. The LoRa transceiver and amplifier module requires a stable 5V power input. Operation from 3.3 V causes voltage drops under load, leading to transmission instability and radio desensitization. For reliable output, the module must draw power either from USB, an external 5V adapter, or the WisBlock Base Board’s regulated battery supply, as it is designed for stable 1W Meshtastic operation in demanding deployments.

What hardware architecture supports the device’s control and communication functions?

The WisMesh kit uses a modular WisBlock stack. The Core module runs on a Nordic nRF52840 MCU handling firmware and Bluetooth connectivity, while the LoRa IO module manages sub-GHz radio functions through a Semtech SX1262 transceiver and SKY66122 amplifier. This separation of logic and RF paths enables clean integration of new sensors or peripherals without firmware modification.

How can users extend the setup for additional sensor data collection?

The included Base Board features multiple sensor and IO slots compatible with WisBlock sensor modules. Users can attach expansion boards for temperature, location, or display data. Communication between modules uses standardized interfaces such as I²C or SPI, ensuring firmware stability across add-ons without electrical or timing conflicts between radio and sensor buses.

Does higher transmit power affect battery life or system heat?

Yes. Higher radio output increases current draw, especially during prolonged transmit cycles. Users should manage duty cycles carefully and monitor thermal load under continuous use. When running on battery, system firmware should include power budgeting logic or interval-based transmission to avoid voltage sag that may reset the MCU during peak demand.

How does the RF filter influence link reliability?

The integrated RF filter isolates the desired LoRa band and attenuates harmonics, improving both emission compliance and reception clarity. It prevents self-interference between close-proximity nodes, especially when multiple transmitters operate on adjacent channels. This contributes to more predictable packet reception and improved performance consistency across a deployed mesh.

What environments are most suitable for testing or deployment?
