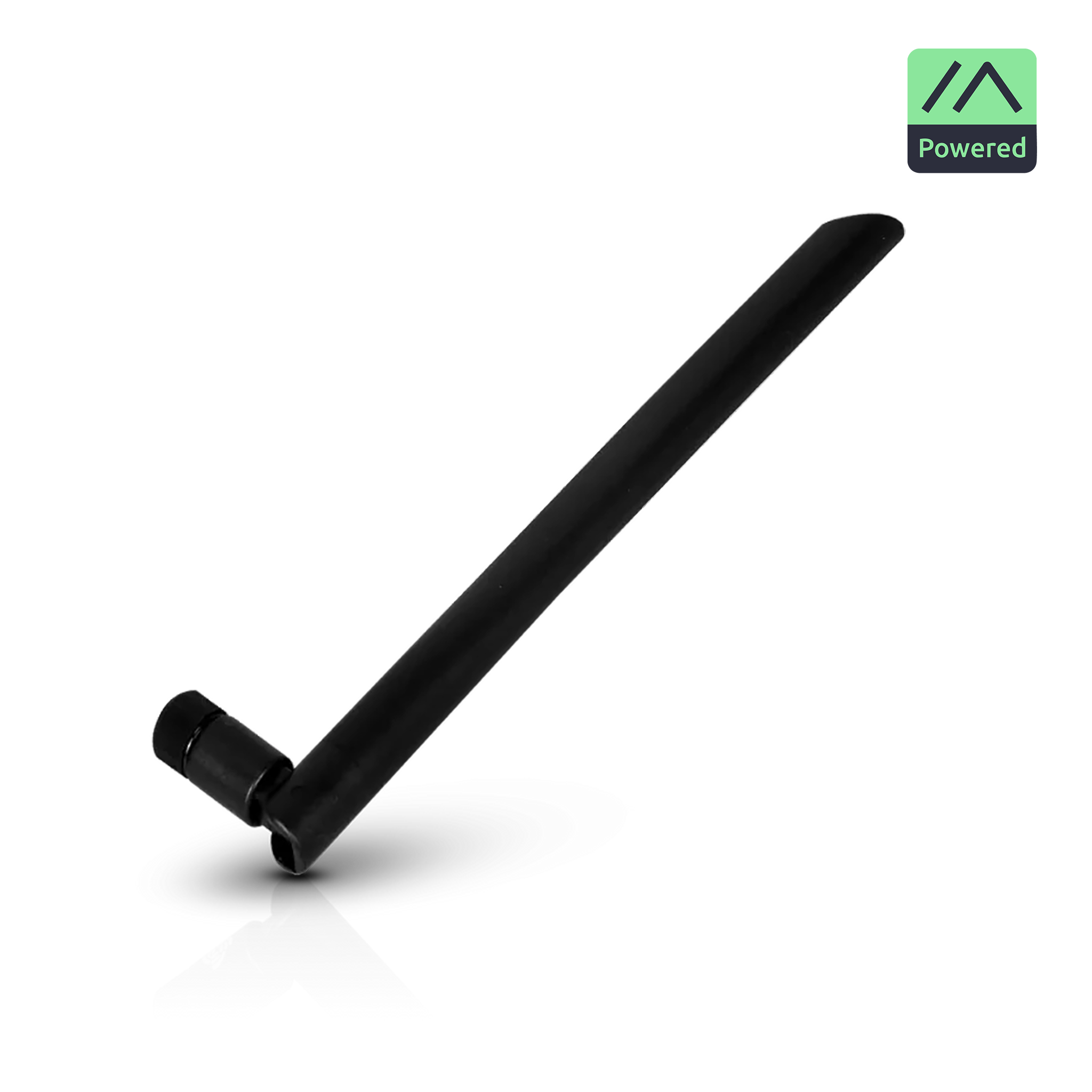

WisMesh Blade Antenna for any Meshtastic Node
The Antenna is one of the most important parts of a Meshtastic device to increase the range of communication with other Meshtastic devices.
Our WisMesh Blade antenna is the perfect replacement for your current antenna if you are having problems with the range of your device. The 915MHz variant (902-928 MHz) has a max gain of 2.3 dBi with a VSWR ≤ 1.5. The 868MHz variant (863-870 MHz) has an even better gain of 2.8 dBi with a VSWR ≤ 1.3.
These antennas are high-efficiency, omnidirectional antennas with RP-SMA connectors.
If your current device is using an SMA connector, we have a variant with RP-SMA Female to SMA Male Adapter that allows you to change your device to use our RP-SMA type antenna.
Product Features
- Black high-performance LoRa antenna
- High efficiency
- Omnidirectional
- Vertically polarized
- 915 MHz variant
- Frequency Range: 902~928 MHz
- VSWR: ≤ 1.5
- 868 MHz variant
- Frequency Range: 863~870 MHz
- VSWR: ≤ 1.3
- Dimensions: Փ13.0mm x 198.0mm
- Feed Impedance: 50Ω
- Efficiency: >80%
- Connector Type: RP-SMA
- Operation Temp: (°C) -30°C ~ +75°C
Product Inclusion
- 1 pc Blade Antenna
- 1 pc SMA Adapter (as per option selected)
