WisMesh BaseBoard RAK19026

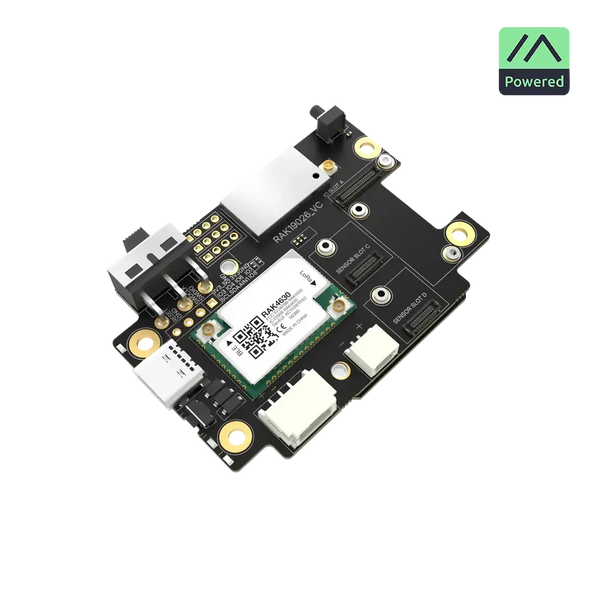

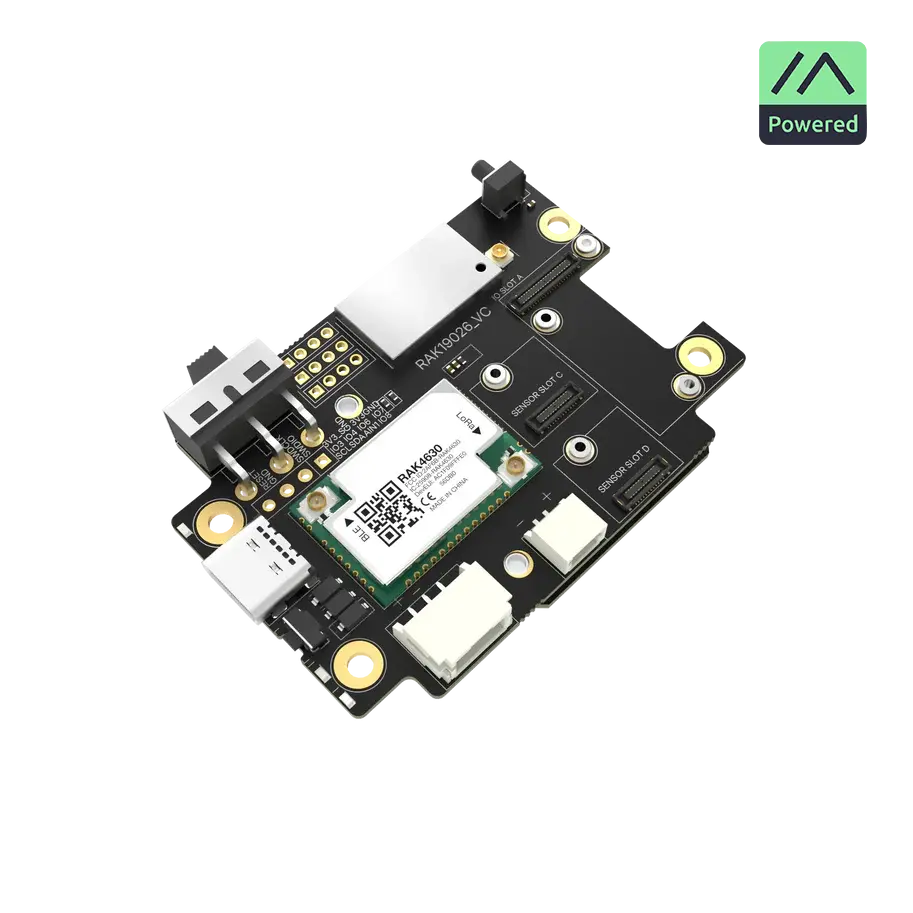

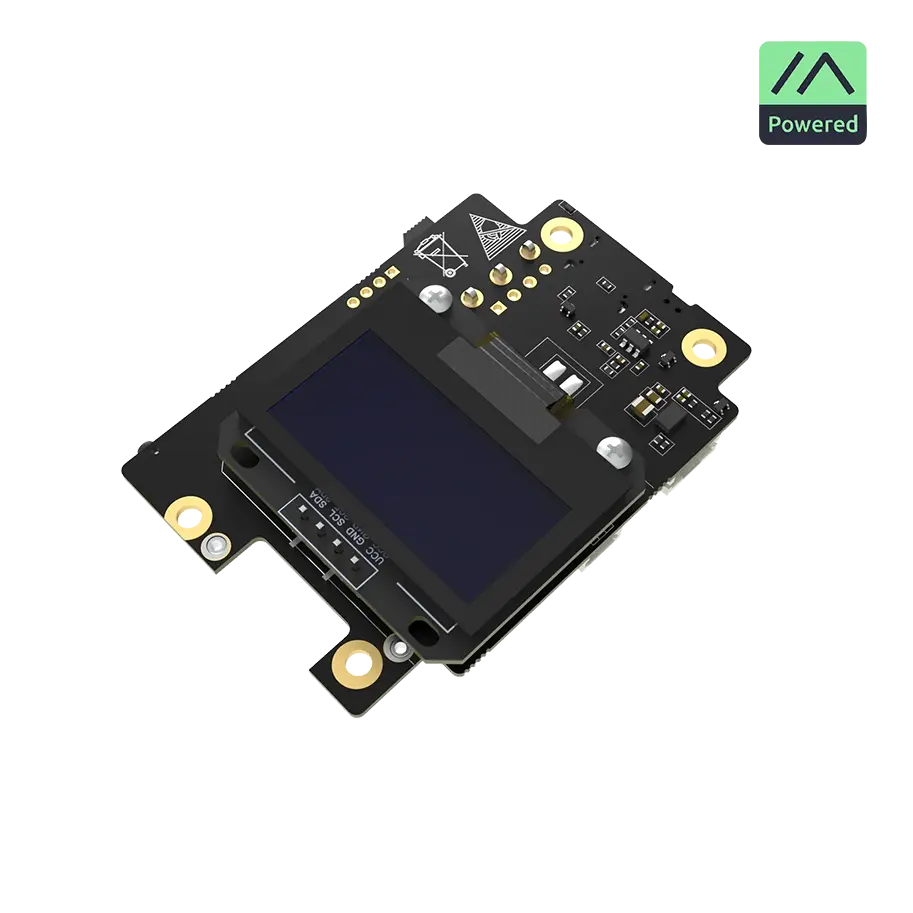

Designed for Meshtastic Devices, The WisMesh Base Board RAK19026 is the perfect start to explore and use the Meshtastic LoRa Mesh Network. It comes with a nRF52840 RAK4630 LoRa module pre-flashed with the Meshtastic firmware. It integrates a 1.3”  OLED display, onboard GNSS location module (u-blox ZOE-M8Q), onboard motion sensor (ST LIS3DH) and additional three WisBlock Sensor and one WisBlock IO module slot. This combination includes everything required to build a Meshtastic device matching your own requirements.

For improved user experience, it has an integrated user programmable button and an on/off switch that disconnects the battery complete from the electronics but allows to recharge the battery through USB or solar battery.

With the Meshtastic Getting Started Guide the WisMesh BaseBoard is ready for use within a short time.

Product Features

• RAK4630 WisDuo module, pre-flashed with the Meshtastic firmware
  • Nordic nRF52840:
    • Ultra-low-power MCU
    • 32-bit ARM® Cortex-M4F CPU
    • 64MHz CPU clock
    • 1 MB Flash, 256 KB RAM
  • Semtech SX1262:
    • Low power high range
    • LoRa® transceiver
• 3 sensor slots
• 1 IO slot
• Battery switch
• User button
• Connector for OLED display
• GPIO exposure on pin header

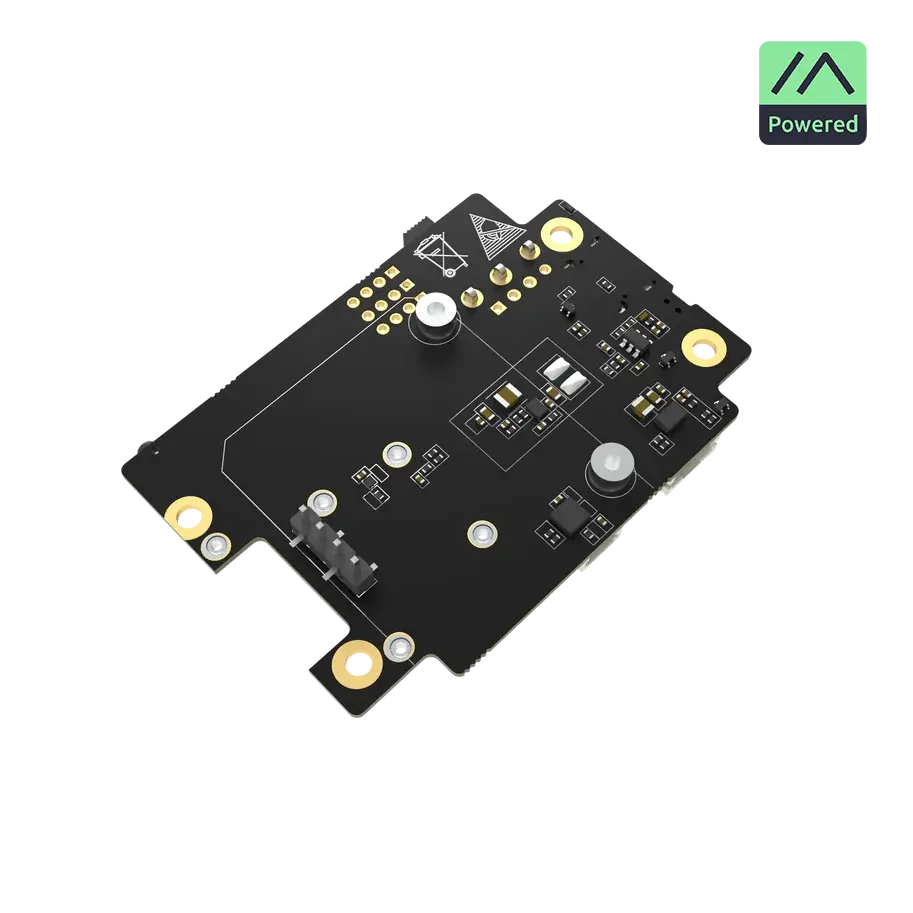

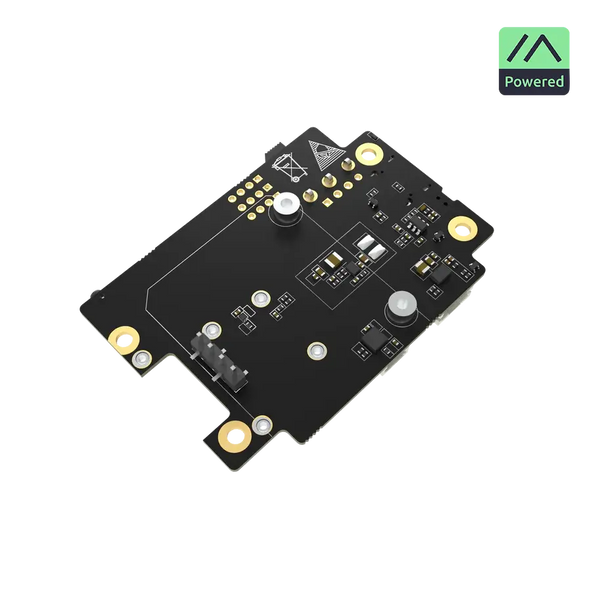

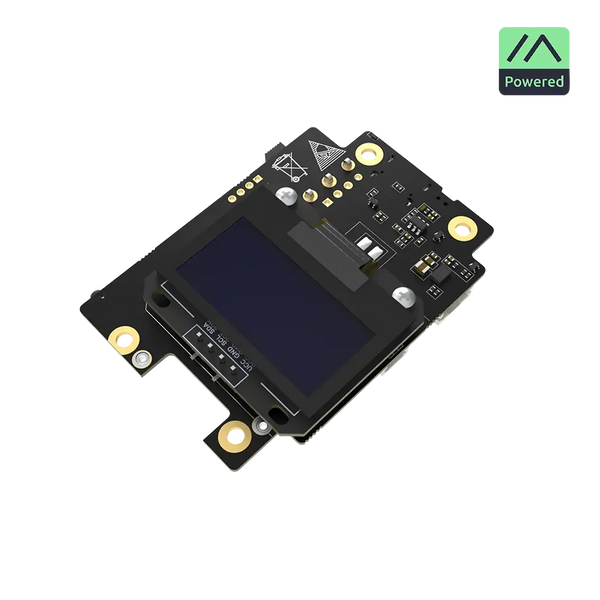

• 1.3” OLED display (pre-mounted or optional connected through a pin header)
• U-Blox ZOE-M8Q GNSS location module onboard
• ST LIS3DH motion sensor onboard
• LoRa and BLE antenna included

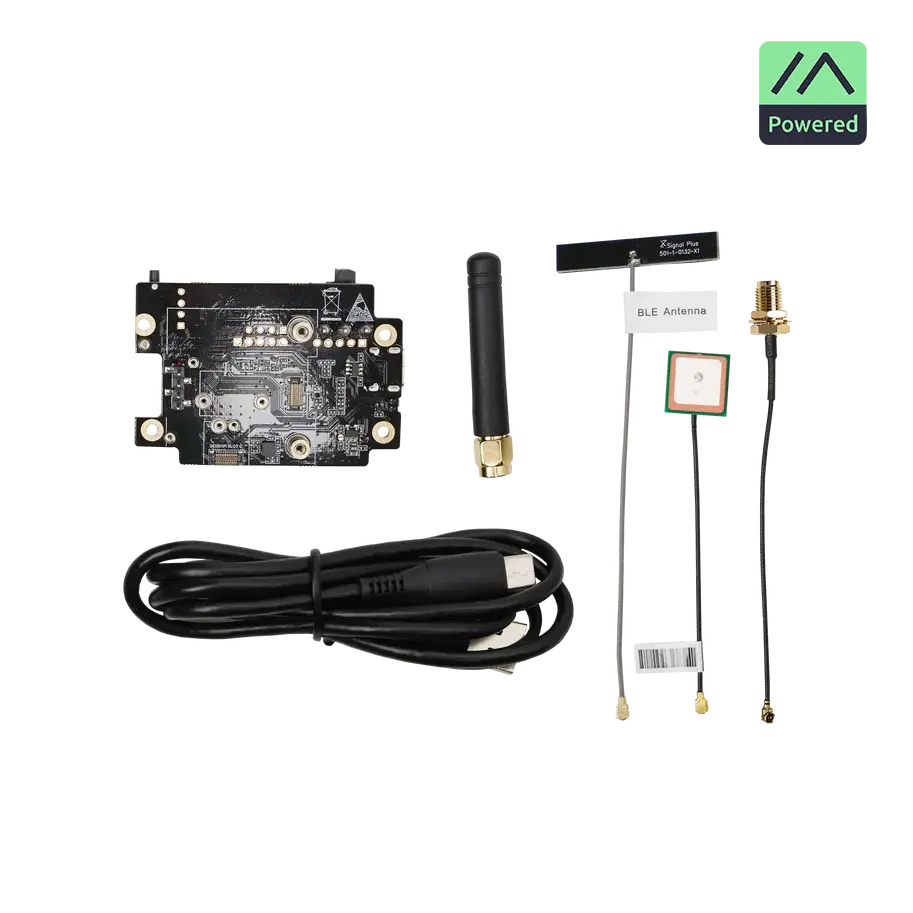

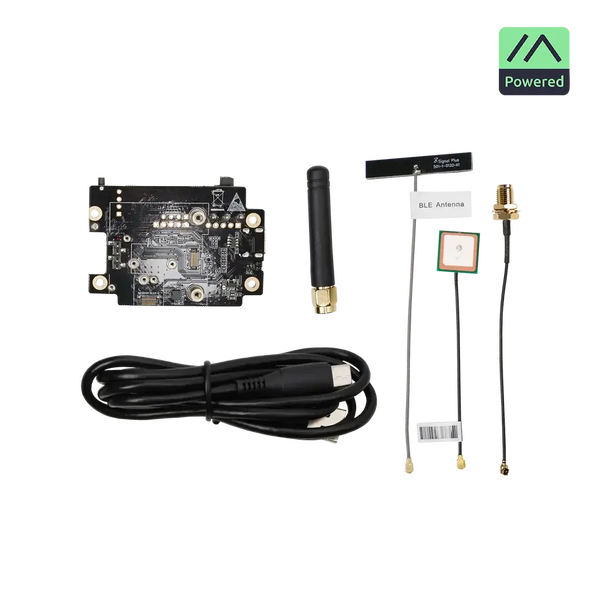

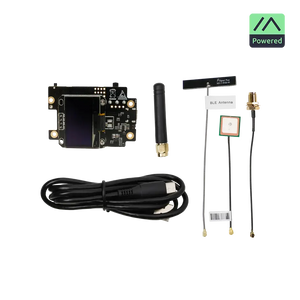

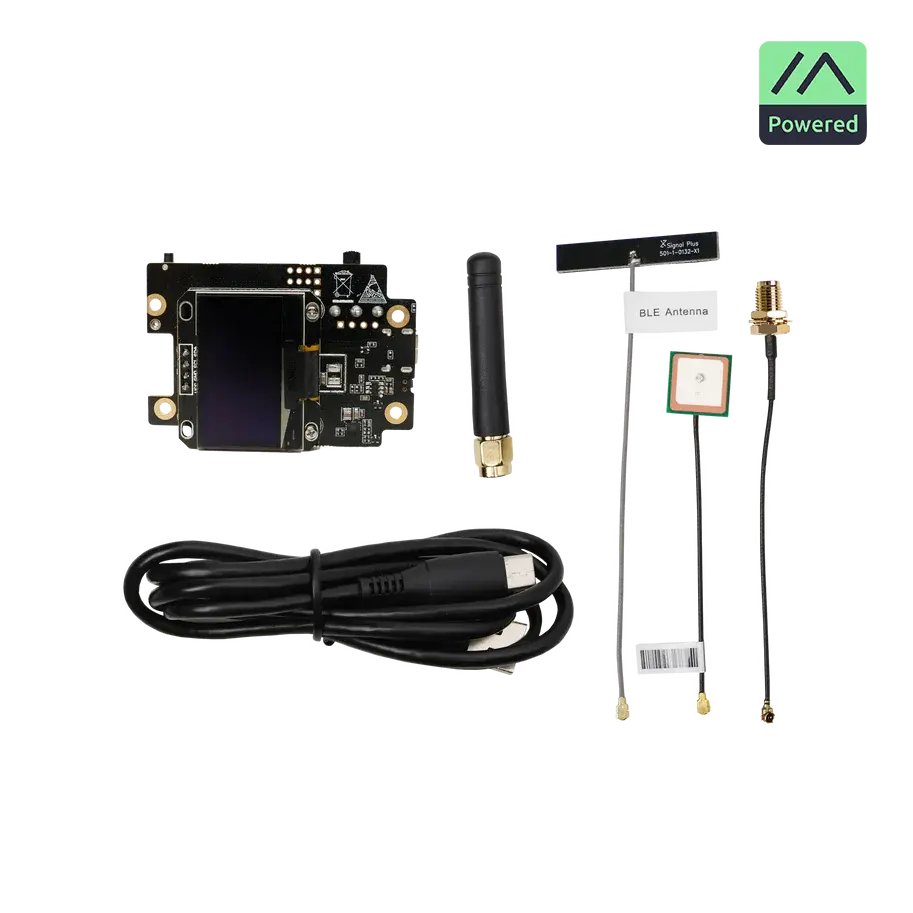

Product Inclusions

• 1 pc RAK19026 WisMesh BaseBoard
• 1 pc OLED display (optional)
• 1 pc LoRa antenna
• 1 pc BLE antenna
• 1 pc GPS antenna
• 1 pc USB cable
