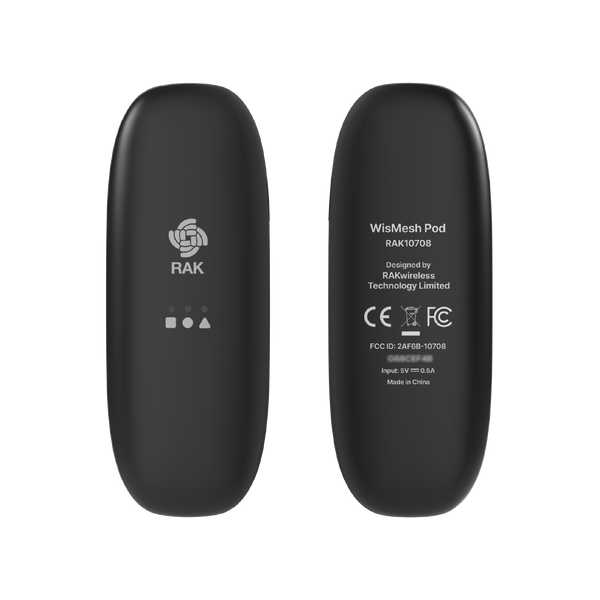

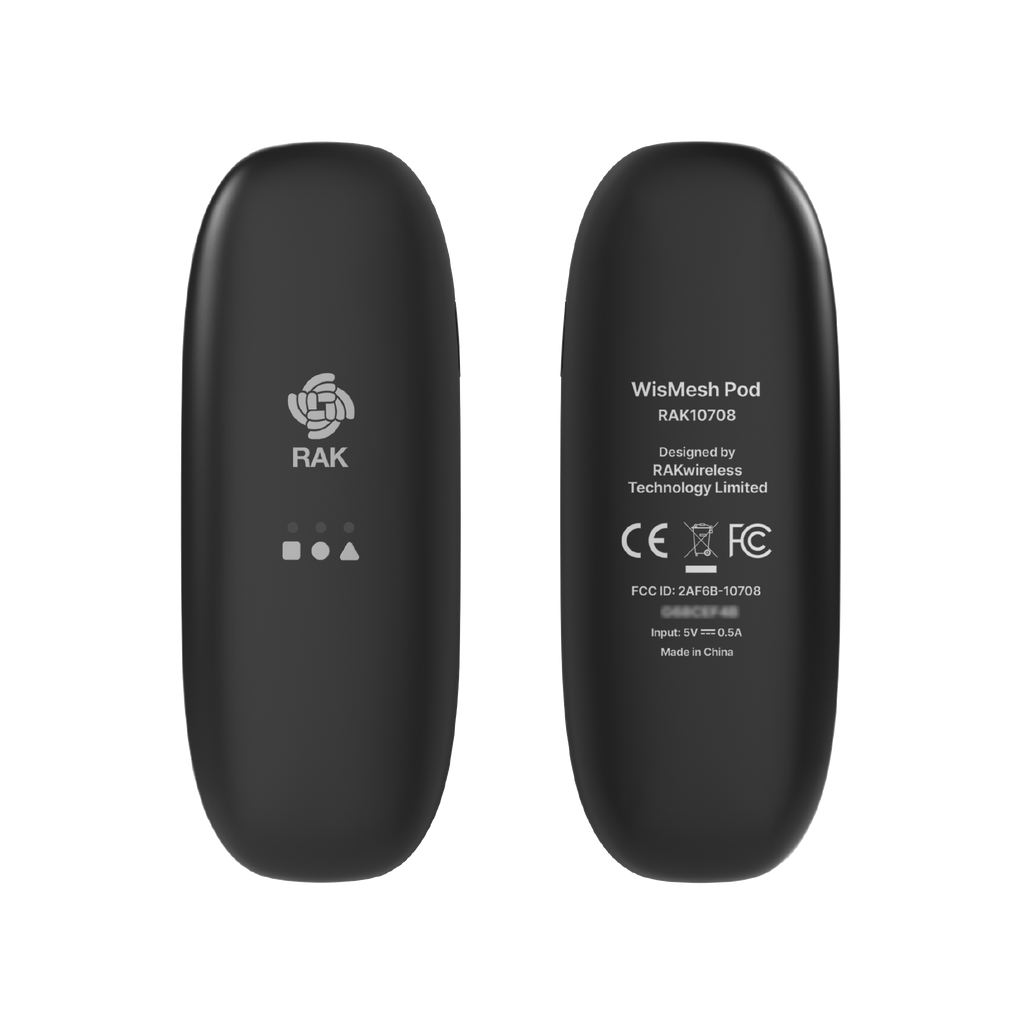

WisMesh Pod
Ready-to-Use Mesh Node
RAK10708
Prefer another courier for your delivery? Contact us for special shipping arrangements.
What Is WisMesh Pod?
The WisMesh Pod is your ultimate plug-and-play Meshtastic node. It is built with a robust injection-molded enclosure, a built-in 1000mAh battery, and integrated antennas for LoRa, BLE, and GPS. Whether you're hiking, biking, or just exploring offline communication, the WisMesh Pod makes mesh networking accessible for everyone. No tools or setup required
Why You Need WisMesh Pod
Stay connected beyond cellular coverage with WisMesh Pod. Whether you’re exploring remote trails, coordinating at large outdoor events, or preparing for emergencies, this compact, off-grid communication device functions effectively as a Meshtastic GPS tracker.
Why it's useful:
- Stay connected off-grid – Create or join a Meshtastic network anywhere, no cell signal needed.
- Days of battery life – Ultra-low power design keeps you connected longer.
- No technical skills required – Fully assembled and pre-configured for instant use.
Key Features of WisMesh Pod
|
Feature / Specification |
Details |
|

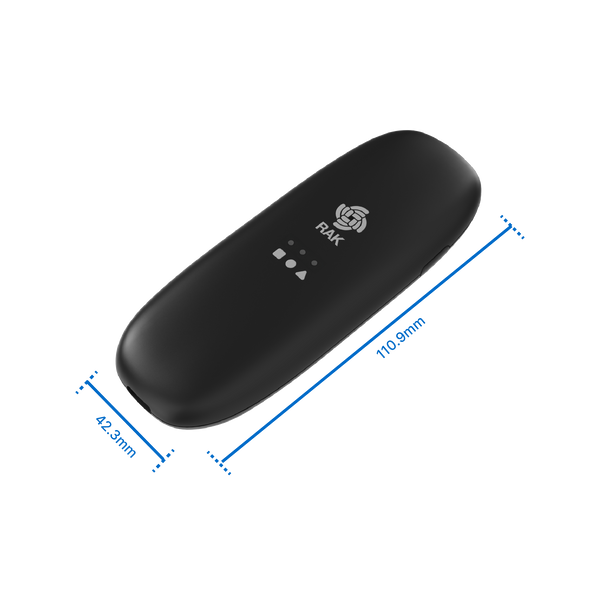

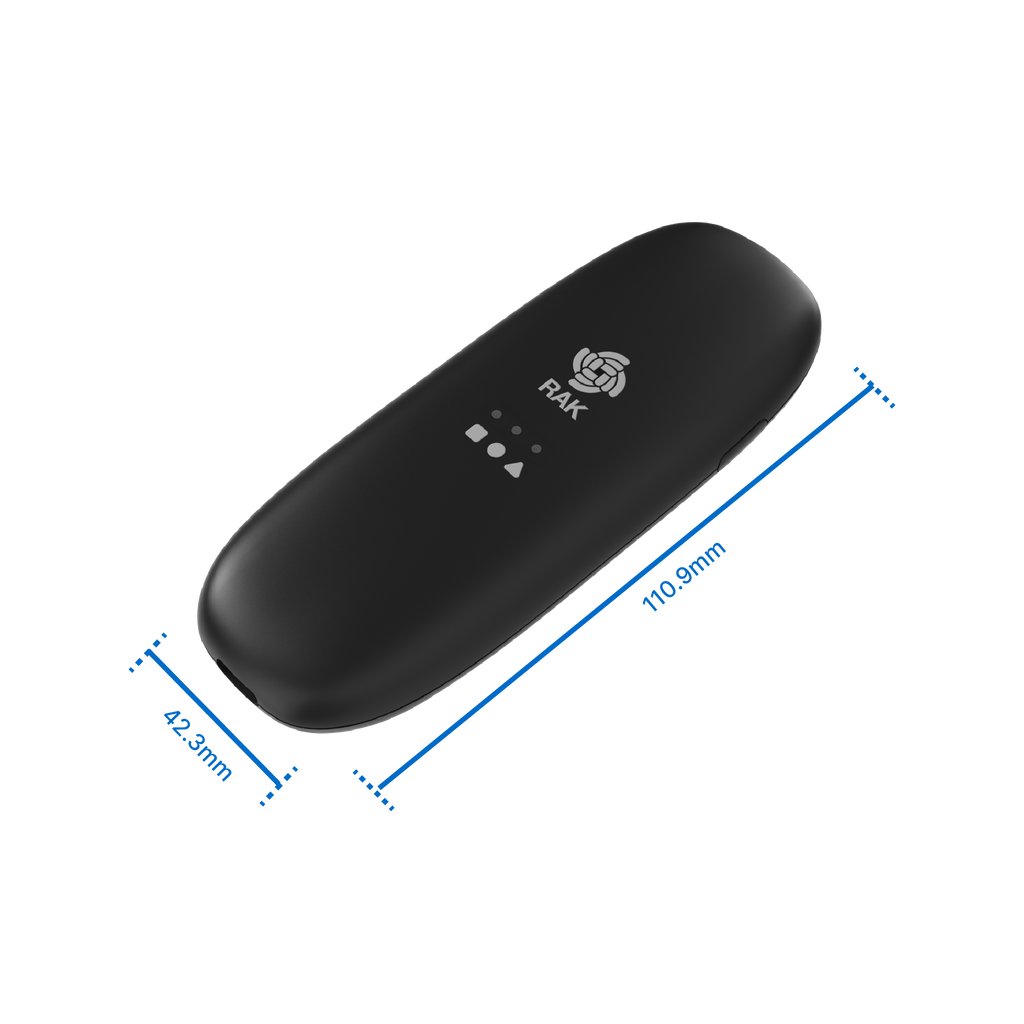

Dimensions (L × W × H) |
110.9 × 42.3 × 16.6 mm |
|
Device weight |
108.7 g |
|
Battery capacity |
Built-in 1000 mAh rechargeable battery |
|

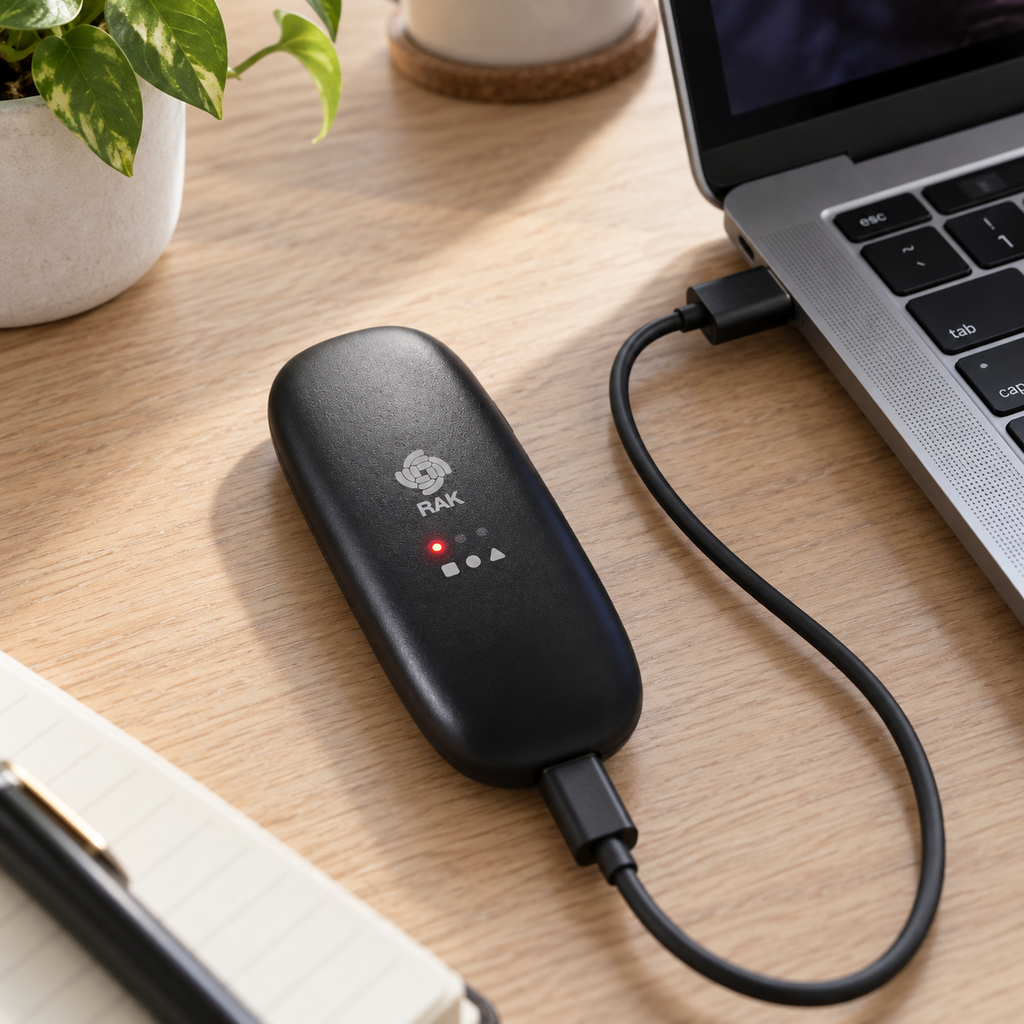

Charging method |
USB Type-C |
|
Connectivity |
LoRa mesh communication through Meshtastic; Bluetooth Low Energy (BLE) for smartphone pairing |
|
MCU |
Nordic nRF52840 integrated directly into the mainboard |
|
LoRa transceiver |
Semtech SX1262 integrated directly into the mainboard |
|
Frequency range |
860–930 MHz with a single hardware version |
|
GPS / GNSS |
Built-in AT6558 GNSS module for location tracking |
|
Motion sensor |
LIS2DH 3-axis accelerometer |
|
Antennas |
Integrated LoRa, BLE, and GNSS antennas |
|

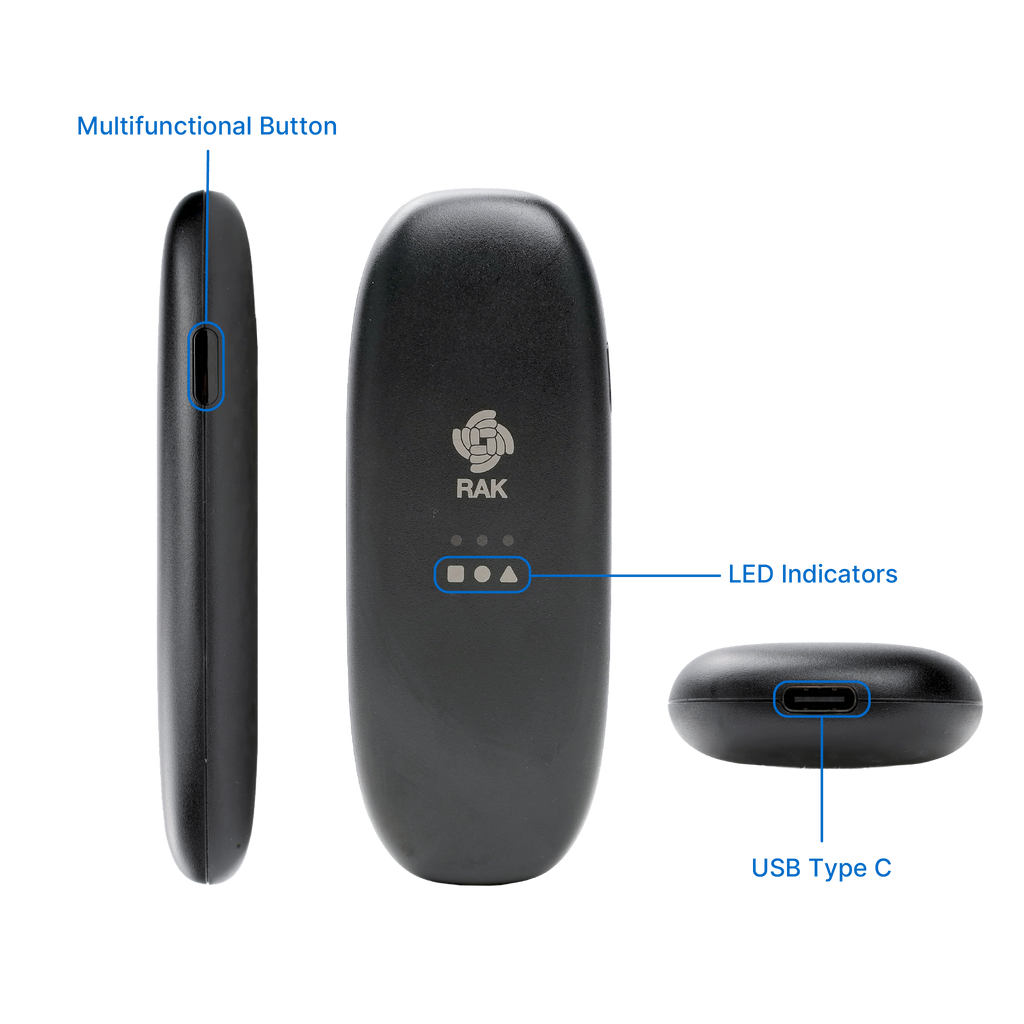

Multifunction button |
Power on/off, reset, and DFU mode for firmware updates |
|
Status LEDs |
Indicators for device status and charging |
|
Buzzer |
Maximum sound pressure level: 85 dB; maximum current: 95 mA |
|
Enclosure |
Injection-molded enclosure with an included silicone case |
|
Certifications and compliance |
CE, FCC, RoHS; WEEE assessment report available |
Key Benefits of WisMesh Pod
Stay connected in remote areas during outdoor adventures or emergency situations with simple, reliable mesh networking.

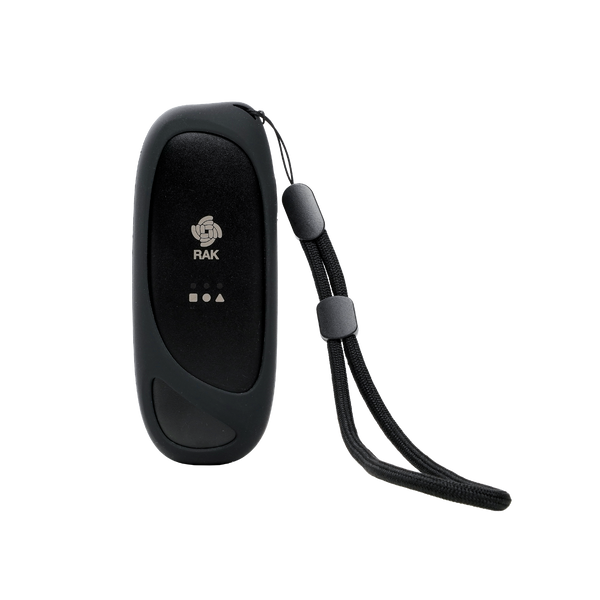

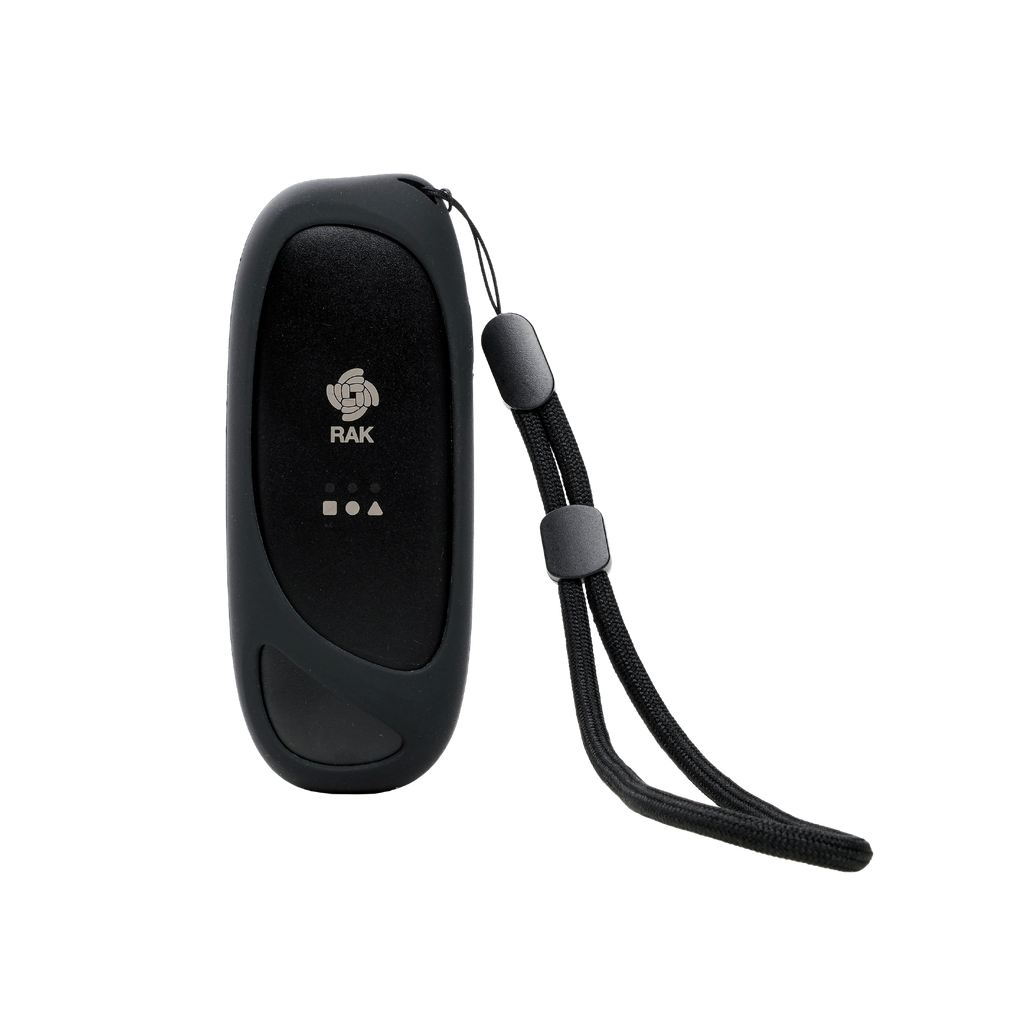

- Compact: Its small size and included wrist strap make it easy to carry.
- Plug-and-play simplicity: No soldering, no assembly—just power on and start connecting.
- Long-lasting battery: The 1000mAh battery delivers days of operation on a single charge.
Use Case #1
While trekking through remote mountain trails, a group of hikers uses WisMesh Pods to maintain communication. When cell coverage drops, members exchange short messages and share location updates through Meshtastic before regrouping at the next stop.
Use Case #2
Emergency responders in a natural disaster zone deploy WisMesh Pods to set up a fast, temporary communication network. Thanks to the pre-flashed firmware and intuitive setup, the team stays organized and safe.

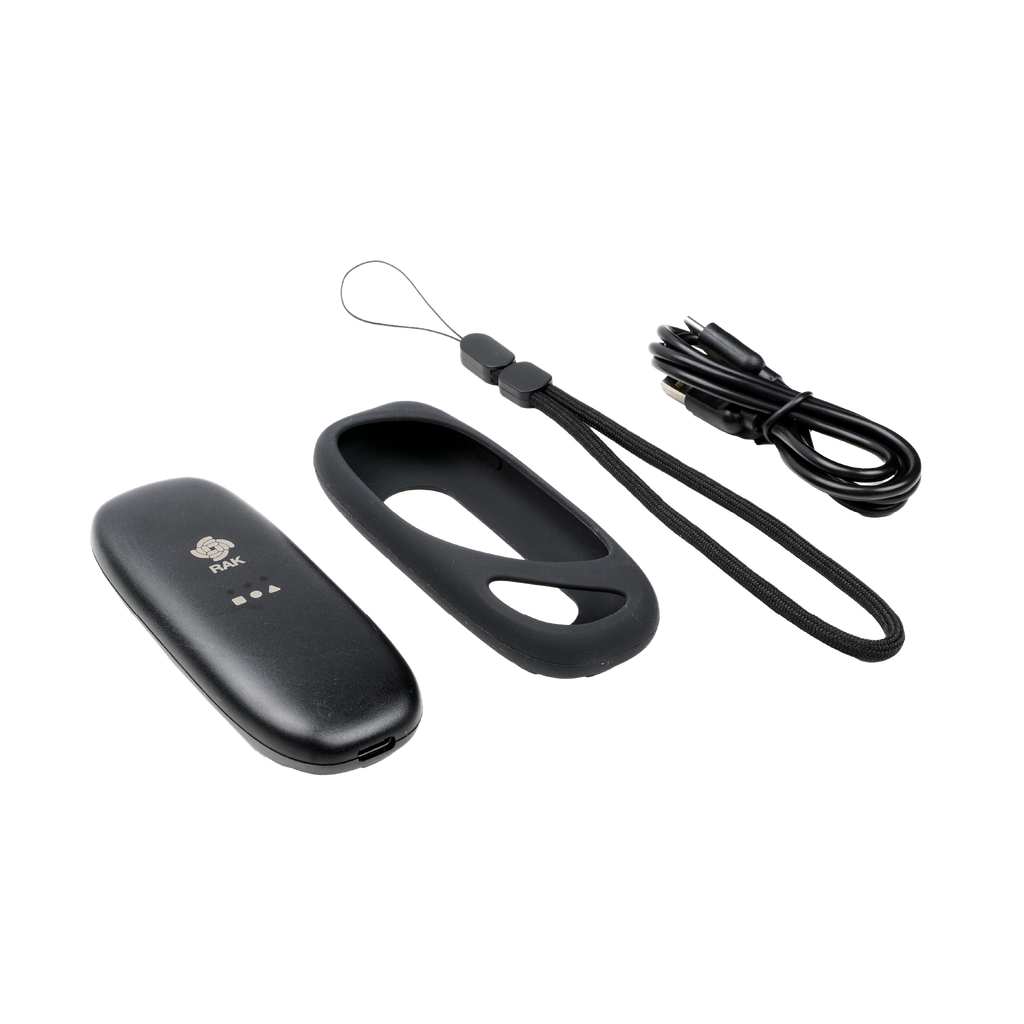

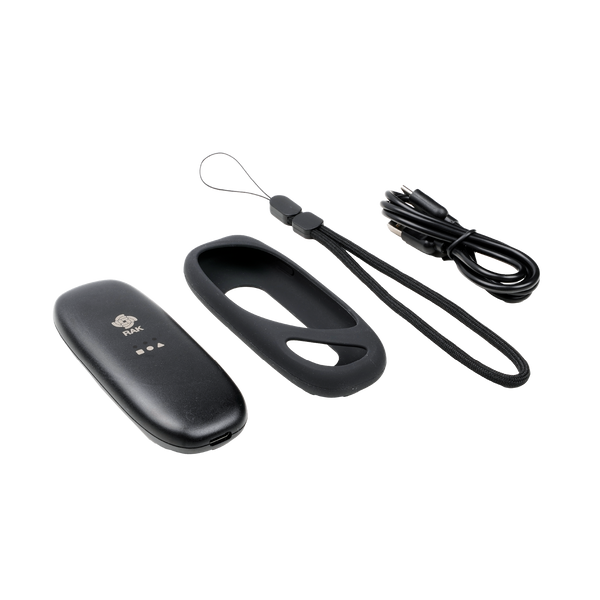

What’s in the Box
- 1 pc WisMesh Pod (fully assembled)
- 1 pc USB Type-C Charging Cable
- 1 pc Silicone Case
- 1 pc Wrist Strap
How to Get Started with WisMesh Pod
