WisBlock Kit 3: LoRa-based GPS Tracker/ LoRaWAN tracker
WisBlock Kit 3: LoRa-based GPS Tracker/ LoRaWAN tracker

WisBlock Kit 3

LoRa-based GPS Tracker

Regular price $73.28 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.


Request Quote for Custom WisBlock Module
Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation


  • If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.
  • If a battery is used with WisBlock Base Board, please check that the battery connector has the correct polarity. You can check the required polarity in our Documentation Center.

Product Description

WisBlock Kit 3 comes with a GPS tracker sensor to detect the movement of the sensor.

Setup: Localization data are acquired with a GPS module and the location information is sent to a LoRaWan® server when the sensor changes location

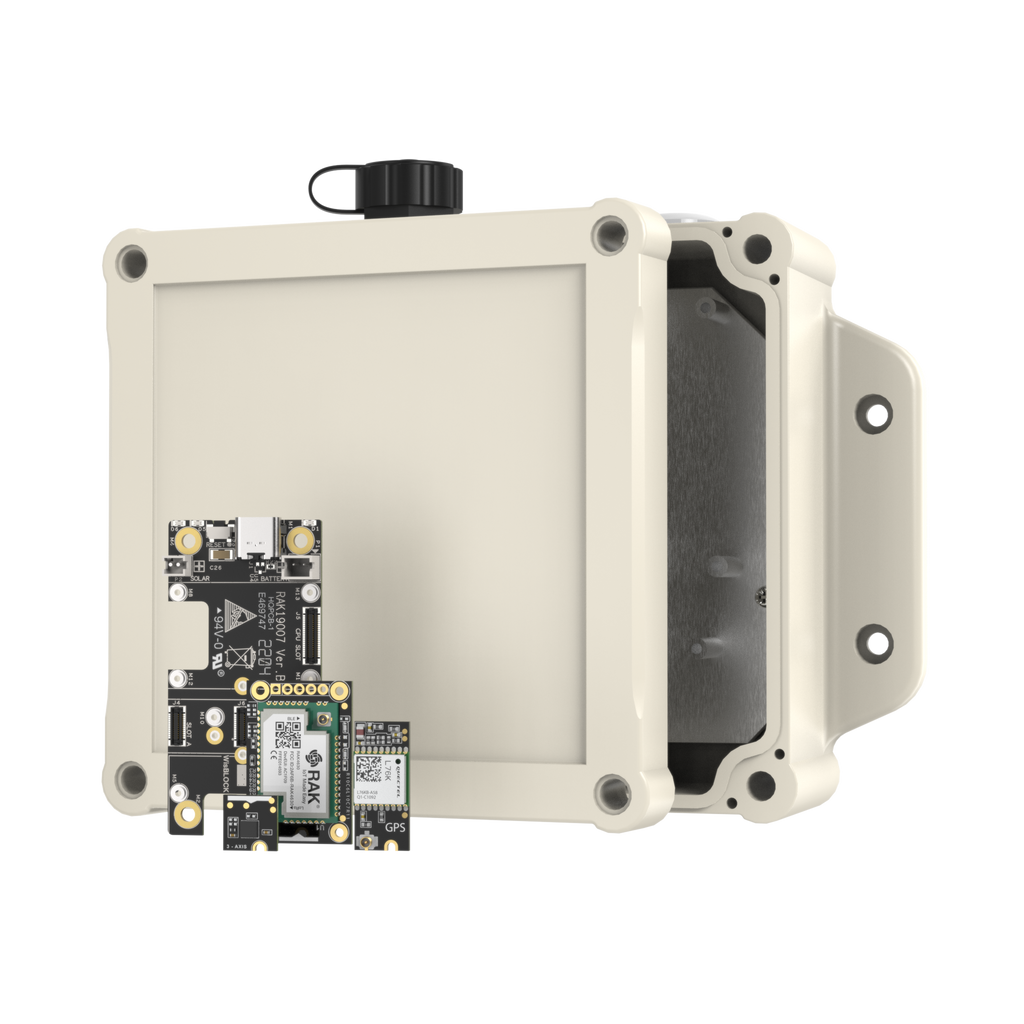

WisBlock Kit 3 is a LoRa® -based GPS Tracker.

WisBlock Kit 3 is a GPS tracker with a sensor that can be used to detect change of location for a set time interval. Use this kit for tracking and monitoring of cargo, vehicles, and marine vessels. The localization data acquired using the GPS module and the location information is sent to a LoRaWAN server when the sensor changes location.

WisBlock Kit 3 is encased in a sturdy box made for outdoor industrial IoT applications.

Key Features

  • RAK19007

    • Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
    • Small form factor
    • Supports 3 different power supply sources
    • Optimized for low power consumption applications
    • I2C, UART, GPIO's an analog input accessible with solder contacts
    • 2 user-definable LED's
    • Reset button
    • USB debug port
    • 1 slot for WisBlock Core MCU
    • 4 slots for WisBlock Sensor sensor modules
    • 1 slot for another WisBlock extension modules
  • RAK4631

    • LoRaWan® 1.0.2 protocol stack (supports Class A & C)
    • Bluetooth Low Energy 5.0 protocol stack
    • Nordic nRF52840
    • Wide range of connections
    • Semtech SX1262
  • RAK1904

    • Using the ST LIS3DH acceleration sensor
    • Low power consumption
    • Small form factor
    • User-selectable scales of ±2g/±4g/±8g/±16g
    • Data acquisition rates from 1Hz to 5.3kHz.
    • Internal buffer for 32 levels of 16-bit data
  • RAK12500

    • Using the very accurate GNSS Module:U-Blox ZOE-M8Q chirp
    • GPS,GLONASS,QZSS and BeiDou Satellite support
    • Location Accuracy of ±2.5 meter
    • 10Hz update rate
    • Velocity Accuracy ±0.05 m/s
    • Serial and I2C communication to WisBlock Core support
    • 29 seconds Location Fix from Cold Start, 1 second from Hot Start

Package Inclusion

  • RAK19007
  • RAK4631
  • RAK1904
  • RAK12500
  • RAKBox-B4
  • LoRa Antenna
  • BLE Antenna
  • GPS Antenna
