WisBlock Kit 1

Indoor Ambient Monitor

SKU:119018

$50.48

The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

LoRa Frequency Map Guide

Hover over your region on the map to see local country frequencies.

Quantity

Details
Documentation
Q/A
Reviews
Related Items

Request Quote for Custom WisBlock Module

Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Note:

If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.

If a battery is used with WisBlock Base Board, please check that the battery connector has the correct polarity. You can check the required polarity in our Documentation Center.

Product Description

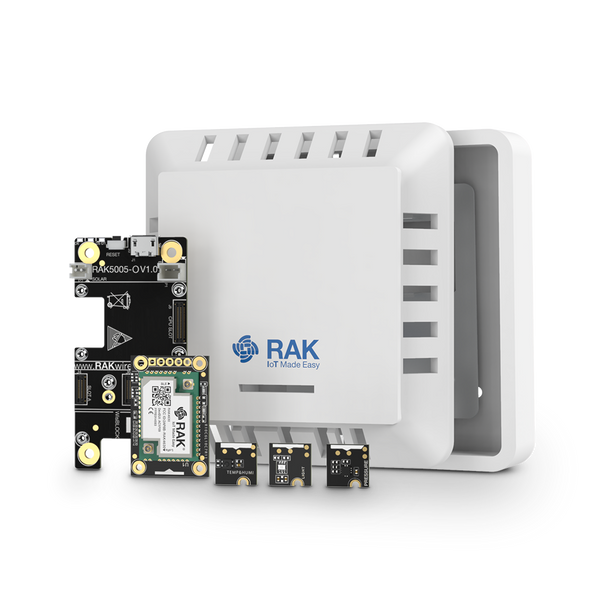

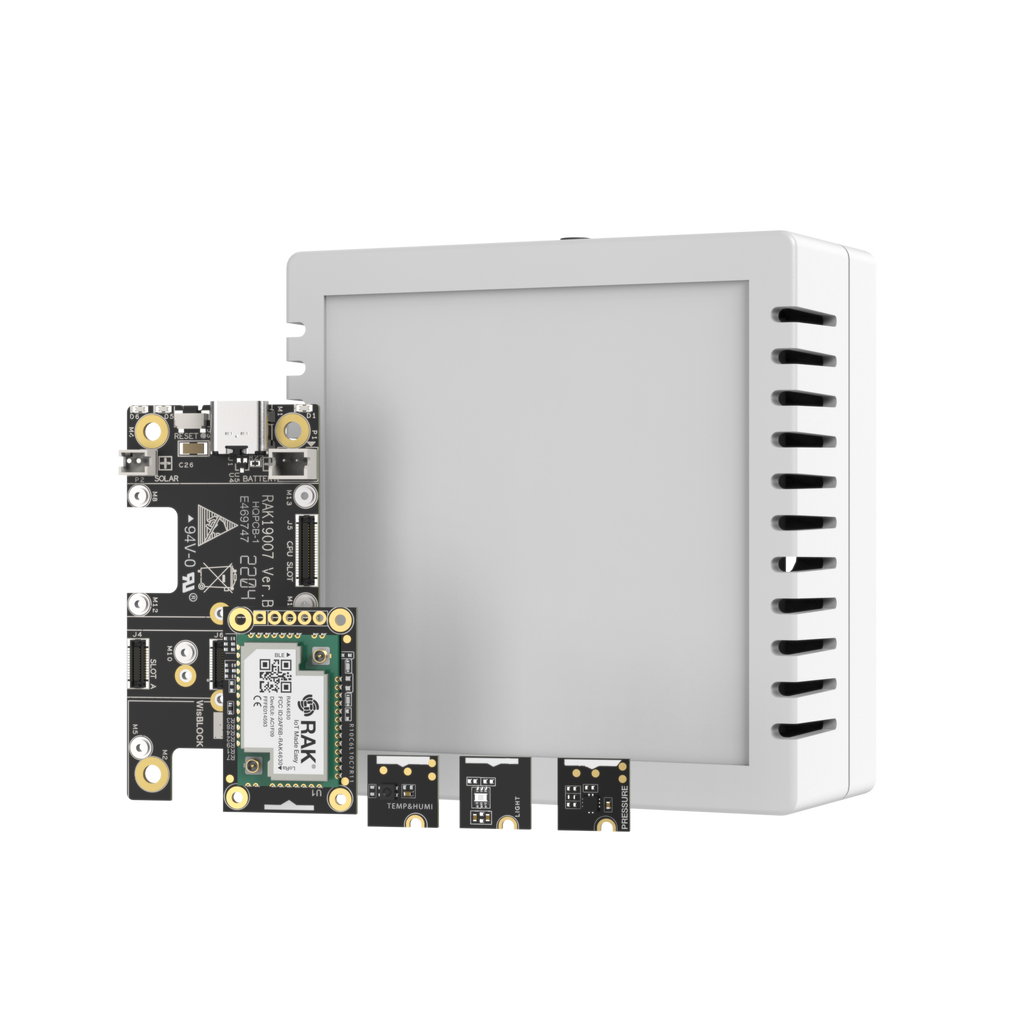

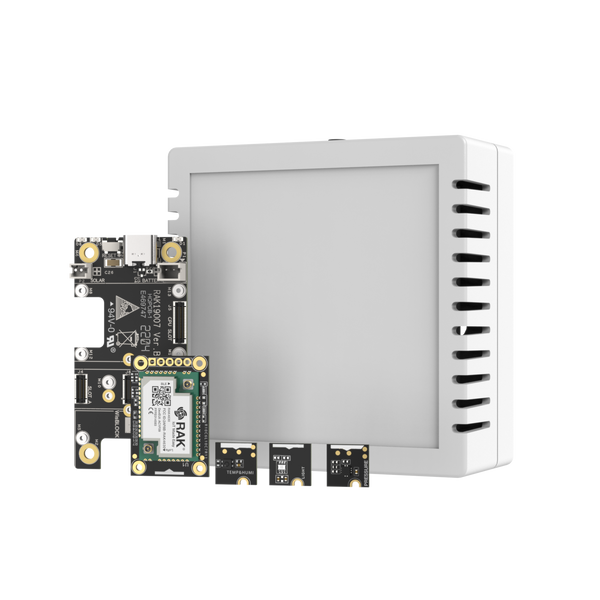

WisBlock Kit 1 consists of a Sensor Node to measures air temperature, air humidity, barometric pressure, and environment luminosity values. Transmitting data periodically to a LoRaWan® server.

Application

WisBlock Kit 1 is used to track and monitor the weather in the location you want.

Use WisBlock Kit 1 to measure air temperature, air humidity, barometric pressure, and environment luminosity values. With WisBlock Kit 1 you can gather the data that you need to learn more about the weather conditions in your chosen location. This kit can also transmit whatever data it acquires to a LoRaWAN® server regularly.

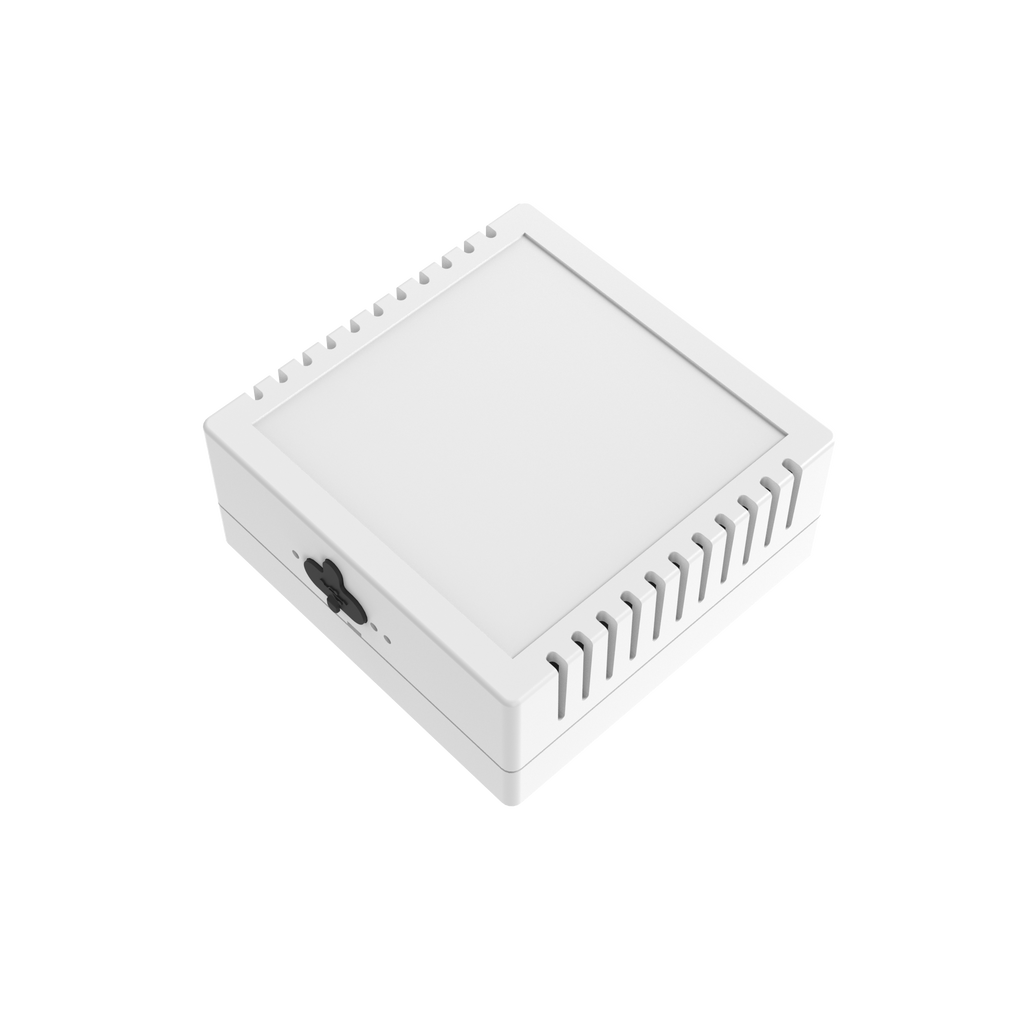

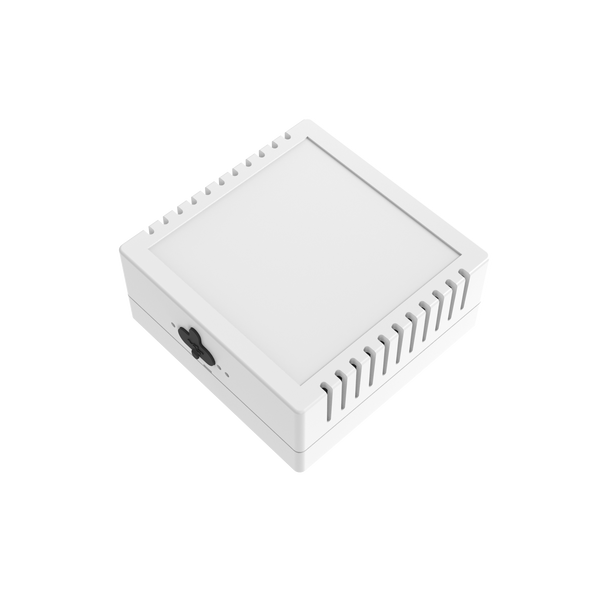

WisBlock Kit 1 uses a sturdy enclosure that helps it withstand weather complications without a hitch.

Key Features

RAK19007

Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
Small form factor
Supports 3 different power supply sources
Optimized for low power consumption applications
I2C, UART, GPIO's an analog input accessible with solder contacts
2 user-definable LED's
Reset button
USB debug port
1 slot for WisBlock Core MCU
4 slots for WisBlock Sensor sensor modules
1 slot for another WisBlock extension modules

RAK4631

LoRaWan® 1.0.2 protocol stack (supports Class A & C)
Bluetooth Low Energy 5.0 protocol stack
Nordic nRF52840
Wide range of connections
Semtech SX1262

RAK1901

Using the Sensirion SHTC3 temperature & humidity sensor
Low power consumption
Small form factor
±2.0 °C temperature accuracy
-40 to +125 °C temperature range
±2.0 % RH humidity accuracy
0 to 100% humidity range

RAK1902

Using the ST KPS22HB barometric pressure sensor
Low power consumption
Small form factor
Pressure range 260-1260 hPa
Low power consumption of 3uA

RAK1903

Using the TI OPT3001DNPR light sensor
Low power consumption
Small form factor
Measurement range from 0.01 lux to 83865 lux
Optical filtering to match the human eye
Low power consumption of 1.8uA

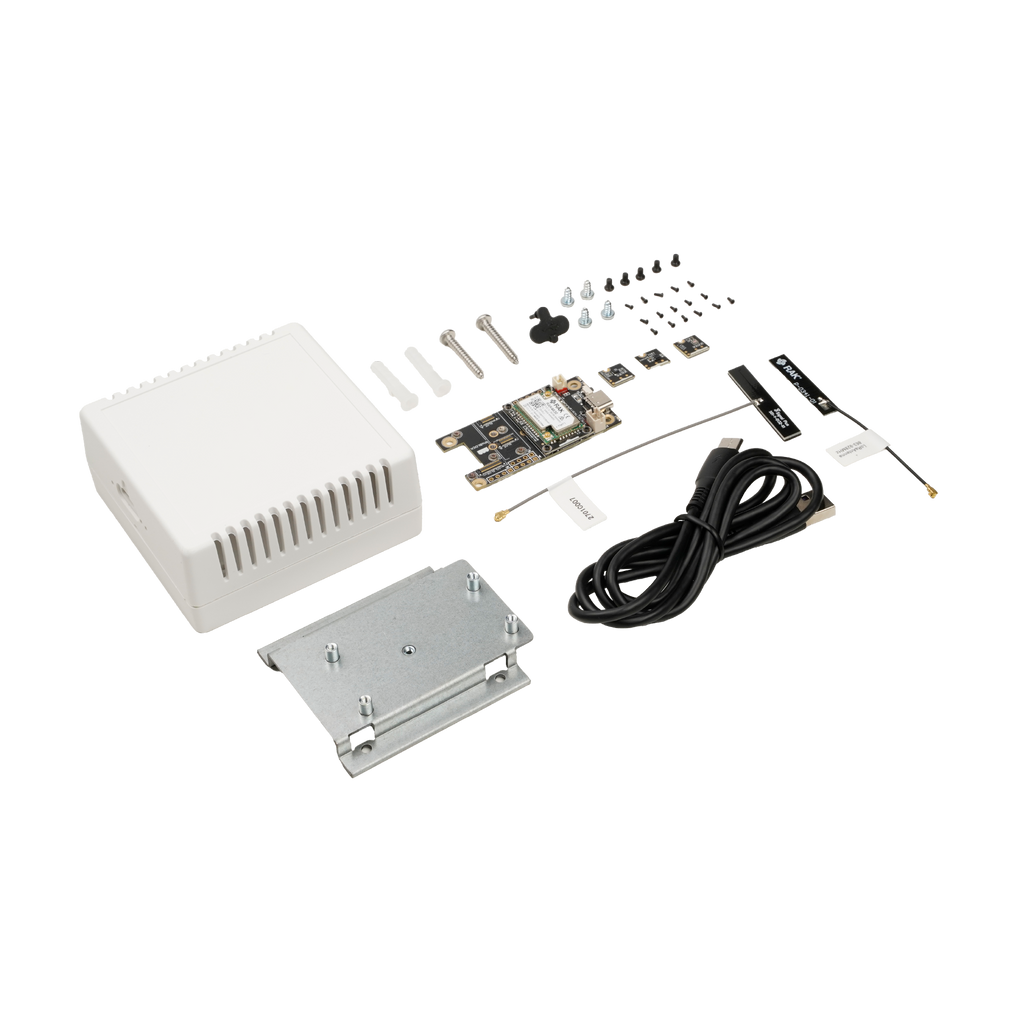

Package Inclusion

RAK19007
RAK4631
RAK1901
RAK1902
RAK1903
RAKBox-B3
LoRa Antenna
BLE Antenna

Software Example Code

Weather Monitoring Using WisBlock Modules

Documentation
