2.4GHz BLE PCB Antenna
2.4GHz BLE PCB Antenna
2.4GHz BLE PCB Antenna

2.4GHz BLE PCB Antenna

SKU:920091
Regular price $3.00 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

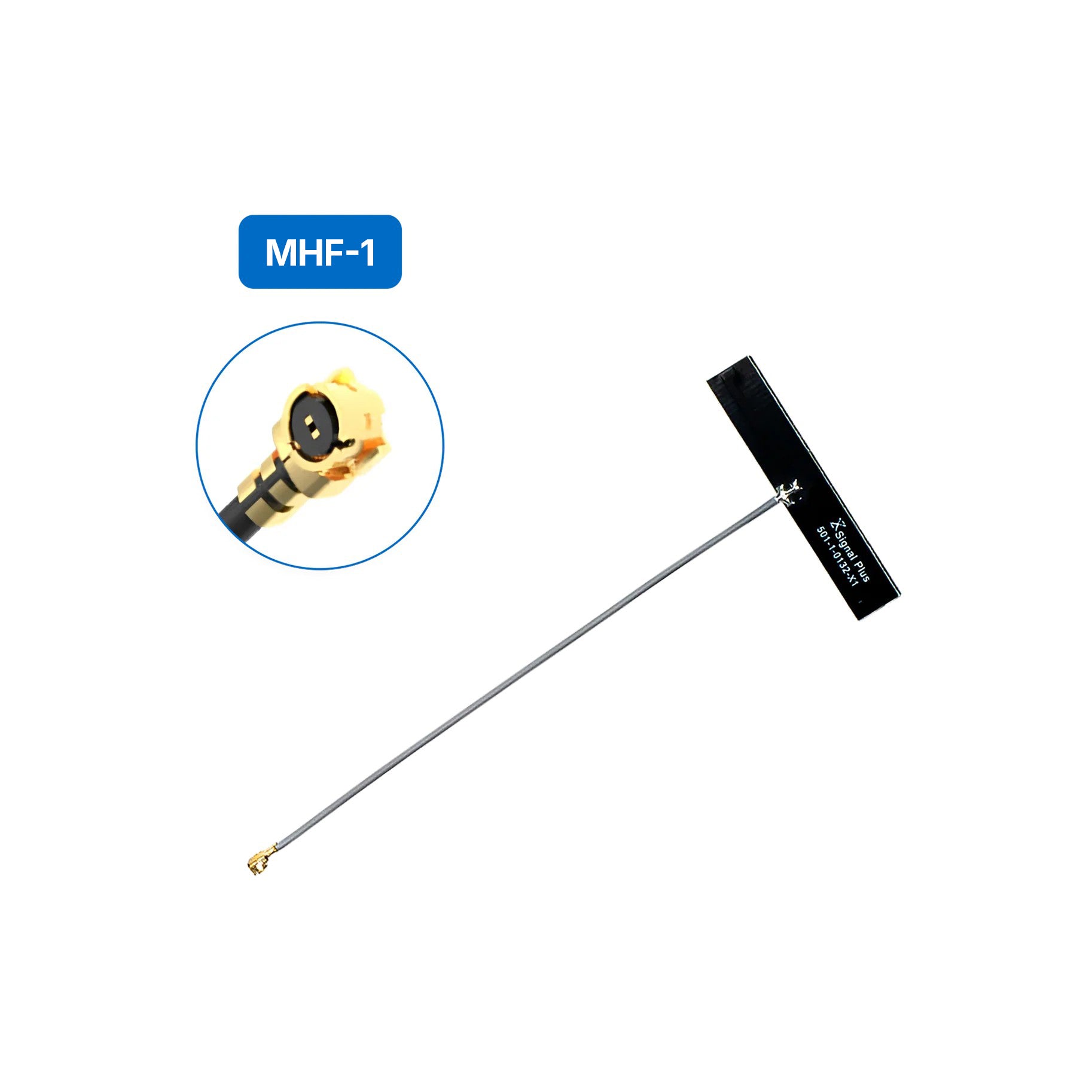

WisBlock 2.4 GHz PIFA antenna offers a small footprint and superior gain characteristics which is very ideal for IoT node devices. Its size offers flexibility on enclosures without compromising performance with its Omni-directional characteristics.

With its adhesive tape, the antenna can easily be fixed inside an enclosure.

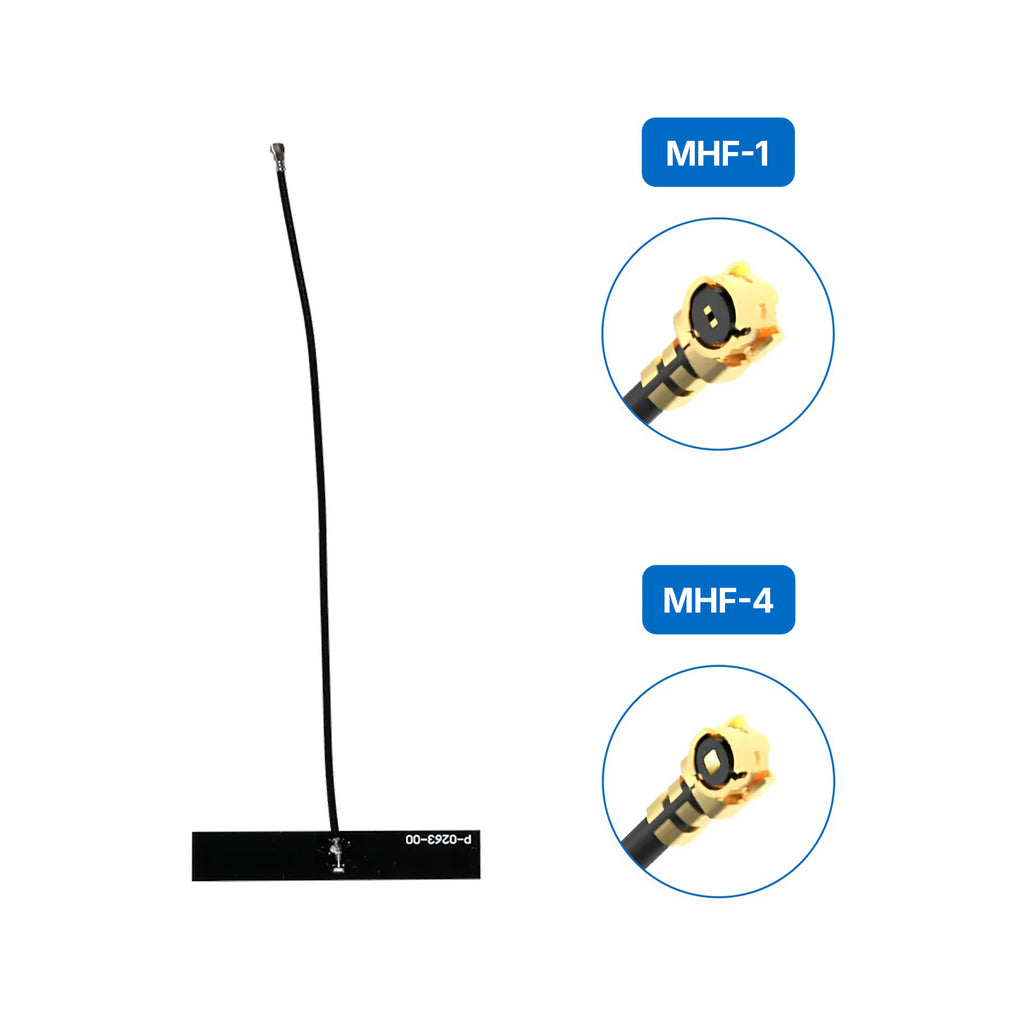

The antenna with IPEX MHF1 connector is suitable for RAK4600 Stamp Module, RAK4600 Breakout Board, RAK4600 Evaluation board, and WisBlock RAK4631 Core module.

The antenna with IPEX MHF4 connector is only suitable for RAK11720 Stamp Module. This antenna cannot be used with other WisDuo or WisBlock modules.

Key Features



IPEX MHF1

IPEX MHF4(Only for RAK11720)

Frequency Range

2400~2500 MHz

2400~2500 MHz

Peak gain

3dBi

3.12dBi

VSWR

2

2

Efficiency

79.95%

79.95%

Impedance

50 ohm

50 ohm

Connector Type

U.FL

U.FL

Dimensions

40 x 7 x 2.3mm

40 x 7 x 1mm

Cable length

110mm

100mm

Operating temperature

-30 °C ~ +75 °C

-30 °C ~ +75 °C

Package Inclusion

  • 1pc Antenna for Bluetooth Low Energy

Become a RAK Affiliate and Earn Today!

Get paid to talk about RAK products! Join the RAK Affiliate program today.

Questions and Answers

  • What is the radiation pattern for this antenna?

    S11 & VSWR
    Frequency (MHz) S11 VSER
    2400MHz -13.36 1.54
    2450MHz -18.34 1.27
    2500MHz -16.07 1.37



    Frequency (MHz) Peak Gain (dBi) Efficiency (%)
    2400 4.31 62.5
    2450 5.1 67.8
    2500 5.5 69.1
