PCB Antenna for LoRa
Prefer another courier for your delivery? Contact us for special shipping arrangements.
The PCB Antenna for LoRa is available through our trusted distributors.
Choose your region below for fast and local delivery.

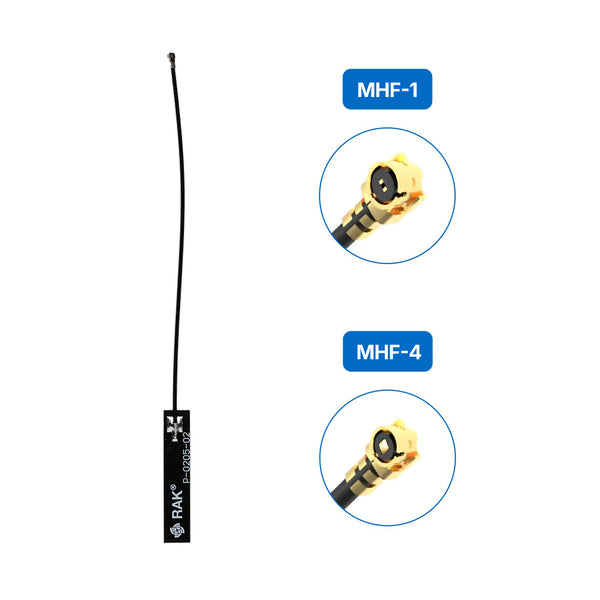

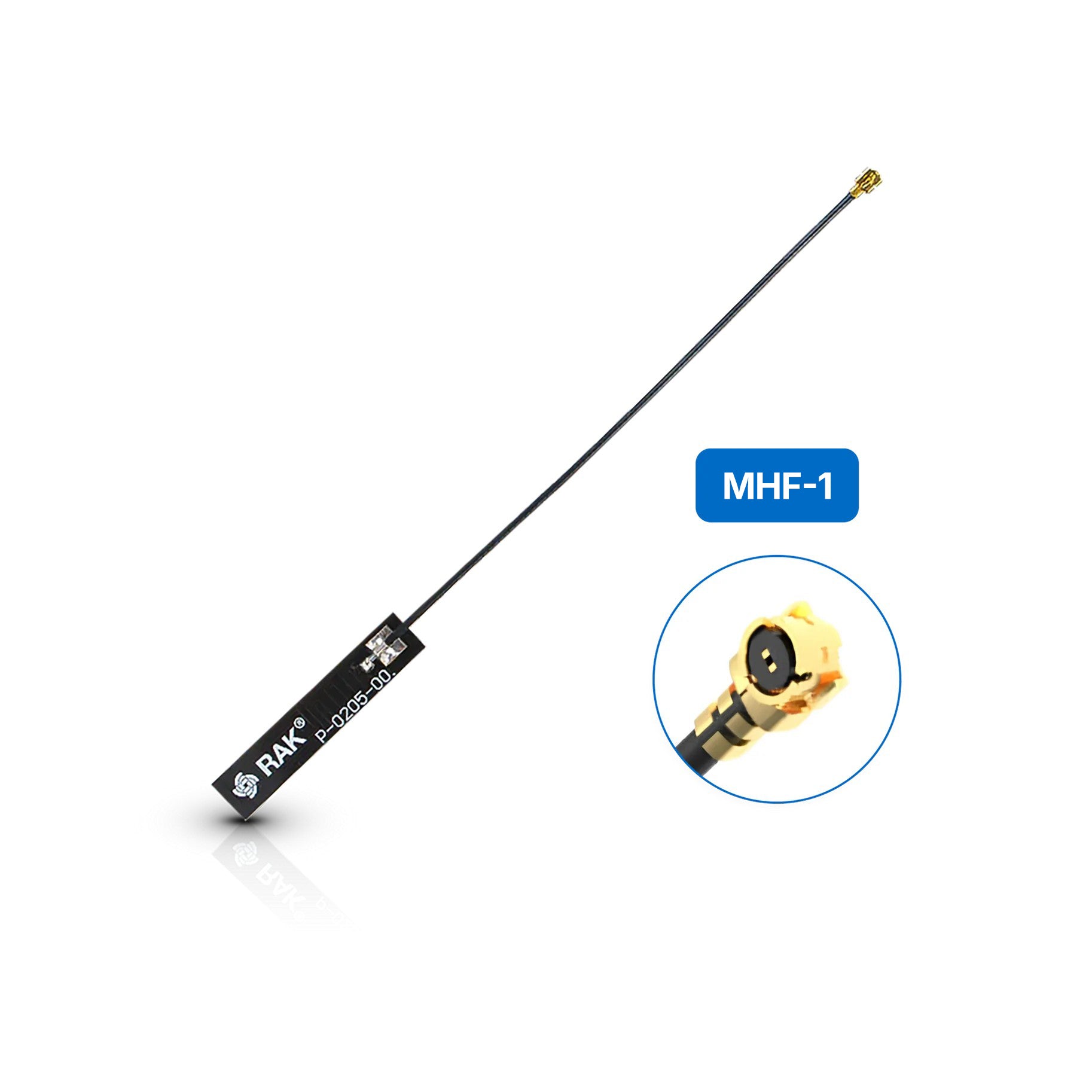

RAK PCB antenna is a small antenna, compatible with all LoRa and LoRaWAN end devices. It comes with an MHF connector for easy attachment. It is compatible with all WisTrio, WisDuo, and WisBlock products with an MHF connector.
Antennas with MHF4 connector are compatible with the WisDuo modules RAK11160, RAK11720, RAK3112 and WisBlock Core modules RAK11162 and RAK3312.
Antennas with MHF1 connector are compatible with WisDuo modules RAK4630, RAK11300, RAK3172 and WisBlock Core modules RAK4631, RAK11722，RAK11310, RAK3372.
Please select the variant for your WisBlock or WisDuo module according to this table:
|
Variant |
LoRaWAN region |
Modules |
|
MHF1 antenna 902-928 MHz |
US915, AU915, KR920, AS923-1/2/3/4 |
RAK4630, RAK11300, RAK3172 |
|
MHF1 antenna 863-870 MHz |
EU868, RU864, IN865 |
RAK4630, RAK11300, RAK3172 |
|
MHF1 antenna 470-510 MHz |
CN470 |
RAK4630-L, RAK3172-L |
|
MHF1 antenna 433-435 MHz |
EU433 |
RAK4630-L, RAK3172-L |
|
MHF4 antenna 902-928 MHz |
US915, AU915, KR920, AS923-1/2/3/4 |
RAK11720,RAK11160, RAK3112,RAK3312, RAK11162 |
|
MHF4 antenna 863-870 MHz |
EU868, RU864, IN865 |
RAK11720, RAK11160, RAK3112, RAK3312, RAK11162 |
Key Features
|
Frequency range |
863-870MHz antenna |
902-928MHz antenna |
470-510MHz antenna |
433-435MHz antenna |
|
Peak gain |
0.7dBi |
0.8dBi |
-0.49dBi |
-2.23dBi |
|
VSWR |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
|
Efficiency |
41.60% |
41.90% |
39.21% |
23.55% |
- Impedance: 50 Ohm
- Polarization: linear
- Connector type MHF
- Dimensions (mm): 35 x 7.0 x 0.5（863-870MHz/902-928MHz）/44 x 15 x 0.5（470-510MHz/433-435MHz）
- Indoor use/In enclosure for outdoor use
- Cable length 100mm
Package Inclusion
- 1pc PCB antenna
