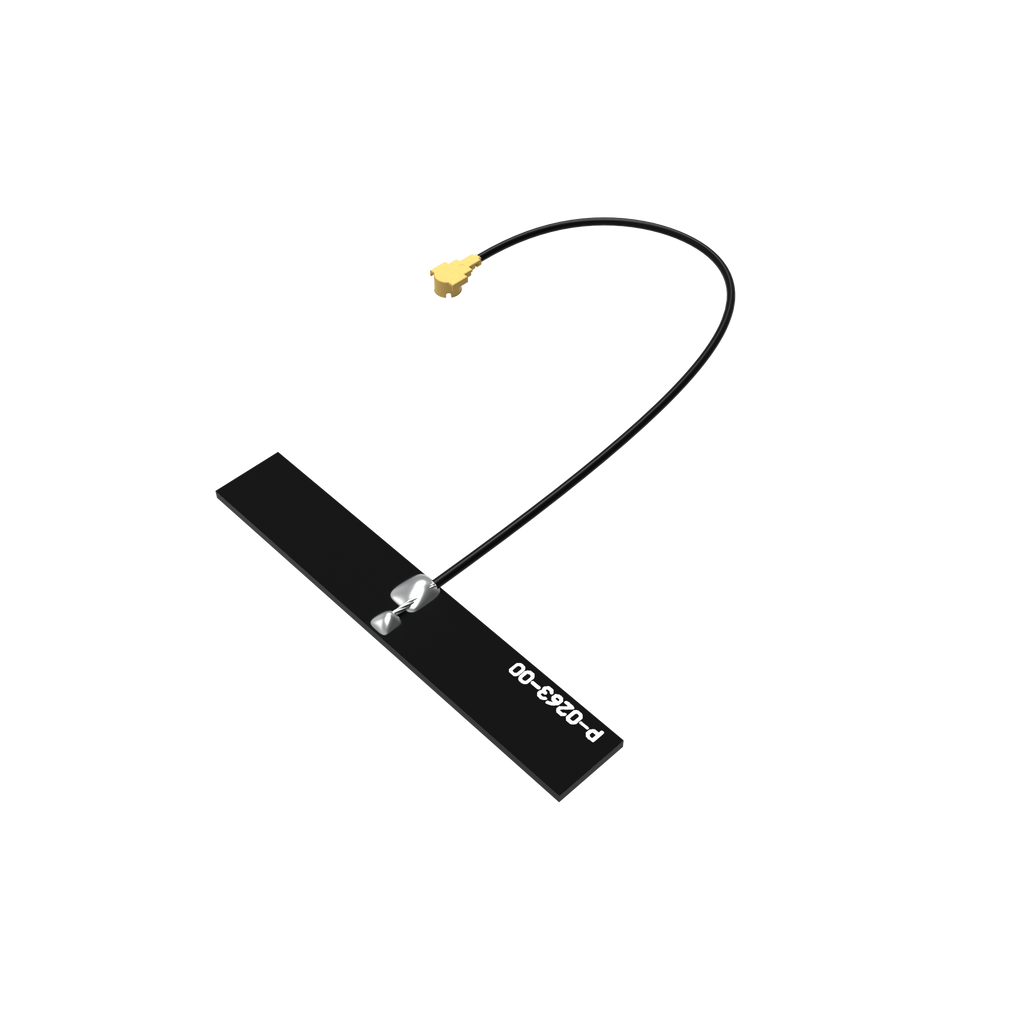

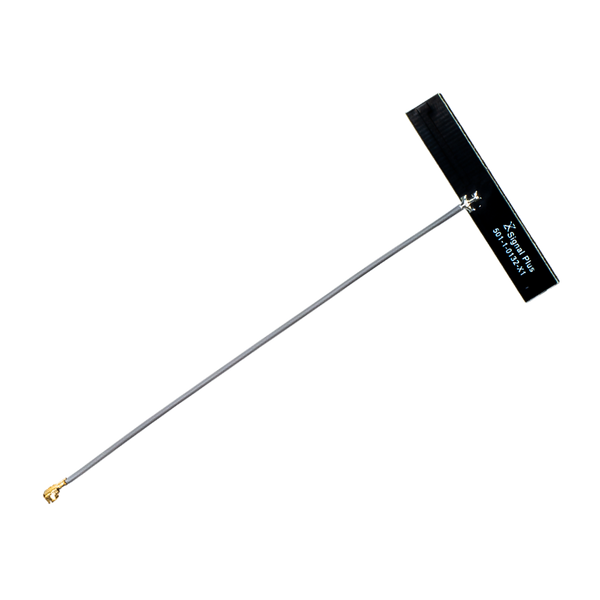

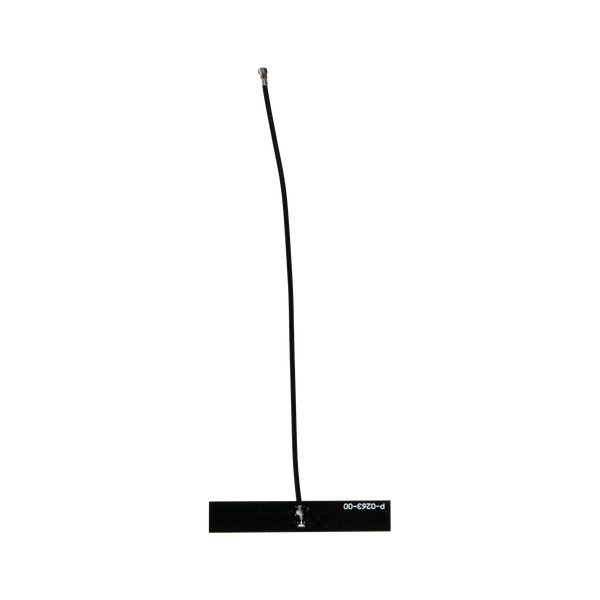

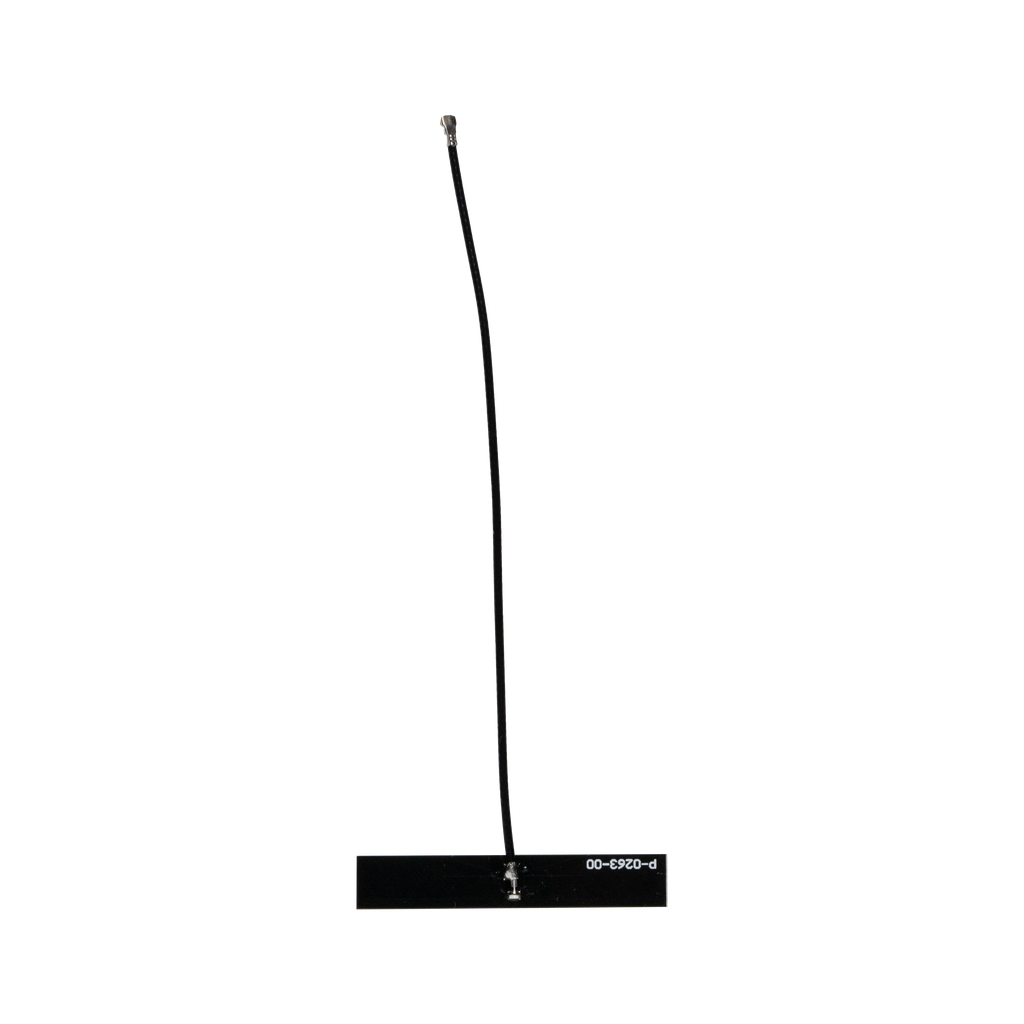

2.4GHz WiFi/BLE PCB Antenna iPEX-1/MHF-1
Compatible with RAK4630/ RAK4631 Modules
Prefer another courier for your delivery? Contact us for special shipping arrangements.
WisBlock 2.4 GHz WiFi/BLE antenna offers a small footprint and superior gain characteristics which is very ideal for IoT node devices. Its size offers flexibility on enclosures without compromising performance with its Omni-directional characteristics.
With its adhesive tape, the antenna can easily be fixed inside an enclosure.

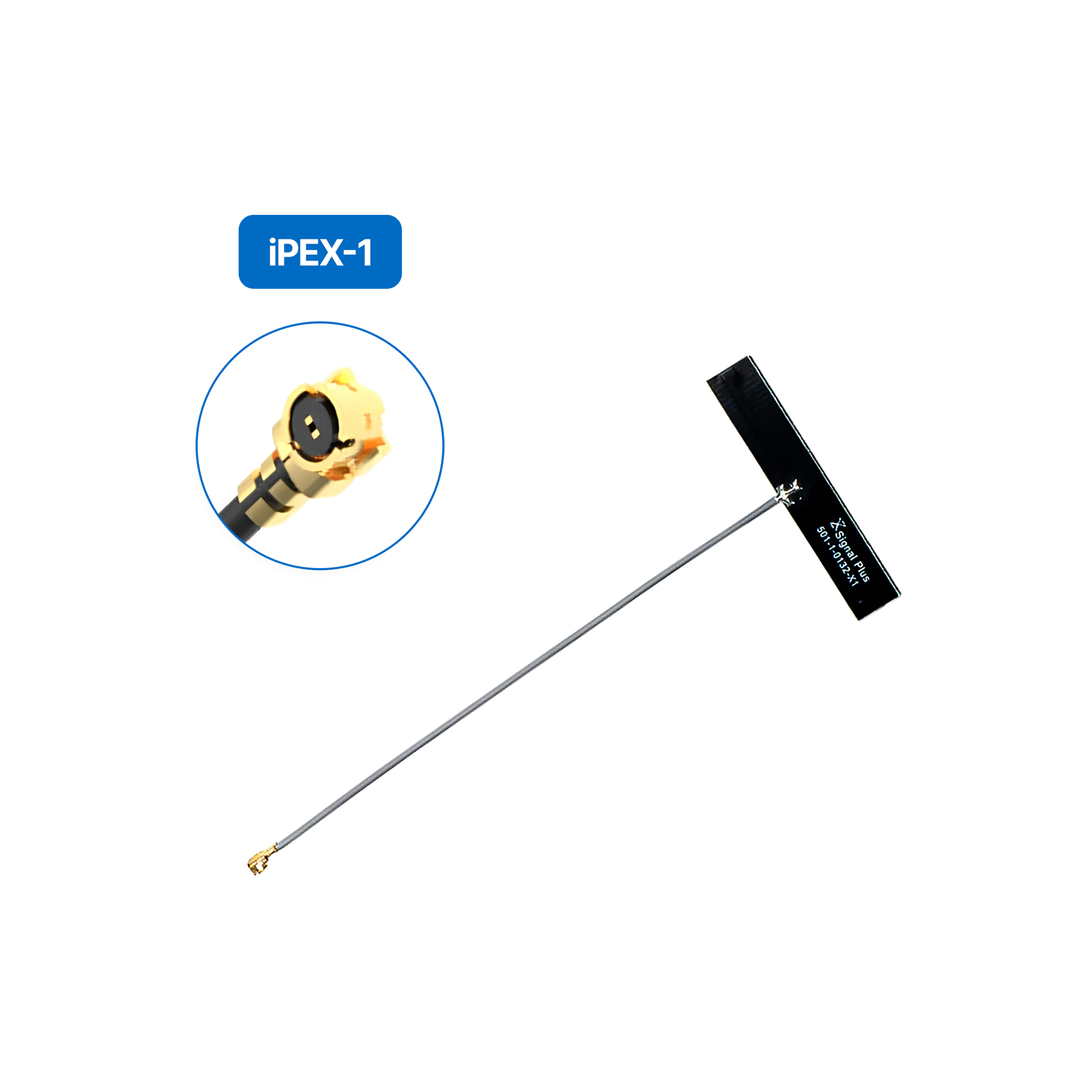

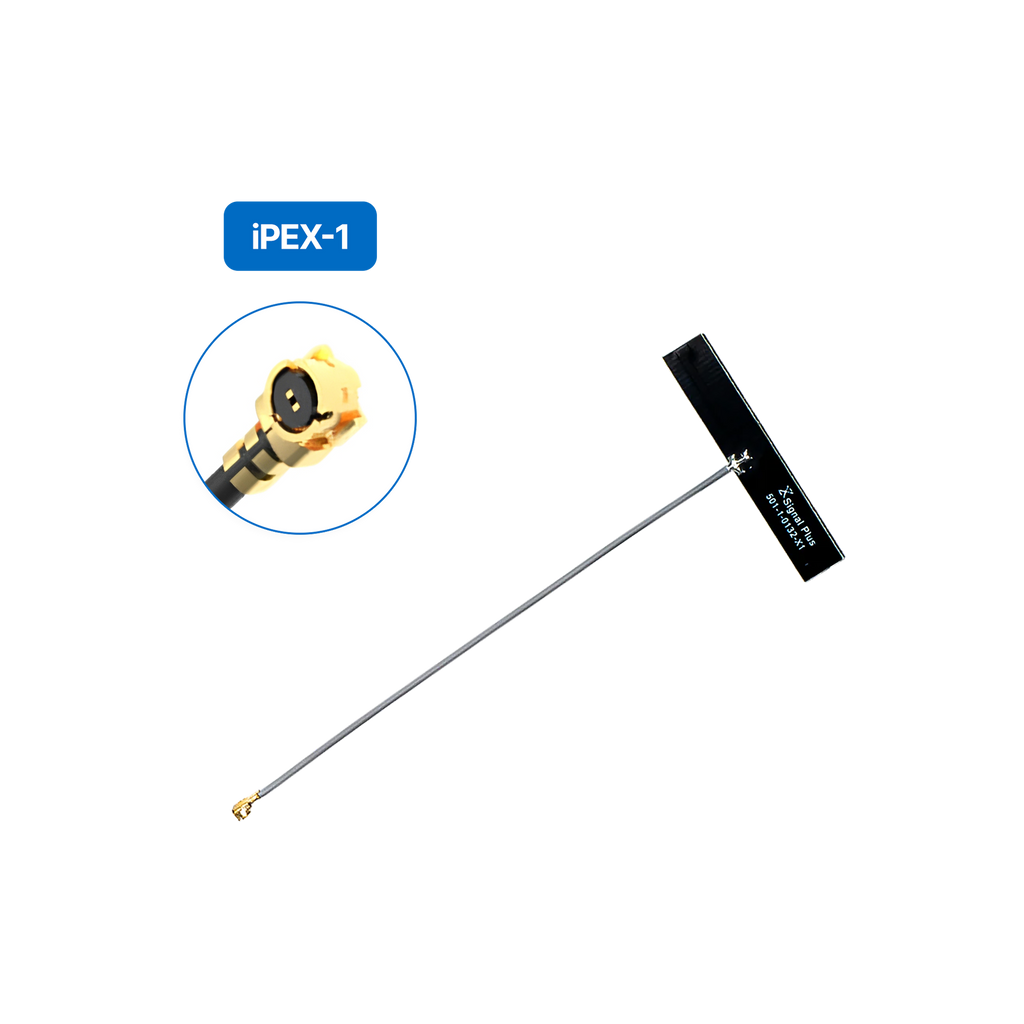

This antenna with iPEX-1/MHF-1 connector is compatible with WisDuo module RAK4630 and WisBlock Core module RAK4631.
For other modules, use the 2.4GHz WiFi/BLE PCB Antenna iPEX-4/MHF-4.
Key Features
|
Features |
IPEX MHF1 |
|
Frequency Range |
2400~2500 MHz |
|
Peak gain |
3dBi |
|
VSWR |
≤2 |
|
Efficiency |
74.4% |
|
Impedance |
50 ohm |
|
Connector Type |
U.FL |
|
Dimensions |
40 x 7 x 2.3mm |
|
Cable length |
110mm |
|
Operating temperature |
-30 °C ~ +75 °C |
Package Inclusion
-
1pc Antenna for Bluetooth Low Energy
