2.4GHz WiFi/BLE PCB Antenna iPEX-4/MHF-4
Compatible with RAK11720/ RAK11160/ RAK3112/ RAK11162 /RAK3312 Modules
Prefer another courier for your delivery? Contact us for special shipping arrangements.

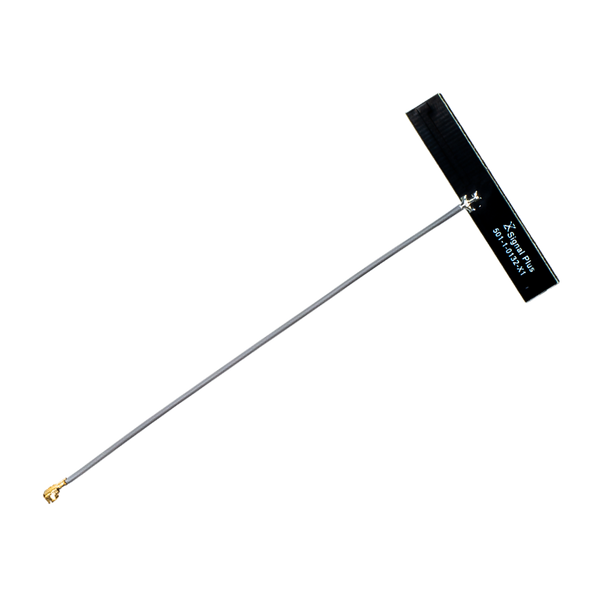

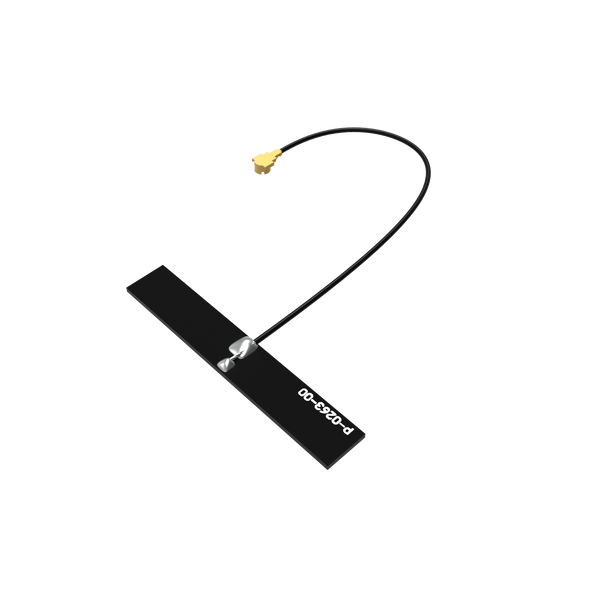

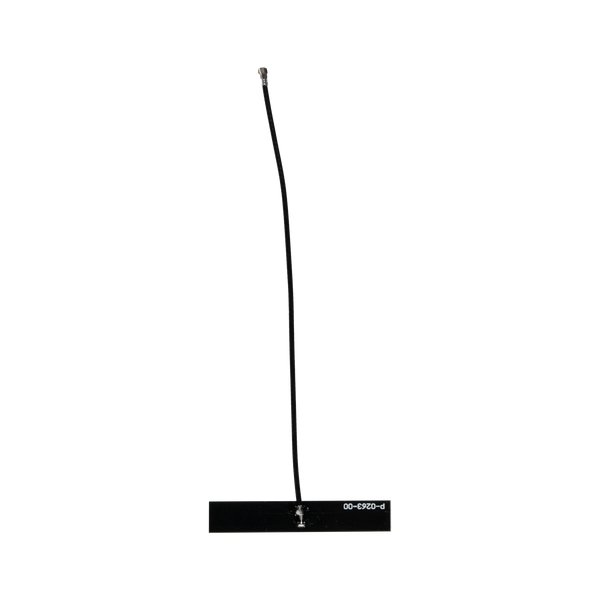

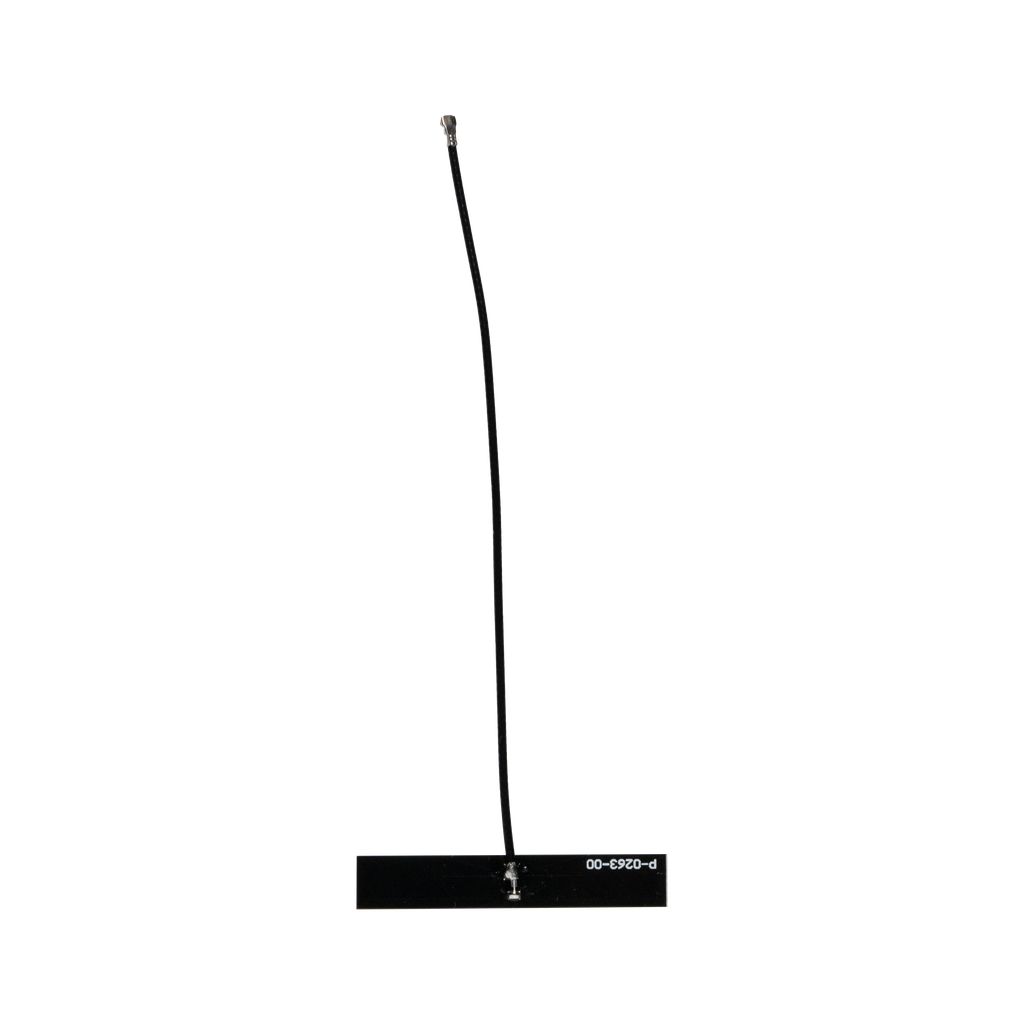

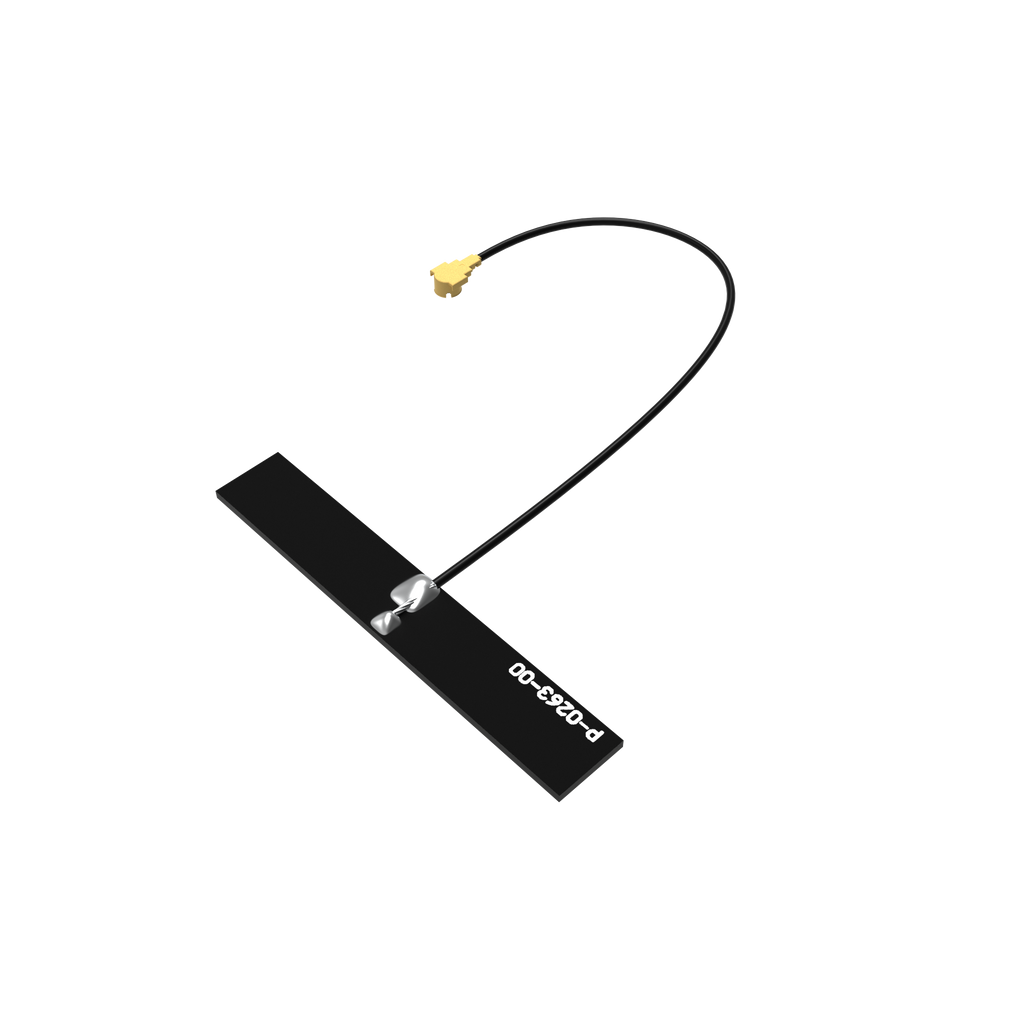

WisBlock 2.4 GHz WiFi/BLE antenna offers a small footprint and superior gain characteristics which is very ideal for IoT node devices. Its size offers flexibility on enclosures without compromising performance with its Omni-directional characteristics.
With its adhesive tape, the antenna can easily be fixed inside an enclosure.

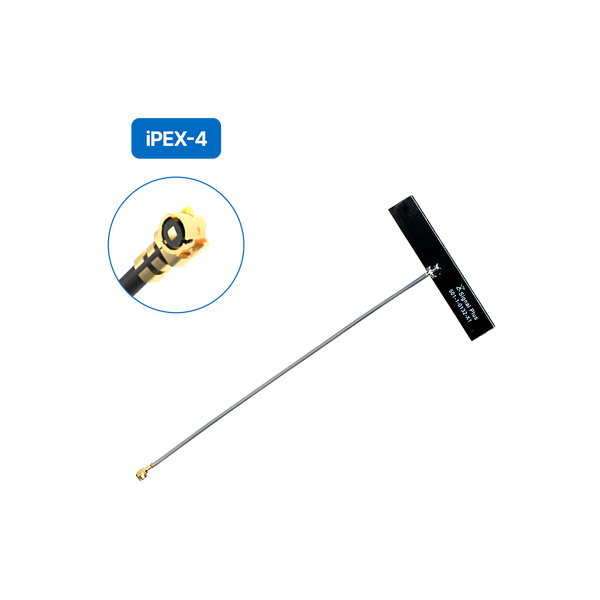

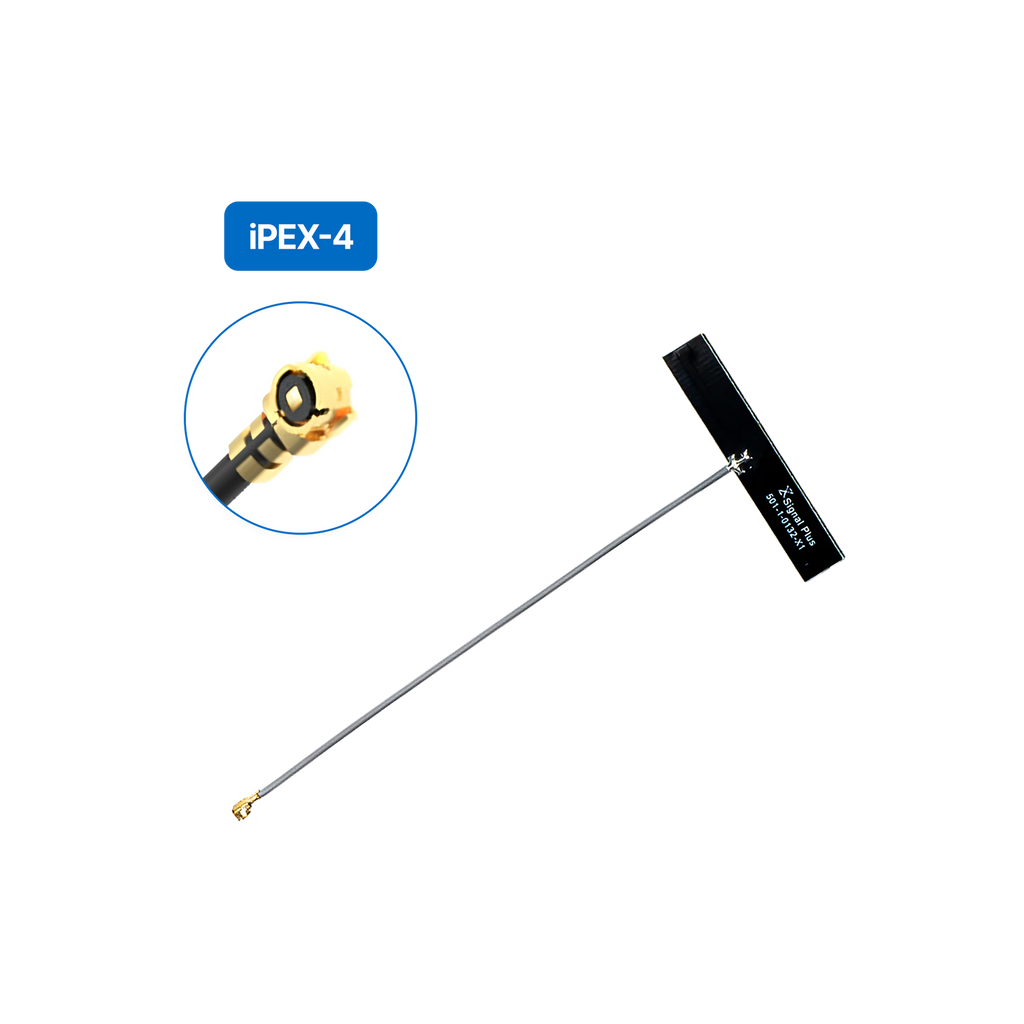

This antenna with iPEX-4/MHF-4 connector is compatible with WisDuo module RAK11160, RAK11720, RAK3112 and WisBlock Core modules RAK3312, and RAK11162.
For other modules use the 2.4GHz WiFi/BLE PCB Antenna iPEX-1/MHF-1.
Key Features
|
Features |
IPEX MHF4 |
|
Frequency Range |
2400~2500 MHz |
|
Peak gain |
3.12dBi |
|
VSWR |
≤2 |
|
Efficiency |
79.95% |
|
Impedance |
50 ohm |
|
Connector Type |
U.FL |
|
Dimensions |
40 x 7 x 1mm |
|
Cable length |
100mm |
|
Operating temperature |
-30 °C ~ +75 °C |
Package Inclusion
-
1pc Antenna for Bluetooth Low Energy
