WisMesh RAK3312 Starter Kit

What is WisMesh RAK3312 Meshtastic Starter Kit?

The WisMesh RAK3312 Starter Kit is a complete LoRa mesh network kit for off-grid communication, giving you everything you need to build your own private long-range mesh system. It’s designed as an easy entry point into creating reliable, self-sustaining communication networks without cellular or internet coverage.

Built for powerful, flexible LoRa mesh communication:

• Powered by the Espressif ESP32-S3 WiFi BLE Dual Core Module for LoRaWAN® with LoRa SX1262 - a dual-core WiFi + BLE module designed for high performance and low power use.
• Integrated SX1262 LoRa radio - enables long-range, reliable wireless messaging across nodes.
• Modular WisBlock design -easily expand with additional boards and sensors for custom setups.
• Meshtastic ready to go-pre-flashed firmware lets you build and deploy your private mesh network right out of the box.

Interested in joining the Meshtastic network?

Meshtastic is an off-grid messaging system using inexpensive hardware to create your mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online, too.

Start immediately with our Meshtastic Starter Kit in a few steps.

1. We offer the RAK3312 (Espressif ESP32-S3) Core modules.
2. Select the Base Board you want to start with. The smallest WisBlock Mini Base Board RAK19003 is perfect for the Meshtastic Client or Router role. The WisBlock Base Board 2nd Gen RAK19007 is a good start if you want to extend the Meshtastic device with additional modules. And if you want to go big, the WisBlock Dual IO Base Board RAK19001 is ready for many sensors and IO slot modules.
3. Select additional modules to go with your Meshtastic Starter Kit. We prepared variants for the different roles within the Meshtastic network.

The Starter Kit supports both 8xx and 9xx MHz frequencies and can be used in America, Asia, and Europe.

Of course, you can add other WisBlock modules to your selection as well. In the Meshtastic Documentation, you can find a list of WisBlock modules that are supported.

Choose one of our Unify Enclosures for perfect protection of your Meshtastic device from the Unify Enclosure Collection.

Why Choose a Meshtastic Starter Kit for Off-Grid Communication

Powered by the ESP32-S3 dual-core with WiFi, BLE, and LoRa SX1262, this kit offers superior range, plug-and-play setup, and modular WisBlock expansion. No soldering or firmware flashing required. Designed for off-grid communication and professional-grade reliability.

Why it's useful:

• Reliable Off-Grid Communication Device: Stay connected in remote or low-signal environments.
• Expandable Modular Design: Add supported WisBlock modules like sensors, displays, or GNSS for custom applications.
• Ready to Use: Pre-flashed firmware and included antenna simplify setup and testing.
• Global Frequency Support: Operates across 800–900 MHz for multi-region deployment.
• Protected Deployment: Compatible with Unify Enclosures for outdoor and rugged use.

Key Features of the RAK3312 Meshtastic Starter Kit

• WisBlock Core module variants
  • RAK3312 Espressif ESP32-S3 WisBlock Core module, pre-flashed with the Meshtastic firmware - an ESP32-S3 Meshtastic board with SX1262 radio for long-range LoRa communication and low-power mesh operation.
• WisBlock Base Board variants
  • RAK19003 Mini Base Board, 30x35mm with two Sensor Slots (no IO slot available)

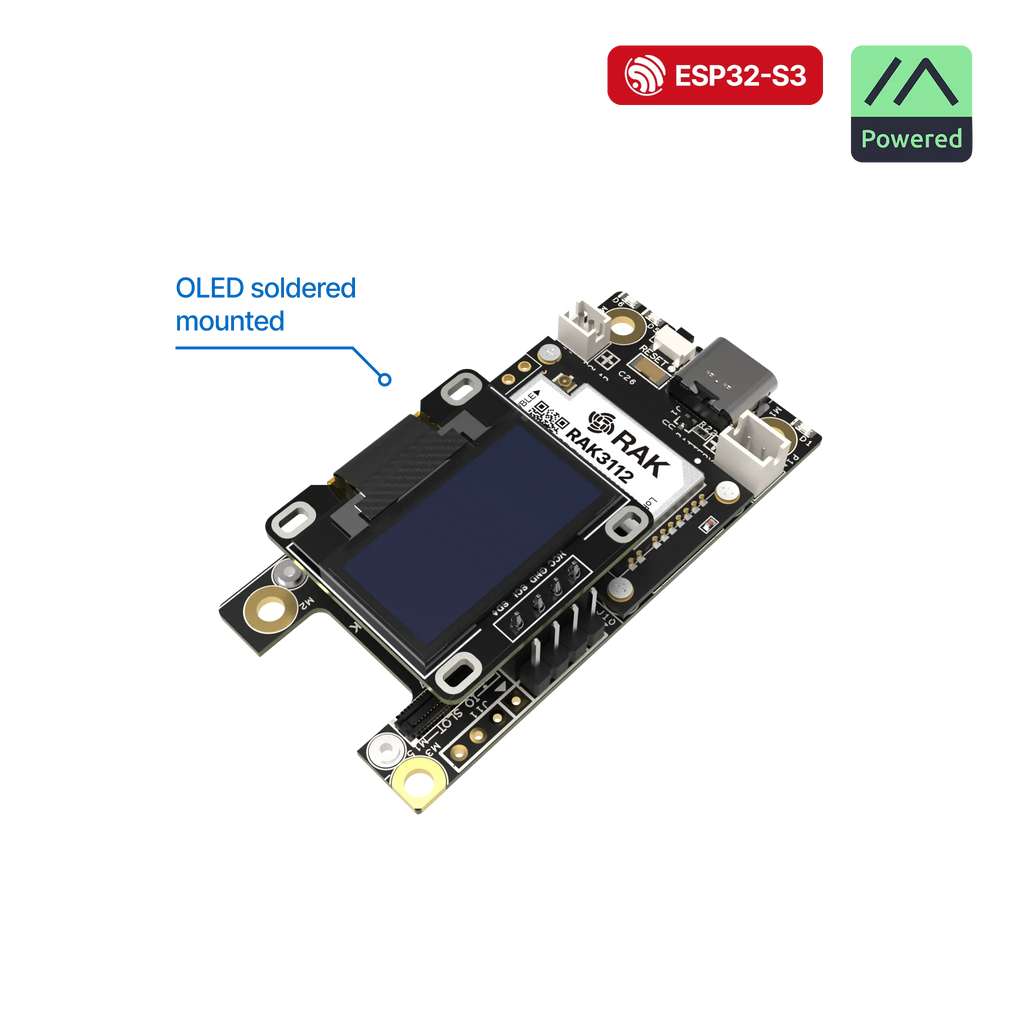

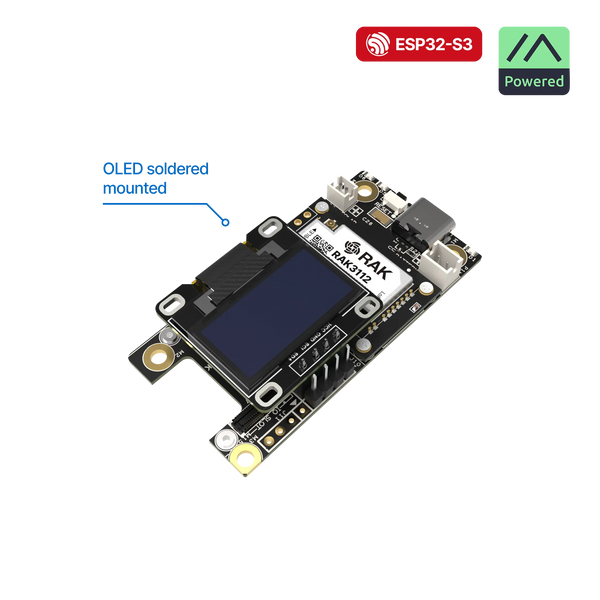

  • RAK19007 WisBlock Base Board, 30x60mm with 4 sensor slots and 1 IO slot

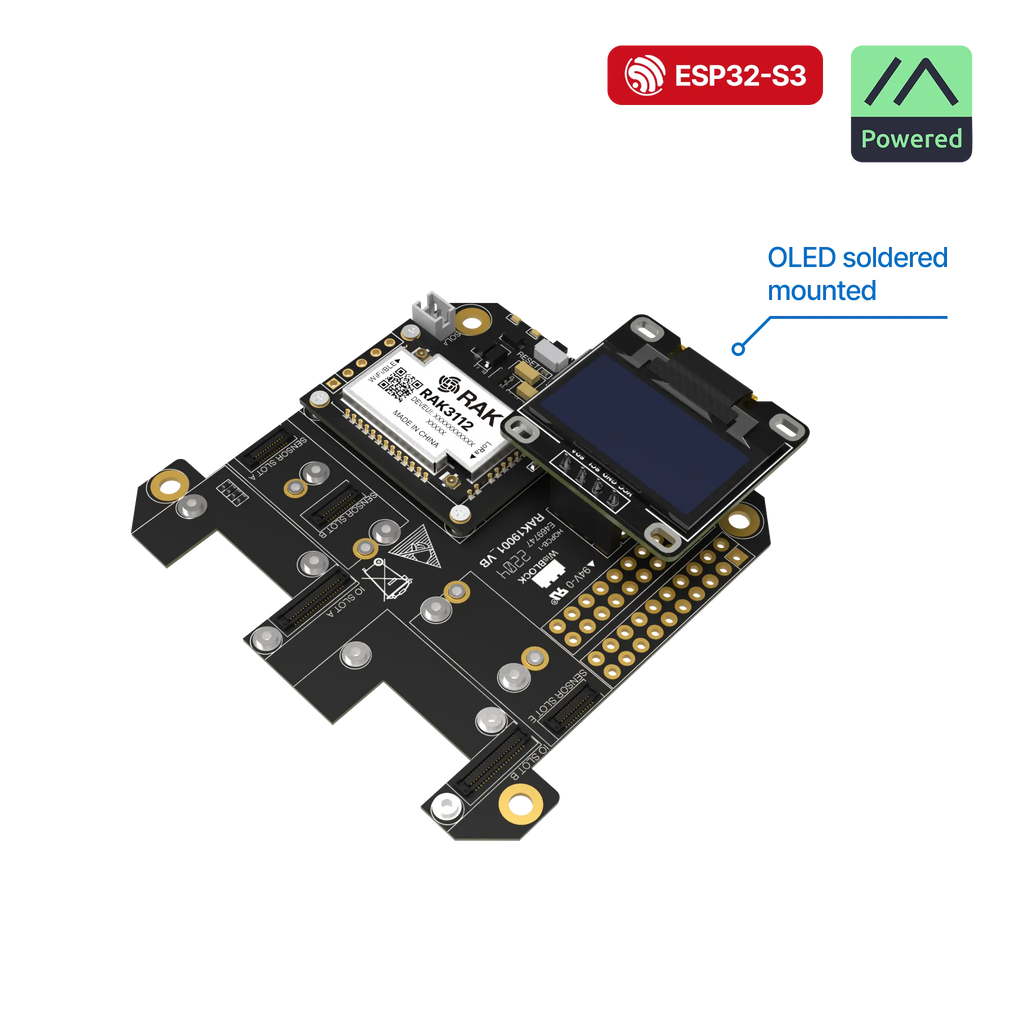

  • RAK19001 WisBlock Base Board, 60x67mm with 6 sensor slots and 2 IO slots
  • WisBlock Module bundles, based on Meshtastic network roles
• Meshtastic Basic and Router-Repeater Role
  • No additional modules
• Meshtastic Client Role

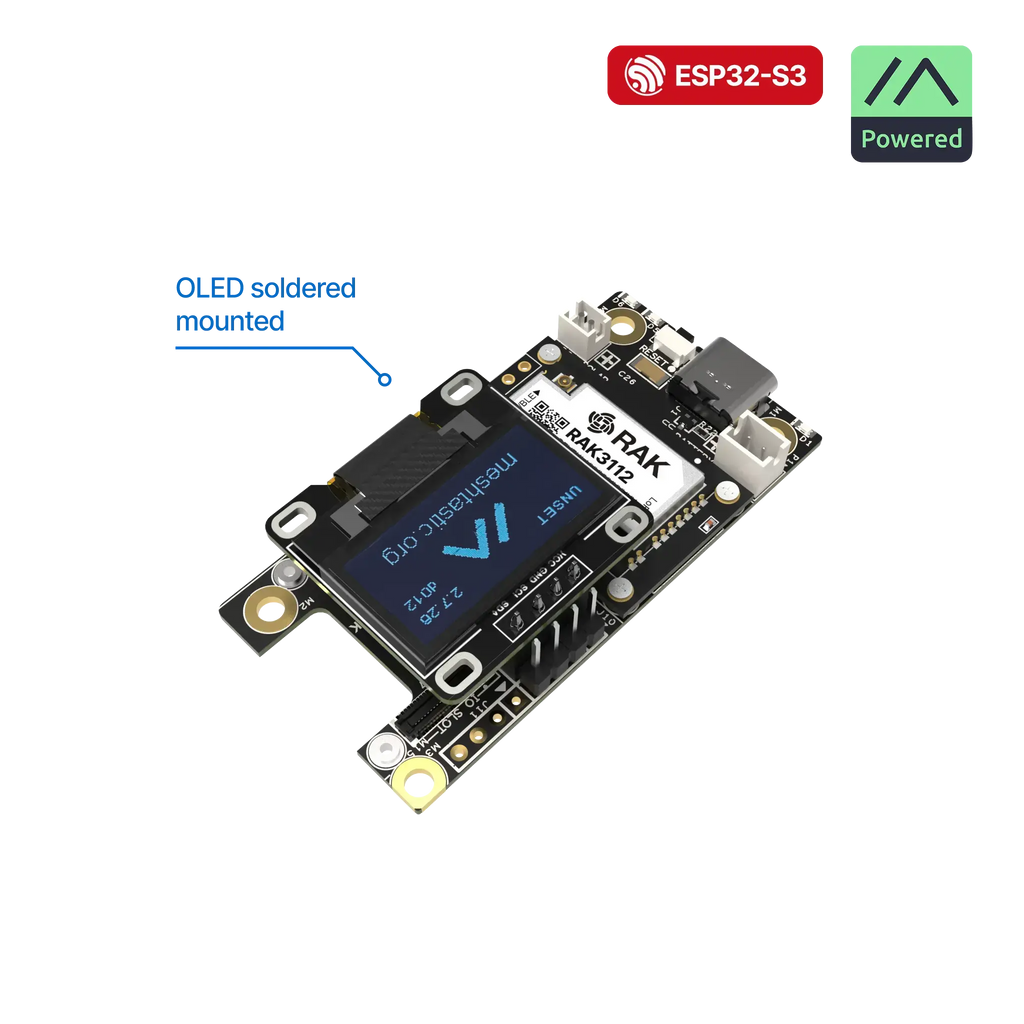

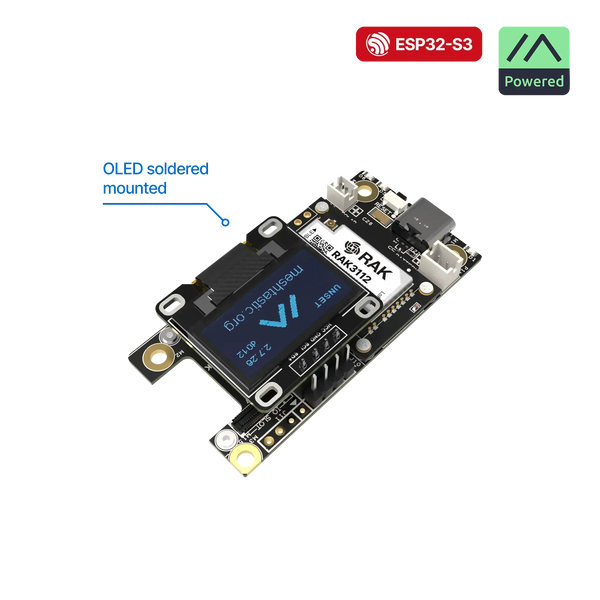

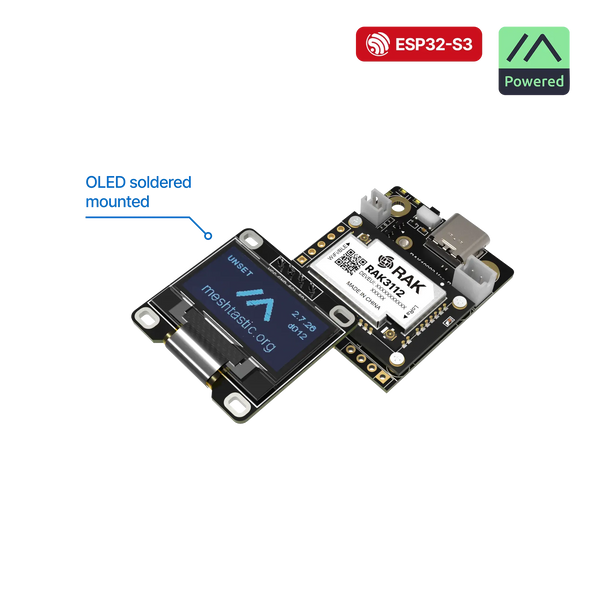

  • RAK1921 OLED display
• Meshtastic Tracker Role
  • RAK12501 GNSS location module
  • RAK1904 acceleration sensor
• Meshtastic combined Client-Tracker Role
  • RAK12501 GNSS location module
  • RAK1904 acceleration sensor
  • RAK1921 OLED display

Use Case Examples of WisMesh Meshtastic RAK3312 Starter Kit

Ideal for extending communication in outdoor, field, or emergency settings without relying on network infrastructure. Whether you’re setting up a DIY LoRa mesh kit for emergency response and overlanding or deploying field communication nodes for research and exploration, the WisMesh RAK3312 Starter Kit delivers reliable, off-grid connectivity when you need it most.

Use Case #1: Trail Communication Network

During a mountain trek, a research group deploys RAK3312 Meshtastic nodes across different elevations. Each node relays status updates and coordinates to others, maintaining communication despite zero mobile coverage.

Use Case #2: Disaster Response Coordination

A local emergency team configures RAK3312-based Tracker nodes inside Unify Enclosures. These devices transmit GPS locations and alerts through a LoRa mesh, ensuring stable communication across affected zones when networks fail.

Comparison Table: WisMesh RAK3312 Starter Kit vs T-Beam vs Heltec

This table shows why the WisMesh RAK3312 Starter Kit stands out as the best Meshtastic device for US915 band—a field-ready, plug-and-play solution for US users. While T-Beam and Heltec boards target DIY builders who manually flash firmware, RAK delivers a complete, modular Meshtastic ecosystem that works straight out of the box.

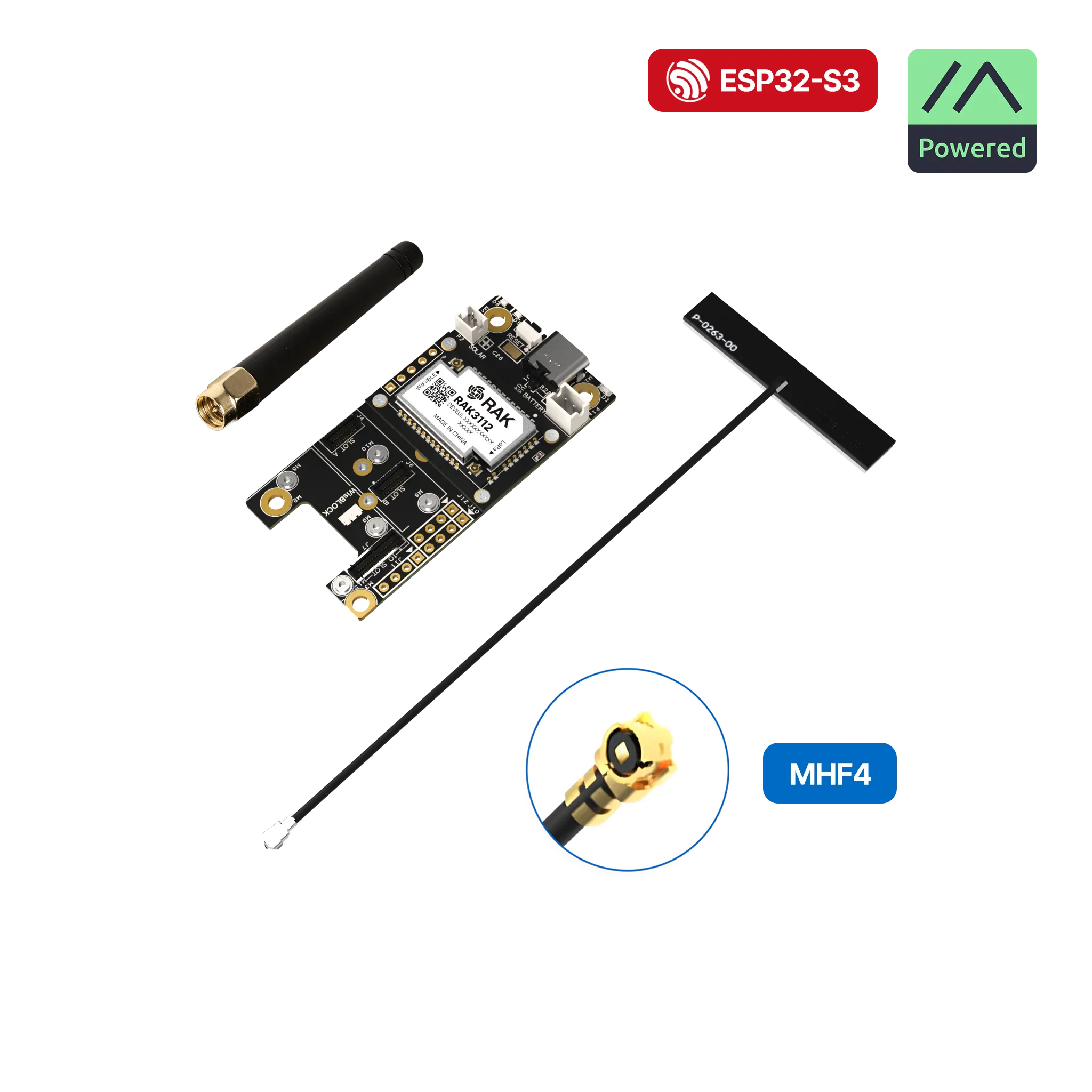

What’s in the Box

• 1pc WisBlock Base
• 1pc RAK3312 WisBlock Core
• 1pc Rubber LoRa Antenna
• 1pc MHF4 to SMA cable for LoRa antenna
• 1pc WiFi/BLE Antenna (MHF4 Connector)
• 1pc USB Cable
• 1pc PCB Antenna for LoRa(MHF4 Connector)
• 1 Screw set
• Select your sensor module before ordering.

How to Get Started with WisMesh RAK3312 Starter Kit

• First Steps for WisMesh RAK3312 Starter Kit
• Overview for WisMesh RAK3312 Starter Kit
• Quick Start Guide for WisMesh RAK3312 Starter Kit
• Guide for WisMesh Setup
• Quick Start Guide for RAK3312 WisBlock LoRaWAN + BLE + WiFi Module
• Datasheet of RAK3312 WisBlock LoRaWAN Module

Frequently Asked Questions

How does the RAK3312 Meshtastic Kit connect within a Meshtastic network?

Each kit acts as a LoRa radio node that relays messages across other nearby nodes to form a mesh. Messages hop automatically between nodes until they reach the target device. This distributed routing structure increases coverage range and reliability without requiring internet connectivity, and when one node is connected online, it can serve as a bridge between the mesh and cloud services.

Does the RAK3312 Meshtastic Kit support the Meshtastic UI?

Yes, the RAK3312 with its ESP32-S3 MCU supports the Meshtastic UI; however, the starter kit does not include the required display with touch capability.

If you want to use the Meshtastic UI, check out our WisMesh Tap V2 (soon to come). WisMesh Tap V2 does support all functions of MUI, including an SD-card to store map files.

Can the kit interoperate with other WisBlock modules or hardware?

Yes. The WisMesh RAK3312 Starter Kit is compatible with the WisBlock ecosystem, enabling direct integration with supported sensors, displays, and IO modules. Modules communicate through standard WisBlock connectors and share power and I2C/SPI buses. Supported modules are listed in the Meshtastic documentation. Proper mechanical stacking and enclosure fitting should be considered when combining multiple peripherals.

Why is the ESP32-S3 used as the core for this Meshtastic Tracker Kit?

The ESP32-S3 offers dual-core processing, WiFi, and BLE connectivity in addition to LoRa through the WisBlock radio module. This architecture enables both mesh communication and local data handling or bridging via WiFi/BLE. It provides better compute capability for node control logic, sensor fusion, and integration with mobile apps or dashboards.

How is data transmitted through the LoRa mesh network?

Each message is packetized, timestamped, and queued for LoRa transmission. Nodes use time-synchronized message forwarding to balance reliability and airtime fairness. Messages propagate via multiple hops until acknowledged or expired. Since transmission duty cycles are managed automatically, the network maintains communication efficiency even with many nodes active.

What roles can a node built from this kit perform?

Depending on the chosen module combination, a node can act as a Client, Meshtastic Router / Repeater, or Tracker. A basic setup handles message relay, while adding a GNSS and accelerometer enables movement tracking. OLED variants display message status or GPS data locally. Function is defined by firmware configuration, not by unique hardware versions. Pick your Meshtastic role and build your kit now.

How can I expand my setup for outdoor or long-term use?

You can use Unify Enclosures to protect devices from moisture and debris. For remote installations, the solar enclosure option supports power autonomy with a compatible panel. Modules such as environment sensors or IO adapters can be added to measure field conditions, and devices can be spaced strategically to sustain coverage across wide outdoor areas. Expand with WisBlock modules today and create your ideal off-grid setup.

What considerations affect network range and reliability?

Range depends on antenna placement, node elevation, and environmental obstructions. A higher node count increases redundancy, while correct antenna polarization and spacing reduce packet loss. Using appropriate enclosures prevents RF detuning caused by conductive surfaces or moisture, maintaining consistent radio propagation in varied terrain.

How is firmware updated or reconfigured?

The RAK3312 Core comes as part of a pre-flashed Meshtastic starter kit, so it’s ready to use right out of the box. No manual flashing required. Users can still update or modify configurations via USB using the Meshtastic Flasher or Meshtastic Designer App. Firmware settings determine node roles, radio region, and network parameters. The update process retains saved configurations when properly executed through the official Meshtastic tools.
