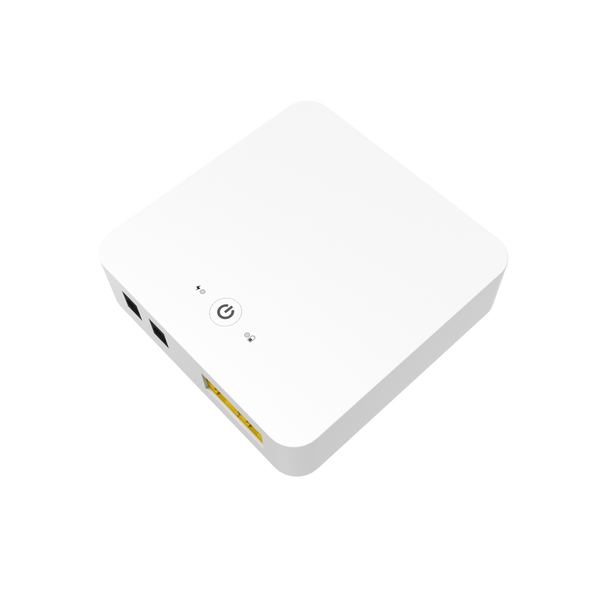

PoE backup UPS for RAK Edge Gateway with PoE output
Compatible with RAK7268V2,RAK7289V2 and RAK7240V2
The POE-03 Mini UPS is a compact and reliable power supply designed to provide uninterrupted power to your devices. It features built-in lithium batteries and a high-grade lithium battery protection IC for enhanced safety and performance. The UPS incorporates intelligent charging control with various charging modes, including trickle current, constant current, constant voltage, and recovery charging. This ensures optimal charging efficiency and extends battery life. With output voltages of 48V 0.23A (PoE), 9V~12V 3A, and 5V 1.5A, the Mini UPS is suitable for a wide range of devices. It offers comprehensive protection against over-charge, over-discharge, over-current, and short-circuit situations. The device features an easy-to-use power switch button and LED indicators for status monitoring. With a battery capacity that can provide up to 2 hours of power during a power outage, the Mini UPS ensures uninterrupted operation.
To provide additional protection to the equipment the UPS for RAK7289V2 or RAK7240V2 comes with a signal surge protection device.
- Output Voltages: 48V 0.23A (PoE), 9V~12V3A (Barrel jack), 5V 1.5A(Barrel jack).
- Charging Control: Trickle current, constant current, constant voltage, recovery charging.
- Charging Input:110-240V AC, Intelligent voltage adjustment for optimal charging.
- Battery Protection: Over-charge, over-discharge, over-current, and short-circuit protections.
- Battery Capacity: Provides up to 2 hours of power during a power outage.
- Compatibility: Ideal for use with RAK7289/V2 WisGate Edge Pro (with PoE power supply) or RAK7268/V2 WisGate Edge Lite 2 (with DC or PoE)
- Rated Capacity：29.6Wh
