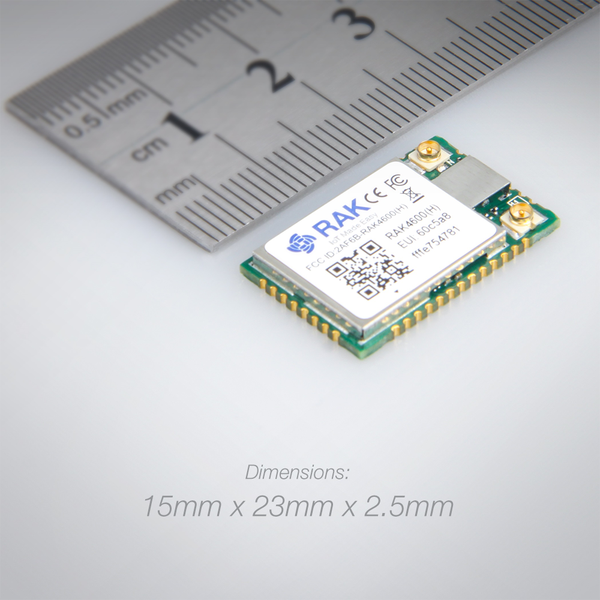

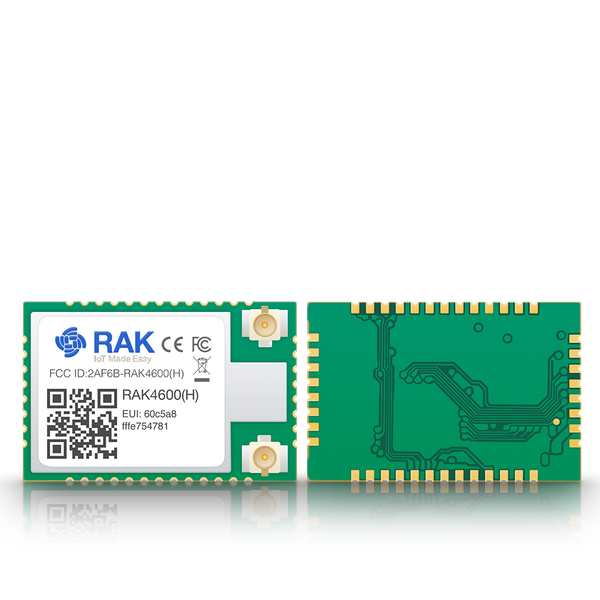

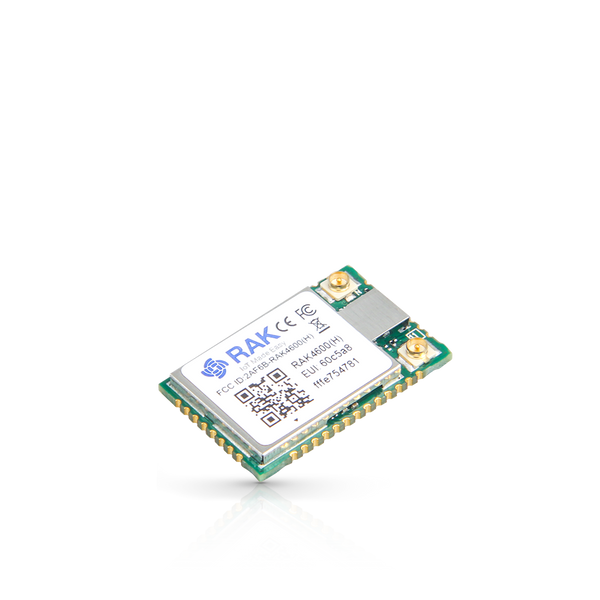

RAK4600 nRF52832 SX1276 LoRa Bluetooth Module for LoRaWAN
Prefer another courier for your delivery? Contact us for special shipping arrangements.
RAK4600 LPWAN Module includes an nRF52832 MCU and an SX1276 LoRa® chip. It has Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V) in sleep mode, high LoRa® output power up to 20dB max in work mode, and BLE output power up to 4dBm.
The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point-to-Point communications. The Module supports BLE 5.0 in addition to LoRa®. Its RF communication capabilities (LoRa® + BLE) make it suitable for a variety of applications in the IoT field.
Complete documentation of this product can be found on our website documentation page.
You can find a comparison table of our LPWAN modules here.
Key Features
- LoRa® module for Smart City, Smart Agriculture, Smart Industry
- I/O ports: UART/I2C/GPIO (optional NFC interface)
- Frequency range: 863 to 923 MHz (entire LoRa® high band spectrum)
- Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
- LoRa® Tx power up to 20dBm
- BLE5.0 (Tx power -20 to +4 dBm in 4dB steps)
- Serial Wire Debug (SWD) interface
- Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V) in sleep mode.
- 512 KB Flash, 64 KB RAM
- Supply voltage: 2.0 ~ 3.6V
- Temperature range: -40°C to +85°C
Packaging
- RAK4600 LPWAN Modules (quantity based on chosen bundle)
Documentation
Become a RAK Affiliate and Earn Today!
Get paid to talk about RAK products! Join the RAK Affiliate program today.
Questions and Answers
-
What is the normal current consumption of RAK4600?
You can see here: https://bit.ly/2wwGcP0
-
What is the maximum distance range RAK4600 module? How to increase the distance like 40+ km in an open sight communication?
As with LoRa nodes this depends on the setup, gateway, environment, etc. I would say around 1km in urban and 15km+ in suburban (LoS). I suggest you measure first, might be able to do 40, depending on the hardware. In general you can increase the range by getting a better atenna.
-
I'm trying to obtain technical documentation for this module (specifically the AT Command definitions, BLE capabilities and usage, and the UART communication settings). When I click the link above to go to the 'website module documentation' at: https://doc.rakwireless.com/rak4600----lora-module, I keep getting redirected to the link: https://doc.rakwireless.com/rak7249----macro-outdoor-gateway. Have the documents (or web links) been moved or broken?
Here is the proper link for the AT commands, together with the rest of the documentation for the RAK4600 EVB: https://doc.rakwireless.com/rak4600-lora---evaluation-board/at-commands-for-rak4600
-
How many SPI ports are available in RAK4600 LoRa® Module?
There are no SPI interfaces availoable, you can use the following link for reference: https://doc.rakwireless.com/datasheet/rakproducts/pin-definition---rak4600-lora-module
-
Do you have LoraWan libraries for the nRF52832 and if you do what memory footprint do they take up in the 52832? I am also looking to use the Segger Embedded Studio development environment with these to add in my own code on top of the Lora Stack is this something that is supported.
We do not have such libraries as of now, at least to my knowledge. However, I advise you to post a topic in the forums. Someone there might be able to help: forum.rakwireless.com
-
Do you have an nrf52840 version of this as I need the larger memory footprint? Do you have a dev kit with this module on board? Do you have lorawan libraries for the nrf52840
You can find the devkit here: https://store.rakwireless.com/products/rak4600-evaluation-board We do not have an nRF52840 version. We do not have LoRaWAN Libraries for the nRF52840 as we have no board with it. Apologies for not being able to help further, perhaps in the future there will be the variation you require.
Product Reviews
ColombiaRAK4600
excelente experiencia.
PhilippinesGood price, good product.
Good price and the hardware is easy to work with along with the documentation. If you have revisions of this board in the future thou or an upgraded version maybe, e.g. higher chip, I suggest you expose some ADC pins. Nordic ADC features and specifications are great! I need to add parts to my BOM because of the missing ADC pin. And if possible expose all the unused pins to the unused castellated holes. An on board BLE antenna in conjunction with the UFL will also be a great addition.
