8 or 16 channel Outdoor LoRaWAN Gateway

RAK7289V2/RAK7289CV2

WisGate Edge Pro

SKU:718091

$372.00

Variant prices start at $372.00 to $525.00.

The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

LoRa Frequency Map Guide

Hover over your region on the map to see local country frequencies.

Quantity

Check out our off-grid power solution Battery Plus

Note: This product does not include the LoRa antenna/s out of the box. Please select them below. 8ch version requires one LoRa antenna, 16ch version requires two LoRa antennas.

Details
Specifications
Documentation
Q/A
Reviews

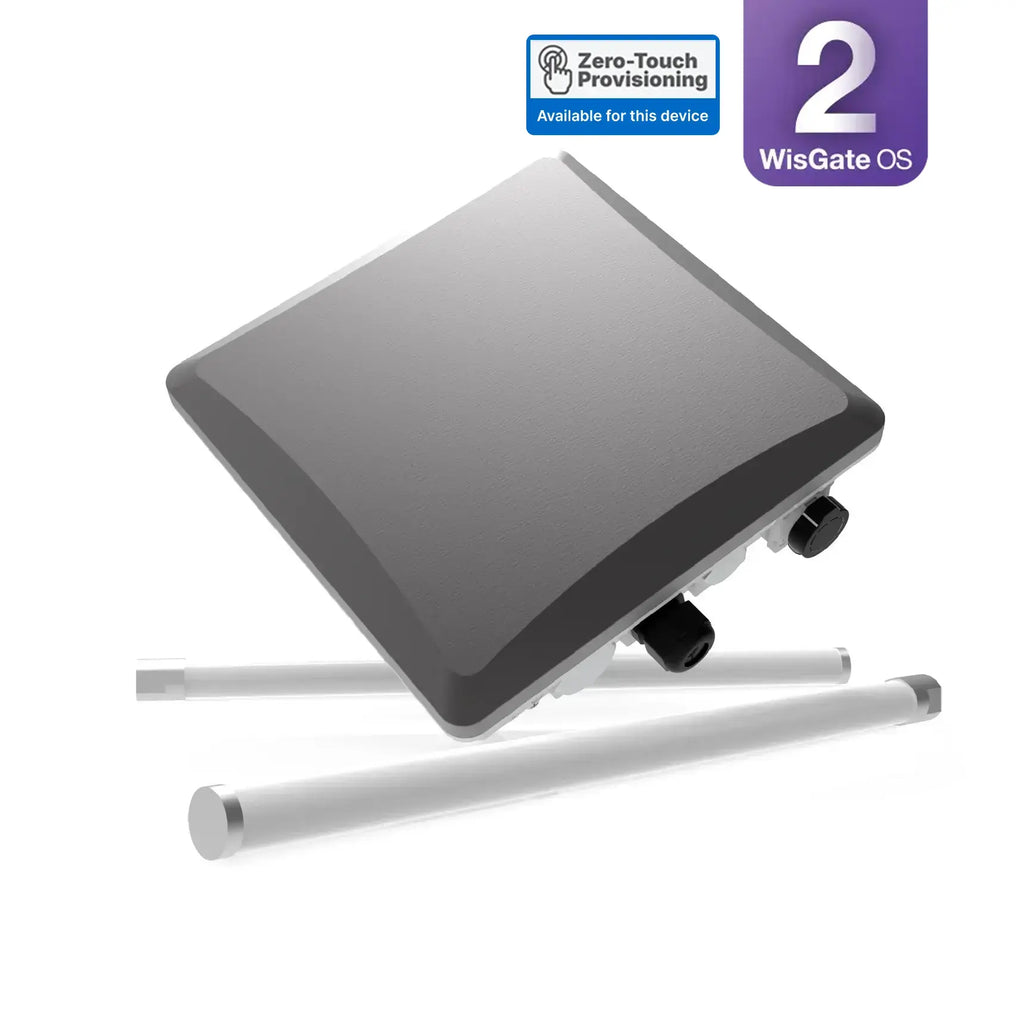

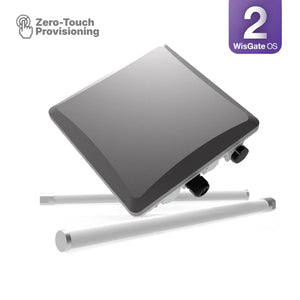

WisGate Edge Pro version 2 (RAK7289V2/RAK7289CV2) is the RAK’s newest outdoor LoRaWAN gateway.

It is based on the latest SX1303 LoRa core, providing better sensitivity and improved performance.

The Gateway is available in 8 or 16-channel versions to help you utilize the maximum of the used LoRaWAN channels in your region.

The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity. Optionally there is a dedicated port for different power options and full integration with RAK Battery Plus off-grid power solution. The gateway’s new enclosure design allows the LTE, Wi-Fi, and GPS antennas to be inside the enclosure.

The gateway can be remotely managed with the WisDM platform.

It comes with the newest WisGateOS 2 which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons – an option to add and manage additional features catering to your need.

The RAK7289V2/RAK7289CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.

Read about the WisGateOS 2.

Supported LoRaWAN Network Servers: ChirpStack v3, TTN/TTS, AWS IoT Core for LoRaWAN, AWS IoT core integration, Actility LNS with Basics Station.

This product is designed to be powered with 12V DC via a dedicated power port. The use of solar chargers is prohibited, as they may provide overvoltage and cause damage to the device. We strongly advise against using such chargers with this product, and any damage caused by using them will void the warranty.

Product Features

Hardware
- IP67/NEMA-6 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators for up to 16 channels
- Backhaul: Wi-Fi, LTE and Ethernet
- GPS
- Supports DC 12V or Battery Plus off-grid system
- Internal antenna for Wi-Fi, GPS, and LTE, External antenna for LoRa
- Dying gasp
Software
- WisGateOS 2
- Extension add-ons
- Built-in Network Server
- LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
- Basics Station and Packet forwarder
- LoRa Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption(compatible with ChirpStack LNS)
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
- Listen Before Talk (optional)
- Fine timestamping (optional)

Need help choosing the right antenna for your gateway?

Find out more in our blog

Package Inclusion

8 or 16 Channel with and without LTE
- 1pc Gateway
- 1pc Ethernet Cable Gland
- 1pc POE Injector
- 1pc Mounting Brackets
- 1set Screws

Note: The LoRa antennas are not included. They need to be bought separately one for the 8-channel gateway and two for the 16-channel one.

Documentation

Questions and Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Reviews

Hardware
Computing	RAK636 SoM, MT7628, DDR2 RAM 128MB, 32MB Flash
LoRa®	8/16 channels support (based on the selected model), SX1303-based LoRa concentrator/s, RX sensitivity: – 139 dBm (min) TX Power: 27 dBm(max), Listen Before Talk N-type female connector/s for the LoRa® antennas
Supported LoRaWAN® Bands	EU868/US915/AS923/AS923-1/AS923-2/AS923-3/AS923-4/AU915/IN865/KR920/ EU433/CN470 (depends on the selected model)
Wi-Fi	Frequency: 2.4 GHz (802.11b/g/n) 2x2 MIMO RX Sensitivity: -95 dBm (Min) TX Power: 20 dBm (Max) Operation channels: 2.4 GHz: 1-13 Built-in antennas.
Cellular (available with RAK7289CV2)	Quectel EG95-E/EG95-NA (IoT/M2M -optimized LTE Cat 4 Module)
EG95-E for EMEA Region (Europe, Middle East and Africa)	LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/EDGE: B3/B8
EG95-NA for North America Region	LTE FDD: B2/B4/B5/B12/B13 WCDMA: B2/B4/B5
EC25-J for Japan	LTE-FDD: B1/B3/B8/B18/B19/B26 LTE-TDD: B41 WCDMA: B1/B6/B8/B19
EC25-AU for Brazil	LTE-FDD: B1/B22/B3/B4/B5/B7/B8/B28; LTE-TDD: B40; WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8 Built-in Cellular antennas.
GPS	Built-in GPS antenna for time synchronization and precise time-based operations
Ethernet	RJ45 Ethernet port with 10/100M support
Power Supply	PoE(Power over Ethernet): (IEEE 802.3af) - 37~57 VDC Dedicated DC power supply port – 12VDC, 1A Battery Plus support with solar and battery monitoring in the WebUI and WisDM
Environmental Characteristics	Operating temperature: -30˚ C to +55˚ C Operating humidity: 0-95% RH non-condensing Storage temperature: -40˚ C to +85˚ C Storage humidity: 0% to 95% (non-condensing)
Notification LEDs	LED 1 (PWR) LED 2 (ETH) LED 3 (LoRa® 1) LED 4 (WLAN) LED 5 (LTE for RAK7268CV2 model) LED 6 (LoRa® 2 for 16-channel model)
Additional	Dying gasp Type C port for debugging Reset/Factory restore button.

Software
WisGateOS2 Firmware	UDP Packet forwarder Basics Station Forwarder Built-In Network Server MQTT and HTTP integration support for the Built-In NS MQTT Bridge ChirpStack V3/V4 MQTT Bridge support WebUI SSH WisGateOS2 Extensions – OpenVPN, Battery Plus status, Wire Guard, Custom UI Logo, etc WisGateOS2 Extensions SDK Wi-Fi Client and AP modes MultiWAN interface watchdog
